XFX R9 380 wrong Bios flash

P4-630 · Sep 14, 2023

Cuz29 said:
cooler master g450m i dont now the pc shuts immediately down and restart

Check your CPU/GPU temperatures before it shuts down.

Cuz29 · Sep 14, 2023

GPU: 49°C CPU: 35°C

P4-630 · Sep 14, 2023

Cuz29 said:
GPU: 49°C CPU: 35°C

That's probably idle, when you doing nothing.

What are the temperatures under stress testing before it shuts down, I saw at least 58C on the GPU while running furmark in your screenshot.

Cuz29 · Sep 14, 2023

P4-630 said:
Check your CPU/GPU temperatures before it shuts d

i need to start the fans manually to cool the card down one fan dont spin at all....

P4-630 said:
That's probably idle, when you doing nothing.

What are the temperatures under stress testing before it shuts down, I saw at least 58C on the GPU while running furmark in your screenshot.

after cooling the card manually

Count von Schwalbe · Sep 14, 2023

It's a legacy product.

These appear to be the latest drivers:

https://drivers.amd.com/drivers/radeon-software-adrenalin-2020-22.6.1-win10-win11-64bit-legacyasics-june23-2022-legacy.exe

The reason you got sub ID mismatch - it currently has a R9 380 BIOS, but the sticker indicates it is a R9 380X. This means it will have a different identifying code than the R9 380 BIOS that is currently on your card. You will have to override this safety using the method that VuurVOS has shown. I cannot guarantee that the BIOS I linked is correct, but it is the best I can do with the limited information available.

If it does not work, you will have to take your card apart and get us some more information.

Cuz29 · Sep 14, 2023

Count von Schwalbe said:
It's a legacy product.

These appear to be the latest drivers:

https://drivers.amd.com/drivers/radeon-software-adrenalin-2020-22.6.1-win10-win11-64bit-legacyasics-june23-2022-legacy.exe

The reason you got sub ID mismatch - it currently has a R9 380 BIOS, but the sticker indicates it is a R9 380X. This means it will have a different identifying code than the R9 380 BIOS that is currently on your card. You will have to override this safety using the method that VuurVOS has shown. I cannot guarantee that the BIOS I linked is correct, but it is the best I can do with the limited information available.

If it does not work, you will have to take your card apart and get us some more information.

i already did it with the r9380x file

VuurVOS · Sep 14, 2023

Count von Schwalbe said:
The reason you got sub ID mismatch - it currently has a R9 380 BIOS, but the sticker indicates it is a R9 380X. This means it will have a different identifying code than the R9 380 BIOS that is currently on your card. You will have to override this safety using the method that VuurVOS has shown. I cannot guarantee that the BIOS I linked is correct, but it is the best I can do with the limited information available.

It is the same bios. Its currently flashed on the card

@Cuz29 Can you flash this bios? Its slightly lower clocked.

Download the vbios from https://www.techpowerup.com/vgabios/231277/231277
Rename file 173888.rom to R9380X_2.rom
Move or copy R9380X_2.rom to c:\atiflash_293

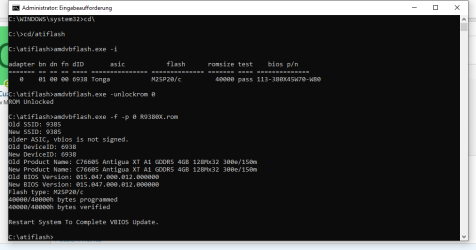

Open cmd line as administrator and execute the following commands:
- cd c:\atiflash_293
- amdvbflash.exe -unlockrom 0
- amdvbflash.exe -f -p 0 R9380X_2.rom
Reboot system

Cuz29 · Sep 14, 2023

VuurVOS said:
It is the same bios. Its currently flashed on the card

@Cuz29 Can you flash this bios? Its slightly lower clocked.

Download the vbios from https://www.techpowerup.com/vgabios/231277/231277

Rename file 173888.rom to R9380X_2.rom

Move or copy R9380X_2.rom to c:\atiflash_293

Open cmd line as administrator and execute the following commands:

cd c:\atiflash_293

amdvbflash.exe -unlockrom 0

amdvbflash.exe -f -p 0 R9380X_2.rom

Reboot system

followed all your steps system is Rebooted

Count von Schwalbe · Sep 14, 2023

VuurVOS said:
It is the same bios. Its currently flashed on the card

Yep, I missed that.

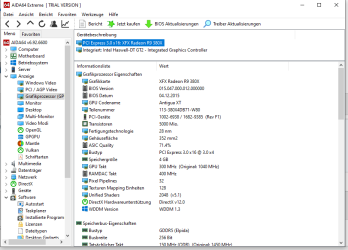

I noticed it is now detecting Elpida VRAM. That BIOS had support for both Elpida and Hynix. I doubt we can reliably find a BIOS without confirming what VRAM is actually on the card.

Cuz29 · Sep 14, 2023

what should i do next?

VuurVOS · Sep 14, 2023

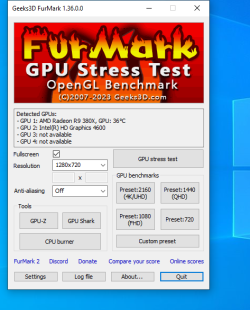

Can you show the output of GPU-Z and then run furmark?

Cuz29 · Sep 14, 2023

VuurVOS said:
Can you show the output of GPU-Z and then run furmark?

when i start furmark the pc get a green screen and restart........

is it my psu?

VuurVOS · Sep 14, 2023

Cuz29 said:
when i start furmark the pc get a green screen and restart........

Does it happens directly? Is the previous bios (the OC bios) working beter?

Cuz29 · Sep 14, 2023

VuurVOS said:
Does it happens directly? Is the previous bios (the OC bios) working beter?

yh directly after i press stress gpu

VuurVOS · Sep 14, 2023

Did the previous bios worked beter?

Cuz29 · Sep 14, 2023

VuurVOS said:
Did the previous bios worked beter?

yes you mean the original?

VuurVOS · Sep 14, 2023

Cuz29 said:
yes you mean the original?

This bios => https://www.techpowerup.com/forums/threads/xfx-r9-380-wrong-bios-flash.313581/#post-5101540

Cuz29 · Sep 14, 2023

VuurVOS said:
This bios => https://www.techpowerup.com/forums/threads/xfx-r9-380-wrong-bios-flash.313581/#post-5101540

is it right?

Cuz29 said:
is it right?

cant load windows on this im on igp now

VuurVOS · Sep 15, 2023

Cuz29 said:
is it right?

cant load windows on this im on igp now

That was the previous vbios which you told it worked until you ran Furmark

Cuz29 · Sep 15, 2023

VuurVOS said:
That was the previous vbios which you told it worked until you ran Furmark

im on the previous right now

VuurVOS · Sep 15, 2023

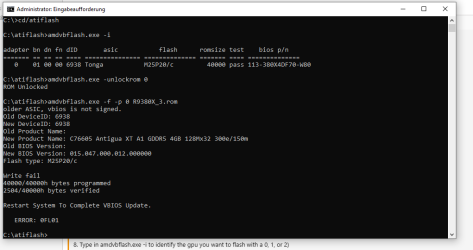

Can you try this bios?

Download the vbios from https://www.techpowerup.com/vgabios/183124/183124
Rename file 183124.rom to R9380X_3.rom
Move or copy R9380X_3.rom to c:\atiflash_293
Open cmd line as administrator and execute the following commands:
cd c:\atiflash_293
amdvbflash.exe -unlockrom 0
amdvbflash.exe -f -p 0 R9380X_3.rom
Reboot system

Cuz29 · Sep 15, 2023

VuurVOS said:
Can you try this bios?

Download the vbios from https://www.techpowerup.com/vgabios/183124/183124

Rename file 183124.rom to R9380X_3.rom

Move or copy R9380X_3.rom to c:\atiflash_293

Open cmd line as administrator and execute the following commands:

cd c:\atiflash_293

amdvbflash.exe -unlockrom 0

amdvbflash.exe -f -p 0 R9380X_3.rom

Reboot system

sure

Count von Schwalbe · Sep 15, 2023

From our local guru:

This is alternate way:

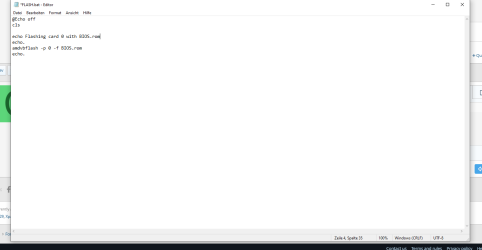

Create a new text file in your ATIFlash directory, name it FLASH.bat, and place this code into it:

@Echo off
cls

echo Flashing card 0 with BIOS.rom...
echo.
amdvbflash -p 0 -f BIOS.rom
echo.

pause
Assuming the new BIOS you want to flash onto your card is named BIOS.rom, this is the BIOS it will use for flashing.

Save your changes, then run the batch file by double-clicking on it.

Once you've received a success message, reboot your computer for the new BIOS to come into effect. If you can boot into Windows successfully, then that's good!

Note that BIOS.rom must match the name of the BIOS you downloaded.

Cuz29 · Sep 15, 2023

Count von Schwalbe said:
From our local guru:

Note that BIOS.rom must match the name of the BIOS you downloaded.

right and run cmd again for flash?

Count von Schwalbe · Sep 15, 2023

Cuz29 said:
right and run cmd again for flash?

If the downloaded BIOS is named BIOS.rom, save the file as a .bat. Then right click and run the batch file. Reboot.
