ASRock and XFX Radeon RX 7900-series Custom Design Cards Leak

Joined
Nov 11, 2004
Messages
13,149 (1.97/day)
Location
Sweden
System Name Overlord Mk MXX
Processor AMD Ryzen 7 5800X
Motherboard Gigabyte X570 Aorus Master
Cooling Noctua NH-D15 SE AM4
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 2TB Kingston KC3000
Display(s) Acer XV272K LVbmiipruzx 4K@160Hz
Case Fractal Design Focus 2 Solid
Audio Device(s) Corsair Virtuoso SE
Power Supply Seasonic Focus GX 750W
Mouse Logitech G502 Lightspeed
Keyboard Svive Triton Pro
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/33u9si

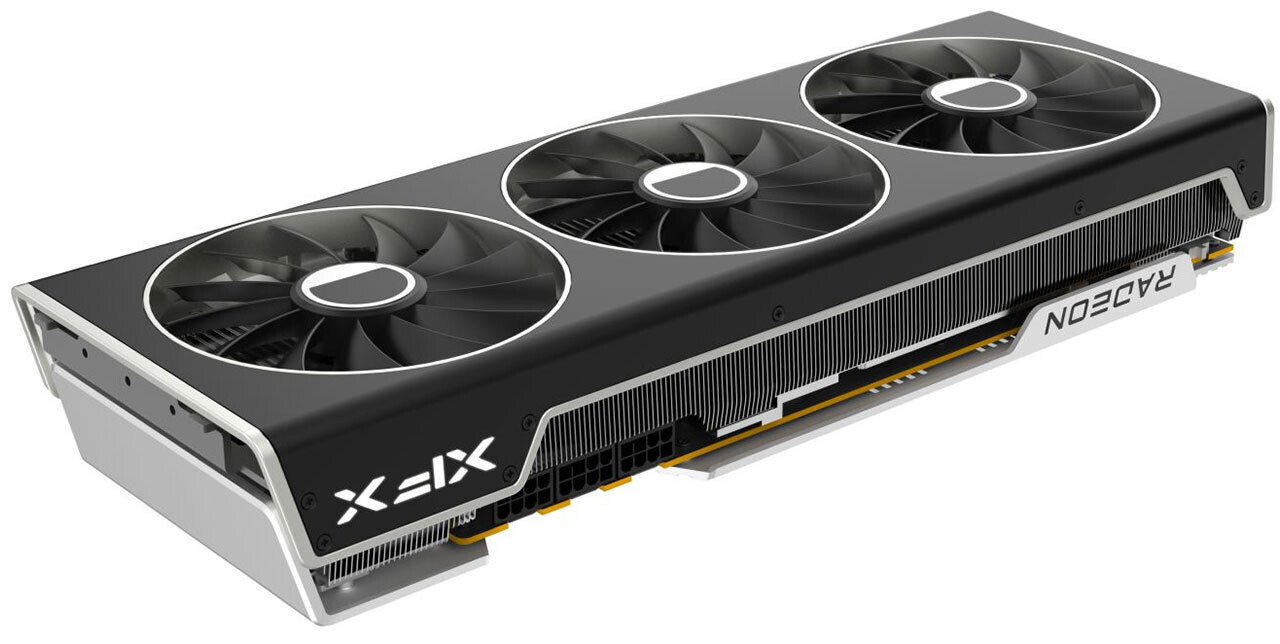

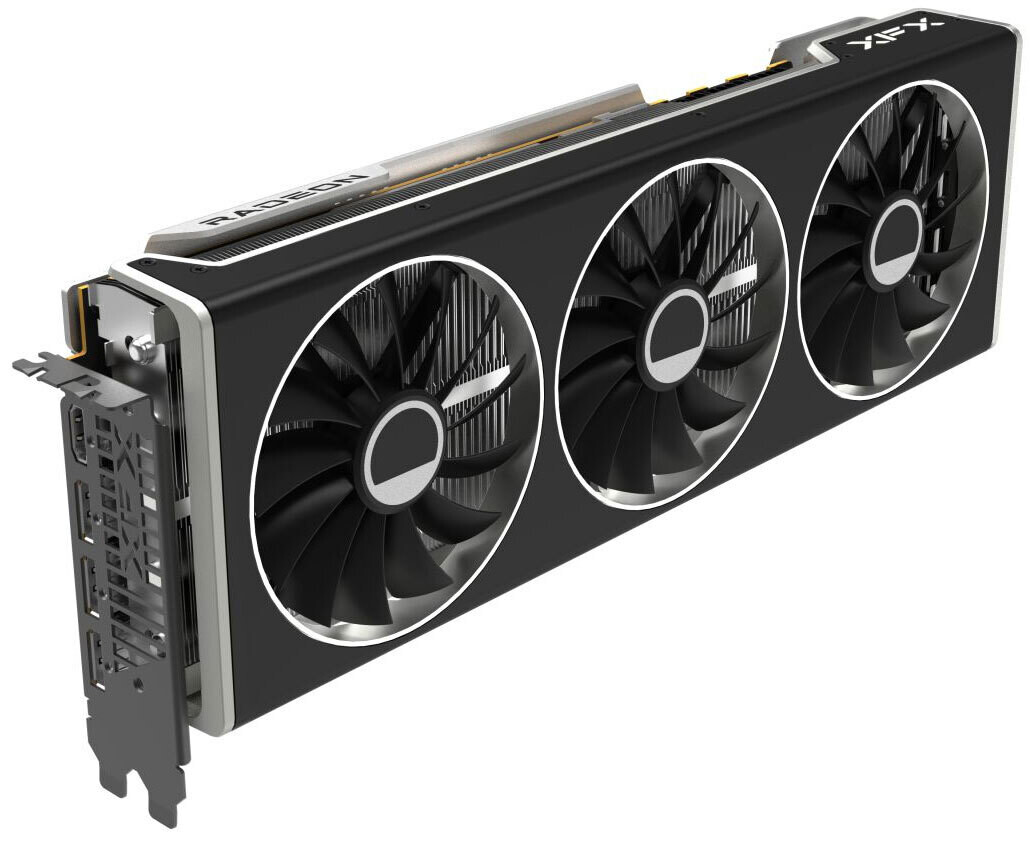

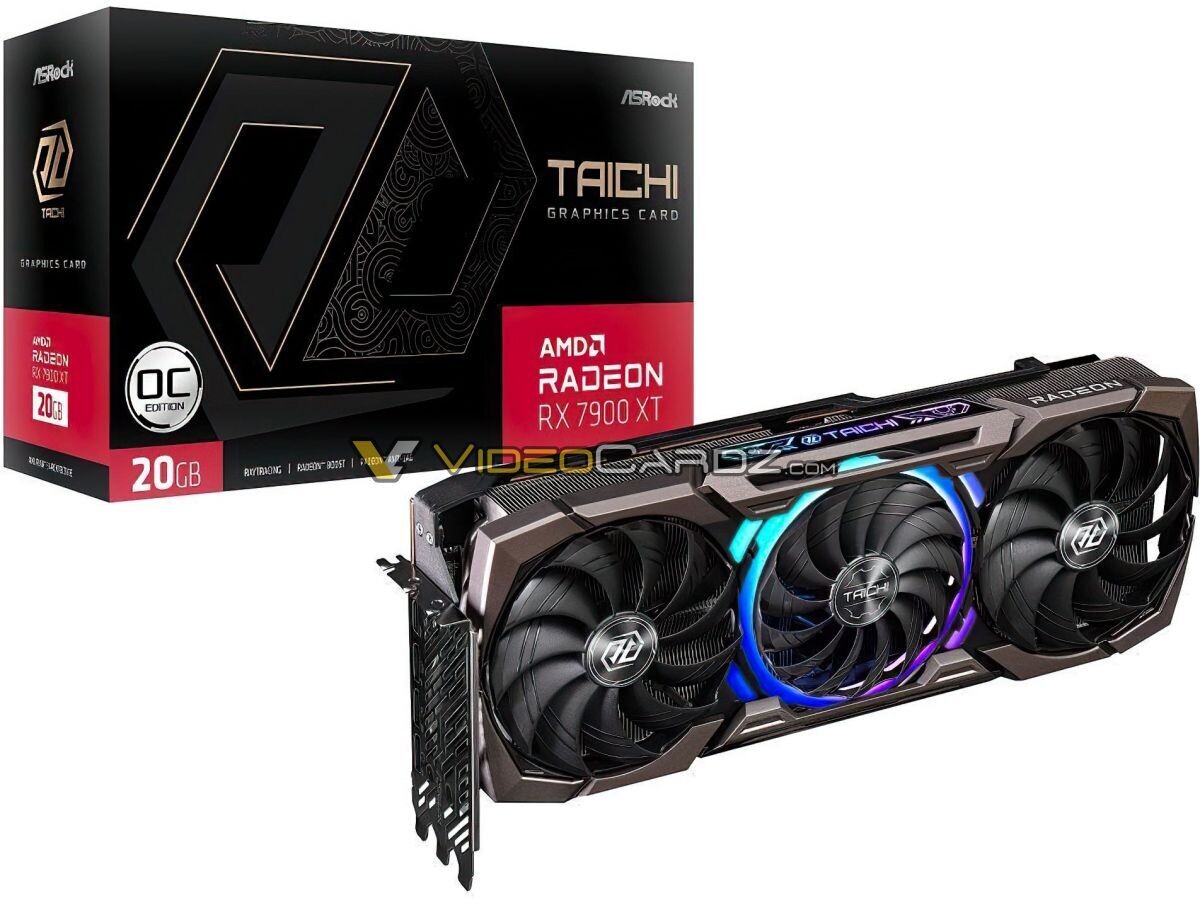

As we're getting closer to the official launch date, pictures of AMD Radeon RX 7900-series cards from both ASRock and XFX have tipped up online. The ASRock cards are part of its Phantom Gaming and Taichi series of cards, whereas the XFX card is part of the MERC line. Sadly none of the cards appear to sport a USB-C port, suggesting that it's not a feature that any of the OEM's have thought worthwhile to include in their custom board designs.

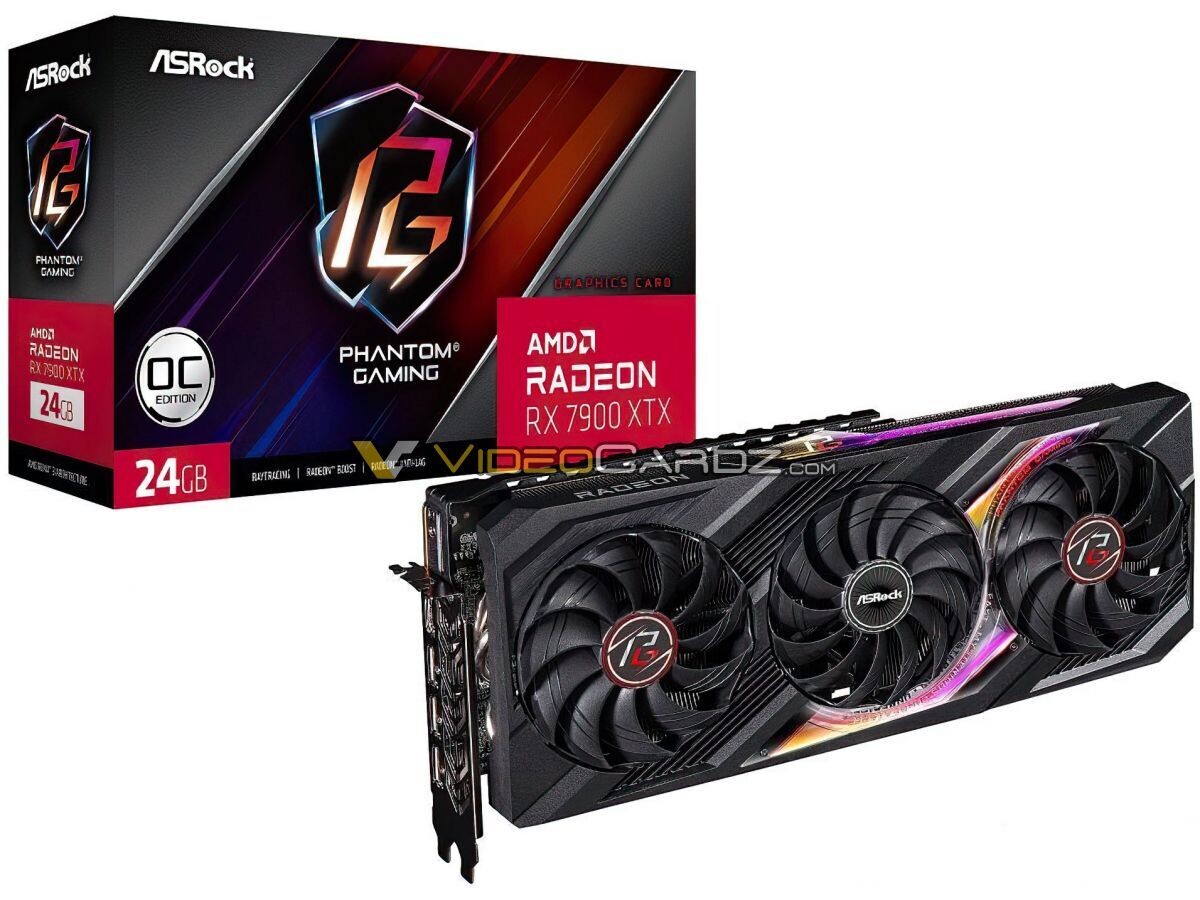

The ASRock Phantom Gaming cards appear to be 2.5-slot cards, whereas the Taichi cards are triple slot. The Phantom Gaming cards seem to be equipped with a short backplate that only covers the rear of the PCB, rather than the full length of the card, with the Taichi cards seemingly having a full-length backplate. The XFX MERC 310 also appears to be a 2.5-slot design, but it has a very different backplate design which appears to act much more as a heatsink than most backplate designs we've seen to date. The fact that it appears to be made of a large chunk of aluminium that wraps around the back edge of the card is also rather unusual. XFX also appears to have gone with the same size for its RX 7900 XT and RX 7900 XTX cards. We can also see that XFX has gone for three 8-pin power connectors for their cards.
