Board Power Limit

LUIDABOSS · Nov 13, 2024

I have an rx 580 2048sp which is underperforming and I'm guessing its to do with my board power limit being set to only 100watts. Does anyone know how to fix his?

eidairaman1 · Nov 13, 2024

Get a pic of graphics tab, also since you are in advanced tab, find what ram is specified on your card please, post it here too.

LUIDABOSS · Nov 13, 2024

Is this good

LUIDABOSS · Nov 13, 2024

eidairaman1 said:
Get a pic of graphics tab, also since you are in advanced tab, find what ram is specified on your card please, post it here too.

Forgot to reply

eidairaman1 · Nov 14, 2024

Ok

LUIDABOSS said:
Forgot to reply

In advanced tab find the ram info that states Samsung, there are many types of Samsung, Hynix, Micron, Elpida Ram.

LUIDABOSS · Nov 14, 2024

eidairaman1 said:
Ok

In advanced tab find the ram info that states Samsung, there are many types of Samsung, Hynix, Micron, Elpida Ram.

What is that under?

eidairaman1 · Nov 14, 2024

Ok in GPU-Z Go to Advanced Tab and click the V next to the word General, change to the different options there, scroll down in the program if you have to.

Samsung Ram have 2 alphabetical characters at the end such as FB, FC, FD, FE etc.

Hynix are AJR or MJR

Micron is HF or HFB

LUIDABOSS said:
What is that under?

LUIDABOSS · Nov 14, 2024

eidairaman1 said:
Ok in GPU-Z Go to Advanced Tab and click the V next to the word General, change to the different options there, scroll down in the program if you have to.

Samsung Ram have 2 alphabetical characters at the end such as FB, FC, FD, FE etc.

Hynix are AJR or MJR

Micron is HF or HFB

Is that what you are looking for?

eidairaman1 · Nov 14, 2024

LUIDABOSS said:
Is that what you are looking for?

Yes, TDP is the limit as to what the cooling solution can handle fyi.

Im looking at some files

LUIDABOSS · Nov 14, 2024

eidairaman1 said:
Yes, TDP is the limit as to what the cooling solution can handle fyi.

Im looking at some files

I know but I just know it should draw more than 100

VuurVOS · Nov 14, 2024

LUIDABOSS said:
I know but I just know it should draw more than 100

Can you make clear pictures (labels, top & bottom side) of the card? This to identify if it is a china card or regular card of a decent brand.

LUIDABOSS · Nov 14, 2024

VuurVOS said:
Can you make clear pictures (labels, top & bottom side) of the card? This to identify if it is a china card or regular card of a decent brand.

I can do that in the morning

eidairaman1 · Nov 14, 2024

VuurVOS said:
Can you make clear pictures (labels, top & bottom side) of the card? This to identify if it is a china card or regular card of a decent brand.

Vieneda is the first bios to come up typically, we dont have 1 that is designated 2048 sp under AMD Branding files with 0000 as the sub sys id, there is a rx 570 with the ram and the 0000 designation.

Most likely a 0B31 card

LUIDABOSS · Nov 14, 2024

eidairaman1 said:
Vieneda is the first bios to come up typically, we dont have 1 that is designated 2048 sp under AMD Branding files with 0000 as the sub sys id, there is a rx 570 with the ram and the 0000 designation.

Most likely a 0B31 card

is there anything else you need?

VuurVOS · Nov 14, 2024

eidairaman1 said:
Vieneda is the first bios to come up typically, we dont have 1 that is designated 2048 sp under AMD Branding files with 0000 as the sub sys id, there is a rx 570 with the ram and the 0000 designation.

Most likely a 0B31 card

Could be another Sapphire card like this thread:

RX580 2048SP Game Revolution vBIOS

Good afternoon all, I would really like some assistance in finding the right vBIOS for my Chinese Aliexpress GPU :) I bought an RX580 but it seems its a 2048SP version, totally incompatible with Hackintosh. The ASIC is 215-0910052 indicating a RX570 ? I have 2x HDMI and 2x DP outputs. The...

www.techpowerup.com

It shares the same bios

LUIDABOSS · Nov 14, 2024

VuurVOS said:
Could be another Sapphire card like this thread:

RX580 2048SP Game Revolution vBIOS

Good afternoon all, I would really like some assistance in finding the right vBIOS for my Chinese Aliexpress GPU :) I bought an RX580 but it seems its a 2048SP version, totally incompatible with Hackintosh. The ASIC is 215-0910052 indicating a RX570 ? I have 2x HDMI and 2x DP outputs. The...

www.techpowerup.com

It shares the

My one looks the same as the one in the thread

VuurVOS · Nov 14, 2024

LUIDABOSS said:
My one looks the same as the one in the thread

This bios should be compatible: https://www.techpowerup.com/vgabios/235048/sapphire-rx570-8192-191031

You need to use amdvbflash 2.93 to do a cross flash to a RX570
Are there downsides? Not really since a RX580 2048SP is actually a RX570 in disguisse

For RX 500 Series (Polaris) and Older:

Get amdvbflash 2.93

https://www.techpowerup.com/download/ati-atiflash/

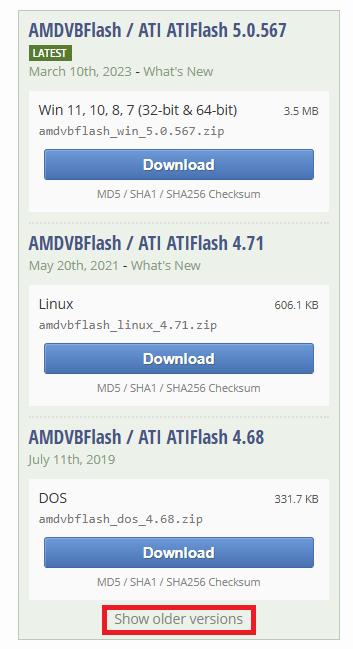

Then look for Version 4.68, underneath 4.68 you will see a link to show older version, click that and you should see version 2.93

Follow these steps carefully:

1. Open your "C:" drive in Windows, create a new folder, call it atiflash.

2. Extract the contents of atiflash_293.zip to the "C:\atiflash" folder

3. Find the bios file you downloaded and rename the bios file to 5 digits with .rom on end Example RX 580, change file to rx580.rom (r****.rom)

4. Move r****.rom to the "C:\atiflash" folder

5. Open the start menu, type cmd, when cmd.exe appears right click it and hit "Run as administrator"

6. At the command prompt type in cd\ and press enter until only C:\> is on the screen.

7. Type in cd/atiflash and press enter, you should see C:\atiflash>

8. Type in amdvbflash.exe -i to identify the gpu you want to flash with a 0, 1, or 2)

9. At the C:\atiflash> prompt type in
amdvbflash.exe -unlockrom 0
(there is a space between the e and -unlockrom and 0)(0 is the number zero)
press enter and you will be prompted that the "ROM Unlocked" (or 1, 2)

10. At the C:\atiflash> prompt type in
amdvbflash.exe -f -p 0 r****.rom
(there is a space between the .exe and -f, and a space between -f and -p and 0).
(Or 1, 2)

Press Enter

Follow directions on screen and if flash is successful exit the command prompt and restart, windows should show up on screen.

LUIDABOSS · Nov 14, 2024

VuurVOS said:
This bios should be compatible: https://www.techpowerup.com/vgabios/235048/sapphire-rx570-8192-191031

You need to use amdvbflash 2.93 to do a cross flash to a RX570
Are there downsides? Not really since a RX580 2048SP is actually a RX570 in disguisse

I go to the 2.93 and it doesn't show a download button

VuurVOS · Nov 14, 2024

LUIDABOSS said:
I go to the 2.93 and it doesn't show a download button

You need to follow the guide.

look for Version 4.68, underneath 4.68 you will see a link to show older version, click that and you should see version 2.93

=>
