Building Home Network Suggestions ?

Durvelle27

Moderator
Staff member
Joined
Jul 10, 2012
Messages
6,050 (1.94/day)
Location
Memphis, TN
System Name Black Prometheus
Processor AMD Ryzen 7 5800X
Motherboard ASRock B550M Pro4
Cooling ID Cooling Auraflow 360 Snow Edition
Memory Oloy 32GB(2x16GB) DDR4 3600MHz CL18
Video Card(s) XFX RX 6800 XT Merc Speedster 319
Storage Sandisk X300 512GB + WD Black 6TB+WD Black 6TB
Display(s) LG Nanocell85 49" 4K 120Hz+3x 24" 1200P Monitors
Case DeepCool Matrexx 55 V3 w/ 6x120mm Intake + 3x120mm Exhaust
Audio Device(s) LG Dolby Atmos
Power Supply Gigabyte P750 750W Fully Modular
Mouse Logitech Trackman
Keyboard Dell OEM
Software Windows 10 EDU x64
What's up fellow TPUers :lovetpu:

Need a little nudge in the right direction in terms of building a strong dedicated network at home. The plan is to have dedicated wiring to all rooms and a strong WIFI signal through out. For my ISP I have Xfinity with the Unlimited Gigabit Pro plan which is 1000/1000.

In my head the idea is to run 4 Cat6 cables to each room total 6 rooms for devices that beenfit from wire (ie. Consoles and desktops).In terms of wiring is Cat6 ideal or is it better to go Cat6a.

For all the connectivity I'd be using a Dell Power Connect 24 port Gigabit 1U Switch. I don't have a patch panel but is one really needed ?

I'm also going to use a 1U Supermicro Server to handle our storage or transcoding for Plex

I guess what has me really hung up is wireless. There are so many different routers out there all flashy but what is a decent router that offers good coverage and is AX compatible. The plan is to use my XB7 Router and a second router in conjunction to cover the whole house




Kursah

Super Moderator
Staff member
Joined
Oct 15, 2006
Messages
13,605 (2.61/day)
Location
Missoula, MT, USA
System Name Kursah's Gaming Rig 2018 - Ryzen+ Edition | SpartanCore | SpartanCore2
Processor R7 2700X @ Stock (3.7/4.35) w/PBO+XFR2 | i7 3770 3.4/3.9 Stock | i7 4770 3.4/3.9 Stock
Motherboard Asus ROG Strix X370-F Gaming | Intel DQ77MK | SuperMicro X10SLQ
Cooling Noctua NH-U14S Push-Pull + NT-H1 | Stock Intel Cooler + AC MX4 | Stock Intel Cooler + AC MX4
Memory 16GB (2x8) G.Skill DDR4-3200 | 16GB (4x4) Samsung DDR3-1600 | 32GB (4x8) Mushkin Stealth DDR3-1600
Video Card(s) MSI GTX980 Ti Gaming 6G LE @ Stock | Onboard Intel HD 4000 | Onboard Intel HD 4600
Storage SSD 250GB + 960GB, 1x2TB | 120GB SSD, RAID10 6x2TB (6TB) | 120GB SSD, RAID10 6x3TB (9TB)
Display(s) Samsung 32" TV IPS 1080p, Dell 23" U2312HM IPS 1080p | 19" Dell on KVM..mostly headless operation.
Case Corsair 600C - Stock Fans on Low | Lian Li Lancool PC-K7 - Cougar fans | Modified Lenovo TS430 Case
Audio Device(s) Aune T1 mk1 > AKG K553 Pro + HiFiMAN HE-350 (Equalizer APO + PeaceUI) | Not in use
Power Supply EVGA 750G2 Modular + APC Back-UPS Pro 1500 | EVGA KR500 80+ Bronze (Both) + APC Smart-UPS 1500
Mouse Logitech G502 | Dell USB Laser Mouse (KVM)
Keyboard Logitech G15 rv2 | Dell USB Keyboard (KVM)
Software Windows 10 Pro x64 | Windows Server 2012 R2 (Hyper-V) | Windows Server 2016 (Hyper-V)
Congrats on getting into this! I can't wait to do the same in the future.

I'd look at a decent router option, be it from Ubiquiti, Netgate/pfSense (or build your own pfSense or opnsense box), SonicWALL, Sophos, etc., don't get a combo unit. I would bypass the XB7 (assuming that's the ISP unit?) and see if you can either:

A. Have them provide a modem only or you provide a modem only solution that they allow on their network.
B. If they want to keep the modem/router combo, have them enable bridge-mode so that your provided router is the acting gateway for your network.

Running two routers in a row presents a double-NAT situation which could lead to some broken sessions, routes, etc. More often these days its all pretty transparent and error-free, but can add latency and issues not as easily diagnosed when one forgets a double-NAT environment exists. Try to avoid it and you'll avoid potential future headaches. I also find ISP-provided routers are woefully insufficient for gateway security, QoS, routing, and generally only do basic port forwarding. Get something decent.

For home-use I prefer Ubiquity gateways or pfSense/opnsense options. I personally built an m-ITX system that's my pfSense router. Cost me about $350 back in 2016, still runs like a champ, I have extra security and filtering stuff enabled, doesn't even skip a beat. I decided to leave the wifi stuff out of it and go separate. Its nice management-wise to have that separated. The router can still be the DHCP server and DNS relay for the LAN and WiFI. But say the WiFi fails, at least your Ethernet still works, sometimes with combos, if one component fails, the entire device fails...which I've had happen to me. Also most all-in-one router/wifi combos are usually insufficient in processing power, wifi strength, security and overall packet throughput and performance. You want to maximize that gigabit WAN, you'll likely want more business-grade hardware that's built for that kind of bandwidth. Fortunately Ubiquity and pfSense gear is generally more affordable than the likes of Cisco, SonicWALL, Sophos, Fortinet, etc.

Good wifi coverage comes from having a good wifi system. Depending on the size of your house, dedicated wireless access points or even a decent mesh system will ensure you have the coverage you need. Separating it physically from the router is a good idea IMHO if you're going into this sort of home poweruser network territory. A cool thing would be having a PoE (Power over Ethernet) switch to power the AP's through the Ethernet cables, 1 cable for data and power makes installs nicer.

The switch should suffice quite nicely for home-use for a long time.

I do recommend doing it right and using a patch panel. You label/number the runs on the panel, and that keeps things clean, organized. Patch cables 1'-3' are dirt cheap or easy to make if you have the time. You can use different colors to identify different things like WAN, WiFi, workstation, etc. Check out r/homelab if you want to see some crazy setups.

It really depends on how far down the rabbit hole you want to go, how much work you want to do now and maintain later, some things you skimp on now could cost you in time and money later, or maybe not at all until you move.

I like using Ubiquity UniFi HD and nano-HD access points, they're reliable, affordable (when considering they're business/education-grade), and easy to manage. You will need a separate device or virtual appliance to manage them, but that's really not a big deal since you'll have a rack mounted server. I would assume you're running virtualization?

Have you considered backup solutions for that server as well? Better safe than sorry.

I know this post probably didn't help all that much, but hopefully it gives you some ideas and spurs some more questions so you can make your plan that much more clear when you go to act on it. :toast:

Also @Solaris17 is an excellent resource in this area.

:toast:

Joined
Feb 9, 2020
Messages
119 (0.34/day)
Location
Panama City Beach, Florida
System Name Robs Singularity
Processor Intel Core i9-7960X
Motherboard GIGABYTE X299 DESIGNARE EX
Cooling Thermaltake Floe Riing RGB 280mm Premium Edition Liquid
Memory Adata DDR4 PC4-23900 32GB
Video Card(s) ASUS TURBO GTX 1080 x2 SLi
Storage Samsung SSD 980 PRO 512GB C:\
Display(s) LG 34''
Case Azza Full Tower
Audio Device(s) Asus Strix w/Alan Finote mod for Windows 10
Power Supply Corsair 1000
Mouse Steelseries Rival 600 wired
Keyboard Steelseries Apex 7 TKL red Switch
Software Win 10 Pro
Whats the budget for the router?

Joined
May 28, 2020
Messages
480 (1.95/day)
System Name Main PC
Processor AMD Ryzen 9 5950X
Motherboard ASUS X570 Crosshair VIII Hero (Wi-Fi)
Cooling EKWB X570 VIII Hero Monoblock, 2x XD5 pump/res, Heatkiller IV SB block for chipset
Memory 4x16GB 3200-14-14-14-34 G.Skill Trident RGB (OC: 3600-14-14-14-28)
Video Card(s) ASUS RTX 3070 TUF OC
Storage Corsair Force LE SSD 500GB, Fusion IoDrive 2 1TB, Huawei HSSD 2TB, 11TB on server used for steam
Display(s) 1x Dell U2913WM 2560x1080 75Hz, 1x BENQ XL2411Z 1920x1080 100Hz, 1x Acer XB1 xb271hu 2560x1440 144Hz
Case Corsair 1000D
Audio Device(s) Sennheiser HD599, Blue Yeti
Power Supply Corsair RM1000i
Mouse Logitech G502 Lightspeed
Keyboard Corsair Strafe RGB MK2
Software Windows 10 Pro 2004
Are two routers necessary? Would a secondary access point not be the better solution? I use a ubiquiti unify ac-lr for our downstairs (and one upstairs) and it works great. PfSense box handles router-duties


Durvelle27

Moderator
Staff member
Joined
Jul 10, 2012
Messages
6,050 (1.94/day)
Location
Memphis, TN
System Name Black Prometheus
Processor AMD Ryzen 7 5800X
Motherboard ASRock B550M Pro4
Cooling ID Cooling Auraflow 360 Snow Edition
Memory Oloy 32GB(2x16GB) DDR4 3600MHz CL18
Video Card(s) XFX RX 6800 XT Merc Speedster 319
Storage Sandisk X300 512GB + WD Black 6TB+WD Black 6TB
Display(s) LG Nanocell85 49" 4K 120Hz+3x 24" 1200P Monitors
Case DeepCool Matrexx 55 V3 w/ 6x120mm Intake + 3x120mm Exhaust
Audio Device(s) LG Dolby Atmos
Power Supply Gigabyte P750 750W Fully Modular
Mouse Logitech Trackman
Keyboard Dell OEM
Software Windows 10 EDU x64
Congrats on getting into this! I can't wait to do the same in the future.

I'd look at a decent router option, be it from Ubiquiti, Netgate/pfSense (or build your own pfSense or opnsense box), SonicWALL, Sophos, etc., don't get a combo unit. I would bypass the XB7 (assuming that's the ISP unit?) and see if you can either:

A. Have them provide a modem only or you provide a modem only solution that they allow on their network.
B. If they want to keep the modem/router combo, have them enable bridge-mode so that your provided router is the acting gateway for your network.

Running two routers in a row presents a double-NAT situation which could lead to some broken sessions, routes, etc. More often these days its all pretty transparent and error-free, but can add latency and issues not as easily diagnosed when one forgets a double-NAT environment exists. Try to avoid it and you'll avoid potential future headaches. I also find ISP-provided routers are woefully insufficient for gateway security, QoS, routing, and generally only do basic port forwarding. Get something decent.

For home-use I prefer Ubiquity gateways or pfSense/opnsense options. I personally built an m-ITX system that's my pfSense router. Cost me about $350 back in 2016, still runs like a champ, I have extra security and filtering stuff enabled, doesn't even skip a beat. I decided to leave the wifi stuff out of it and go separate. Its nice management-wise to have that separated. The router can still be the DHCP server and DNS relay for the LAN and WiFI. But say the WiFi fails, at least your Ethernet still works, sometimes with combos, if one component fails, the entire device fails...which I've had happen to me. Also most all-in-one router/wifi combos are usually insufficient in processing power, wifi strength, security and overall packet throughput and performance. You want to maximize that gigabit WAN, you'll likely want more business-grade hardware that's built for that kind of bandwidth. Fortunately Ubiquity and pfSense gear is generally more affordable than the likes of Cisco, SonicWALL, Sophos, Fortinet, etc.

Good wifi coverage comes from having a good wifi system. Depending on the size of your house, dedicated wireless access points or even a decent mesh system will ensure you have the coverage you need. Separating it physically from the router is a good idea IMHO if you're going into this sort of home poweruser network territory. A cool thing would be having a PoE (Power over Ethernet) switch to power the AP's through the Ethernet cables, 1 cable for data and power makes installs nicer.

The switch should suffice quite nicely for home-use for a long time.

I do recommend doing it right and using a patch panel. You label/number the runs on the panel, and that keeps things clean, organized. Patch cables 1'-3' are dirt cheap or easy to make if you have the time. You can use different colors to identify different things like WAN, WiFi, workstation, etc. Check out r/homelab if you want to see some crazy setups.

It really depends on how far down the rabbit hole you want to go, how much work you want to do now and maintain later, some things you skimp on now could cost you in time and money later, or maybe not at all until you move.

I like using Ubiquity UniFi HD and nano-HD access points, they're reliable, affordable (when considering they're business/education-grade), and easy to manage. You will need a separate device or virtual appliance to manage them, but that's really not a big deal since you'll have a rack mounted server. I would assume you're running virtualization?

Have you considered backup solutions for that server as well? Better safe than sorry.

I know this post probably didn't help all that much, but hopefully it gives you some ideas and spurs some more questions so you can make your plan that much more clear when you go to act on it. :toast:

Also @Solaris17 is an excellent resource in this area.

:toast:
To my knowledge Comcast doesn't offer just a modem only the Modem/Router Combo
Bridge Mode can be enabled by me no need to call up the ISP

And I chose to use their Combo as its cheaper. With using their modem I receive unlimited data versus if I use my own I have to pay extra for it and it get's costly when you exceed over a TB every month

Whats the budget for the router?
I'd say no more than $500

Are two routers necessary? Would a secondary access point not be the better solution? I use a ubiquiti unify ac-lr for our downstairs (and one upstairs) and it works great. PfSense box handles router-duties
Not necessary i just did it to work like a mesh but the router I have now is old and is crapping out. the XB7 wifi is decent but doesn't have a strong reach due to the internal antennas


phill

Moderator
Staff member
Joined
Jun 8, 2011
Messages
9,221 (2.62/day)
Location
Somerset, UK
System Name Not so complete or overkill
Processor Ryzen 3900X
Motherboard Asus Crosshair 8 Hero (Non Wi-Fi)
Cooling Air :(
Memory Patriot 3200MHz 64GB
Video Card(s) 2 x EVGA GTX 1080 Ti SC Black Edition
Storage 1 250GB Crucial SSD for OS/Programs, 2 500GB Crucial SSD for Steam and Epic stores
Display(s) 3 x 23" LG IPS panels (can't remember model!!)
Case 10mm thick MDF on plastic risers.. It's kinda a case??
Audio Device(s) Onboard
Power Supply EVGA P2 1200w
Mouse Corsair thingy
Keyboard Logitec K120......
Software Windows 10
Benchmark Scores I've actually never benched it!! Too busy with WCG and FAH and not gaming!! :( :(
Subbing as I need to do a bit of thinking when I move home and this might be a good place to start :)


Solaris17

Dainty Moderator
Staff member
Joined
Aug 16, 2005
Messages
22,002 (3.90/day)
Location
Florida
System Name Venslar
Processor I9 7980XE
Motherboard MSI x299 Tomahawk Arctic
Cooling EK Custom
Memory 32GB Corsair DDR4 3000mhz
Video Card(s) Nvidia Titan RTX
Storage 1x 250GB 960 EVO | 1x 500gb Intel 720p | 32TB SAN
Display(s) 3x AOC Q2577PWQ (2k IPS)
Case Inwin 303 White (Thermaltake Ring 120mm Purple accent)
Audio Device(s) Schiit Fulla 3 on Beyerdynamic DT 990 Pros
Power Supply Seasonic 1050W Snow
Mouse Roccat Kone Aimo White
Keyboard Ducky Shine 6 Snow White
Software Windows 10 x64 Pro
I think @Kursah really hit it. I would go with opnsense or ubiquiti and would reccomend access points from the same as opposed to a router.

If you have already ran into reach issues with halfway decent equipment then more of the same wont fix it. The idea here is more coverage not amplifying the broadcast.

I think you would be happier with this setup in the long run, as its more modular should something fail, but more importantly, its more easily adjusted if you want the stack in a different room, or decide to move house all together.

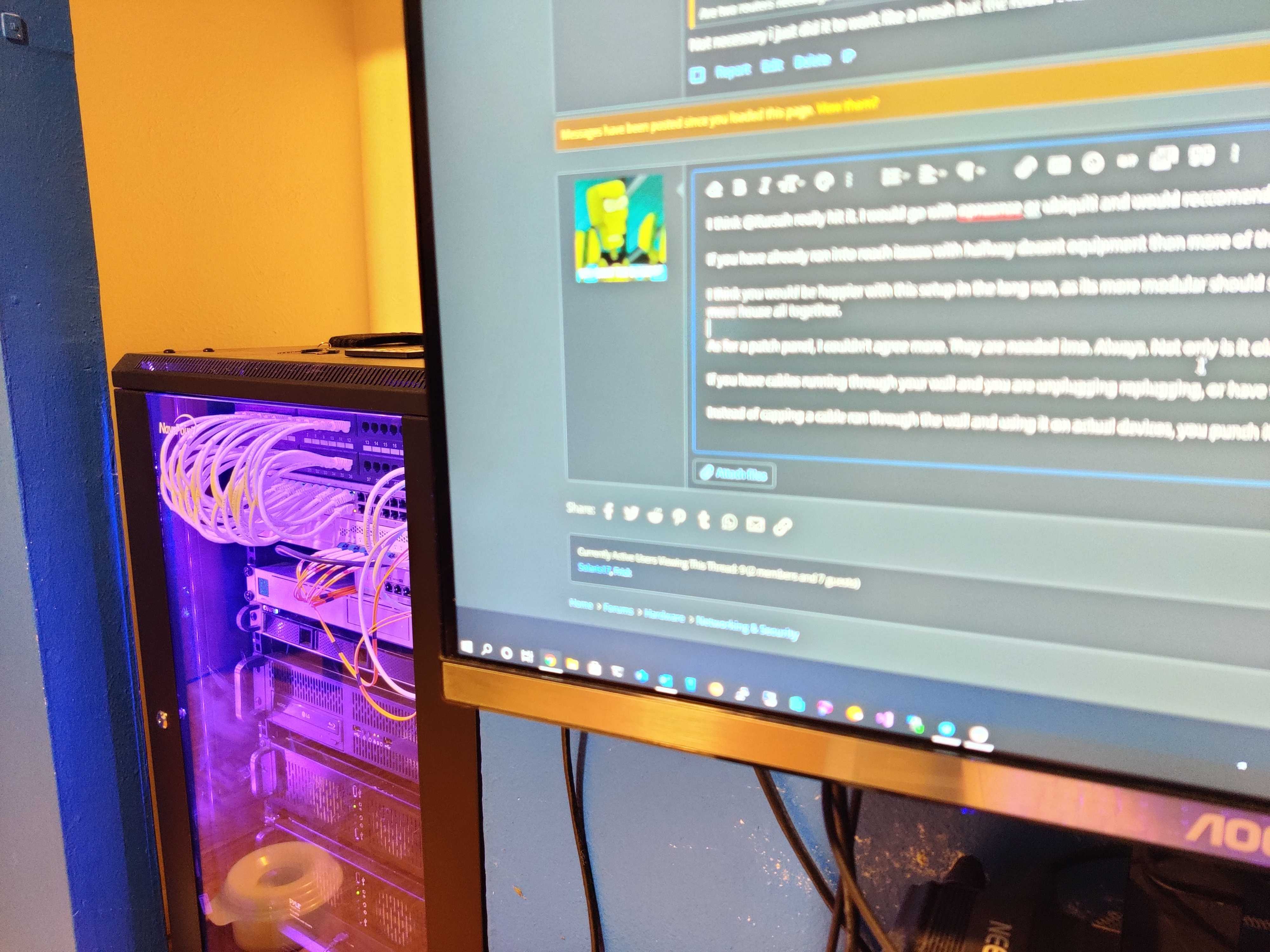

As for a patch panel, I couldn't agree more. They are needed imo. Always. Not only is it ok to pass POE through them, but the idea isnt just cable management, its longevity.

If you have cables running through your wall and you are unplugging replugging, or have weight on the ends you have and are likely to break a cable that lives in a wall.

Instead of capping a cable ran through the wall and using it on actual devices, you punch it down into a patch panel, this way the only cables you interface with are the small patch cables, if those go bad NBD.



the 2.5gb/s port means jack shit here but I am going to assume you already knew that.

Joined
Feb 9, 2020
Messages
119 (0.34/day)
Location
Panama City Beach, Florida
System Name Robs Singularity
Processor Intel Core i9-7960X
Motherboard GIGABYTE X299 DESIGNARE EX
Cooling Thermaltake Floe Riing RGB 280mm Premium Edition Liquid
Memory Adata DDR4 PC4-23900 32GB
Video Card(s) ASUS TURBO GTX 1080 x2 SLi
Storage Samsung SSD 980 PRO 512GB C:\
Display(s) LG 34''
Case Azza Full Tower
Audio Device(s) Asus Strix w/Alan Finote mod for Windows 10
Power Supply Corsair 1000
Mouse Steelseries Rival 600 wired
Keyboard Steelseries Apex 7 TKL red Switch
Software Win 10 Pro
To my knowledge Comcast doesn't offer just a modem only the Modem/Router Combo
Bridge Mode can be enabled by me no need to call up the ISP

And I chose to use their Combo as its cheaper. With using their modem I receive unlimited data versus if I use my own I have to pay extra for it and it get's costly when you exceed over a TB every month


I'd say no more than $500


Not necessary i just did it to work like a mesh but the router I have now is old and is crapping out. the XB7 wifi is decent but doesn't have a strong reach due to the internal antennas
It looks like others have filled in the blanks with some sound advice! I hope you get it sorted. :toast:


Durvelle27

Moderator
Staff member
Joined
Jul 10, 2012
Messages
6,050 (1.94/day)
Location
Memphis, TN
System Name Black Prometheus
Processor AMD Ryzen 7 5800X
Motherboard ASRock B550M Pro4
Cooling ID Cooling Auraflow 360 Snow Edition
Memory Oloy 32GB(2x16GB) DDR4 3600MHz CL18
Video Card(s) XFX RX 6800 XT Merc Speedster 319
Storage Sandisk X300 512GB + WD Black 6TB+WD Black 6TB
Display(s) LG Nanocell85 49" 4K 120Hz+3x 24" 1200P Monitors
Case DeepCool Matrexx 55 V3 w/ 6x120mm Intake + 3x120mm Exhaust
Audio Device(s) LG Dolby Atmos
Power Supply Gigabyte P750 750W Fully Modular
Mouse Logitech Trackman
Keyboard Dell OEM
Software Windows 10 EDU x64
I think @Kursah really hit it. I would go with opnsense or ubiquiti and would reccomend access points from the same as opposed to a router.

If you have already ran into reach issues with halfway decent equipment then more of the same wont fix it. The idea here is more coverage not amplifying the broadcast.

I think you would be happier with this setup in the long run, as its more modular should something fail, but more importantly, its more easily adjusted if you want the stack in a different room, or decide to move house all together.

As for a patch panel, I couldn't agree more. They are needed imo. Always. Not only is it ok to pass POE through them, but the idea isnt just cable management, its longevity.

If you have cables running through your wall and you are unplugging replugging, or have weight on the ends you have and are likely to break a cable that lives in a wall.

Instead of capping a cable ran through the wall and using it on actual devices, you punch it down into a patch panel, this way the only cables you interface with are the small patch cables, if those go bad NBD.

View attachment 183782

the 2.5gb/s port means jack shit here but I am going to assume you already knew that.
Any specific model

interms of router I wouldn’t say what I have is decent. One of them is a pretty low end TP link router. It can’t handle a lot of trafficing before speeds start tanking

Alright looking at the Monoprice Cat6 24 Port Patch Panel


Solaris17

Dainty Moderator
Staff member
Joined
Aug 16, 2005
Messages
22,002 (3.90/day)
Location
Florida
System Name Venslar
Processor I9 7980XE
Motherboard MSI x299 Tomahawk Arctic
Cooling EK Custom
Memory 32GB Corsair DDR4 3000mhz
Video Card(s) Nvidia Titan RTX
Storage 1x 250GB 960 EVO | 1x 500gb Intel 720p | 32TB SAN
Display(s) 3x AOC Q2577PWQ (2k IPS)
Case Inwin 303 White (Thermaltake Ring 120mm Purple accent)
Audio Device(s) Schiit Fulla 3 on Beyerdynamic DT 990 Pros
Power Supply Seasonic 1050W Snow
Mouse Roccat Kone Aimo White
Keyboard Ducky Shine 6 Snow White
Software Windows 10 x64 Pro
Any specific model

interms of router I wouldn’t say what I have is decent. One of them is a pretty low end TP link router. It can’t handle a lot of trafficing before speeds start tanking

Alright looking at the Monoprice Cat6 24 Port Patch Panel

You mentioned you have a server and you have a switch. Do you have like a little 1/4 rack to put this all in? To be honest, I would connect everything to to the switch if possible, Inter network traffic the switch will handle. It's a misconception that all traffic transverses the router. I don't even have my router giving out IPs or doing my DNS.

My router is literally just a link to the internet. My WAN cable goes to my fiber box on the side of the house. Then I have the downlink cable to my core switch.

I mention this so you can think about capacity, or lack thereof. You can get a route with a few ports or you can get one with literally 2. First, where do you want to put it? Can it be rack mounted?


Durvelle27

Moderator
Staff member
Joined
Jul 10, 2012
Messages
6,050 (1.94/day)
Location
Memphis, TN
System Name Black Prometheus
Processor AMD Ryzen 7 5800X
Motherboard ASRock B550M Pro4
Cooling ID Cooling Auraflow 360 Snow Edition
Memory Oloy 32GB(2x16GB) DDR4 3600MHz CL18
Video Card(s) XFX RX 6800 XT Merc Speedster 319
Storage Sandisk X300 512GB + WD Black 6TB+WD Black 6TB
Display(s) LG Nanocell85 49" 4K 120Hz+3x 24" 1200P Monitors
Case DeepCool Matrexx 55 V3 w/ 6x120mm Intake + 3x120mm Exhaust
Audio Device(s) LG Dolby Atmos
Power Supply Gigabyte P750 750W Fully Modular
Mouse Logitech Trackman
Keyboard Dell OEM
Software Windows 10 EDU x64
You mentioned you have a server and you have a switch. Do you have like a little 1/4 rack to put this all in? To be honest, I would connect everything to to the switch if possible, Inter network traffic the switch will handle. It's a misconception that all traffic transverses the router. I don't even have my router giving out IPs or doing my DNS.

My router is literally just a link to the internet. My WAN cable goes to my fiber box on the side of the house. Then I have the downlink cable to my core switch.

I mention this so you can think about capacity, or lack thereof. You can get a route with a few ports or you can get one with literally 2. First, where do you want to put it? Can it be rack mounted?

Yes the server is mostly for media and storage and the switch is unmanaged

I plan to have everything installed in a 12U rack

So if I’m following

I can do it like this

Joined
Nov 16, 2007
Messages
638 (0.13/day)
Location
Hampton Roads
Processor Xeon 5650
Motherboard SABERTOOTH X58
Cooling Fans
Memory 24 GB Kingston HyperX 1600
Video Card(s) gtx1060
Storage small ssd
Display(s) Dell 2001F, BenQ short throw
Case Lian Li
Audio Device(s) onboard
Power Supply X750
Software Mint 19.2
Benchmark Scores not so fast...
Subbed. I need ideas for my new (very old) house that has Fios on order.

Just for another thought....has MoCA entered the picture at all? My network will include coax, but not for cable TV.


Durvelle27

Moderator
Staff member
Joined
Jul 10, 2012
Messages
6,050 (1.94/day)
Location
Memphis, TN
System Name Black Prometheus
Processor AMD Ryzen 7 5800X
Motherboard ASRock B550M Pro4
Cooling ID Cooling Auraflow 360 Snow Edition
Memory Oloy 32GB(2x16GB) DDR4 3600MHz CL18
Video Card(s) XFX RX 6800 XT Merc Speedster 319
Storage Sandisk X300 512GB + WD Black 6TB+WD Black 6TB
Display(s) LG Nanocell85 49" 4K 120Hz+3x 24" 1200P Monitors
Case DeepCool Matrexx 55 V3 w/ 6x120mm Intake + 3x120mm Exhaust
Audio Device(s) LG Dolby Atmos
Power Supply Gigabyte P750 750W Fully Modular
Mouse Logitech Trackman
Keyboard Dell OEM
Software Windows 10 EDU x64
Subbed. I need ideas for my new (very old) house that has Fios on order.

Just for another thought....has MoCA entered the picture at all? My network will include coax, but not for cable TV.
From my understanding Mocs is only used for X1 TV

Or


Joined
Nov 16, 2007
Messages
638 (0.13/day)
Location
Hampton Roads
Processor Xeon 5650
Motherboard SABERTOOTH X58
Cooling Fans
Memory 24 GB Kingston HyperX 1600
Video Card(s) gtx1060
Storage small ssd
Display(s) Dell 2001F, BenQ short throw
Case Lian Li
Audio Device(s) onboard
Power Supply X750
Software Mint 19.2
Benchmark Scores not so fast...
From my understanding Mocs is only used for X1 TV
Right on. I'm gonna do it strictly for academics, as the lan side of moca will be 2.5 Gbps.

Might be fun to put in a few adapters to experiment. From what I gather, MoCA is really smart, and won't interfere with other services on the coax.


Durvelle27

Moderator
Staff member
Joined
Jul 10, 2012
Messages
6,050 (1.94/day)
Location
Memphis, TN
System Name Black Prometheus
Processor AMD Ryzen 7 5800X
Motherboard ASRock B550M Pro4
Cooling ID Cooling Auraflow 360 Snow Edition
Memory Oloy 32GB(2x16GB) DDR4 3600MHz CL18
Video Card(s) XFX RX 6800 XT Merc Speedster 319
Storage Sandisk X300 512GB + WD Black 6TB+WD Black 6TB
Display(s) LG Nanocell85 49" 4K 120Hz+3x 24" 1200P Monitors
Case DeepCool Matrexx 55 V3 w/ 6x120mm Intake + 3x120mm Exhaust
Audio Device(s) LG Dolby Atmos
Power Supply Gigabyte P750 750W Fully Modular
Mouse Logitech Trackman
Keyboard Dell OEM
Software Windows 10 EDU x64
So as you guys said to utilize a access point instead of a router

I'm looking at the

Ubiquiti UniFi 6 Long Range Access Point. It's currently available for preorder for $179. I can't find anything to see how much it can cover but if it's long range I assume it should cover a decent amount. I'm looking to Cover about 3200SQft with 2 Stories.


v12dock

Block Caption of Rainey Street
Supporter
Joined
Dec 18, 2008
Messages
1,898 (0.43/day)
System Name Computer
Processor 1700X
Motherboard CH6
Cooling Custom Loop
Memory G.Skill 32GB
Video Card(s) GTX 1070
Storage 500GB Samsung 850 Evo Msata
Display(s) LG 23" IPS
Power Supply Seasonic 760 Platinum
Software Windows 8.1 64-Bit
So as you guys said to utilize a access point instead of a router

I'm looking at the

Ubiquiti UniFi 6 Long Range Access Point. It's currently available for preorder for $179. I can't find anything to see how much it can cover but if it's long range I assume it should cover a decent amount. I'm looking to Cover about 3200SQft with 2 Stories.

I have a Unifi 6 LR on my main floor and a AC Pro in my basement running at a lower TX signal. The speeds on the UI 6 are great but i'm not sure if I would recommend it covering 3200 sqft. The signal gets a bit wonky when i'm in my basement and outside in my backyard. I do make A LOT of VoIP calls with my job working from home(basement) and they super sensitive to wifi signal issues. All of that I still would recommend the UI 6 like I said the speeds are great and it has zero problems handling 20+ clients on multiple SSIDs with VLANed traffic.

I use a Untangle router I built and it has zero problems handling my 400/100 connection.


Durvelle27

Moderator
Staff member
Joined
Jul 10, 2012
Messages
6,050 (1.94/day)
Location
Memphis, TN
System Name Black Prometheus
Processor AMD Ryzen 7 5800X
Motherboard ASRock B550M Pro4
Cooling ID Cooling Auraflow 360 Snow Edition
Memory Oloy 32GB(2x16GB) DDR4 3600MHz CL18
Video Card(s) XFX RX 6800 XT Merc Speedster 319
Storage Sandisk X300 512GB + WD Black 6TB+WD Black 6TB
Display(s) LG Nanocell85 49" 4K 120Hz+3x 24" 1200P Monitors
Case DeepCool Matrexx 55 V3 w/ 6x120mm Intake + 3x120mm Exhaust
Audio Device(s) LG Dolby Atmos
Power Supply Gigabyte P750 750W Fully Modular
Mouse Logitech Trackman
Keyboard Dell OEM
Software Windows 10 EDU x64
I have a Unifi 6 LR on my main floor and a AC Pro in my basement running at a lower TX signal. The speeds on the UI 6 are great but i'm not sure if I would recommend it covering 3200 sqft. The signal gets a bit wonky when i'm in my basement and outside in my backyard. I do make A LOT of VoIP calls with my job working from home(basement) and they super sensitive to wifi signal issues. All of that I still would recommend the UI 6 like I said the speeds are great and it has zero problems handling 20+ clients on multiple SSIDs with VLANed traffic.

I use a Untangle router I built and it has zero problems handling my 400/100 connection.
How did you get the 6 as it shows Pre-order only right now and it won't be available until the end of the month


v12dock

Block Caption of Rainey Street
Supporter
Joined
Dec 18, 2008
Messages
1,898 (0.43/day)
System Name Computer
Processor 1700X
Motherboard CH6
Cooling Custom Loop
Memory G.Skill 32GB
Video Card(s) GTX 1070
Storage 500GB Samsung 850 Evo Msata
Display(s) LG 23" IPS
Power Supply Seasonic 760 Platinum
Software Windows 8.1 64-Bit
How did you get the 6 as it shows Pre-order only right now and it won't be available until the end of the month

I am in their early access program. There is a sticking on the back that says "beta".


Kursah

Super Moderator
Staff member
Joined
Oct 15, 2006
Messages
13,605 (2.61/day)
Location
Missoula, MT, USA
System Name Kursah's Gaming Rig 2018 - Ryzen+ Edition | SpartanCore | SpartanCore2
Processor R7 2700X @ Stock (3.7/4.35) w/PBO+XFR2 | i7 3770 3.4/3.9 Stock | i7 4770 3.4/3.9 Stock
Motherboard Asus ROG Strix X370-F Gaming | Intel DQ77MK | SuperMicro X10SLQ
Cooling Noctua NH-U14S Push-Pull + NT-H1 | Stock Intel Cooler + AC MX4 | Stock Intel Cooler + AC MX4
Memory 16GB (2x8) G.Skill DDR4-3200 | 16GB (4x4) Samsung DDR3-1600 | 32GB (4x8) Mushkin Stealth DDR3-1600
Video Card(s) MSI GTX980 Ti Gaming 6G LE @ Stock | Onboard Intel HD 4000 | Onboard Intel HD 4600
Storage SSD 250GB + 960GB, 1x2TB | 120GB SSD, RAID10 6x2TB (6TB) | 120GB SSD, RAID10 6x3TB (9TB)
Display(s) Samsung 32" TV IPS 1080p, Dell 23" U2312HM IPS 1080p | 19" Dell on KVM..mostly headless operation.
Case Corsair 600C - Stock Fans on Low | Lian Li Lancool PC-K7 - Cougar fans | Modified Lenovo TS430 Case
Audio Device(s) Aune T1 mk1 > AKG K553 Pro + HiFiMAN HE-350 (Equalizer APO + PeaceUI) | Not in use
Power Supply EVGA 750G2 Modular + APC Back-UPS Pro 1500 | EVGA KR500 80+ Bronze (Both) + APC Smart-UPS 1500
Mouse Logitech G502 | Dell USB Laser Mouse (KVM)
Keyboard Logitech G15 rv2 | Dell USB Keyboard (KVM)
Software Windows 10 Pro x64 | Windows Server 2012 R2 (Hyper-V) | Windows Server 2016 (Hyper-V)
You mentioned you have a server and you have a switch. Do you have like a little 1/4 rack to put this all in? To be honest, I would connect everything to to the switch if possible, Inter network traffic the switch will handle. It's a misconception that all traffic transverses the router. I don't even have my router giving out IPs or doing my DNS.

My router is literally just a link to the internet. My WAN cable goes to my fiber box on the side of the house. Then I have the downlink cable to my core switch.

I mention this so you can think about capacity, or lack thereof. You can get a route with a few ports or you can get one with literally 2. First, where do you want to put it? Can it be rack mounted?

Yep same. I manage a domain that hosts my DHCP, DNS, etc. My pfsense router is my gateway, DNS and IP filter via pfBlockerNG (and OpenDNS forwarders), Snort filtering, OpenVPN server, Squid cache used for logging, etc. It all connects to my core switch. At some point I'll get a true rack, at the moment I'm on a dad budget so I gotta "run whatcha brung" approach this thing for a few more years lol.

So as you guys said to utilize a access point instead of a router

I'm looking at the

Ubiquiti UniFi 6 Long Range Access Point. It's currently available for preorder for $179. I can't find anything to see how much it can cover but if it's long range I assume it should cover a decent amount. I'm looking to Cover about 3200SQft with 2 Stories.

I believe Unifi LR AP's have a range up to 600ft where standard AP's are up to 400-450ft. But it appears they stopped advertising and listing specs that way.

The UniFi Nano-HD has a transmission rate of 23 dBm on 2.4GHz with 2X2, and 26dBm on 5GHz with 4x4. This newer UniFi 6 LR AP has a TX rate of 26 dBm on 2.4Ghz with 4x4, and 26dBm on 5GHz with 4x4, so it will definitely have a farther reach through walls and in general on the 2.4 range. More powerful processor and updated antennas should help with overall range too I would imagine.

For your square square footage, I would probably go with two AP's if you want full indoor coverage and some outdoor coverage, maybe even a third depending on if you have a garage or deck/patio that gets subpar signal that you want to improve.

I always try to go for the opposing side/floor too. Say the upstairs AP goes into a room on the East side of the home, the ground floor AP would then go in a West side room. They are omni directional, and in most cases that provides decent coverage, you can also use this to leverage if you have a West side garage or driveway or East side deck/yardspace that needs coverage.. You may want to do some mock mounting to optimize where you end up putting them. There are plenty of free Android apps for WiFi signal strength tests so you can do your own wireless site survey and adjustments.

Once you have the optimal placements, you can do your drops and permanent mounting.


Durvelle27

Moderator
Staff member
Joined
Jul 10, 2012
Messages
6,050 (1.94/day)
Location
Memphis, TN
System Name Black Prometheus
Processor AMD Ryzen 7 5800X
Motherboard ASRock B550M Pro4
Cooling ID Cooling Auraflow 360 Snow Edition
Memory Oloy 32GB(2x16GB) DDR4 3600MHz CL18
Video Card(s) XFX RX 6800 XT Merc Speedster 319
Storage Sandisk X300 512GB + WD Black 6TB+WD Black 6TB
Display(s) LG Nanocell85 49" 4K 120Hz+3x 24" 1200P Monitors
Case DeepCool Matrexx 55 V3 w/ 6x120mm Intake + 3x120mm Exhaust
Audio Device(s) LG Dolby Atmos
Power Supply Gigabyte P750 750W Fully Modular
Mouse Logitech Trackman
Keyboard Dell OEM
Software Windows 10 EDU x64
I am in their early access program. There is a sticking on the back that says "beta".
Now that makes perfect sense

Yep same. I manage a domain that hosts my DHCP, DNS, etc. My pfsense router is my gateway, DNS and IP filter via pfBlockerNG (and OpenDNS forwarders), Snort filtering, OpenVPN server, Squid cache used for logging, etc. It all connects to my core switch. At some point I'll get a true rack, at the moment I'm on a dad budget so I gotta "run whatcha brung" approach this thing for a few more years lol.



I believe Unifi LR AP's have a range up to 600ft where standard AP's are up to 400-450ft. But it appears they stopped advertising and listing specs that way.

The UniFi Nano-HD has a transmission rate of 23 dBm on 2.4GHz with 2X2, and 26dBm on 5GHz with 4x4. This newer UniFi 6 LR AP has a TX rate of 26 dBm on 2.4Ghz with 4x4, and 26dBm on 5GHz with 4x4, so it will definitely have a farther reach through walls and in general on the 2.4 range. More powerful processor and updated antennas should help with overall range too I would imagine.

For your square square footage, I would probably go with two AP's if you want full indoor coverage and some outdoor coverage, maybe even a third depending on if you have a garage or deck/patio that gets subpar signal that you want to improve.

I always try to go for the opposing side/floor too. Say the upstairs AP goes into a room on the East side of the home, the ground floor AP would then go in a West side room. They are omni directional, and in most cases that provides decent coverage, you can also use this to leverage if you have a West side garage or driveway or East side deck/yardspace that needs coverage.. You may want to do some mock mounting to optimize where you end up putting them. There are plenty of free Android apps for WiFi signal strength tests so you can do your own wireless site survey and adjustments.

Once you have the optimal placements, you can do your drops and permanent mounting.
So if i go 2 APs, would the Unifi 6 Lite be better with 2

here’s an example I presume of the 2 options

option 1: 1 AP



Option 2: 2 APs


These are for the first level

Joined
Dec 16, 2017
Messages
1,412 (1.24/day)
Location
Buenos Aires, Argentina
System Name System V
Processor AMD Ryzen 5 3600
Motherboard Asus Prime X570-P
Cooling AMD Wraith Stealth // a bunch of 120 mm Xigmatek 1500 RPM fans (2 ins, 3 outs)
Memory 2x8GB Ballistix Sport LT 3200 MHz (BLS8G4D32AESCK.M8FE) (CL16-18-18-36)
Video Card(s) Gigabyte AORUS Radeon RX 580 8 GB
Storage SHFS37A240G / DT01ACA200 / WD20EZRX / MKNSSDTR256GB-3DL / LG BH16NS40 / ST10000VN0008
Display(s) LG 22MP55 IPS Display
Case NZXT Source 210
Audio Device(s) Logitech G430 Headset
Power Supply Corsair CX650M
Mouse Microsoft Trackball Optical 1.0
Keyboard HP Vectra VE keyboard (Part # D4950-63004)
Software Whatever build of Windows 10 is being served in Dev channel at the time.
Benchmark Scores Corona 1.3: 3120620 r/s Cinebench R20: 3355 FireStrike: 12490 TimeSpy: 4624
Bookmarked. I only have 2 PCs and a phone, but what the hell, too many good ideas here.

And I've been dreaming of overpowered and overbuilt (for my case) network setups since forever lol


Kursah

Super Moderator
Staff member
Joined
Oct 15, 2006
Messages
13,605 (2.61/day)
Location
Missoula, MT, USA
System Name Kursah's Gaming Rig 2018 - Ryzen+ Edition | SpartanCore | SpartanCore2
Processor R7 2700X @ Stock (3.7/4.35) w/PBO+XFR2 | i7 3770 3.4/3.9 Stock | i7 4770 3.4/3.9 Stock
Motherboard Asus ROG Strix X370-F Gaming | Intel DQ77MK | SuperMicro X10SLQ
Cooling Noctua NH-U14S Push-Pull + NT-H1 | Stock Intel Cooler + AC MX4 | Stock Intel Cooler + AC MX4
Memory 16GB (2x8) G.Skill DDR4-3200 | 16GB (4x4) Samsung DDR3-1600 | 32GB (4x8) Mushkin Stealth DDR3-1600
Video Card(s) MSI GTX980 Ti Gaming 6G LE @ Stock | Onboard Intel HD 4000 | Onboard Intel HD 4600
Storage SSD 250GB + 960GB, 1x2TB | 120GB SSD, RAID10 6x2TB (6TB) | 120GB SSD, RAID10 6x3TB (9TB)
Display(s) Samsung 32" TV IPS 1080p, Dell 23" U2312HM IPS 1080p | 19" Dell on KVM..mostly headless operation.
Case Corsair 600C - Stock Fans on Low | Lian Li Lancool PC-K7 - Cougar fans | Modified Lenovo TS430 Case
Audio Device(s) Aune T1 mk1 > AKG K553 Pro + HiFiMAN HE-350 (Equalizer APO + PeaceUI) | Not in use
Power Supply EVGA 750G2 Modular + APC Back-UPS Pro 1500 | EVGA KR500 80+ Bronze (Both) + APC Smart-UPS 1500
Mouse Logitech G502 | Dell USB Laser Mouse (KVM)
Keyboard Logitech G15 rv2 | Dell USB Keyboard (KVM)
Software Windows 10 Pro x64 | Windows Server 2012 R2 (Hyper-V) | Windows Server 2016 (Hyper-V)
If you're going to do one AP, I'd suggest the beefier Unifi HD, yes it's $360, but it competes with $800 AP's. I would mount it centrally on the second floor and test.

Otherwise, if you want to go with a couple of lites, or nano-HD's, I'd do one per floor and test.

So like Option 2, but one of the AP's would be on the other floor still on the opposing side of the house. This ensures fuller coverage in my experience. Testing is key, especially if you have an older house that's been remodeled a few times and has some hidden brick and mortar or other materials that are harder for wifi signals to penetrate.

Going with the AP 6 Lites, you might still be fine going one per floor. I would think 2AP's that close on the same floor would cause some issues with devices switching AP's, which can be an issue at times. Lowering TX signal strength can help here, but obviously will also mean degraded signal in some areas which may or may not matter. Again, best to adjust and test for best results.


Durvelle27

Moderator
Staff member
Joined
Jul 10, 2012
Messages
6,050 (1.94/day)
Location
Memphis, TN
System Name Black Prometheus
Processor AMD Ryzen 7 5800X
Motherboard ASRock B550M Pro4
Cooling ID Cooling Auraflow 360 Snow Edition
Memory Oloy 32GB(2x16GB) DDR4 3600MHz CL18
Video Card(s) XFX RX 6800 XT Merc Speedster 319
Storage Sandisk X300 512GB + WD Black 6TB+WD Black 6TB
Display(s) LG Nanocell85 49" 4K 120Hz+3x 24" 1200P Monitors
Case DeepCool Matrexx 55 V3 w/ 6x120mm Intake + 3x120mm Exhaust
Audio Device(s) LG Dolby Atmos
Power Supply Gigabyte P750 750W Fully Modular
Mouse Logitech Trackman
Keyboard Dell OEM
Software Windows 10 EDU x64
If you're going to do one AP, I'd suggest the beefier Unifi HD, yes it's $360, but it competes with $800 AP's. I would mount it centrally on the second floor and test.

Otherwise, if you want to go with a couple of lites, or nano-HD's, I'd do one per floor and test.

So like Option 2, but one of the AP's would be on the other floor still on the opposing side of the house. This ensures fuller coverage in my experience. Testing is key, especially if you have an older house that's been remodeled a few times and has some hidden brick and mortar or other materials that are harder for wifi signals to penetrate.

Going with the AP 6 Lites, you might still be fine going one per floor. I would think 2AP's that close on the same floor would cause some issues with devices switching AP's, which can be an issue at times. Lowering TX signal strength can help here, but obviously will also mean degraded signal in some areas which may or may not matter. Again, best to adjust and test for best results.
Looking at specs

isn't the UniHD and new Uni 6 LR the same in terms of range


But to sum it up

i need

Patch Panel
Cat6
AP(S)

and that's it

Last edited:

v12dock

Block Caption of Rainey Street
Supporter
Joined
Dec 18, 2008
Messages
1,898 (0.43/day)
System Name Computer
Processor 1700X
Motherboard CH6
Cooling Custom Loop
Memory G.Skill 32GB
Video Card(s) GTX 1070
Storage 500GB Samsung 850 Evo Msata
Display(s) LG 23" IPS
Power Supply Seasonic 760 Platinum
Software Windows 8.1 64-Bit

Durvelle27

Moderator
Staff member
Joined
Jul 10, 2012
Messages
6,050 (1.94/day)
Location
Memphis, TN
System Name Black Prometheus
Processor AMD Ryzen 7 5800X
Motherboard ASRock B550M Pro4
Cooling ID Cooling Auraflow 360 Snow Edition
Memory Oloy 32GB(2x16GB) DDR4 3600MHz CL18
Video Card(s) XFX RX 6800 XT Merc Speedster 319
Storage Sandisk X300 512GB + WD Black 6TB+WD Black 6TB
Display(s) LG Nanocell85 49" 4K 120Hz+3x 24" 1200P Monitors
Case DeepCool Matrexx 55 V3 w/ 6x120mm Intake + 3x120mm Exhaust
Audio Device(s) LG Dolby Atmos
Power Supply Gigabyte P750 750W Fully Modular
Mouse Logitech Trackman
Keyboard Dell OEM
Software Windows 10 EDU x64
So is this all I need


1. Modem (I'll use the XB7 in Bridge Mode)
2. Access Point (Undecided)
3. Patch Panel (Ordering the Monoprice 24port Cat6 Panel)
4. Switch (I have the Dell Power Connect 2724)
5. Cat6 Cable
6. Accessories (Keystones, Wall Plates, etc..)


I would run with two AP and tune the TX as necessary. I believe 802.11k/r are supported with unifi as well.
With Ubiqiuiti there are so many choices, The Unifi LR 6 and Unifi Lite 6 are the newest models that support Wifi 6 which my devices do support

Top
