It’s not really a mod.. but it’s a little ghetto in the looks department. I stripped the crossbar on my first FC140, so I took the one off of my TRUE Black :D

I seem to remember getting better temps with my first FC140.. so now I will try :cool:

View attachment 281091
Yup the fins are sharp under pressure.. was giving it a wash in the sink with some soapy water :D
Hmmmm My Mitutoyo stuff is usually Made In Japan.

This thread makes me feel way better about some of the stuff I do lol


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,381 (3.67/day)
Location
Winnipeg, Canada
System Name Altered Beast
Processor AMD R9 5900X/5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Phantom Spirit 120 EVO, 1x T30
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850X 2TB, SN850 1TB, SN770 1TB - Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA SuperNova 750w G+, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes

Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
58,413 (8.22/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570-F (BIOS Modded)
Cooling Alphacool Apex UV - Alphacool Eisblock XPX Aurora + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3866 C18-22-22-22-42 TRFC704 (1.4V Hynix MJR - SoC 1.15V)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.750v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + 1TB Intel 6000P NVME USB 3.2
Display(s) Phillips 32 32M1N5800A (4k144), LG 32" (4K60) | Gigabyte G32QC (2k165) | Phillips 328m6fjrmb (2K144)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE ( Sexy white keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS) OpenRGB - ditch the branded bloatware!
Benchmark Scores Nyooom.
I flipped the ducted heating fan around, now its ducted roof sucking
Works amazing, pulls the trapped hot air out of rooms even with the door closed and the roofspace is as good 15c cooler


Next up, i read the NBNco documentation on removing RF interference from VDSL lines, and discovered that they actually recommend making your own common mode choke with cat5e and a ferrite toroid


I then found an image of one used commercially in a youtube video of someone reparing an FTTB setup (fiber to many VDSL lines, in one room)





This was originally one socket that had joined wiring behind the panel, extending the phone line into the house

Now, it's 2 pin RJ11/VDSL on the left (over cat5e) with cat6 on the right, to a far away wall socket
Running the modem here directly had no speed gains, but the modem farther away with this inserted did


Is it massively improved?


Nah. But it is better.

Joined
Oct 17, 2021
Messages
807 (0.91/day)
Location
People's Republic of Banania
Processor Threadripper 3955WX
Motherboard M12SWA-TF
Cooling Arctic Freezer 4U SP3
Memory G.Skill Trident Z DDR4-3733 (2x8GB)
Video Card(s) 5700XT + 3x RX 590
Storage A lot
Display(s) ViewSonic G225fB
Case Corsair 760T
Audio Device(s) Sound Blaster Z SE
Power Supply be quiet! DPP12 1500W
Keyboard IBM F122
Software 10 LTSC
I flipped the ducted heating fan around, now its ducted roof sucking
Works amazing, pulls the trapped hot air out of rooms even with the door closed and the roofspace is as good 15c cooler


Next up, i read the NBNco documentation on removing RF interference from VDSL lines, and discovered that they actually recommend making your own common mode choke with cat5e and a ferrite toroid
View attachment 281137

I then found an image of one used commercially in a youtube video of someone reparing an FTTB setup (fiber to many VDSL lines, in one room)
View attachment 281138

View attachment 281139


This was originally one socket that had joined wiring behind the panel, extending the phone line into the house

Now, it's 2 pin RJ11/VDSL on the left (over cat5e) with cat6 on the right, to a far away wall socket
Running the modem here directly had no speed gains, but the modem farther away with this inserted did
View attachment 281140

Is it massively improved?

View attachment 281142
Nah. But it is better.
View attachment 281143
So this basically acts as a bridge between two cables.

Does it matter where in the wiring you install it? (right after the modem, in the middle, etc.) might try with my ADSL though the speed is astronomically lower and it's running on phone wiring.
If it's worth something the wiring doesn't share conduits with anything else.

Joined
Nov 2, 2020
Messages
1,051 (0.85/day)
Location
Tel Fyr
System Name Purple Haze | Vacuum Box
Processor AMD Ryzen 7 5800X3D (-30 CO) | Intel i7 3930K 4.5GHz, 1.4V single - 1.36V all core load
Motherboard MSI B450 Tomahawk Max | Gigabyte G1.Assassin 2
Cooling Dark Rock 4 Pro, Arctic P14 & P12 case fans | NH-D14, Arctic P14 & P12 case fans, 2x Sunon 45x10 VRM
Memory 32GB Ballistix (Micron E 19nm) CL16 @3733MHz | 32GB HyperX Beast 2400MHz (XMP)
Video Card(s) AMD 6900XTXH ASRock OC Formula & Phanteks T30x3 | AMD 5700XT Sapphire Nitro+ & Arctic P12x2
Storage ADATA SX8200 Pro 1TB, Toshiba P300 3TB x2 | Kingston A400 120GB, Fanxiang S500 Pro 256GB
Display(s) Mi 2K Gaming Monitor 27", AOC 24G2U
Case Modded MS Industrial Titan II Pro RGB | Heavily Modded Cooler Master Q500L
Audio Device(s) Audient iD14 MKII, Adam Audio T8Vs, Bloody M550, HiFiMan HE400se, Tascam TM-80
Power Supply Rosewill Capstone 1000M | Enermax Revolution X't 730W (both with P14 fans)
Mouse Logitech G305, Bloody A91, Amazon basics, Logitech M187
Keyboard Redragon K530, Bloody B930, Epomaker TH80 SE, BTC 9110
Software W10 LTSC 21H2

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,381 (3.67/day)
Location
Winnipeg, Canada
System Name Altered Beast
Processor AMD R9 5900X/5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Phantom Spirit 120 EVO, 1x T30
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850X 2TB, SN850 1TB, SN770 1TB - Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA SuperNova 750w G+, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
Well.. I would say the cooler works mint :cool:

No fans on the cooler:





Joined
Nov 2, 2020
Messages
1,051 (0.85/day)
Location
Tel Fyr
System Name Purple Haze | Vacuum Box
Processor AMD Ryzen 7 5800X3D (-30 CO) | Intel i7 3930K 4.5GHz, 1.4V single - 1.36V all core load
Motherboard MSI B450 Tomahawk Max | Gigabyte G1.Assassin 2
Cooling Dark Rock 4 Pro, Arctic P14 & P12 case fans | NH-D14, Arctic P14 & P12 case fans, 2x Sunon 45x10 VRM
Memory 32GB Ballistix (Micron E 19nm) CL16 @3733MHz | 32GB HyperX Beast 2400MHz (XMP)
Video Card(s) AMD 6900XTXH ASRock OC Formula & Phanteks T30x3 | AMD 5700XT Sapphire Nitro+ & Arctic P12x2
Storage ADATA SX8200 Pro 1TB, Toshiba P300 3TB x2 | Kingston A400 120GB, Fanxiang S500 Pro 256GB
Display(s) Mi 2K Gaming Monitor 27", AOC 24G2U
Case Modded MS Industrial Titan II Pro RGB | Heavily Modded Cooler Master Q500L
Audio Device(s) Audient iD14 MKII, Adam Audio T8Vs, Bloody M550, HiFiMan HE400se, Tascam TM-80
Power Supply Rosewill Capstone 1000M | Enermax Revolution X't 730W (both with P14 fans)
Mouse Logitech G305, Bloody A91, Amazon basics, Logitech M187
Keyboard Redragon K530, Bloody B930, Epomaker TH80 SE, BTC 9110
Software W10 LTSC 21H2
Joined
Oct 17, 2021
Messages
807 (0.91/day)
Location
People's Republic of Banania
Processor Threadripper 3955WX
Motherboard M12SWA-TF
Cooling Arctic Freezer 4U SP3
Memory G.Skill Trident Z DDR4-3733 (2x8GB)
Video Card(s) 5700XT + 3x RX 590
Storage A lot
Display(s) ViewSonic G225fB
Case Corsair 760T
Audio Device(s) Sound Blaster Z SE
Power Supply be quiet! DPP12 1500W
Keyboard IBM F122
Software 10 LTSC
More in the kbps range. DL speed is about 35-40KB/s from a direct server, torrents may be much slower depending on the seeds.
ookla test crashes trying to load because of how much crap they've put at some point when it was redesigned, prolly a lot of java bs lol I remember it being much simpler.

Hence the wiring, normal ethernet is only 10 mbps but I'm nowhere near that limit.


Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
58,413 (8.22/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570-F (BIOS Modded)
Cooling Alphacool Apex UV - Alphacool Eisblock XPX Aurora + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3866 C18-22-22-22-42 TRFC704 (1.4V Hynix MJR - SoC 1.15V)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.750v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + 1TB Intel 6000P NVME USB 3.2
Display(s) Phillips 32 32M1N5800A (4k144), LG 32" (4K60) | Gigabyte G32QC (2k165) | Phillips 328m6fjrmb (2K144)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE ( Sexy white keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS) OpenRGB - ditch the branded bloatware!
Benchmark Scores Nyooom.
So this basically acts as a bridge between two cables.
Yes, it's no different than using a short RJ12 or RJ45 cable - but was originally wired in series. I changed it this way to use a modem there originally, but room usage changed so the modem moved to the far socket

Does it matter where in the wiring you install it? (right after the modem, in the middle, etc.) might try with my ADSL though the speed is astronomically lower and it's running on phone wiring.
If it's worth something the wiring doesn't share conduits with anything else.
This is VDSL2 - it's got tighter requirements

The simplest version is: The less wire the better, even if its unused. Any Y or T branches with the wiring will absolutely hamper speeds, as well as any untwisted wiring (ADSL Is more tolerant there, as long as the pairs arent seperated - if they un-twist and go apart like in the old 600 series connectors, that can hamper speeds)

And hell just the inside of the wall sockets can be garbage

This is my brothers antique he's too scared to touch, the coward (VDSL has no dangerous live voltage - it's safe to touch. ADSL can have 50V, so be more careful about shorts

On VDSL, the blue and white wire should go into the socket no more than the length of that white arrow - and straight into the cable from there. The dance his wiring does running around is to an extra socket that never even got installed, and causes a LOT of CRC and FEC errors on his line


This is what mine looked like after a 'professional' had done the job to the minimum standards in a rush

The gel caps were loose, uneven lengths, and both caps had untwisted ends
Using the unused wires to hold it together is perfectly acceptable, but doing this is not

5Mb higher sync and speed doesnt change by time of day now
This is the opposite side of the wall the choke is installed, so it's preventing outside interference entering the internal wiring from this point



The internal socket got damaged a few years back by my dad being an idiot - ironically this person had at least tried to install it correctly, but had lost or forgotten the clear plastic cap to ACTUALLY HOLD THE WIRES IN THE DAMN CONNECTOR
You'll notice the lenghts are different yet again - fixing this obviously went from 0 internet to working,but getting those blue and white wires the same length took the speed up 5-10Mb at the time
Even 2mm of untwisted wire at the end there can slow VDSL speeds, ADSL is more tolerant but you definitely want solid connections of even length, with as little untwisted wire as possible


VDSL uses frequencies that some FM radio devices can send signals out, same as faulty AC appliances (~17Mhz)
Any Y or T forks of unused wire act as an FM radio transmitter and receiver, so your VDSL signal leaks out the wiring to the outside, gets picked up by the excess as static out of sync with the main signal, and you lose chunks of the available frequencies - so disconnecting extra sockets entirely is the only viable solution there (and as i did, using RJ45 jacks lets you simply extend to whatever socket you wish on the fly)


When i first moved in we barely got 50Mb, now we're getting 82Mb as i've learned a few tricks and bought the right tools. A new wallplate with a Cat6 jack and punchdown tool is only $20Au here, so it's an incredibly affordable thing to fix up (If its legal where you are, and safe - again, some older phone systems ran upto 50v when someone calls your number so it's best to play it safe if you dont know)

Joined
Jan 31, 2010
Messages
5,360 (1.04/day)
Location
Gougeland (NZ)
System Name Cumquat 2021
Processor AMD RyZen R7 5800X @4750MHz 1.298V
Motherboard Asus Strix x570-F Gaming
Cooling Deep Cool LT720 + CM MasterGel Pro TP + Lian Li Uni Fan V2
Memory 16GB GSkill Ripjaws V Black 4000 MTs (2x8GB) @3866MT's
Video Card(s) Sapphire Nitro+ OC RX6800 16GB DDR6 2270Cclk / 2010Mclk
Storage 1x Adata SX8200PRO NVMe gen3 x4 1X Samsung 860 EVO 500GB, 12TB of HDD Storage
Display(s) AOC 24G2 IPS 144Hz FreeSync Premium 1920x1080p
Case Lian Li O11D XL ROG edition
Audio Device(s) RX6800 via HDMI + Pioneer VSX-531 amp Technics 100W 5.1 Speaker set
Power Supply EVGA 1000W G5 Gold
Mouse Logitech G502 Proteus Core
Keyboard Logitech G815
Software Windows 11 X64 PRO (build 22H2)
Benchmark Scores it sucks even more less now ;)
Hmmmm My Mitutoyo stuff is usually Made In Japan.

This thread makes me feel way better about some of the stuff I do lol

Mine too.. not sure what’s going on there..
Apparently they are made in Brazil Mitutoyo's own website shows it says made in Brazil on the dial all of their digital one however are made in Japan though


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,381 (3.67/day)
Location
Winnipeg, Canada
System Name Altered Beast
Processor AMD R9 5900X/5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Phantom Spirit 120 EVO, 1x T30
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850X 2TB, SN850 1TB, SN770 1TB - Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA SuperNova 750w G+, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
Joined
Nov 2, 2020
Messages
1,051 (0.85/day)
Location
Tel Fyr
System Name Purple Haze | Vacuum Box
Processor AMD Ryzen 7 5800X3D (-30 CO) | Intel i7 3930K 4.5GHz, 1.4V single - 1.36V all core load
Motherboard MSI B450 Tomahawk Max | Gigabyte G1.Assassin 2
Cooling Dark Rock 4 Pro, Arctic P14 & P12 case fans | NH-D14, Arctic P14 & P12 case fans, 2x Sunon 45x10 VRM
Memory 32GB Ballistix (Micron E 19nm) CL16 @3733MHz | 32GB HyperX Beast 2400MHz (XMP)
Video Card(s) AMD 6900XTXH ASRock OC Formula & Phanteks T30x3 | AMD 5700XT Sapphire Nitro+ & Arctic P12x2
Storage ADATA SX8200 Pro 1TB, Toshiba P300 3TB x2 | Kingston A400 120GB, Fanxiang S500 Pro 256GB
Display(s) Mi 2K Gaming Monitor 27", AOC 24G2U
Case Modded MS Industrial Titan II Pro RGB | Heavily Modded Cooler Master Q500L
Audio Device(s) Audient iD14 MKII, Adam Audio T8Vs, Bloody M550, HiFiMan HE400se, Tascam TM-80
Power Supply Rosewill Capstone 1000M | Enermax Revolution X't 730W (both with P14 fans)
Mouse Logitech G305, Bloody A91, Amazon basics, Logitech M187
Keyboard Redragon K530, Bloody B930, Epomaker TH80 SE, BTC 9110
Software W10 LTSC 21H2
A bit ghetto I guess. Testing phase:

Joined
Nov 2, 2020
Messages
1,051 (0.85/day)
Location
Tel Fyr
System Name Purple Haze | Vacuum Box
Processor AMD Ryzen 7 5800X3D (-30 CO) | Intel i7 3930K 4.5GHz, 1.4V single - 1.36V all core load
Motherboard MSI B450 Tomahawk Max | Gigabyte G1.Assassin 2
Cooling Dark Rock 4 Pro, Arctic P14 & P12 case fans | NH-D14, Arctic P14 & P12 case fans, 2x Sunon 45x10 VRM
Memory 32GB Ballistix (Micron E 19nm) CL16 @3733MHz | 32GB HyperX Beast 2400MHz (XMP)
Video Card(s) AMD 6900XTXH ASRock OC Formula & Phanteks T30x3 | AMD 5700XT Sapphire Nitro+ & Arctic P12x2
Storage ADATA SX8200 Pro 1TB, Toshiba P300 3TB x2 | Kingston A400 120GB, Fanxiang S500 Pro 256GB
Display(s) Mi 2K Gaming Monitor 27", AOC 24G2U
Case Modded MS Industrial Titan II Pro RGB | Heavily Modded Cooler Master Q500L
Audio Device(s) Audient iD14 MKII, Adam Audio T8Vs, Bloody M550, HiFiMan HE400se, Tascam TM-80
Power Supply Rosewill Capstone 1000M | Enermax Revolution X't 730W (both with P14 fans)
Mouse Logitech G305, Bloody A91, Amazon basics, Logitech M187
Keyboard Redragon K530, Bloody B930, Epomaker TH80 SE, BTC 9110
Software W10 LTSC 21H2
@Veseleil
Did you tape up the sidepanel? To prevent it breaking or getting scratched?
Nope, it's a panel made from plywood. Its main purpose is to serve as a test foundation, so I can add cardboard pieces, tape, etc. The final build will be either in the Your PC ATM thread, or in a dedicated thread. It kinda deserves its own thread, but I'm lazy to make a complete story out of it. Also my phone cam is damaged, so it can't capture the details the way it should.

Last edited:

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,381 (3.67/day)
Location
Winnipeg, Canada
System Name Altered Beast
Processor AMD R9 5900X/5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Phantom Spirit 120 EVO, 1x T30
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850X 2TB, SN850 1TB, SN770 1TB - Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA SuperNova 750w G+, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
While I was swapping CPUs I got a bit carried away..



Joined
Jul 30, 2019
Messages
2,241 (1.32/day)
System Name Not a thread ripper but pretty good.
Processor Ryzen 9 5950x
Motherboard ASRock X570 Taichi (revision 1.06, BIOS/UEFI version P5.50)
Cooling EK-Quantum Velocity, EK-Quantum Reflection PC-O11, EK-CoolStream PE 360, Alphacool NexXxoS ST25 360
Memory Micron DDR4-3200 ECC Unbuffered Memory (4 sticks, 128GB, 18ASF4G72AZ-3G2F1)
Video Card(s) XFX Radeon RX 5700 & EK-Quantum Vector Radeon RX 5700 +XT & Backplate
Storage Samsung 2TB 980 PRO 2TB Gen4x4 NVMe, Samsung 2TB 970 EVO Plus Gen3x4 NVMe x 2
Display(s) 2 x 4K LG 27UL600-W (and HUANUO Dual Monitor Mount)
Case Lian Li PC-O11 Dynamic Black (original model)
Power Supply Corsair RM750x
Mouse Logitech M575
Keyboard Corsair Strafe RGB MK.2
Software Windows 10 Professional (64bit)
Benchmark Scores Typical for non-overclocked CPU.

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,381 (3.67/day)
Location
Winnipeg, Canada
System Name Altered Beast
Processor AMD R9 5900X/5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Phantom Spirit 120 EVO, 1x T30
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850X 2TB, SN850 1TB, SN770 1TB - Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA SuperNova 750w G+, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes

Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
58,413 (8.22/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570-F (BIOS Modded)
Cooling Alphacool Apex UV - Alphacool Eisblock XPX Aurora + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3866 C18-22-22-22-42 TRFC704 (1.4V Hynix MJR - SoC 1.15V)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.750v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + 1TB Intel 6000P NVME USB 3.2
Display(s) Phillips 32 32M1N5800A (4k144), LG 32" (4K60) | Gigabyte G32QC (2k165) | Phillips 328m6fjrmb (2K144)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE ( Sexy white keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS) OpenRGB - ditch the branded bloatware!
Benchmark Scores Nyooom.
In so many systems i've seen, those gaps are where all the dust comes in, or air pressure leaks out away from radiators


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,381 (3.67/day)
Location
Winnipeg, Canada
System Name Altered Beast
Processor AMD R9 5900X/5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Phantom Spirit 120 EVO, 1x T30
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850X 2TB, SN850 1TB, SN770 1TB - Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA SuperNova 750w G+, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
In so many systems i've seen, those gaps are where all the dust comes in, or air pressure leaks out away from radiators
The airflow does sound smoother for sure, and I don't hear the Fractal motors growl nearly as much. Big difference. From 8 feet away it looks great lol, its nice to not see light leakage :)

Overall, I am a little surprised this is working as well as it is. Just the airflow alone sounds so smooth now.. the system is crunching right now so I do have some pressure on it.


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,381 (3.67/day)
Location
Winnipeg, Canada
System Name Altered Beast
Processor AMD R9 5900X/5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Phantom Spirit 120 EVO, 1x T30
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850X 2TB, SN850 1TB, SN770 1TB - Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA SuperNova 750w G+, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes

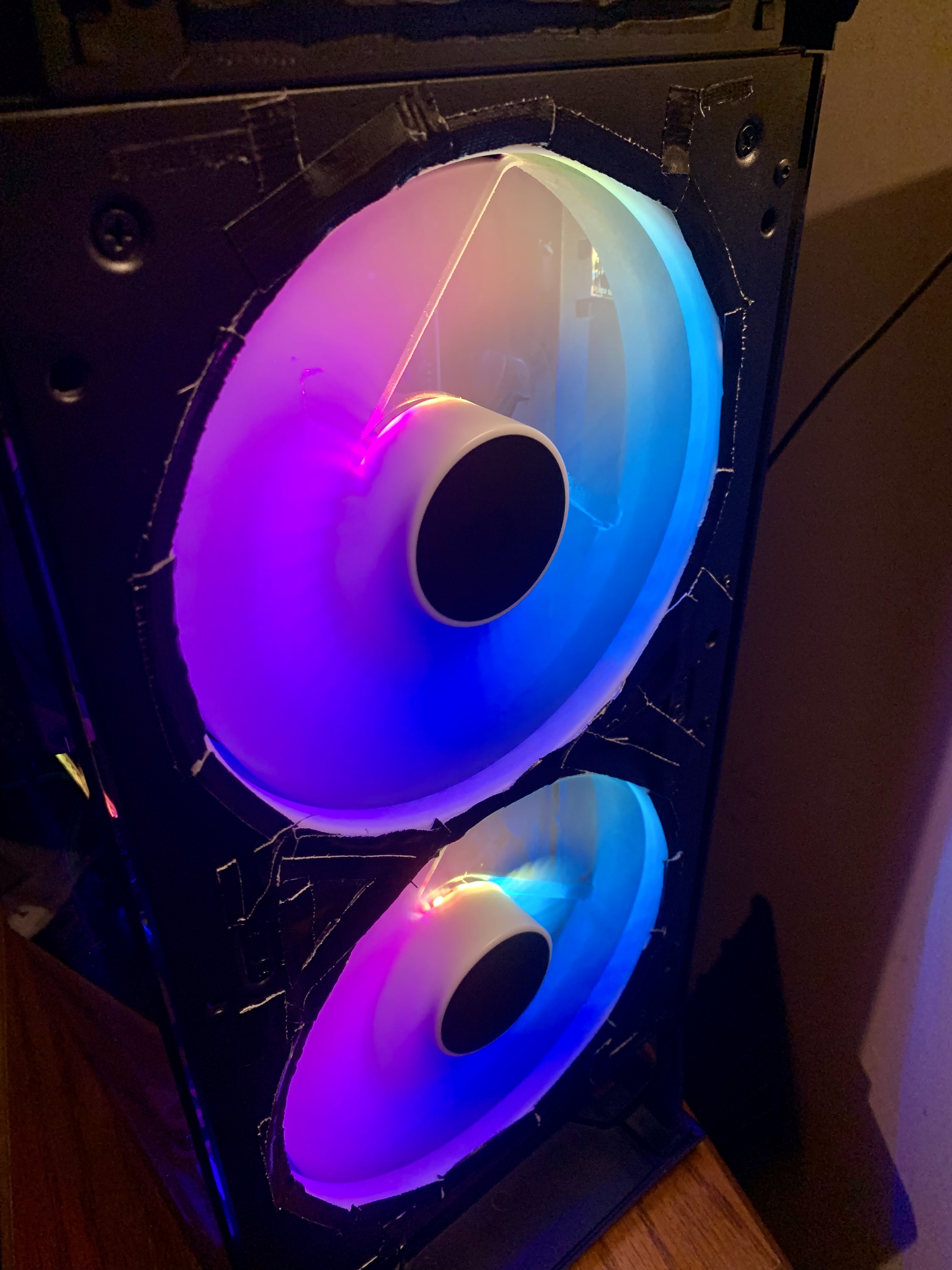

I ended up doing the PSU compartment as well.. It’s ok! It gets plenty of fresh air from the main chamber :)


Joined
Feb 20, 2020
Messages
9,069 (6.09/day)
Location
Louisianna
System Name Ghetto Rigs z490|x99|Acer 17 Nitro 7840hs/ 5600c40-2x16/ 4060/ 1tb acer stock m.2/ 4tb sn850x
Processor 10900k w/Optimus Foundation | 5930k w/Black Noctua D15
Motherboard z490 Maximus XII Apex | x99 Sabertooth
Cooling oCool D5 res-combo/280 GTX/ Optimus Foundation/ gpu water block | Blk D15
Memory Trident-Z Royal 4000c16 2x16gb | Trident-Z 3200c14 4x8gb
Video Card(s) Titan Xp-water | evga 980ti gaming-w/ air
Storage 970evo+500gb & sn850x 4tb | 860 pro 256gb | Acer m.2 1tb/ sn850x 4tb| Many2.5" sata's ssd 3.5hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 | Cherry Entertainment center on Test bench
Audio Device(s) Built in Realtek x2 with 2-Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1000P2 with APC AX1500 | 850P2 with CyberPower-GX1325U
Mouse Redragon 901 Perdition x3
Keyboard G710+x3
Software Win-7 pro x3 and win-10 & 11pro x3
Benchmark Scores Are in the benchmark section
Hi,
Yeah I bought stock in black duck tape a while back :laugh:


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,381 (3.67/day)
Location
Winnipeg, Canada
System Name Altered Beast
Processor AMD R9 5900X/5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Phantom Spirit 120 EVO, 1x T30
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850X 2TB, SN850 1TB, SN770 1TB - Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA SuperNova 750w G+, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
Joined
Nov 25, 2019
Messages
791 (0.50/day)
Location
Taiwan
Processor i5-9600K
Motherboard Gigabyte Z390 Gaming X
Cooling Scythe Mugen 5S
Memory Micron Ballistix Sports LT 3000 8G*4
Video Card(s) EVGA 3070 XC3 Ultra Gaming
Storage Adata SX6000 Pro 512G, Kingston A2000 1T
Display(s) Gigabyte M32Q
Case Antec DF700 Flux
Audio Device(s) Edifier C3X
Power Supply Super Flower Leadex Gold 650W
Mouse Razer Basilisk V2
Keyboard Ducky ONE 2 Horizon
Added some heatsinks to my wifi router

Top
