Issues with PC

Joined
Feb 26, 2021
Messages
5 (0.11/day)
System Name Desktop
Processor Ryzen 5 3600x
Motherboard ASUS Prime B450 Plus
Cooling Stock AMD Cooler, 3 front fans, 1 exhaust
Memory 16GB RAM HyperX Predator 2933
Video Card(s) ASUS GTX 1660 Ti Phoenix
Storage Kingston A1000 240GB M2 SSD, 2TB HDD Seagate Barracuda
Display(s) Acer 75hz
Case Don't know
Audio Device(s) Logitech G332, Monitor audio
Power Supply nJoy 500W Titan
Mouse Logitech G102
Keyboard Logitech G213
Software Windows 10 Pro
Greetings! I come to this forum after one year of having issues with my computer. All of my specs are on my profile, but here they are anyways :
AMD Ryzen 5 3600x
ASUS Prime B450 Plus
ASUS GTX 1660 Ti Phoenix
16GB 2933MHz
M.2 240GB A1000
2TB Seagate Barracuda
nJoy Titan 500W PSU

As for details with my problems, there are many. The most common of them all is the BSOD "Video Scheduler Internal Error". I have tried wiping drivers, trying one RAM stick at a time, reapplying thermal paste on my CPU, changing the motherboard but to no avail. Sometimes, the screen would go randomly black and recover after a second or so. Sometimes, my video drivers are completely gone and there is no NVIDIA Control Panel. As for games, here are some details:
Apex Legends - Video Card no longer detected or driver failed (can't remember exact error code)
Fortnite - Used to "Application has crashed and will now close", but now will display a render from the past, for example the Item Shop or Battle Pass, while the game itself it's still working (tested by speaking with friends ingame, still hear them after display bug)
Roblox - Randomly freezes, won't come out unless I open it again.
Minecraft - Shows me the red minecraft logo, then everything except mobs is transparent.

I have tested it on 3DMark, but only managed to get it to finish twice. I let it running on FurMark for over 20 minutes, but no crashing.
I need help.


FreedomEclipse

~Technological Technocrat~
Joined
Apr 20, 2007
Messages
21,374 (4.19/day)
Location
London,UK
System Name Codename: Icarus Mk.VI
Processor Intel 8600k@4.8Ghz
Motherboard Asus ROG Strixx Z370-F
Cooling CPU: BeQuiet! Dark Rock Pro 4 {1xCorsair ML120 Pro|5xML140 Pro}
Memory 32GB XPG Gammix D10 {2x16GB}
Video Card(s) Gigabyte 1080Ti Gaming OC|Accelero Xtreme IV
Storage Samsung 970Evo 512GB SSD (Boot)|WD Blue 1TB SSD|2x 3TB Toshiba DT01ACA300
Display(s) Asus PB278Q 27"
Case Corsair 760T (White)
Audio Device(s) Yamaha RX-V573|Speakers: JBL Control One|Auna 300-CN|Wharfedale Diamond SW150
Power Supply Corsair AX760
Mouse Logitech G900/G502
Keyboard Duckyshine Dead LED(s) III
Software Windows 10 Pro
Benchmark Scores (ノಠ益ಠ)ノ彡┻━┻
Joined
Jan 25, 2020
Messages
164 (0.37/day)
System Name Still waiting for a 5900x/3080 or 6800xt...or not.
Processor I9 9900kf w/ HEATKILLER IV PRO Copper Nickel
Motherboard MSI MEG Z390 ACE
Cooling BarrowCH Boxfish 200mm-HWLabs SR2 420/GTX&GTS 360-BP Dual D5 MOD TOP-Koolance PMP 450-EK D5 PWM G2
Memory 4x8gb HyperX Predator RGB DDR4 4000
Video Card(s) MSI RTX 2070 Duke 8G OC w/ Byski N RTX2080TI X
Storage XPG SX8200 PRO 1TB NVMe M.2 / Crucial MX500 1TB
Display(s) Acer XG270HU
Case ThermalTake X71 w/5 Noctua NF-A14 2000 IP67 PWM/3 Noctua NF-F12 2000 IP67 PWM/3 CorsairML120 Pro RGB
Audio Device(s) Klipsch Promedia 2.1
Power Supply EVGA SuperNOVA 1300 G2
Mouse Logitech G502 SE
Keyboard Black Aluminun Mechanical Clicky Thing With Blue LEDs, hows that for a name?!
Software Win10pro updated to whatever the latest MS crap is.
Joined
Feb 26, 2021
Messages
5 (0.11/day)
System Name Desktop
Processor Ryzen 5 3600x
Motherboard ASUS Prime B450 Plus
Cooling Stock AMD Cooler, 3 front fans, 1 exhaust
Memory 16GB RAM HyperX Predator 2933
Video Card(s) ASUS GTX 1660 Ti Phoenix
Storage Kingston A1000 240GB M2 SSD, 2TB HDD Seagate Barracuda
Display(s) Acer 75hz
Case Don't know
Audio Device(s) Logitech G332, Monitor audio
Power Supply nJoy 500W Titan
Mouse Logitech G102
Keyboard Logitech G213
Software Windows 10 Pro
Thanks! I'll get a better one for my birthday and see if it does anything.

Joined
Oct 22, 2014
Messages
11,655 (4.93/day)
Location
Sunshine Coast
System Name Black Box
Processor Intel i5-9600KF
Motherboard NZXT N7 Z370 Black
Cooling Cooler Master 240 RGB AIO / Stock
Memory Thermaltake Toughram 16GB 4400MHz DDR4 or Gigabyte 16GB 3600MHz DDR4 or Adata 8GB 2133Mhz DDR4
Video Card(s) Asus Dual 1060 6GB
Storage Kingston A2000 512Gb NVME
Display(s) AOC 24" Freesync 1m.s. 75Hz
Case Corsair 450D High Air Flow.
Audio Device(s) No need.
Power Supply FSP Aurum 650W
Mouse Yes
Keyboard Of course
Software W10 Pro 64 bit
"16GB 2933MHz"
What the Ram's timings?
Have you tried clearing the CMOS and running at default?

Joined
Feb 26, 2021
Messages
5 (0.11/day)
System Name Desktop
Processor Ryzen 5 3600x
Motherboard ASUS Prime B450 Plus
Cooling Stock AMD Cooler, 3 front fans, 1 exhaust
Memory 16GB RAM HyperX Predator 2933
Video Card(s) ASUS GTX 1660 Ti Phoenix
Storage Kingston A1000 240GB M2 SSD, 2TB HDD Seagate Barracuda
Display(s) Acer 75hz
Case Don't know
Audio Device(s) Logitech G332, Monitor audio
Power Supply nJoy 500W Titan
Mouse Logitech G102
Keyboard Logitech G213
Software Windows 10 Pro
Not sure, but its along the 16-15 from what I know. Ill check

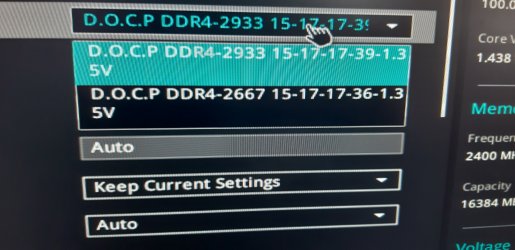

Here are the timings


Attachments

  • 16143423779584436315640258425088.jpg
    4.7 MB · Views: 7
Joined
Oct 22, 2014
Messages
11,655 (4.93/day)
Location
Sunshine Coast
System Name Black Box
Processor Intel i5-9600KF
Motherboard NZXT N7 Z370 Black
Cooling Cooler Master 240 RGB AIO / Stock
Memory Thermaltake Toughram 16GB 4400MHz DDR4 or Gigabyte 16GB 3600MHz DDR4 or Adata 8GB 2133Mhz DDR4
Video Card(s) Asus Dual 1060 6GB
Storage Kingston A2000 512Gb NVME
Display(s) AOC 24" Freesync 1m.s. 75Hz
Case Corsair 450D High Air Flow.
Audio Device(s) No need.
Power Supply FSP Aurum 650W
Mouse Yes
Keyboard Of course
Software W10 Pro 64 bit
Getting a better PSU might not fix your issue, but it won't make it worse either.
I have my doubts it is the PSU if it can run Furmark but crashes during games etc.

Joined
Feb 26, 2021
Messages
5 (0.11/day)
System Name Desktop
Processor Ryzen 5 3600x
Motherboard ASUS Prime B450 Plus
Cooling Stock AMD Cooler, 3 front fans, 1 exhaust
Memory 16GB RAM HyperX Predator 2933
Video Card(s) ASUS GTX 1660 Ti Phoenix
Storage Kingston A1000 240GB M2 SSD, 2TB HDD Seagate Barracuda
Display(s) Acer 75hz
Case Don't know
Audio Device(s) Logitech G332, Monitor audio
Power Supply nJoy 500W Titan
Mouse Logitech G102
Keyboard Logitech G213
Software Windows 10 Pro
I didnt suspect the PSU at first because theres simply so many clues in my opinion pointing towards the GPU. Big note is the fact I used to have a Strix version but they replaced it with the Pheonix due to issues

The fact my games still run but all I can see is a former render is kind of weird

Joined
Oct 22, 2014
Messages
11,655 (4.93/day)
Location
Sunshine Coast
System Name Black Box
Processor Intel i5-9600KF
Motherboard NZXT N7 Z370 Black
Cooling Cooler Master 240 RGB AIO / Stock
Memory Thermaltake Toughram 16GB 4400MHz DDR4 or Gigabyte 16GB 3600MHz DDR4 or Adata 8GB 2133Mhz DDR4
Video Card(s) Asus Dual 1060 6GB
Storage Kingston A2000 512Gb NVME
Display(s) AOC 24" Freesync 1m.s. 75Hz
Case Corsair 450D High Air Flow.
Audio Device(s) No need.
Power Supply FSP Aurum 650W
Mouse Yes
Keyboard Of course
Software W10 Pro 64 bit
Uneven Cas Latency (15) can cause a myriad of confusing issues with AMD systems.
You have the option of getting new Ram or manually adjusting the timings to an even number.
Hopefully someone with more experience can help there.

Joined
Feb 26, 2021
Messages
5 (0.11/day)
System Name Desktop
Processor Ryzen 5 3600x
Motherboard ASUS Prime B450 Plus
Cooling Stock AMD Cooler, 3 front fans, 1 exhaust
Memory 16GB RAM HyperX Predator 2933
Video Card(s) ASUS GTX 1660 Ti Phoenix
Storage Kingston A1000 240GB M2 SSD, 2TB HDD Seagate Barracuda
Display(s) Acer 75hz
Case Don't know
Audio Device(s) Logitech G332, Monitor audio
Power Supply nJoy 500W Titan
Mouse Logitech G102
Keyboard Logitech G213
Software Windows 10 Pro
Will adjusting the timings myself risk any damaging? If not, Ill be willing to try it out

Joined
Nov 22, 2020
Messages
45 (0.32/day)
for example, if software errors :

BIOS->Load Default Options
