M2 won’t show up in bios, but will in windows

Jordaneggli

Jordaneggli

New Member
Joined
Dec 4, 2019
Messages
7 (0.00/day)

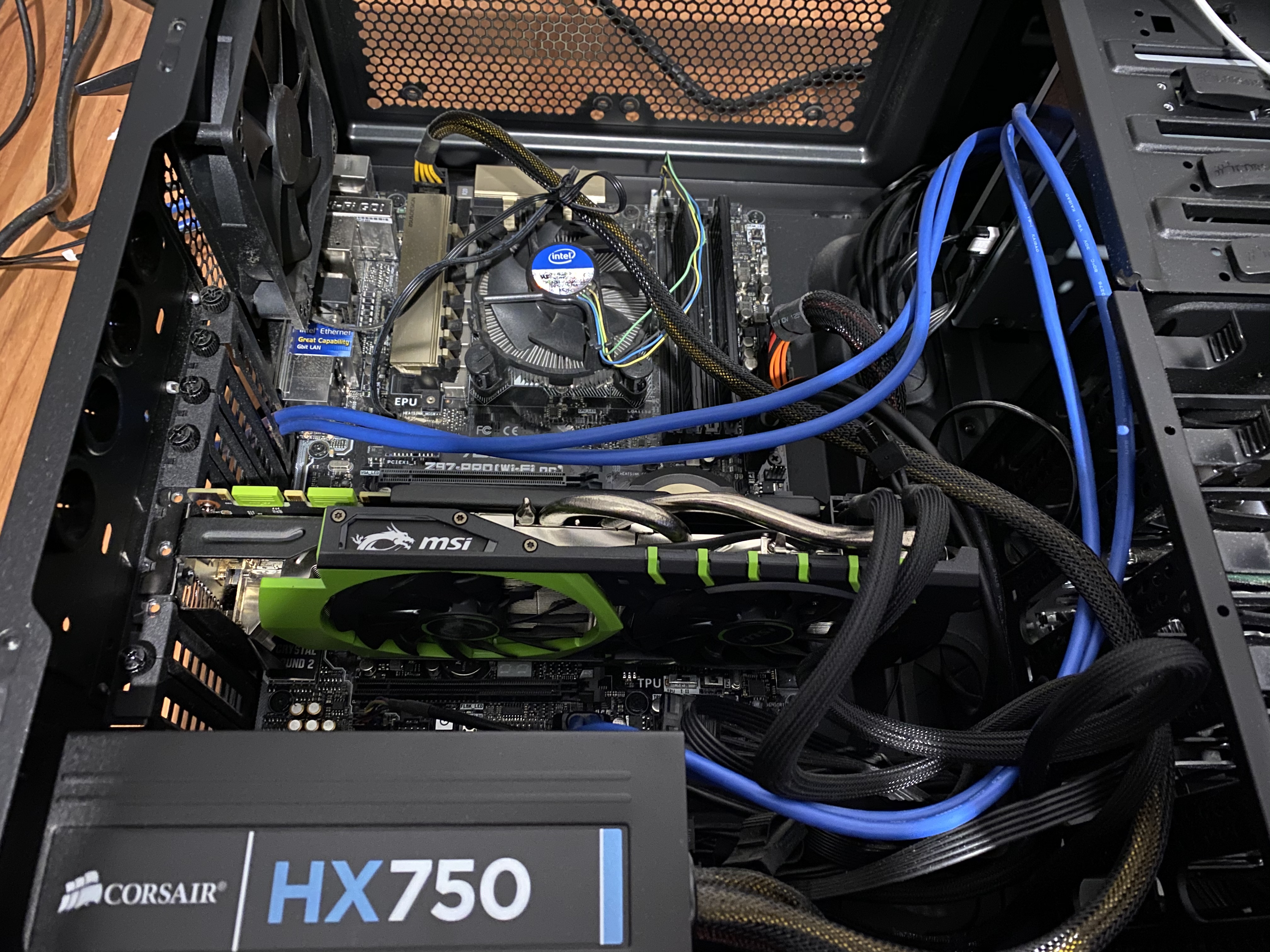

Build:
Asus Z97 Pro WiFi
MSI GTX 970 ME
Intel i7 4790k
16gb Corsair Vengence DDR 4 ram
Corsair HX750 power supply
1tb HDD (don’t remember the model
500gb Samsung (860?) Evo SSD
**New Samsung 970 Evo NVMe M.2**

All part in the computer have been working for years. The only new part is the M2.

I was able to install the new M2 and transferred the data (including my operating system) from my ssd to the M2 using Samsung’s transfer software. For some reason, it copied the data from the ssd to the m2, but didn’t delete it from the ssd. Weird, but not a huge deal.

Here’s the issue:
The bios doesn’t recognize the M2 at all. I tried toying with a bunch of settings, but I can’t seem to figure out how to get the bios to boot from the M2 or even recognize that it’s installed. When I boot from the ssd, windows recognizes that the m2 is installed and even that it has a copy of all the data from the ssd. I tried unplugging all SATA connections, but the bios still wouldn’t recognize the M.2 at all.

My bios hasn’t been updated since I got it in 2014ish? Maybe that’s causing some sort of an issue?

Any help at all would be great.

jordan


Attachments

  • 7C15C241-9637-4FB0-B80C-C36E75F85CA8.jpeg
    3.1 MB · Views: 140
oobymach

oobymach

Joined
Sep 27, 2019
Messages
1,209 (0.71/day)
Location
Canada
System Specs
System Name New compy
Processor AMD Ryzen 5800x3D
Motherboard MSI MPG x570S EDGE MAX WiFi
Cooling Noctua NH-D15S w. FHP141 + Xigmatek AOS XAF-F1451
Memory 32gb G.Skill Ripjaws V Samsung B-Die Dual Rank F4-4000C16D-32GVKA
Video Card(s) ASUS TUF GAMING RTX 4070ti
Storage 17tb (8+4tb WD Black HDD's, 2+2+0.5+0.5tb M.2 SSD Drives) + 16tb WD Red Pro backup drive
Display(s) Alienware AW2518H 24" 240hz, Sony X85K 43" 4k 120hz HDR TV
Case Thermaltake Core v71
Audio Device(s) iFi Nano Idsd Le, Creative T20 + T50, Sennheiser HD6Mix
Power Supply EVGA Supernova G2 1000w
Mouse Logitech G502 Hero custom w. G900 scroll wheel mod, Rival 3 + Rival 3 wireless, JLab Epic Mouse
Keyboard Corsair K68 RGB + K70 RGB + K57 RGB Wireless + Logitech G613
Software Win 10 Pro
Benchmark Scores https://valid.x86.fr/s2y7ny
What is it formatted as? If it's ntfs it should work.

Hit expand all to see available bios

Z97-PRO - Support

www.asus.com www.asus.com

B

bug

Joined
May 22, 2015
Messages
13,267 (4.04/day)
System Specs
Processor Intel i5-12600k
Motherboard Asus H670 TUF
Cooling Arctic Freezer 34
Memory 2x16GB DDR4 3600 G.Skill Ripjaws V
Video Card(s) EVGA GTX 1060 SC
Storage 500GB Samsung 970 EVO, 500GB Samsung 850 EVO, 1TB Crucial MX300 and 2TB Crucial MX500
Display(s) Dell U3219Q + HP ZR24w
Case Raijintek Thetis
Audio Device(s) Audioquest Dragonfly Red :D
Power Supply Seasonic 620W M12
Mouse Logitech G502 Proteus Core
Keyboard G.Skill KM780R
Software Arch Linux + Win10
You've probably inserted the 970 EVO in a non-bootable slot? Check the mobo's manual, back then few motherboards could boot from M.2 and even then, they usually couldn't do it if the slot was provided by a 3rd party controller.

bonehead123

bonehead123

Supporter
Joined
Oct 18, 2013
Messages
5,551 (1.44/day)
Location
Everywhere all the time all at once
System Specs
System Name The Little One
Processor i5-11320H @4.4GHZ
Motherboard AZW SEI
Cooling Fan w/heat pipes + side & rear vents
Memory 64GB Crucial DDR4-3200 (2x 32GB)
Video Card(s) Iris XE
Storage WD Black SN850X 4TB m.2, Seagate 2TB SSD + SN850 4TB x2 in an external enclosure
Display(s) 2x Samsung 43" & 2x 32"
Case Practically identical to a mac mini, just purrtier in slate blue, & with 3x usb ports on the front !
Audio Device(s) Yamaha ATS-1060 Bluetooth Soundbar & Subwoofer
Power Supply 65w brick
Mouse Logitech MX Master 2
Keyboard Logitech G613 mechanical wireless
Software Windows 10 pro 64 bit, with all the unnecessary background shitzu turned OFF !
Benchmark Scores PDQ
Booting a Z97 from an M.2 was/is iffy at best, but without a bios update, and probably the sammy driver, it is/was a lost cause in almost all cases...

Been there, done that :)

Just install the newest bios & sammy driver then reboot into the bios & see if that helps. ....

Jordaneggli

Jordaneggli

New Member
Joined
Dec 4, 2019
Messages
7 (0.00/day)
bonehead123 said:
Booting a Z97 from an M.2 was/is iffy at best, but without a bios update, and probably the sammy driver, it is/was a lost cause in almost all cases...

Been there, done that :)

Just install the newest bios & sammy driver then reboot into the bios & see if that helps. ....
Click to expand...


Thanks for your help! Updating the bios worked for it recognize the m2. I then had to unplug the ssd and set the m2 to auto boot. Then I plugged the ssd back in and formatted it.
It all works now! Thank you!

bonehead123

bonehead123

Supporter
Joined
Oct 18, 2013
Messages
5,551 (1.44/day)
Location
Everywhere all the time all at once
System Specs
System Name The Little One
Processor i5-11320H @4.4GHZ
Motherboard AZW SEI
Cooling Fan w/heat pipes + side & rear vents
Memory 64GB Crucial DDR4-3200 (2x 32GB)
Video Card(s) Iris XE
Storage WD Black SN850X 4TB m.2, Seagate 2TB SSD + SN850 4TB x2 in an external enclosure
Display(s) 2x Samsung 43" & 2x 32"
Case Practically identical to a mac mini, just purrtier in slate blue, & with 3x usb ports on the front !
Audio Device(s) Yamaha ATS-1060 Bluetooth Soundbar & Subwoofer
Power Supply 65w brick
Mouse Logitech MX Master 2
Keyboard Logitech G613 mechanical wireless
Software Windows 10 pro 64 bit, with all the unnecessary background shitzu turned OFF !
Benchmark Scores PDQ
Jordaneggli said:
Thanks for your help! Updating the bios worked for it recognize the m2. I then had to unplug the ssd and set the m2 to auto boot. Then I plugged the ssd back in and formatted it.
It all works now! Thank you!
Click to expand...

Cool, glad to help :)
