Problem with flashing RX 5700 to an XT version.

Joined
Jun 27, 2023
Messages
17 (0.02/day)
System Name Weird PC Specs
Processor I5-9600k
Motherboard Asus B360M-A
Cooling Stock Intel Cooler
Memory Corsair Vengeance 16GB DDR4
Video Card(s) Asus RX 5700 Dual EVO OC (Flashed to XT + OC)
Storage Seagate HDD 1TB
Display(s) 2560:1440p 60hz
Power Supply CoolerMaster Masterwatt Lite 500w
Software Windows 11 Pro
Benchmark Scores 5102 score on Superposition Benchmark (1080p Extreme)
So i tried to flash my ASUS RX 5700 Dual Evo to XT but im running into this error on Command Prompt where it says Error: IFWI's SSID is not same.

I am running the latest AMDVBFlash/ATI ATIFlash v5.0.567 and i also ran the AMDVBFlashDriverInstaller.exe and installed the AMD Tools Driver. Im kinda stuck on this bit... any help would come in handy :)

Is there a specific XT vbios i need to flash for it to work?


ERROR MESSAGE IN COMMAND PROMPT:




My GPUZ:




This is the bios i tried to flash:

Last edited:
So i tried to flash my ASUS RX 5700 Dual Evo to XT but im running into this error on Command Prompt where it says Error: IFWI's SSID is not same.

I am running the latest AMDVBFlash/ATI ATIFlash v5.0.567 and i also ran the AMDVBFlashDriverInstaller.exe and installed the AMD Tools Driver. Im kinda stuck on this bit... any help would come in handy :)

Is there a specific XT vbios i need to flash for it to work?

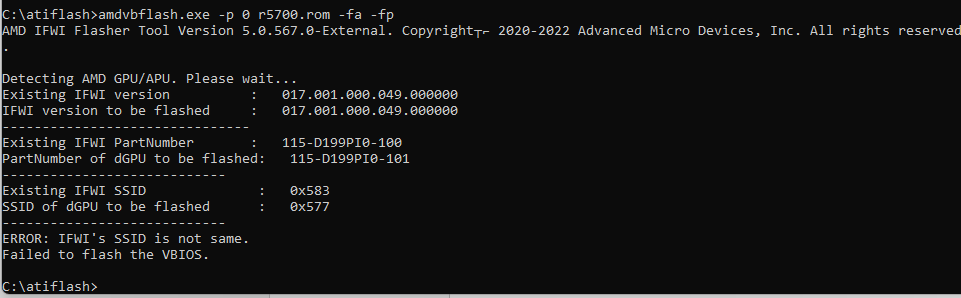

ERROR MESSAGE IN COMMAND PROMPT:
View attachment 302661



My GPUZ:
View attachment 302653



This is the bios i tried to flash:
Try 3.31

Update: Now ive installed v3.31 this shows up on command prompt ERROR: 0FL01



Am i probably flashing the wrong BIOS for my Asus RX 5700 Dual Evo? Cause im not sure and this is the BIOS im trying to flash..

Yes

Yup you cant flash a TUF to a dual evo
damn, so what bios can i flash, Reference BIOS maybe? Or non of these bios work with the Dual evo.

Give me time to look for a compatible bios, if you can go back into GPU-Z,go the advanced tab and screenshot each category there after selecting each, some other pertnient data is there

damn, so what bios can i flash, Reference BIOS maybe? Or non of these bios work with the Dual evo.
View attachment 302743
No you cant flash a reference bios to your card. Be patient you will get info needed

Give me time to look for a compatible bios, if you can go back into GPU-Z,go the advanced tab and screenshot each category there after selecting each, some other pertnient data is there


No you cant flash a reference bios to your card. Be patient you will get info needed
here ya go,













Attachments

  • 1687983201780.png
    21 KB · Views: 72
Ok I saw a pn of your card i will look for a dual evo bios for your card 5700xt

From what I gather this is your current bios.


5700XT bios

Dual Evo Bios





115-D199PI0-100
TUF 5700XT



5700XT bios

Dual Evo Bios





115-D199PI0-100
TUF 5700XT


none of these bios worked unfortunately. And its still giving me this

Last edited:
You need to Force bios flashing with -f command also you need to unlock your bios first......

Something like this:

amdvbflash.exe -unlockrom 0

amdvbflash.exe -p -f 0 name.rom

But before you do this maybe you should try MorePowerTool and RedBiosEditor personally as I remember is better when you tweak/play with your original bios and then try it in MorePowerTool and see how that goes before you do the flashing .....I also assume that you know what are you doing.......GL

Last edited:
You need to Force bios flashing with -f command also you need to unlock your bios first......

Something like this:

amdvbflash.exe -unlockrom 0

amdvbflash.exe -p -f 0 name.rom

But before you do this maybe you should try MorePowerTool and RedBiosEditor personally as I remember is better when you tweak/play with your original bios and then try it in MorePowerTool and see how that goes before you do the flashing .....I also assume that you know what are you doing.......GL
Unfortunately -f and -unlockrom 0 doesnt work on the latest amdvbflash version and eidairaman1 said on the forums that if you have rx 500 series (Polaris) thats the commands u wanna use but if u have rx 5000 - 7000 (Navi Series) then he recommends to use amdvbflash v3.31-5.0.567 but those two versions dont support -f and -unlockrom 0 commands anymore ;(

Unfortunately -f and -unlockrom 0 doesnt work on the latest amdvbflash version and eidairaman1 said on the forums that if you have rx 500 series (Polaris) thats the commands u wanna use but if u have rx 5000 - 7000 (Navi Series) then he recommends to use amdvbflash v3.31-5.0.567 but those two versions dont support -f and -unlockrom 0 commands anymore ;(
Well when I was flashing my previous GPU RX 5700 I was using some older version then and it was working perfectly fine I flashed more then dozen times always using those commands......
P.S. Just checked it was amdvbflash v2.93+

Last edited:
Well when I was flashing my previous GPU RX 5700 I was using some older version then and it was working perfectly fine I flashed more then dozen times always using those commands......
P.S. Just checked it was amdvbflash v2.93+
What bios were u flashing and can u probably get a link for it? Was it a XT Bios or.. cause I’m curious which bios u flashed. I’m not so sure but I haven’t seen many Asus RX 5700 Dual Evo OC being flashed to Xt and there might be some reason for that.

Well when I was flashing my previous GPU RX 5700 I was using some older version then and it was working perfectly fine I flashed more then dozen times always using those commands......
P.S. Just checked it was amdvbflash v2.93+
Can that version even be found anymore?

What bios were u flashing and can u probably get a link for it? Was it a XT Bios or.. cause I’m curious which bios u flashed. I’m not so sure but I haven’t seen many Asus RX 5700 Dual Evo OC being flashed to Xt and there might be some reason for that.
I flashed so many of them I tried XT bios on non XT 5700 but at the end the best bios(that worked for me)as that card was not such a good overclocker was my modified original bios that I tweaked in Red Bios Editor where I heavily undervolted card and limit to work under 150W also with my memory OC I remember I was using also navi curve helper to adjust my own Voltages as I remember that card was working around 0,9V on 1700Mhz.....

Can that version even be found anymore?
Here I will put that version & Navi Curve Heler on my google drive so you guys can download it if you want

AtiFlash V2.93
NaviCurveHelper

Last edited:
I flashed so many of them I tried XT bios on non XT 5700 but at the end the best bios(that worked for me)as that card was not such a good overclocker was my modified original bios that I tweaked in Red Bios Editor where I heavily undervolted card and limit to work under 150W also with my memory OC I remember I was using also navi curve helper to adjust my own Voltages as I remember that card was working around 0,9V on 1700Mhz.....
Hi. A slightly offtopic question here: are this changes compatible with secure boot?

If not, is there any way to modify a original radeon bios keeping it secure boot compatible?

Hi. A slightly offtopic question here: are this changes compatible with secure boot?

If not, is there any way to modify a original radeon bios keeping it secure boot compatible?
I can only say from my own experience that I never have the problem under the win 11 and yes MorePowerTool is the way to go first before you decide to do the flashing as you can change everything in there and apply all new settings and after the restart your card will load that modified bios and it should work with that bios as long as you keep the same drivers after you install new divers you can load again your modded bios with MPT.....I believe you can find many tutorials on IgorsLab site Link

I can only say from my own experience that I never have the problem under the win 11 and yes MorePowerTool is the way to go first before you decide to do the flashing as you can change everything in there and apply all new settings and after the restart your card will load that modified bios and it should work with that bios as long as you keep the same drivers after you install new divers you can load again your modded bios with MPT.....I believe you can find many tutorials on IgorsLab site Link

I see this is for RDNA only, don't?

Do you know what would be the way For GCN?

I see this is for RDNA only, don't?

Do you know what would be the way For GCN?
Yeah correct (MPT) actually working only for 5000 series.......When it comes to bios flashing for polaris cards you can use also RedBiosEditor or PolarisBiosEditor not sure exactly what I was using for my R9 Fury but I remember that was modding that bios also with something....
