RGB does not work.

kalle321

New Member
Joined
Oct 17, 2021
Messages
10 (0.20/day)
I have a asus prime B450-Plus and I am trying to use phanteks SK PWM fans, the fans are spining fine but the rgb does not work. The rgb header on the motherboard had has a 4 pin connector but the fans did not come with a cable to connect to that header so I bought one that phanteks was selling. The problem is that the cable I got has 4 pin connectors but the fans only has 3 pin and I do not know what to do. Can anyone help?

Joined
Mar 10, 2010
Messages
9,479 (2.21/day)
Location
Manchester uk
System Name RyzenGtEvo/ Asus strix scar II
Processor Amd R7 3800X@4.350/525/ Intel 8750H
Motherboard Crosshair hero7 @bios 2703/?
Cooling 360EK extreme rad+ 360$EK slim all push, cpu Monoblock Gpu full cover all EK
Memory Corsair Vengeance Rgb pro 3600cas14 32Gb in four sticks./16Gb
Video Card(s) Sapphire refference Rx vega 64 EK waterblocked/Rtx 2060
Storage Silicon power qlc nvmex3 in raid 0/8Tb external/1Tb samsung Evo nvme 2Tb sata ssd
Display(s) Samsung UAE28"850R 4k freesync.
Case Lianli p0-11 dynamic
Audio Device(s) Xfi creative 7.1 on board ,Yamaha dts av setup, corsair void pro headset
Power Supply corsair 1200Hxi
Mouse Roccat Kova/ Logitech G wireless
Keyboard Roccat Aimo 120
VR HMD Oculus rift
Software Win 10 Pro
Benchmark Scores 8726 vega 3dmark timespy/ laptop Timespy 6506
I have a asus prime B450-Plus and I am trying to use phanteks SK PWM fans, the fans are spining fine but the rgb does not work. The rgb header on the motherboard had has a 4 pin connector but the fans did not come with a cable to connect to that header so I bought one that phanteks was selling. The problem is that the cable I got has 4 pin connectors but the fans only has 3 pin and I do not know what to do. Can anyone help?
Does the adaptor phantex sold you not have viable four pin connection points to plug into the motherboard? Most RGB run on three wires but have a dead pin in the end of a four pin connector to allow easily aligned connection to normal RGB board connectors.
Be very careful what you plug in where though because reversing the connection or plugging into the wrong header will kill the RGB permanently.

Post pictures of what you have, show connection points too others could help more then.


kalle321

New Member
Joined
Oct 17, 2021
Messages
10 (0.20/day)
Does the adaptor phantex sold you not have viable four pin connection points to plug into the motherboard? Most RGB run on three wires but have a dead pin in the end of a four pin connector to allow easily aligned connection to normal RGB board connectors.
Be very careful what you plug in where though because reversing the connection or plugging into the wrong header will kill the RGB permanently.

Post pictures of what you have, show connection points too others could help more then.

The first picture is from the cable connecting to the motherboard and the other one is the fans, I downloaded aura sync because I thought there would be some instructions maybe but it only showed that the arrow should connect to the 12v pin on the motherboard. I got some other cables with the fans but none of them fit because they have blocked pin connection, and the rgb header on the motherboard is 4 and its like round pins not the like square ones on the pictures below. My friend told me that I could just connect the 3 pin into the 4 pin with worked but it did not work right only like red and green worked.


Attachments

  • bild_2021-10-17_145121.png
    7.7 MB · Views: 25
  • bild_2021-10-17_145148.png
    5.8 MB · Views: 28
Joined
Jul 16, 2014
Messages
5,802 (2.15/day)
Location
SE Michigan
System Name Dumbass
Processor AMD-9370BE @4.6
Motherboard ASUS SABERTOOTH 990FX R2.0 +SB950
Cooling CM Nepton 280L
Memory G.Skill Sniper 16gb DDR3 2400
Video Card(s) GreenTeam 1080 Gaming X 8GB
Storage C:\SSD (240GB), D:\Seagate (2TB), E:\Western Digital (1TB)
Display(s) 1x Nixeus NX_EDG27, 2x Dell S2440L (16:9)
Case Phanteks Enthoo Primo w/8 140mm SP Fans
Audio Device(s) onboard (realtek?) SPKRS:Logitech Z623 200w 2.1
Power Supply Corsair HX1000i
Mouse Logitech G604
Keyboard Logitech G910 Orion Spark
Software windows 10
Benchmark Scores https://i.imgur.com/aoz3vWY.jpg?2
The 3-pin and 4-pin with the two locks on the side is your RGB connectors. The 3-pin, without the wings, is standard fans only. The 4-pin, without wings, is obviously PWM fan.

Looks like RGB connectors are incompatible.

Last edited:
Joined
Mar 10, 2010
Messages
9,479 (2.21/day)
Location
Manchester uk
System Name RyzenGtEvo/ Asus strix scar II
Processor Amd R7 3800X@4.350/525/ Intel 8750H
Motherboard Crosshair hero7 @bios 2703/?
Cooling 360EK extreme rad+ 360$EK slim all push, cpu Monoblock Gpu full cover all EK
Memory Corsair Vengeance Rgb pro 3600cas14 32Gb in four sticks./16Gb
Video Card(s) Sapphire refference Rx vega 64 EK waterblocked/Rtx 2060
Storage Silicon power qlc nvmex3 in raid 0/8Tb external/1Tb samsung Evo nvme 2Tb sata ssd
Display(s) Samsung UAE28"850R 4k freesync.
Case Lianli p0-11 dynamic
Audio Device(s) Xfi creative 7.1 on board ,Yamaha dts av setup, corsair void pro headset
Power Supply corsair 1200Hxi
Mouse Roccat Kova/ Logitech G wireless
Keyboard Roccat Aimo 120
VR HMD Oculus rift
Software Win 10 Pro
Benchmark Scores 8726 vega 3dmark timespy/ laptop Timespy 6506
The first picture is from the cable connecting to the motherboard and the other one is the fans, I downloaded aura sync because I thought there would be some instructions maybe but it only showed that the arrow should connect to the 12v pin on the motherboard. I got some other cables with the fans but none of them fit because they have blocked pin connection, and the rgb header on the motherboard is 4 and its like round pins not the like square ones on the pictures below. My friend told me that I could just connect the 3 pin into the 4 pin with worked but it did not work right only like red and green worked.
That sounds like you are looking to connect on the wrong motherboard header, Asus have two types argb(addressable) and drgb (normal) look in your motherboard manual for these they are not inter changeable.

You took pics of two, take pictures of every cable layed out on a desk so we can see everything you are working with, I have no experience with phantex so I'm struggling with context the ones you showed just looked like daisy chain connection points for like hardware and none would connect to the board?!

As for it working partially at some point aurasync has calibration,. Did you try it, it could have needed calibration to setup the colours right.


kalle321

New Member
Joined
Oct 17, 2021
Messages
10 (0.20/day)
The 3-pin and 4-pin with the two locks on the side is your RGB connectors. The 3-pin, without the wings, is standard fans only. The 4-pin, without wings, is obviously PWM fan.

Looks like RGB connectors are incompatible.
I don't know what a PWM fan is but maybe they are incompatible and I am not sure what to look for or how to find one that works. The cable I use to connect to the motherboard is the first one on this message, on the other side its the 4 pin connectors that i sent in my last message.
That sounds like you are looking to connect on the wrong motherboard header, Asus have two types argb(addressable) and drgb (normal) look in your motherboard manual for these they are not inter changeable.

You took pics of two, take pictures of every cable layed out on a desk so we can see everything you are working with, I have no experience with phantex so I'm struggling with context the ones you showed just looked like daisy chain connection points for like hardware and none would connect to the board?!

As for it working partially at some point aurasync has calibration,. Did you try it, it could have needed calibration to setup the colours right.
I did try to calibrate them but nothing happened. I also looked in the manual but I could only see 1 rgb header, the on at the top.

The fourth, fifth and sixth pictures are extra cables, I did not get it so well on the picture but on picture four the left cable has a 2 pin connector or 2 holes atleast on the other side. The fifth picture I have no idea what that cable is used for.

The thing is too that the header on the motherboard is a 4 pin and the cable I got that could connect there has 4 pin on the other side but the fans only have 3 pin. They spin fine because that is through another cable.


Attachments

  • bild_2021-10-17_164453.png
    7 MB · Views: 20
  • bild_2021-10-17_164734.png
    7.9 MB · Views: 21
  • bild_2021-10-17_164822.png
    5.3 MB · Views: 20
  • bild_2021-10-17_164856.png
    6.5 MB · Views: 18
  • bild_2021-10-17_165017.png
    5.7 MB · Views: 16
  • bild_2021-10-17_165109.png
    5.4 MB · Views: 16

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
33,200 (6.30/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
What specific model of fans do you have? Aka model number


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
33,200 (6.30/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Where do I find that? If you search "phanteks sk 120mm pwm d-rgb" on google it should be those i have.
Look on the fan hub itself

Or on the packaging the fans came in

Joined
Mar 10, 2010
Messages
9,479 (2.21/day)
Location
Manchester uk
System Name RyzenGtEvo/ Asus strix scar II
Processor Amd R7 3800X@4.350/525/ Intel 8750H
Motherboard Crosshair hero7 @bios 2703/?
Cooling 360EK extreme rad+ 360$EK slim all push, cpu Monoblock Gpu full cover all EK
Memory Corsair Vengeance Rgb pro 3600cas14 32Gb in four sticks./16Gb
Video Card(s) Sapphire refference Rx vega 64 EK waterblocked/Rtx 2060
Storage Silicon power qlc nvmex3 in raid 0/8Tb external/1Tb samsung Evo nvme 2Tb sata ssd
Display(s) Samsung UAE28"850R 4k freesync.
Case Lianli p0-11 dynamic
Audio Device(s) Xfi creative 7.1 on board ,Yamaha dts av setup, corsair void pro headset
Power Supply corsair 1200Hxi
Mouse Roccat Kova/ Logitech G wireless
Keyboard Roccat Aimo 120
VR HMD Oculus rift
Software Win 10 Pro
Benchmark Scores 8726 vega 3dmark timespy/ laptop Timespy 6506
I don't know what a PWM fan is but maybe they are incompatible and I am not sure what to look for or how to find one that works. The cable I use to connect to the motherboard is the first one on this message, on the other side its the 4 pin connectors that i sent in my last message.

I did try to calibrate them but nothing happened. I also looked in the manual but I could only see 1 rgb header, the on at the top.

The fourth, fifth and sixth pictures are extra cables, I did not get it so well on the picture but on picture four the left cable has a 2 pin connector or 2 holes atleast on the other side. The fifth picture I have no idea what that cable is used for.

The thing is too that the header on the motherboard is a 4 pin and the cable I got that could connect there has 4 pin on the other side but the fans only have 3 pin. They spin fine because that is through another cable.
so fan power wise your fine using 3pin dc fans on the 4 pin(PWM pulse width modulated speed) fan power header.

pic 4,5 look like fan wire extension cables, cable in pic1 connects to mobo rgb header.

the other end should connect to your fan rgb which can daisy chain.

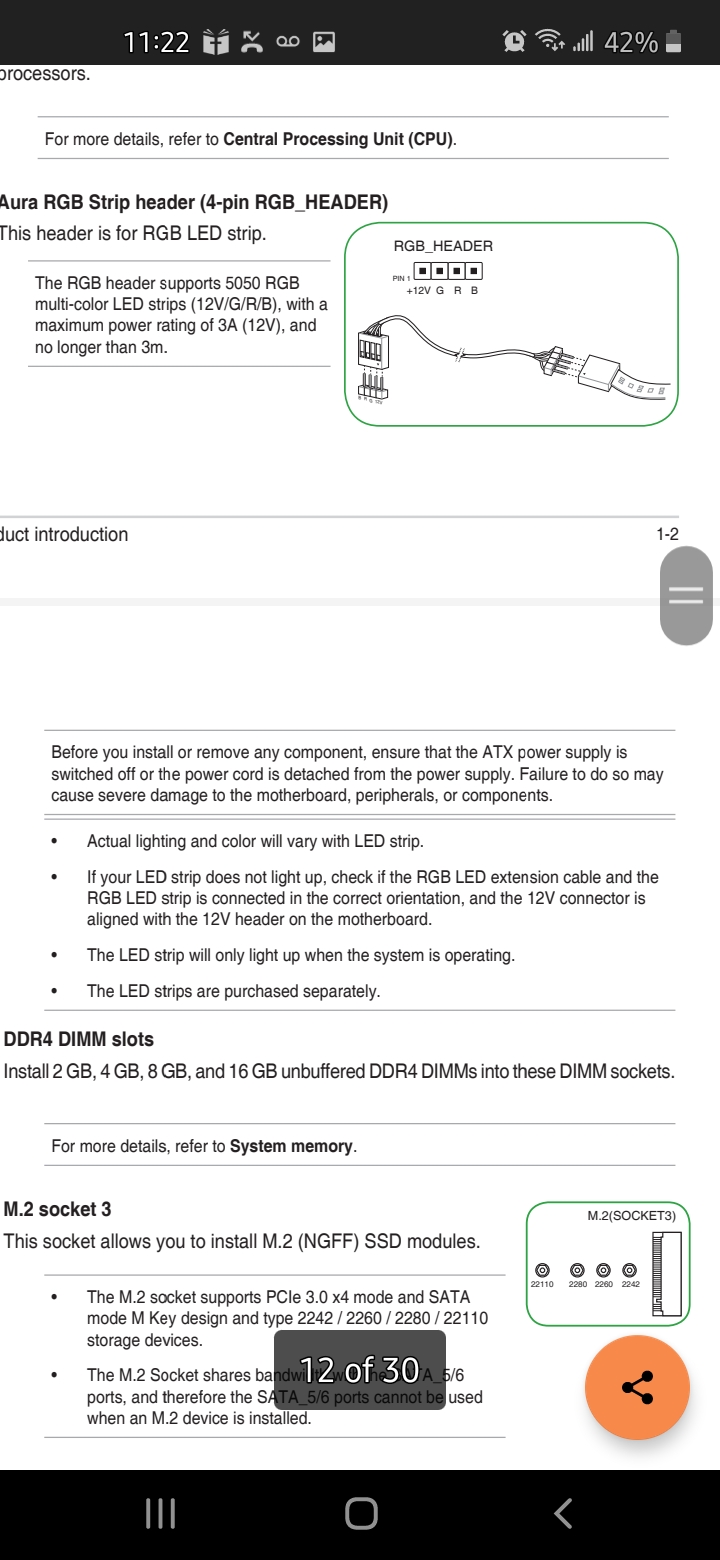

the motherboard has only 1 dRGB 12Vheader.

12V/redd/green/blue pinouts.

3wire rgb on fans sound like arGB (addressable rgb)and not only are not compatible but im surprised they did work at all, im thinking you cant get it working properly with what you have unfortunately, I downloaded your manual so i looked thoroughly.

I had this issue with raintec fans.


kalle321

New Member
Joined
Oct 17, 2021
Messages
10 (0.20/day)
Look on the fan hub itself

Or on the packaging the fans came in
This is the only things on the fans, the back side has nothing on it.

On the box there is really nothing besides over the scanner code thing it says "PH-F120SK_DRGB_PWM_3P" other than that there are no numbers or anything only measurments


Attachments

  • bild_2021-10-17_174555.png
    6 MB · Views: 11
  • bild_2021-10-17_174602.png
    6.9 MB · Views: 16
Joined
Aug 25, 2021
Messages
793 (7.70/day)
Location
Thailand
System Name Shoebox
Processor 3600x
Motherboard Msi b550m Mortar +WiFi
Cooling Cryorig m9
Memory Hyperx c16 3200 2x8gb
Video Card(s) Powercolor rx570 4gb
Storage WD black sn750 256gb (OS), crucial mx500 1tb(storage),Hitatchi ?? 7200rpm 500gb(Temp files)
Display(s) Samsung 65" TU7100
Case Zzaw b3
Audio Device(s) Yamaha rx-v363
Power Supply Corsair sf750
Mouse Logitech g300s
Keyboard Custom Skyloong sk64s
Software Windows 10 Pro
From the looks of it your motherboard may have come with the adapter. It should be +5V/Data/blank/Ground

is this the cable you purchased?


kalle321

New Member
Joined
Oct 17, 2021
Messages
10 (0.20/day)
so fan power wise your fine using 3pin dc fans on the 4 pin(PWM pulse width modulated speed) fan power header.

pic 4,5 look like fan wire extension cables, cable in pic1 connects to mobo rgb header.

the other end should connect to your fan rgb which can daisy chain.

the motherboard has only 1 dRGB 12Vheader.

12V/redd/green/blue pinouts.

3wire rgb on fans sound like arGB (addressable rgb)and not only are not compatible but im surprised they did work at all, im thinking you cant get it working properly with what you have unfortunately, I downloaded your manual so i looked thoroughly.

I had this issue with raintec fans.
Can I get a hub or something to make the rgb work or will it just not work?

From the looks of it your motherboard may have come with the adapter. It should be +5V/Data/blank/Ground

is this the cable you purchased?View attachment 221196
No the one I bought is the one I link here. My motherboard did not come with that cable but my fans did, the only thing is that i have no idea where to plug it into since the rgb header has 4 pins on the motherboard and the cable you sent here has 1 blocked out so that would break the motherboard.


Attachments

  • bild_2021-10-17_175255.png
    7 MB · Views: 12

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
33,200 (6.30/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
This is the only things on the fans, the back side has nothing on it.

On the box there is really nothing besides over the scanner code thing it says "PH-F120SK_DRGB_PWM_3P" other than that there are no numbers or anything only measurments
Really, man they are cheap.

Ok heres the fan specs


Joined
Feb 17, 2010
Messages
848 (0.20/day)
System Name AMD AF
Processor Ryzen 5 1600AF @4284
Motherboard X470 Taichi
Cooling Water
Memory 4x8GB Micron E @3672CL16
Video Card(s) RX Vega 64
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III 850W
Mouse Cooler Master MM710
Keyboard Logi G105
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
Those pictures look like the same fans in my wife's phanteks case which are actually rebranded metallic gear skirons. They are ARGB. I have 6 of them chained together then plugged into the mobo ARGB header.

On a side note, RGB, RBW, ARGB connectors are annoying as hell because companies use all different kinds of connectors so good luck finding adapters and things that actually work correctly together. Half the time when it's the wrong adapter, it fries the LED controllers. And it seems like every other time there is a Windows Update it breaks the motherboard LED firmware.

Last edited:
Joined
Aug 25, 2021
Messages
793 (7.70/day)
Location
Thailand
System Name Shoebox
Processor 3600x
Motherboard Msi b550m Mortar +WiFi
Cooling Cryorig m9
Memory Hyperx c16 3200 2x8gb
Video Card(s) Powercolor rx570 4gb
Storage WD black sn750 256gb (OS), crucial mx500 1tb(storage),Hitatchi ?? 7200rpm 500gb(Temp files)
Display(s) Samsung 65" TU7100
Case Zzaw b3
Audio Device(s) Yamaha rx-v363
Power Supply Corsair sf750
Mouse Logitech g300s
Keyboard Custom Skyloong sk64s
Software Windows 10 Pro
Right so your motherboard doesn't support 5v RGB only 12v so no adapter cable will work
you will have to purchase some sort of hub. If you haven't blown the diodes already


kalle321

New Member
Joined
Oct 17, 2021
Messages
10 (0.20/day)
Really, man they are cheap.

Ok heres the fan specs

Yeah I mean I had to build the whole pc did not have enough budget for something to fancy.
Those pictures look like the same fans in my wife's phanteks case which are actually rebranded metallic gear skirons. They are ARGB. I have 6 of them chained together then plugged into the mobo ARGB header.
I am not sure but I dont think my motherboard has argb.
Right so your motherboard doesn't support 5v RGB only 12v so no adapter cable will work
you will have to purchase some sort of hub. If you haven't blown the diodes already
How do I find a hub that would work?


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
33,200 (6.30/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Yeah I mean I had to build the whole pc did not have enough budget for something to fancy.

I am not sure but I dont think my motherboard has argb.

How do I find a hub that would work?

No i wasnt insulting your choice, just their choice of not putting a model number on the hub label

Joined
Aug 25, 2021
Messages
793 (7.70/day)
Location
Thailand
System Name Shoebox
Processor 3600x
Motherboard Msi b550m Mortar +WiFi
Cooling Cryorig m9
Memory Hyperx c16 3200 2x8gb
Video Card(s) Powercolor rx570 4gb
Storage WD black sn750 256gb (OS), crucial mx500 1tb(storage),Hitatchi ?? 7200rpm 500gb(Temp files)
Display(s) Samsung 65" TU7100
Case Zzaw b3
Audio Device(s) Yamaha rx-v363
Power Supply Corsair sf750
Mouse Logitech g300s
Keyboard Custom Skyloong sk64s
Software Windows 10 Pro

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
33,200 (6.30/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
1 aurasync header
Screenshot_20211017-111021_Firefox Beta.jpg


It seems the motherboard header is only for led strips, and the manual doesn't go in depth to control aurasync functions through the bios.

I see my bad.

Yeah thank you, it looks like it should work

Last edited:

kalle321

New Member
Joined
Oct 17, 2021
Messages
10 (0.20/day)
1 aurasync header
View attachment 221200View attachment 221202View attachment 221203View attachment 221204


It seems the motherboard header is only for led strips, and the manual doesn't go in depth to control aurasync functions through the bios.
So this means what exactly?

Joined
Aug 25, 2021
Messages
793 (7.70/day)
Location
Thailand
System Name Shoebox
Processor 3600x
Motherboard Msi b550m Mortar +WiFi
Cooling Cryorig m9
Memory Hyperx c16 3200 2x8gb
Video Card(s) Powercolor rx570 4gb
Storage WD black sn750 256gb (OS), crucial mx500 1tb(storage),Hitatchi ?? 7200rpm 500gb(Temp files)
Display(s) Samsung 65" TU7100
Case Zzaw b3
Audio Device(s) Yamaha rx-v363
Power Supply Corsair sf750
Mouse Logitech g300s
Keyboard Custom Skyloong sk64s
Software Windows 10 Pro
Yep 12v 3xground that adapter I posted should convert it for use with the fans seems weird why a b450 board didn't come with 5v.


eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
33,200 (6.30/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
So this means what exactly?
It means you would either need fans that have a separate rgb line or an adapter @ThaiTaffy suggested.

And learn how to use the bios on the motherboard.

Otherwise you would need a pricier AM4 motherboard

Joined
Aug 25, 2021
Messages
793 (7.70/day)
Location
Thailand
System Name Shoebox
Processor 3600x
Motherboard Msi b550m Mortar +WiFi
Cooling Cryorig m9
Memory Hyperx c16 3200 2x8gb
Video Card(s) Powercolor rx570 4gb
Storage WD black sn750 256gb (OS), crucial mx500 1tb(storage),Hitatchi ?? 7200rpm 500gb(Temp files)
Display(s) Samsung 65" TU7100
Case Zzaw b3
Audio Device(s) Yamaha rx-v363
Power Supply Corsair sf750
Mouse Logitech g300s
Keyboard Custom Skyloong sk64s
Software Windows 10 Pro
Not sure how much it is there where you guys are but the $10 adapter seems the best option :D

Top
