Hey, I had a rx 5700 mech oc, and I flashed it to the 5700 xt because everyone said it worked for them, and it worked for me. Then i tried to flash back to the original bios a few days later, and now there’s no signal to my monitor and none of my peripherals are lighting up. Please help I am so scared and idk what to do.
-
Welcome to TechPowerUp Forums, Guest! Please check out our forum guidelines for info related to our community.
Rx 5700 Mech Oc Flashed No Signal
- Thread starter aabusedo
- Start date
- Joined
- Oct 22, 2014
- Messages
- 9,895 (4.49/day)
- Location
- Sunshine Coast
| System Name | Black Box |
|---|---|
| Processor | Intel i5-9600KF |
| Motherboard | NZXT N7 Z370 Black |
| Cooling | Cooler Master 240 RGB AIO / Stock |
| Memory | Thermaltake Toughram 16GB 4400MHz DDR4 or Gigabyte 16GB 3600MHz DDR4 or Adata 8GB 2133Mhz DDR4 |
| Video Card(s) | Asus Dual 1060 6GB |
| Storage | Kingston A2000 512Gb NVME |
| Display(s) | AOC 24" Freesync 1m.s. 75Hz |
| Case | Corsair 450D High Air Flow. |
| Audio Device(s) | No need. |
| Power Supply | FSP Aurum 650W |
| Mouse | Yes |
| Keyboard | Of course |
| Software | W10 Pro 64 bit |
How to recover from a bad video BIOS flash
Almost every day there are new threads regarding bricked graphics cards due to wrong BIOS flashing, and since eidairaman1 is no longer around to help, here is a guide how to deal with a bad VGA BIOS flash. Find the correct BIOS First off, you'll have to find a copy of the original BIOS. In case...
www.techpowerup.com
I don’t have a integrated graphicsHow to recover from a bad video BIOS flash
Almost every day there are new threads regarding bricked graphics cards due to wrong BIOS flashing, and since eidairaman1 is no longer around to help, here is a guide how to deal with a bad VGA BIOS flash. Find the correct BIOS First off, you'll have to find a copy of the original BIOS. In case...
I have a ryzen 5 2600
Regeneration
NGOHQ.COM
- Joined
- Oct 26, 2005
- Messages
- 2,436 (0.44/day)
Try to short the BIOS chip pins as suggested in the guide.

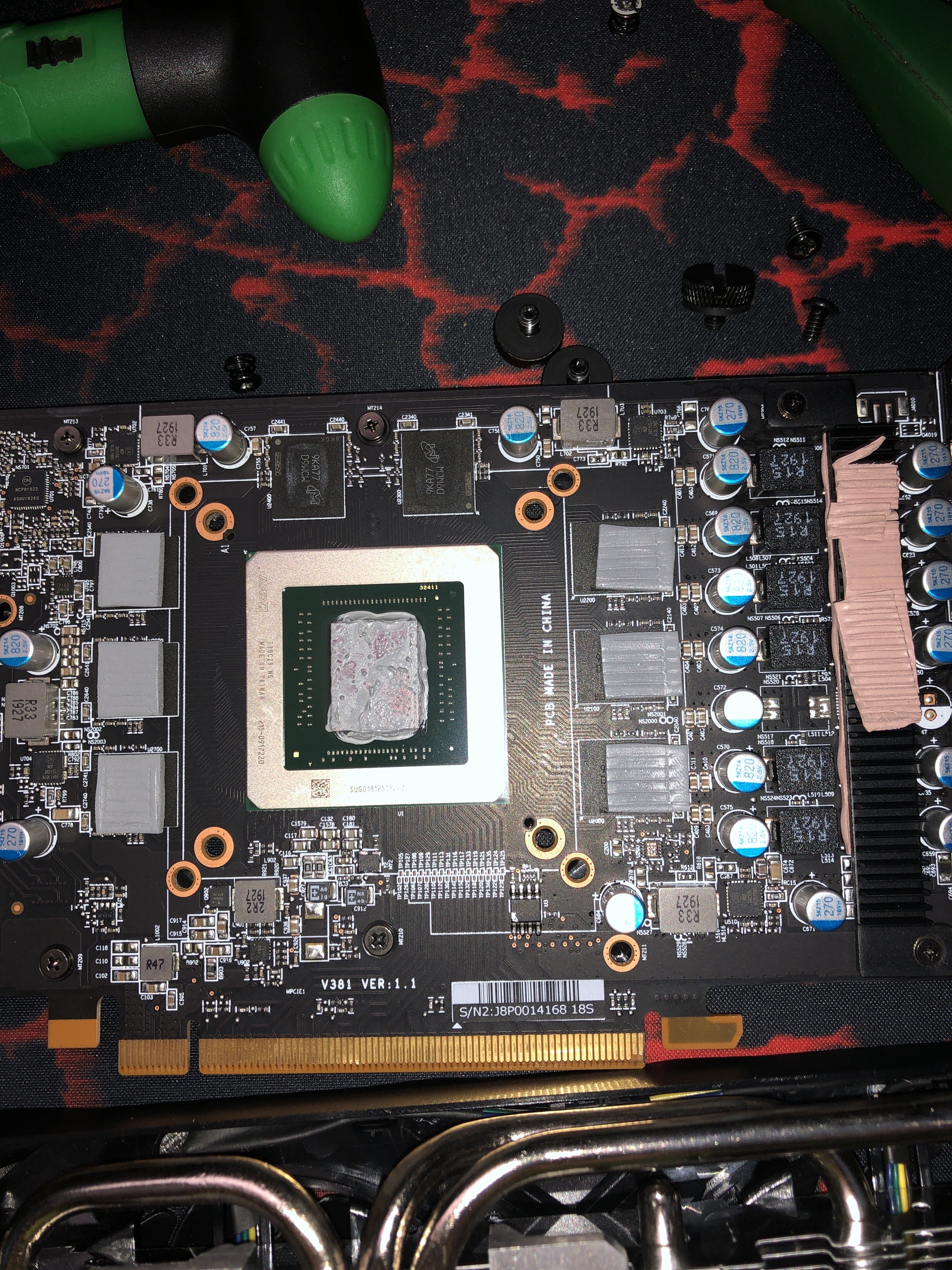

Does the gpu need to be plugged in? or what? there’s no info on that post on anything. and where would my bios chip be?
Attachments
- Joined
- Oct 22, 2014
- Messages
- 9,895 (4.49/day)
- Location
- Sunshine Coast
| System Name | Black Box |
|---|---|
| Processor | Intel i5-9600KF |
| Motherboard | NZXT N7 Z370 Black |
| Cooling | Cooler Master 240 RGB AIO / Stock |
| Memory | Thermaltake Toughram 16GB 4400MHz DDR4 or Gigabyte 16GB 3600MHz DDR4 or Adata 8GB 2133Mhz DDR4 |
| Video Card(s) | Asus Dual 1060 6GB |
| Storage | Kingston A2000 512Gb NVME |
| Display(s) | AOC 24" Freesync 1m.s. 75Hz |
| Case | Corsair 450D High Air Flow. |
| Audio Device(s) | No need. |
| Power Supply | FSP Aurum 650W |
| Mouse | Yes |
| Keyboard | Of course |
| Software | W10 Pro 64 bit |
Rear of the card usually.
- Joined
- Oct 22, 2014
- Messages
- 9,895 (4.49/day)
- Location
- Sunshine Coast
| System Name | Black Box |
|---|---|
| Processor | Intel i5-9600KF |
| Motherboard | NZXT N7 Z370 Black |
| Cooling | Cooler Master 240 RGB AIO / Stock |
| Memory | Thermaltake Toughram 16GB 4400MHz DDR4 or Gigabyte 16GB 3600MHz DDR4 or Adata 8GB 2133Mhz DDR4 |
| Video Card(s) | Asus Dual 1060 6GB |
| Storage | Kingston A2000 512Gb NVME |
| Display(s) | AOC 24" Freesync 1m.s. 75Hz |
| Case | Corsair 450D High Air Flow. |
| Audio Device(s) | No need. |
| Power Supply | FSP Aurum 650W |
| Mouse | Yes |
| Keyboard | Of course |
| Software | W10 Pro 64 bit |
The thread on how to recover from a bad bios flash has pictures.
yeah but it’s not the same gpu
- Joined
- Oct 22, 2014
- Messages
- 9,895 (4.49/day)
- Location
- Sunshine Coast
| System Name | Black Box |
|---|---|
| Processor | Intel i5-9600KF |
| Motherboard | NZXT N7 Z370 Black |
| Cooling | Cooler Master 240 RGB AIO / Stock |
| Memory | Thermaltake Toughram 16GB 4400MHz DDR4 or Gigabyte 16GB 3600MHz DDR4 or Adata 8GB 2133Mhz DDR4 |
| Video Card(s) | Asus Dual 1060 6GB |
| Storage | Kingston A2000 512Gb NVME |
| Display(s) | AOC 24" Freesync 1m.s. 75Hz |
| Case | Corsair 450D High Air Flow. |
| Audio Device(s) | No need. |
| Power Supply | FSP Aurum 650W |
| Mouse | Yes |
| Keyboard | Of course |
| Software | W10 Pro 64 bit |
Directly above the SN # over the pci-e fingers.
it is basically rectangular in shape with 8 contact legs and a dot in one corner to indicate 1.
it is basically rectangular in shape with 8 contact legs and a dot in one corner to indicate 1.
ok does the gpu have to be in the pc and does the pc have to be turned on?
?
Regeneration
NGOHQ.COM
- Joined
- Oct 26, 2005
- Messages
- 2,436 (0.44/day)
Short these 2 pins somehow (paper clip, small cable, solder)
Then put the heatsink on and plug it back in the computer.
It might work and you could flash it back.
If you can't do it, you can take it to a technician or order CH341A flash programmer kit.
Then put the heatsink on and plug it back in the computer.
It might work and you could flash it back.
If you can't do it, you can take it to a technician or order CH341A flash programmer kit.
the paper clip doesn’t go in
Regeneration
NGOHQ.COM
- Joined
- Oct 26, 2005
- Messages
- 2,436 (0.44/day)
Use a smaller one. Get creative.
Attachments
- Joined
- Jan 31, 2010
- Messages
- 3,763 (0.96/day)
- Location
- Gougeland (NZ)
| System Name | Cumquat 2000 |
|---|---|
| Processor | AMD RyZen R7 3700X |
| Motherboard | Asus Strix x570-F Gaming |
| Cooling | Cryorig R1 Universal |
| Memory | 16GB GSkill TridentZ DR4-3200 16-18-18-38 1.35V |
| Video Card(s) | Sapphire Pulse RX5700 8GB DDR6 1750/1700 |
| Storage | 1x Adata SX8200PRO NVMe gen3 x4 1X Samsung 860 EVO 500GB 1x Sandisk 128GB PCIe, 12TB of HDD Storage |
| Display(s) | ViewSonic VX2457 MHD 75Hz FreeSync 1920x1080p |
| Case | SilverStone Raven RV02B-W + 3x SS AP181 + USB3.0 upgrade |
| Audio Device(s) | Realtek S1220a + Pioneer VSX-531 amp Technics 100W Speaker set |
| Power Supply | Enermax RevolutionXT II 750W 80+ Gold |
| Mouse | Logitech G502 Proteus Core |
| Keyboard | Logitech G105 |
| Software | Windows 10 X64 PRO (build 2004) |
| Benchmark Scores | it sucks even more less now ;) |
you need to use both ends of the paper clip to short those terminals so unfold that paper clip all the way bend it in half and touch the two pins with either ends of the paper clip
- Joined
- Oct 1, 2014
- Messages
- 672 (0.30/day)
- Location
- Modesto, California
| System Name | The Captain |
|---|---|
| Processor | Intel Core i7-10700K |
| Motherboard | Asus ROG Strix Z490-G Gaming (Wi-fi) |
| Cooling | Corsair H100i RGB PRO XT; 3x Phanteks PH-F120MP case fans; 1x Phanteks 140mm exhaust fan |
| Memory | 16 GB (3200Mhz) G.Skill Trident Z Royal (Silver) |
| Video Card(s) | MSI Gaming X GTX 1660 Super |
| Storage | 1x Crucial MX500 500GB SSD; 1x Crucial MX500 500GB M.2 SSD; 1x WD Blue 7200 RPM HDD |
| Display(s) | Aorus CV27F 27" 1080p 165Hz |
| Case | Phanteks Evolv X m-ATX (Galaxy Silver) |
| Power Supply | Seasonic FOCUS+ Platinum 750W |
| Mouse | HyperX Pulsefire Surge |
| Keyboard | HyperX Alloy Origins Core |
Just out of curiosity OP but, why did you flash the VBIOS from the stock 5700 to a 5700XT, only to reflash BACK to the stock 5700 VBIOS. Were you having some sort of issue(s) using the XT VBIOS that forced you to revert to the stock 5700 VBIOS?
Some of my games were running like 100+ fps but i would get stuttering and I wanted to see if it was the bios.Just out of curiosity OP but, why did you flash the VBIOS from the stock 5700 to a 5700XT, only to reflash BACK to the stock 5700 VBIOS. Were you having some sort of issue(s) using the XT VBIOS that forced you to revert to the stock 5700 VBIOS?
Regeneration
NGOHQ.COM
- Joined
- Oct 26, 2005
- Messages
- 2,436 (0.44/day)
Just out of curiosity OP but, why did you flash the VBIOS from the stock 5700 to a 5700XT, only to reflash BACK to the stock 5700 VBIOS. Were you having some sort of issue(s) using the XT VBIOS that forced you to revert to the stock 5700 VBIOS?
Flashing Radeon RX 5700 with RX 5700 XT BIOS: Guide & Performance Review
AMD's Radeon RX 5700 has been engineered for maximum efficiency, which forced AMD to compromise in terms of performance. We demonstrate how a simple BIOS flash can unleash the card, delivering performance almost on par with the much more expensive Radeon RX 5700 XT.
