Undervolting doesnt do anything

[inxvisible]

So ive disabled vtx in bios tho i cant find any of the hyper v setting thingys anywhere, throttlestop FIVR isnt locked or anything. Everything should be fine but the undervolt doesnt seem like its working the temps are still at 95C. While normally the cpu is on 54 C while i run the benchmark it raises to 95



[unclewebb]

Post a picture of ThrottleStop and a picture of the FIVR window. Undervolt Protection is a new Intel feature that can disable undervolting.



[inxvisible]

Ive disabled the vbs yet nothing has changed. Ive tried after turning off the vbs undervolting but ive then set the values back to 0 cause it didnt work



[mx62]

you must pinch unlock adjustable voltage



[unclewebb]

ive then set the values back to 0

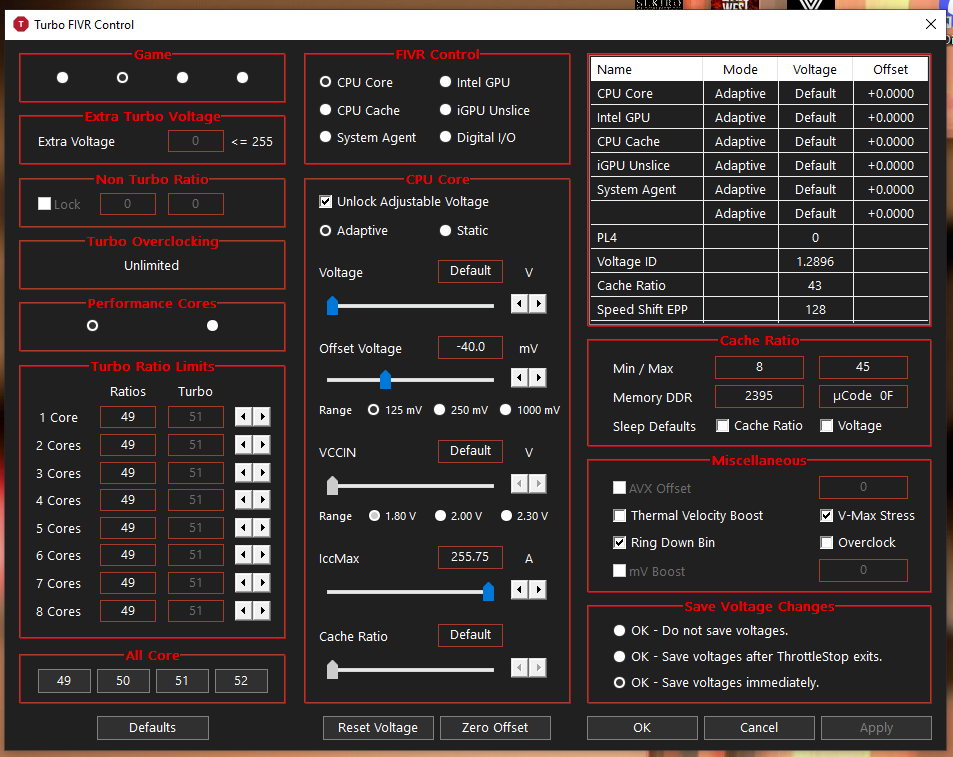

It is hard for me to understand the problem if you show me screenshots with the undervolt reset to zero. Show me a FIVR screenshot with a -50 mV undervolt being requested. Show me a second screenshot when you are requesting and have applied a small +5 mV undervolt. This is actually an overvolt.

I know some of the 12th and 13th Gen CPUs have Undervolt Protection which can prevent any undervolting. Intel has released a microcode update for those CPUs with this feature. Have you updated the BIOS lately? Perhaps Undervolt Protection has been released for older CPUs too. Use CPU-Z to see what date your BIOS was released.

Also try deleting the ThrottleStop.INI configuration file. Sometimes this file gets corrupted when VBS was previously enabled.



[inxvisible]

I havent updated my bios lately and ive deleted the throttlestop.ini file.



[unclewebb]

The overvolt is working fine. Now try setting a -50 mV undervolt and show a FIVR screenshot of that. Try using the beta version of TS I sent you.



[Rakan95]

The overvolt is working fine. Now try setting a -50 mV undervolt and show a FIVR screenshot of that. Try using the beta version of TS I sent you.

Hi bro I need your help please! I am not able to undervolt my i5 13600KF on my BIOSTAR B760 mobo ... After applying UV offesets on TS 9.5 nothing happens.
I tried many solutions:
I have VBS disabled.
CORE isolation disabled.
Along with many other stuff....My BIOS settings are limited I attached some screenshots for you.
Now I read somewhere the downloading Intel ME interface for my specific Mobo could fix my problem so I am trying it...
please help I really want to UV. @unclewebb
