VIA CenTaur Develops a Multi-core x86 Processor for Enterprise with in-built AI Hardware

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
38,060 (8.43/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
Tasting Intel's blood in the water with AMD's return to competitiveness, dormant x86 licensee VIA wants to take another swing at the market, this time with a multi-core processor targeted at enterprises and possibly workstations, developed by its subsidiary CenTaur. The company appears to want to cash in on the AI boom, and could develop turnkey facial-recognition CCTV solutions with the chip. CenTaur is ready with a working prototype. It features eight 64-bit x86 CPU cores, and an on-die "AI co-processor" named NCORE. A ringbus connects the eight CPU cores and the NCORE with the processor's other components. The processor features 16 MB of shared L3 cache, a quad-channel DDR4-3200 memory interface, and a 44-lane PCI-Express gen 3.0 root-complex, along with a fully integrated southbridge, making it an SoC. It also appears to be multi-socket capable, although VIA didn't detail the interconnect in use.

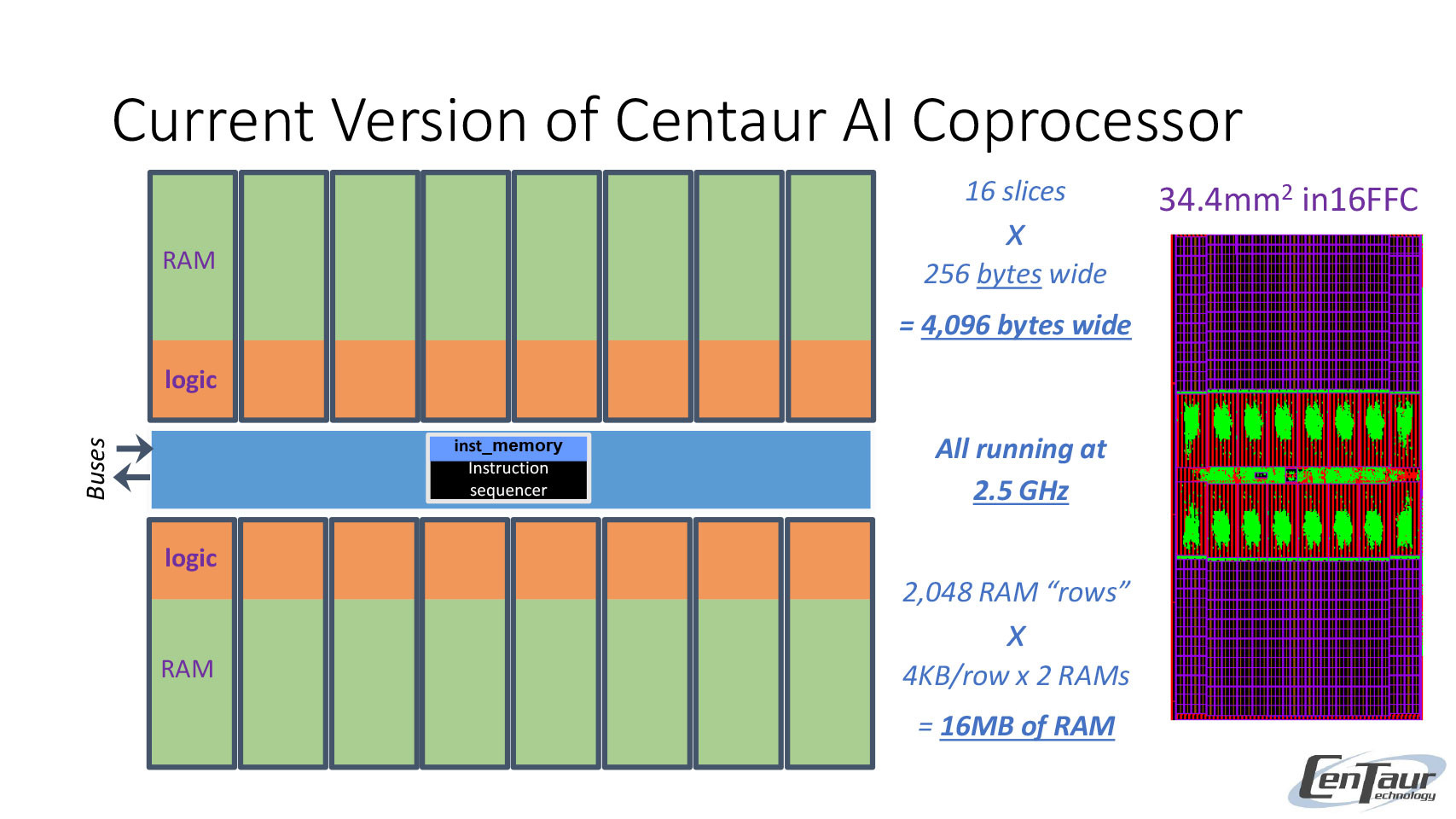

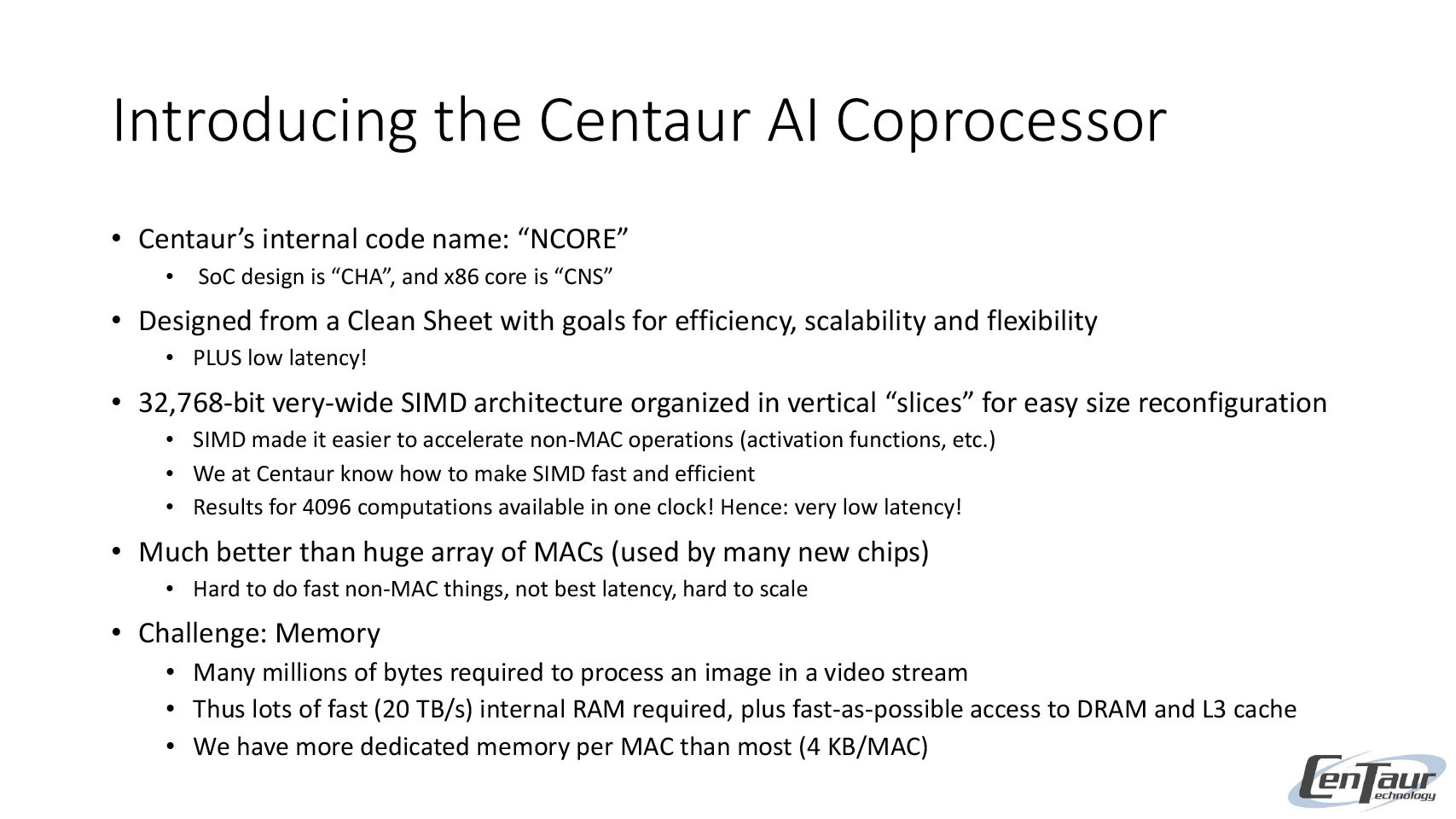

The NCORE is a PCI-mapped device to the software, which provides functions such as DNN building and training acceleration. From the looks of it, there's more to NCORE than simply a fixed-function hardware that multiplies matrices. Its developers state that the device accelerates AI at a rate of "20 trillion AI operations/sec with 20 terabytes/sec memory bandwidth." The CPU cores on the processor tick at 2.50 GHz, and while VIA hasn't made any IPC claims, it has mentioned support for the cutting-edge AVX-512 instruction-set, something even "Zen 2" lacks, which possibly indicates a powerful FPU. The silicon measures 195 mm², and has been built on 16 nm FinFET node at TSMC. VIA will demonstrate the unnamed processor and its testbed at ISC East 2019, held on November 20 and 21.

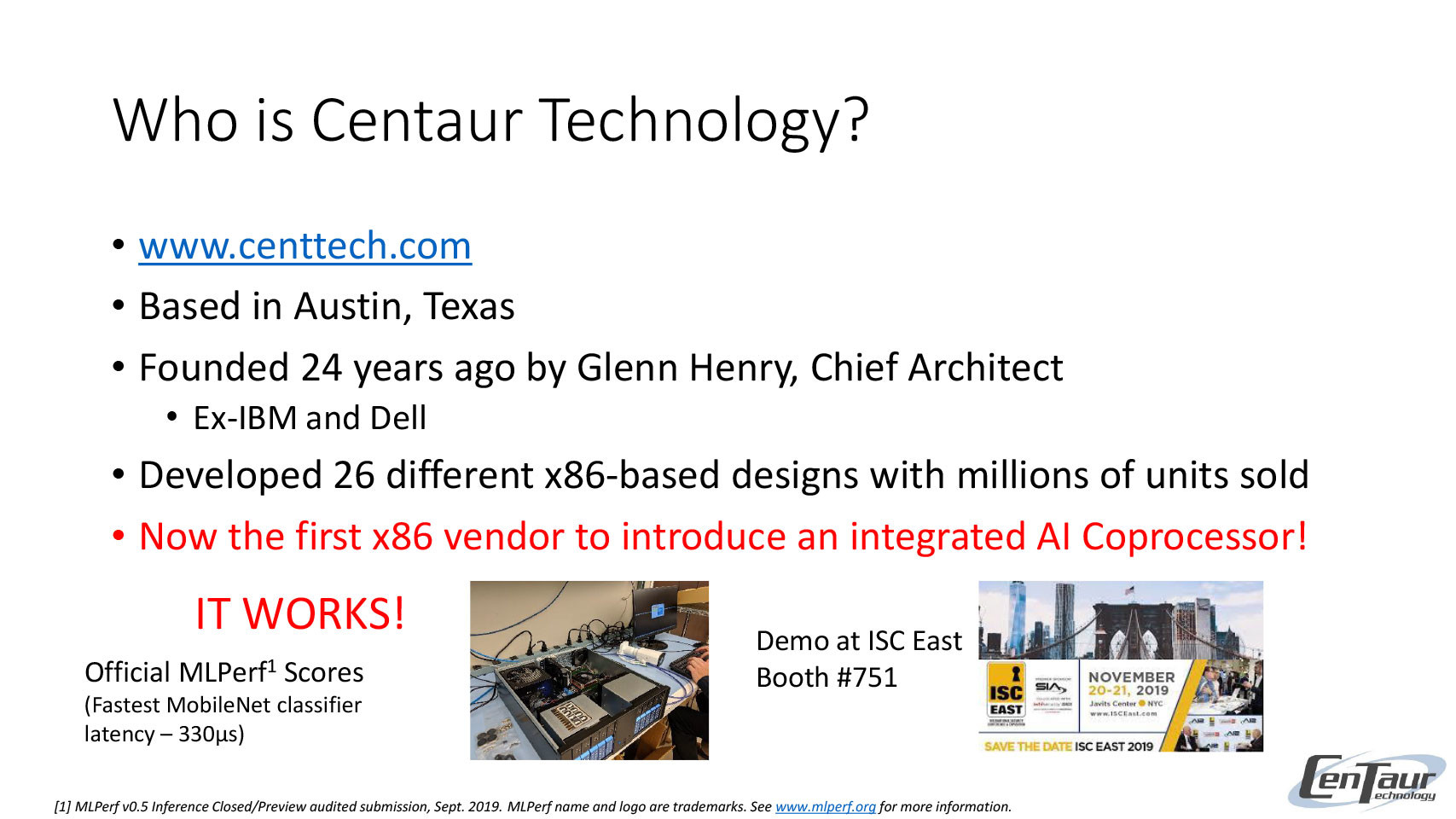

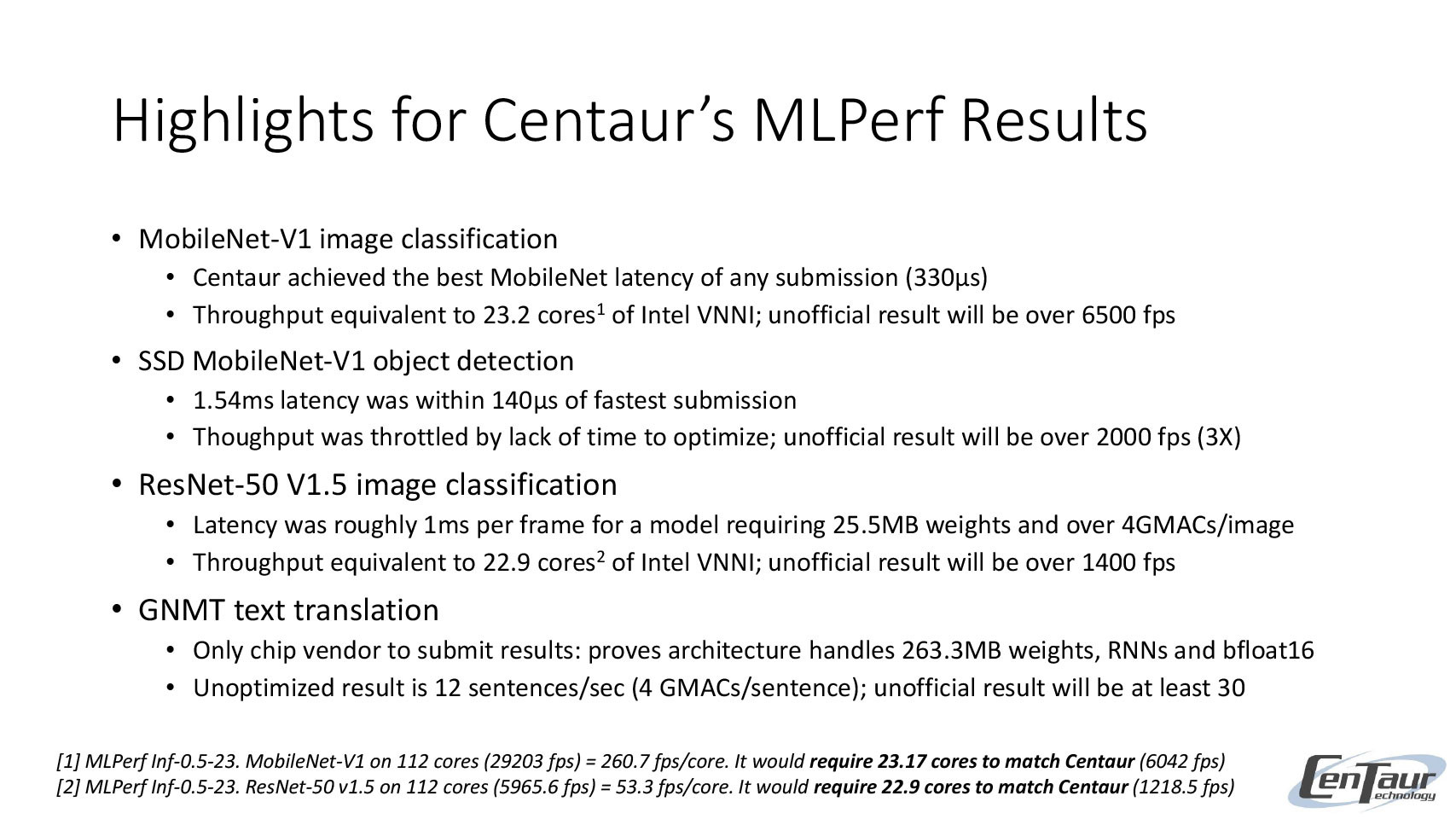

The full technology announcement slide-deck follows.



View at TechPowerUp Main Site

Joined
Sep 15, 2011
Messages
5,350 (1.74/day)
Processor Intel Core i7 3770k @ 4.3GHz
Motherboard Asus P8Z77-V LK
Memory 16GB(2x8) DDR3@2133MHz 1.5v Patriot
Video Card(s) MSI GeForce GTX 1080 GAMING X 8G
Storage 59.63GB Samsung SSD 830 + 465.76 GB Samsung SSD 840 EVO + 2TB Hitachi + 300GB Velociraptor HDD
Display(s) Acer Predator X34 3440x1440@100Hz G-Sync
Case NZXT PHANTOM410-BK
Audio Device(s) Creative X-Fi Titanium PCIe
Power Supply Corsair 850W
Mouse Anker
Software Win 10 Pro - 64bit
Benchmark Scores 30FPS in NFS:Rivals
That would be great to have again a 3rd competitor on the CPU market, however by the look of it, this is made for a different purpose and area.

Joined
Jun 24, 2015
Messages
1,438 (0.85/day)
Location
Western Canada
System Name Ol' Beastie | 雨上がりの空
Processor R7 3700X | i7-4790K
Motherboard B450I Aorus (F50) | H97N-WIFI (F7)
Cooling NH-U9S | NH-C14S
Memory 32GB Trident Z RGB 3600 (16-19-19-32, DJR) | 16GB Fury 1600 (10-11-10-30)
Video Card(s) NVIDIA RTX 2060 Super FE | EVGA GTX 1070 SC ACX3.0
Storage 1TB SX8200 - 750GB MX300 - 1TB Blue3D | 500GB 850 EVO
Display(s) BenQ GW2765HT | Samsung F2380
Case M1v5 + Pelican 1514 | TJ08T-E
Audio Device(s) DT 770 80Ω - Blue Snowball iCE
Power Supply Corsair SF600G/Cablemod + APC BR1500MS| Seasonic SSR-550PX
Mouse Endgame XM1 | Logitech MX Master
Keyboard Noxary X60 R - Noxary T60 Night Blue - Noxary T60 R2 Hyper Red - RAMA M10-B
Software Windows 10 1909
The NCORE is interesting. One of the big advertising points of Cascade Lake-SP was to [try and] close the gap with traditionally favoured GPU compute in the form of RTX Titan (though it seemed to be more about being "a little bit faster than before" than "competitive"), with the two new VNNI instructions under AVX-512. Apparently, fancy new instructions suck compared to something that's just built for the image recognition job.

But the selling point of the NCORE would be that those 8 other cores could be freed up to do other things, and yet, there isn't a whole lot of information on how well those other 8 cores can do general purpose compute, which seems kind of important given the stance they've taken here. And what's "high" IPC relative to? 2.5GHz is a rather middling max clock.

I guess this throws more a wrench into AMD's works, since AVX-512 is a leg up, but Intel is the big player here, and they have those instructions too with a lot more cores for general compute. But those Xeon Silvers and Bronzes look ripe for the picking with half the AVX-512 hardware, if these really run 2.5GHz all-core.

@TheLostSwede piss poor marketing slides, I suspect. From the NCORE block diagram slide, it appears to imply that the NCORE is multi core and it runs at 2.5GHz, but another slide infers that the entire platform (cores + NCORE) runs at 2.5GHz.

Last edited:
Joined
Nov 11, 2004
Messages
4,850 (0.87/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G500s
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/ztiub6
The NCORE is interesting. One of the big advertising points of Cascade Lake-SP was to [try and] close the gap with traditionally favoured GPU compute in the form of RTX Titan (though it seemed to be more about being "a little bit faster than before" than "competitive"), with the two new VNNI instructions under AVX-512. Apparently, fancy new instructions suck compared to something that's just built for the image recognition job.

But the selling point of the NCORE would be that those 8 other cores could be freed up to do other things, and yet, there isn't a whole lot of information on how well those other 8 cores can do general purpose compute, which seems kind of important given the stance they've taken here. And what's "high" IPC relative to? 2.5GHz is a rather middling max clock.

I guess this throws more a wrench into AMD's works, since AVX-512 is a leg up, but Intel is the big player here, and they have those instructions too with a lot more cores for general compute. But those Xeon Silvers and Bronzes look ripe for the picking with half the AVX-512 hardware, if these really run 2.5GHz all-core.
They're going to be doing some demos tomorrow ISC East and release more details on the 2nd of December.

It looks like it's only the NCORE that runs at 2.5GHz, which technically isn't one core in the traditional sense.
Also keep in mind that this is only a reference design so far, not MP, so they might still be able to make it run faster.

From a chat with one of their guys a while ago, they're apparently getting similar IPC to Ryzen, so it should still be pretty decent in terms of performance.

Last edited:
Joined
Jul 16, 2014
Messages
3,526 (1.73/day)
Location
SE Michigan
System Name Dumbass
Processor AMD-9370BE @4.6
Motherboard ASUS SABERTOOTH 990FX R2.0 +SB950
Cooling CM Nepton 280L
Memory G.Skill Sniper 16gb DDR3 2400
Video Card(s) GreenTeam 1080 Gaming X 8GB
Storage C:\SSD (240GB), D:\Seagate (2TB), E:\Western Digital (1TB)
Display(s) 1x Nixeus NX_EDG27, 2x Dell S2440L (16:9)
Case Phanteks Enthoo Primo w/8 140mm SP Fans
Audio Device(s) onboard (realtek?) SPKRS:Logitech Z623 200w 2.1
Power Supply Corsair HX1000i
Mouse Logitech G700s
Keyboard Logitech G910 Orion Spark
Software windows 10
Benchmark Scores https://i.imgur.com/aoz3vWY.jpg?2
I'd like to know more about the ring bus, I'm guessin that might be a choke point of sorts.

Joined
Feb 18, 2010
Messages
1,786 (0.49/day)
System Name Eldritch
Processor AMD Ryzen 5 2600X
Motherboard ASRock X470 Master
Cooling Satan's butthole after going to Taco Bell
Memory 16 GB G.Skill FlareX
Video Card(s) Vega 56
Storage 4*4TB Western Digital Blues in RAID 5, 2*512 GB Samsung 960 Pros
Display(s) Acer CB281HK
Case Phanteks Enthoo Pro PH-ES614P_BK
Audio Device(s) ASUS Xonar DX
Power Supply EVGA Supernova 750 G2
Mouse Steelseries Rival 100
Software Debian Buster
Joined
Sep 6, 2013
Messages
1,493 (0.63/day)
Location
Athens, Greece
System Name 3 systems: Gaming / Internet / HTPC
Processor Intel i5 4460 / Thuban 1455T(Unlocked 645) @ 3.7GHz @ 1.30V / A6 7400K
Motherboard ASRock Z97 Extreme6 / Gigabyte GA-990XA-UD3 / ASUS FM2+
Cooling Modified AM2 Asetek MicroChill / Noctua U12S / CoolerMaster TX2
Memory 16GB Kingston KHX1866C10D3 / 16GB Adata 2133MHz / 8GB Kingston 2400MHz (DDR3)
Video Card(s) GT 710 / XFX RX 580 8GB + GT 620 (PhysX) / A6 7400K iGPU
Storage Intel NVMe 500GB, Samsung NVMe 250GB + more / Kingston 240GB + more / Samsung SSD 120GB
Display(s) Samsung LE32D550 32'' TV(2 systems connected) / LG 42''
Case Sharkoon Rebel 12 / Sharkoon Rebel 9 / Xigmatek Midguard
Audio Device(s) onboard
Power Supply Chieftec 850W / Sharkoon 650W / Chieftec 560W
Mouse CoolerMaster / Rapoo / Logitech
Keyboard CoolerMaster / Microsoft / Logitech
Software Windows
The last time I heard the name CenTaur there was also a nice counter that was going down for over a months. Then it gone to zero, it was reset, kept going down and then, nothing. I don't really expect anything from them. Are they making real products or just designs for academic reasons? Isn't also VIA behind those Chinese processors, the Zhaoxin series? I doubt they have their focus on whatever their subsidiary is making. I could be completely wrong here.

Joined
Nov 11, 2004
Messages
4,850 (0.87/day)
Location
Formosa
System Name Overlord Mk MXVI
Processor AMD Ryzen 7 3800X
Motherboard Gigabyte X570 Aorus Master
Cooling Corsair H115i Pro
Memory 32GB Viper Steel 3600 DDR4 @ 3800MHz 16-19-16-19-36
Video Card(s) Gigabyte RTX 2080 Gaming OC 8G
Storage 1TB WD Black NVMe (2018), 2TB Viper VPN100, 1TB WD Blue 3D NAND
Display(s) Asus PG27AQ
Case Corsair Carbide 275Q
Audio Device(s) Corsair Virtuoso SE
Power Supply Corsair RM750
Mouse Logitech G500s
Keyboard Wooting Two
Software Windows 10 Pro
Benchmark Scores https://valid.x86.fr/ztiub6
The last time I heard the name CenTaur there was also a nice counter that was going down for over a months. Then it gone to zero, it was reset, kept going down and then, nothing. I don't really expect anything from them. Are they making real products or just designs for academic reasons? Isn't also VIA behind those Chinese processors, the Zhaoxin series? I doubt they have their focus on whatever their subsidiary is making. I could be completely wrong here.
Yes, Centaur designed the Zhaoxin chips, but most of that is really old hat stuff.
I guess there's a reason why this is an SoC and doesn't need a chipset, as VIA was never very good at supporting Centaur...

This thing is about a year late, but I believe this should be a lot more competitive, if not quite up there with AMD and Intel in terms of overall CPU performance, but as I said, the Centaur people I've spoken to (that I've known for well over a decade) told me that the IPC should be very similar to Ryzen.


Frick

Fishfaced Nincompoop
Joined
Feb 27, 2006
Messages
16,066 (3.15/day)
Location
Piteå
System Name Black MC in Tokyo
Processor Ryzen 5 2600x
Motherboard Asrock B450M-HDV
Cooling AMD Wraith Spire I think
Memory 2 x 8GB G-skill Aegis 3000 or somesuch
Video Card(s) Asus GTX 760 DCU2OC 2GB
Storage Kingston A400 240GB | WD Blue 1TB x 2
Display(s) BenQ GL2450HT
Case Some old Antec
Audio Device(s) Line6 UX1 + slightly modded Sony DR-ZX302
Power Supply Fractal Design Effekt 400W
Mouse Logitech G602
Keyboard Cherry MX-Board 3.0
Software Windows 10 Pro
Benchmark Scores I once had +100 dorfs in DF, so yeah pretty great
Nano ITX with Ryzen like IPC and four ethernets would be massively sweet.

Joined
Mar 1, 2008
Messages
254 (0.06/day)
Location
Antwerp, Belgium
Isn't this just the Zhaoxin ZX-E?

From Wikipedia:
ZX-E / KX-6000 / KH-30kLujiazui201916nm8 (up to)3GHz (up to)DDR4
PCIe 3.0
SoC
Edit:

I'm wrong. This has a GPU instead of the NCORE, a dual channel memory interface and is probably still using Nano cores.

Last edited:
Joined
Jul 23, 2011
Messages
1,582 (0.51/day)
Location
Kaunas, Lithuania
System Name my box
Processor AMD Ryzen 7 2700X
Motherboard ASRock Taichi x470 Ultimate
Cooling NZXT Kraken x72
Memory 2×16GiB @ 3200MHz, some Corsair RGB led meme crap
Video Card(s) AMD [ASUS ROG STRIX] Radeon RX Vega64 [OC Edition]
Storage Samsung 970 Pro && 2× Seagate IronWolf Pro 4TB in Raid 1
Display(s) Asus VG278H + Asus VH226H
Case Fractal Design Define R6 Black TG
Audio Device(s) Using optical S/PDIF output lol
Power Supply Corsair AX1200i
Mouse Razer Naga Epic
Keyboard Das Keyboard Model S Ultimate
Software Funtoo Linux
Benchmark Scores 118405.21 BogoMIPS
Keep in mind, guys, this is a x86 chip, NOT a AMD64 (or x86-64 if you only speak plebian) chip. While VIA does have a x86 (owned by Intel) license due to historical reasons, it doesn't have a license for AMD64 (owned by AMD).

EDIT: disregard the above; I'm a brainlet

Last edited:
Joined
May 31, 2016
Messages
1,542 (1.14/day)
System Name Bro2
Processor Ryzen 2700X
Motherboard MSI X470 Gaming Carbon
Cooling Corsair h115i pro rgb
Memory G.Skill Flare X 3200 CL14
Video Card(s) RX Vega 64 Red Devil
Storage M.2 Samsung Evo 970 250MB/ Samsung 860 Evo 1TB
Display(s) LG 27UD69 UHD
Case Fractal Design G
Audio Device(s) realtec 5.1
Power Supply Corsair AXi 760W
Mouse Logitech G402
Keyboard Logitech slim
Software Windows 10 64 bit
This would have been awesome if VIA joined the desktop CPU market :D I remember Cyrix processors and they were not so bad :D


btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
38,060 (8.43/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
Keep in mind, guys, this is a x86 chip, NOT a AMD64 (or x86-64 if you only speak plebian) chip. While VIA does have a x86 (owned by Intel) license due to historical reasons, it doesn't have a license for AMD64 (owned by AMD).
Nah, VIA has access to x86-64 ISA. CenTaur Nano "Isaiah" (2011) was very much an x86-64 processor.

Joined
Aug 20, 2007
Messages
12,489 (2.74/day)
System Name Pioneer
Processor Intel i9 9900k
Motherboard ASRock Z390 Taichi
Cooling Noctua NH-D15 + A whole lotta Sunon and Corsair Maglev blower fans...
Memory G.SKILL TridentZ Series 32GB (4 x 8GB) DDR4-3200 @ 13-13-13-33-2T
Video Card(s) AMD RX 5700 XT (XFX THICC Ultra III)
Storage Mushkin Pilot-E 2TB NVMe SSD w/ EKWB M.2 Heatsink
Display(s) 32" LG 32GK850F-B 144Hz Freesync 2 Display
Case Thermaltake Core X31
Audio Device(s) VGA HDMI->Panasonic SC-HTB20/Schiit Modi MB/Asgard 2 DAC/Amp to AKG Pro K7712 Headphones
Power Supply SeaSonic Prime 750W 80Plus Titanium
Mouse ROCCAT Kone EMP
Keyboard WASD CODE 104-Key w/ Cherry MX Green Keyswitches, Doubleshot Vortex PBT White Transluscent Keycaps
Software Windows 10 Enterprise (yes, it's legit.)

btarunr

Editor & Senior Moderator
Staff member
Joined
Oct 9, 2007
Messages
38,060 (8.43/day)
Location
Hyderabad, India
Processor AMD Ryzen 7 2700X
Motherboard ASUS ROG Strix B450-E Gaming
Cooling AMD Wraith Prism
Memory 2x 16GB Corsair Vengeance LPX DDR4-3000
Video Card(s) Palit GeForce RTX 2080 SUPER GameRock
Storage Western Digital Black NVMe 512GB
Display(s) Samsung U28D590 28-inch 4K UHD
Case Corsair Carbide 100R
Audio Device(s) Creative Sound Blaster Recon3D PCIe
Power Supply Cooler Master MWE Gold 650W
Mouse ASUS ROG Strix Impact
Keyboard Microsoft Sidewinder X4
Software Windows 10 Pro
Lookie, this guy and his 8 GB of RAM: https://valid.x86.fr/vubuk5



VIA implemented SSE4.1 even before AMD could. Now it's going to beat AMD to AVX-512.

Joined
Aug 20, 2007
Messages
12,489 (2.74/day)
System Name Pioneer
Processor Intel i9 9900k
Motherboard ASRock Z390 Taichi
Cooling Noctua NH-D15 + A whole lotta Sunon and Corsair Maglev blower fans...
Memory G.SKILL TridentZ Series 32GB (4 x 8GB) DDR4-3200 @ 13-13-13-33-2T
Video Card(s) AMD RX 5700 XT (XFX THICC Ultra III)
Storage Mushkin Pilot-E 2TB NVMe SSD w/ EKWB M.2 Heatsink
Display(s) 32" LG 32GK850F-B 144Hz Freesync 2 Display
Case Thermaltake Core X31
Audio Device(s) VGA HDMI->Panasonic SC-HTB20/Schiit Modi MB/Asgard 2 DAC/Amp to AKG Pro K7712 Headphones
Power Supply SeaSonic Prime 750W 80Plus Titanium
Mouse ROCCAT Kone EMP
Keyboard WASD CODE 104-Key w/ Cherry MX Green Keyswitches, Doubleshot Vortex PBT White Transluscent Keycaps
Software Windows 10 Enterprise (yes, it's legit.)
Joined
Jul 23, 2011
Messages
1,582 (0.51/day)
Location
Kaunas, Lithuania
System Name my box
Processor AMD Ryzen 7 2700X
Motherboard ASRock Taichi x470 Ultimate
Cooling NZXT Kraken x72
Memory 2×16GiB @ 3200MHz, some Corsair RGB led meme crap
Video Card(s) AMD [ASUS ROG STRIX] Radeon RX Vega64 [OC Edition]
Storage Samsung 970 Pro && 2× Seagate IronWolf Pro 4TB in Raid 1
Display(s) Asus VG278H + Asus VH226H
Case Fractal Design Define R6 Black TG
Audio Device(s) Using optical S/PDIF output lol
Power Supply Corsair AX1200i
Mouse Razer Naga Epic
Keyboard Das Keyboard Model S Ultimate
Software Funtoo Linux
Benchmark Scores 118405.21 BogoMIPS
Joined
Aug 8, 2019
Messages
177 (0.92/day)
Am I the only one with horrible memories of Via processors?

They did make some pretty cool chipsets though at times. K7 with 4 slots of dual channel ram and sata built in... mind bending... lol

*still hates Nforce with a passion*

Top
