YMTC Develops 128 and 232-Layer Xtacking 4.0 NAND Memory Chips

AleksandarK

News Editor
Staff member
Joined
Aug 19, 2017
Messages
2,149 (0.90/day)

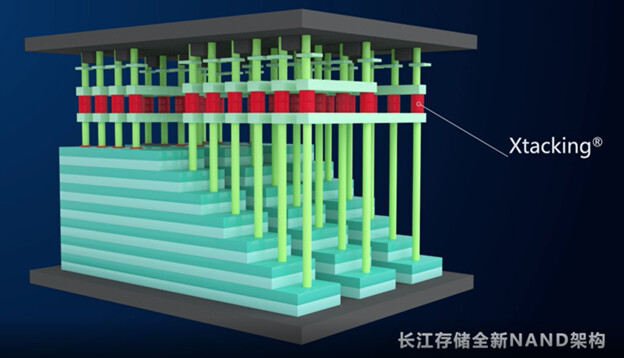

Chinese memory maker Yangtze Memory Technology Corp (YMTC) is allegedly preparing its next-generation Xtacking 4.0 3D NAND flash architecture for next-generation memory chips. According to the documentation obtained by Tom's Hardware, YMTC has developed two SKUs based on the upgraded Xtacking 4.0: X4-9060, a 128-layer three-bit-per-cell (TLC) 3D NAND, and the X4-9070, a 232-layer TLC 3D NAND. By using string stacking on both of these SKUs, YMTC plans to make the 3D NAND work by incorporating arrays with 64 and 116 active layers stacked on top of each other. This way, the export regulation rules from the US government are met, and the company can use the tools that are not under the sanction list.

While YMTC has yet to fully disclose the specific advantages of the Xtacking 4.0 technology, the industry anticipates significant enhancements in data transfer speeds and storage density. These improvements are expected to stem from increased plane counts for optimized parallel processing, refined bit/word line configurations to minimize latency, and the development of modified chip variants to boost production yields. When YMTC announced Xtacking 3.0, the company offered 128-layer TLC and 232-layer four-bit-per-cell (QLC) variants and was the first company to achieve 200+ layer count in the 3D NAND space. The Xtacking 3.0 architecture incorporates string stacking and hybrid bonding techniques and uses a mature process node for the chip's CMOS underlayer. We have to wait for the final Xtacking 4.0 details when YMTC's officially launches the SKUs.



View at TechPowerUp Main Site | Source

Joined
May 13, 2015
Messages
622 (0.19/day)
Processor AMD Ryzen 3800X / AMD 8350
Motherboard ASRock X570 Phantom Gaming X / Gigabyte 990FXA-UD5 Revision 3.0
Cooling Stock / Corsair H100
Memory 32GB / 24GB
Video Card(s) Sapphire RX 6800 / AMD Radeon 290X (Toggling until 6950XT)
Storage C:\ 1TB SSD, D:\ RAID-1 1TB SSD, 2x4TB-RAID-1
Display(s) Samsung U32E850R
Case be quiet! Dark Base Pro 900 Black rev. 2 / Fractal Design
Audio Device(s) Creative Sound Blaster X-Fi
Power Supply EVGA Supernova 1300G2 / EVGA Supernova 850G+
Mouse Logitech M-U0007
Keyboard Logitech G110 / Logitech G110
The only thing I care about is the capacity, transfer and wear rates; everything else is fluff.

Joined
Nov 6, 2016
Messages
1,524 (0.57/day)
Location
NH, USA
System Name Lightbringer
Processor Ryzen 7 2700X
Motherboard Asus ROG Strix X470-F Gaming
Cooling Enermax Liqmax Iii 360mm AIO
Memory G.Skill Trident Z RGB 32GB (8GBx4) 3200Mhz CL 14
Video Card(s) Sapphire RX 5700XT Nitro+
Storage Hp EX950 2TB NVMe M.2, HP EX950 1TB NVMe M.2, Samsung 860 EVO 2TB
Display(s) LG 34BK95U-W 34" 5120 x 2160
Case Lian Li PC-O11 Dynamic (White)
Power Supply BeQuiet Straight Power 11 850w Gold Rated PSU
Mouse Glorious Model O (Matte White)
Keyboard Royal Kludge RK71
Software Windows 10
I would like to see YMTC, or some other company other than SK Hynix, Samsung, or Micron, develop a competitor/clone/"patent evading ripoff" of 3DXpoint/Optane memory that can keep the cost down and give it another shot. I just bought a 118GB Optane drive the other day and I plan on using it as an OS drive or a cache, but it made me think how nice it'd be if there was a cheaper competitor to optane, basically something that could improve on low queue depth random reads and writes and latency which is where performance has basically stagnated on NVMe drives since PCIe 3.0.

I know there are enterprise drives out there that are purely SLC NAND and they do outperform typical TLC drives all things being equal, but they still far away from the performance of optane. That being said, I still think it'd be cool if they offered 250GB all SLC drives for consumers to use as an OS drive.

Joined
Jul 13, 2016
Messages
2,710 (0.97/day)
Processor Ryzen 7800X3D
Motherboard ASRock X670E Taichi
Cooling Noctua NH-D15 Chromax
Memory 32GB DDR5 6000 CL30
Video Card(s) MSI RTX 4090 Trio
Storage Too much
Display(s) Acer Predator XB3 27" 240 Hz
Case Thermaltake Core X9
Audio Device(s) Topping DX5, DCA Aeon II
Power Supply Seasonic Prime Titanium 850w
Mouse G305
Keyboard Wooting HE60
VR HMD Valve Index
Software Win 10
YMTC doesn't develop, they steal. Their 232 layer processes was directly ripped from Micron.

Joined
Aug 20, 2007
Messages
20,601 (3.41/day)
System Name Pioneer
Processor Ryzen R9 7950X
Motherboard GIGABYTE Aorus Elite X670 AX
Cooling Noctua NH-D15 + A whole lotta Sunon and Corsair Maglev blower fans...
Memory 64GB (4x 16GB) G.Skill Flare X5 @ DDR5-6000 CL30
Video Card(s) XFX RX 7900 XTX Speedster Merc 310
Storage 2x Crucial P5 Plus 2TB PCIe 4.0 NVMe SSDs
Display(s) 55" LG 55" B9 OLED 4K Display
Case Thermaltake Core X31
Audio Device(s) TOSLINK->Schiit Modi MB->Asgard 2 DAC Amp->AKG Pro K712 Headphones or HDMI->B9 OLED
Power Supply FSP Hydro Ti Pro 850W
Mouse Logitech G305 Lightspeed Wireless
Keyboard WASD Code v3 with Cherry Green keyswitches
Software Windows 11 Enterprise (legit), Gentoo Linux x64
The only thing I care about is the capacity, transfer and wear rates; everything else is fluff.
Good, because that's exactly what more layers improves.

Joined
Jan 14, 2023
Messages
595 (1.45/day)
System Name Asus G16
Processor i9 13980HX
Motherboard Asus motherboard
Cooling 2 fans
Memory 32gb 4800mhz cl40
Video Card(s) 4080 laptop
Storage 16tb, x2 8tb SSD
Display(s) QHD+ 16:10 (2560 x 1600, WQXGA) 240hz
Power Supply 330w psu
The only thing I care about is the capacity, transfer and wear rates; everything else is fluff.
I mostly care about capacity, and some wear rates. I dont much are about transfer rates, higher transfer rates equals more heat.

Joined
Jun 16, 2022
Messages
65 (0.10/day)
Location
Hungary
System Name UNDERVOLTED (UV) silenced, 135W limited, high energy efficient PC
Processor Intel i5-10400F undervolt
Motherboard MSI B460 Tomahawk
Cooling Scythe Ninja 3 rev.B @ 620RPM
Memory Kingston HyperX Predator 3000 4x4GB UV
Video Card(s) Gainward GTX 1060 6GB Phoenix UV 775mV@1695MHz, 54% TDP (65 Watt) LIMIT
Storage Crucial MX300 275GB, 2x500GB 2.5" SSHD Raid, 1TB 2.5" SSHD, BluRay writer
Display(s) Acer XV252QZ @ 240Hz
Case Logic Concept K3 (Smallest Full ATX/ATX PSU/ODD case ever..)
Audio Device(s) Panasonic Clip-On, Philips SHP6000, HP Pavilion headset 400, Genius 1250X, Sandstrøm Hercules
Power Supply Be Quiet! Straight Power 10 500W CM
Mouse Logitech G102 & SteelSeries Rival 300 & senior Microsoft IMO 1.1A
Keyboard RAPOO VPRO 500, Microsoft All-In-One Keyboard, Cougar 300K
Software Windows 10 Home x64 Retail
Benchmark Scores More than enough Fire Strike: 3dmark.com/fs/28356598 Time Spy: 3dmark.com/spy/30561283
The only thing I care about is the capacity, transfer and wear rates; everything else is fluff.
I dont think so you will notice any huge difference from other manufacturer.
I would care about possible future sanctions and protectionist economy politics that will give a huge TAX on cheap chinese NAND/SSD and we costumers lose the race while every other "western manufacturer" plan to raising the prices.... :mad:

Joined
Jun 23, 2011
Messages
389 (0.08/day)
System Name potato
Processor Ryzen 9 3950X
Motherboard MSI MAG B550 Tomahawk
Cooling Custom WC Loop
Memory 2x16GB G.Skill Trident Z Neo 3600
Video Card(s) Radeon VII
Storage SSD: Team 512GB NVMe + Team 2TB SATA || HDD: 2x WD VRaptor 500GB & 2x WD Blue 4TB
Display(s) XIAOMI Curved 34" 144Hz UWQHD
Case be quiet dark base pro 900
Audio Device(s) Edifier R1800T, Logitech G733
Power Supply Corsair AX860i
Mouse Logitech G Pro
Keyboard Corsair K65
Software win 10 amd64
YMTC doesn't develop, they steal. Their 232 layer processes was directly ripped from Micron.
what are you smoking? ripped from micron? nope they took separate ways in stacking NAND, with separate control logic and NAND dies bonded with metal pads it would be more like kioxia / WD (but unlike YMTC, kioxia only up to 218 layers), YMTC currently the first to reach over 15Gb/mm2 bit density at 232/238 layer class beating sk hynix & micron at second & third place. I believe YMTC also the first to market at 232 layer NAND last year, though still using older xtacking 3.0 - releasing it without any fanfare.

Joined
Jul 13, 2016
Messages
2,710 (0.97/day)
Processor Ryzen 7800X3D
Motherboard ASRock X670E Taichi
Cooling Noctua NH-D15 Chromax
Memory 32GB DDR5 6000 CL30
Video Card(s) MSI RTX 4090 Trio
Storage Too much
Display(s) Acer Predator XB3 27" 240 Hz
Case Thermaltake Core X9
Audio Device(s) Topping DX5, DCA Aeon II
Power Supply Seasonic Prime Titanium 850w
Mouse G305
Keyboard Wooting HE60
VR HMD Valve Index
Software Win 10
what are you smoking? ripped from micron? nope they took separate ways in stacking NAND, with separate control logic and NAND dies bonded with metal pads it would be more like kioxia / WD (but unlike YMTC, kioxia only up to 218 layers), YMTC currently the first to reach over 15Gb/mm2 bit density at 232/238 layer class beating sk hynix & micron at second & third place. I believe YMTC also the first to market at 232 layer NAND last year, though still using older xtacking 3.0 - releasing it without any fanfare.

YTMC was only founded in 2016. You are essentially saying they R&D'd industry leading NAND technology as a company starting from scratch in an extra-ordinarily short period of time and just so happened to end with the same layer count as Micron when every other competitor has different layer count NAND releasing. Please, Intel is still having problems cracking into the GPU market and that's considering they have GPU experience, massive amounts of cash, and own their own foundry. The time and money investment to jump into a mature chip market is enourmous. YTMC also happens to be Chinese state sponsored and was/is funded largely by the Chinese government.

What's illgocial is not balking at the fact that a new company can just walk into the market and magically start beating companies with hundreds of billions of dollars in R&D and decades of experience. Chip manufactuering isn't one of the industries where small players or startups can hit the ground running like in shoe manufacturing, you need to build up experience and IP in order to develop the latest chips and that takes talent, time, and money.

Joined
Jun 23, 2011
Messages
389 (0.08/day)
System Name potato
Processor Ryzen 9 3950X
Motherboard MSI MAG B550 Tomahawk
Cooling Custom WC Loop
Memory 2x16GB G.Skill Trident Z Neo 3600
Video Card(s) Radeon VII
Storage SSD: Team 512GB NVMe + Team 2TB SATA || HDD: 2x WD VRaptor 500GB & 2x WD Blue 4TB
Display(s) XIAOMI Curved 34" 144Hz UWQHD
Case be quiet dark base pro 900
Audio Device(s) Edifier R1800T, Logitech G733
Power Supply Corsair AX860i
Mouse Logitech G Pro
Keyboard Corsair K65
Software win 10 amd64
YTMC was only founded in 2016. You are essentially saying they R&D'd industry leading NAND technology as a company starting from scratch in an extra-ordinarily short period of time and just so happened to end with the same layer count as Micron when every other competitor has different layer count NAND releasing. Please, Intel is still having problems cracking into the GPU market and that's considering they have GPU experience, massive amounts of cash, and own their own foundry. The time and money investment to jump into a mature chip market is enourmous. YTMC also happens to be Chinese state sponsored and was/is funded largely by the Chinese government.

What's illgocial is not balking at the fact that a new company can just walk into the market and magically start beating companies with hundreds of billions of dollars in R&D and decades of experience. Chip manufactuering isn't one of the industries where small players or startups can hit the ground running like in shoe manufacturing, you need to build up experience and IP in order to develop the latest chips and that takes talent, time, and money.
just provide proof or indication that YMTC ripped it from micron, otherwise you're spitting out nonsense and provide nothing to the discussion
