ATITool
ATITool is an overclocking utility designed for ATI and NVIDIA video cards.
Design target is to write a light-weight application for the enthusiast - so no
questionable registry tweaks. Sorry.
Main Features
- No limits overclocking.
- Support for overclocking for NVIDIA cards.
- Adjustment of GPU and memory voltage (when supported by VGA card).
- Tweaking of memory timings (most ATI cards).
- Finding maximum core and memory overclock by rendering into a Direct3D window and scanning the output for visual artifacts.
- Temperature monitoring and fan speed control (on supported cards).
- Removal of Catalyst overclocking lock for 9000/9200/9550/9600 series.
- Artifact scanning mode to test for stability.
- Loading a predefined clock profile on Application/Windows startup.
- Hotkeys that can be used any time to load clocks from a profile.
- Extract video card BIOS to file for backup purposes.
- 3D application detection (Direct3D 8, Direct3D 9, OpenGL) to overclock your video card only when required.
- Gamma control
ATITool will only work on Windows 2000/XP/2003 (64 bit versions are supported).
Forums

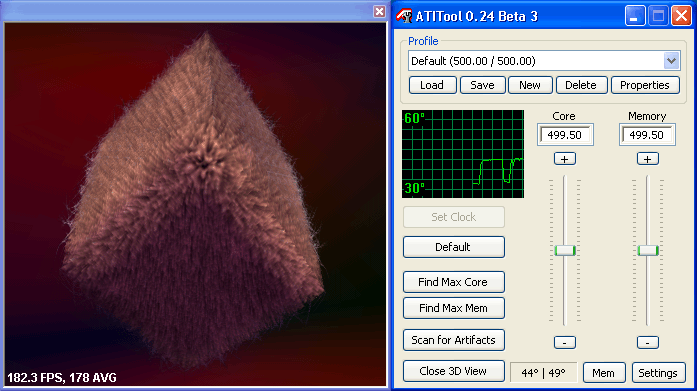

Screenshots
Documentation
The ATITool Documentation is available in the Wiki
Downloads
Latest stable version is: 0.26 (released Dec 08 2006).
Changes in this version:
- Full support for all ATI and NVIDIA cards. Only X1950 Pro overclocking is not supported.
- To overclock ATI X1k cards, you do not need to disable the services in Windows
- Fan settings can be saved to a profile
- New logo added
- Memory timings can be saved to a profile
- Number of active vertex shaders/stream processors on NVIDIA added
- Log file default maximum size is 2.5 MB
- BIOS dump works on X1000 Series
- Thermal monitoring defaults to on
- Voltage control for several X1800 and X1900 cards
- Control over Adaptive Anti-Aliasing
- New settings tab "Driver Tweaks"
- Current Draw monitoring for several ATI cards
Latest development build available is: 0.26. Download | Discuss
Major changes to the latest stable version are:
- None
