No Wires????***New Pics updated***
More images (click for bigger version):
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Owner: | Uncle Vinnie Send email Send private message |
| Posted: | 2007-04-17 |
| Last Update: | 2007-04-19 12:31 |
| Viewed: | 9,126 times |
| Rating: | Superb (8.4) 10 votes total |
| Submit vote: | |
| Please register on the forums & login to vote. | |
Keywords:
System Specs:
» AMD Athlon 64 X2 4600 2.4Ghz, OC to 2.6Ghz
» Motherboard: Asus Crosshair
» Cooling: 4-120mm, 2-80mm fans, CPU-Blue Orb 2
» Memory: OCZ 2GB DDR2 800Mhz
» Video Card: Ati 1900XTX, OC to 688/792
» Harddisk: Western digital 150Gb 10,000rpm
» CD/DVD Drive: ho knows (it works)
» CRT/LCD Model: 19" Samsung SyncMaster 940bf
» Case: Thermaltake Armor
» Sound Card: Original Audigy
» PSU: Thermaltake TWV 500W
» Software: Windows XP
Performed Mods:

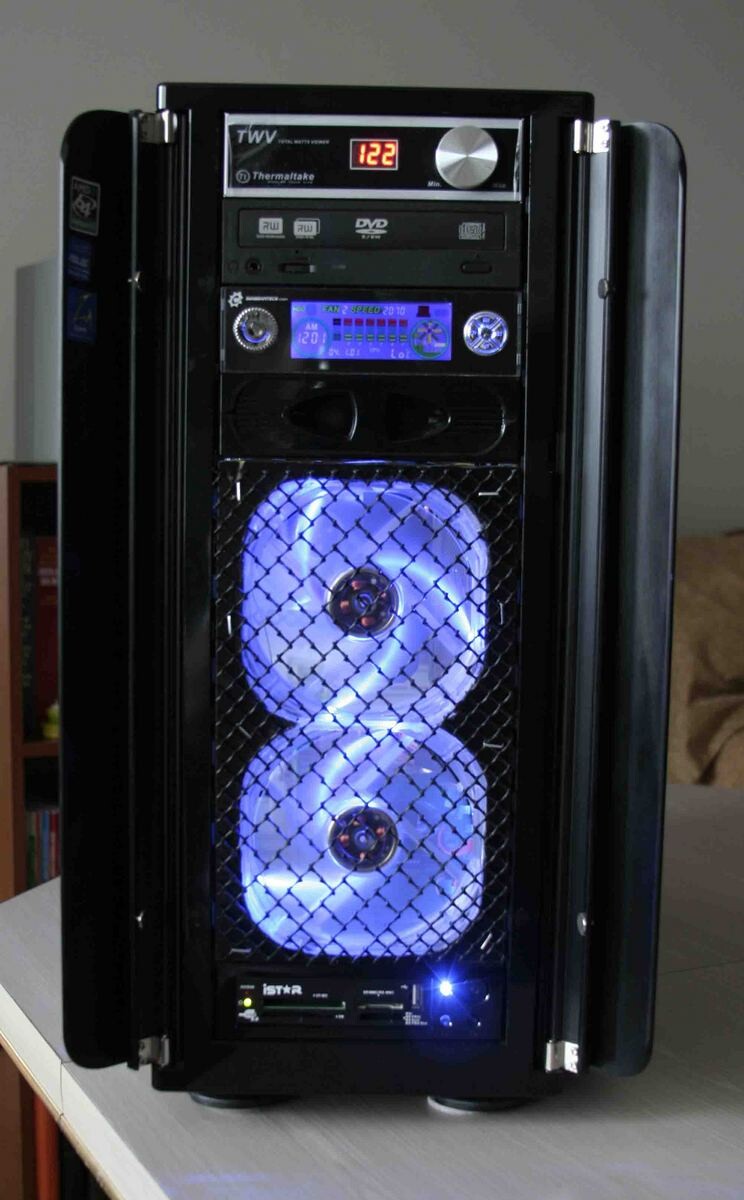

2-120mm fans were added to the front blowing air in the case.
On the back of the case a 120mm, and 80mm hole were cut, so the 2 back fans can take the hot air out of the case more easily.
Material used to go in front of the fan so I don't chop up my fingers is basic plastic gutter guard bought at home depot for $3.
ATI 1900XTX mods:
OC to 688/792
Temp before mods at same OC were:
Idle: 52C with fan @ 40%
load: 72C with fan at 100%
Voltage regulator:
Idle: 49C
Load: 67C
After the mods as in the pics, same OC:
Idle: 44C with fan @ 40%
load: 66C with fan at 100%
Voltage regulator:
Idle: 44C
Load: 60C
For something that didn't cost anything, it worked very well, I was very impressed by the results.
