Dark Phoenix

« Previous Mod Return to Index Random Mod Next Mod »
Owner:
Posted:
March 15th 2009
Updated:
Viewed:
12,522 times
Rating:
Outstanding (7.3)
Voting Graph 15 votes total
Submit vote:
Please register on the forums & login to vote.
Key Features:
Intel CPU NVIDIA Graphics NVIDIA SLI Custom Paint Job Water-cooled
This modder's other projects:
System Specs:
  • Case Thermaltake Armor+
  • Mobo EVGA Nforce 680i SLI
  • CPU Intel Core 2 Duo Quad Core Q6600 2.4ghz OC to 3.80Ghz
  • GPU EVGA Geforce 9800 GX2 1GB OCed
  • RAM Crucial Ballistix Tracer Black PC2 6400 DDR2 800 4GB OC to 1100mhz (5-5-5-15 2T)
  • CPU & NB Cooling Water Cooling [Swiftech GTZ, MCW30, Danger Den Black Ice Extreme 2 , Tygon 1/2", Danger Den Laing D5]
  • GPU cooling 2 x MCW60 plus ramsinks, Switftech 240mm rad.
  • PSU Cooler Master Real Power Pro1000
Performed Mods:

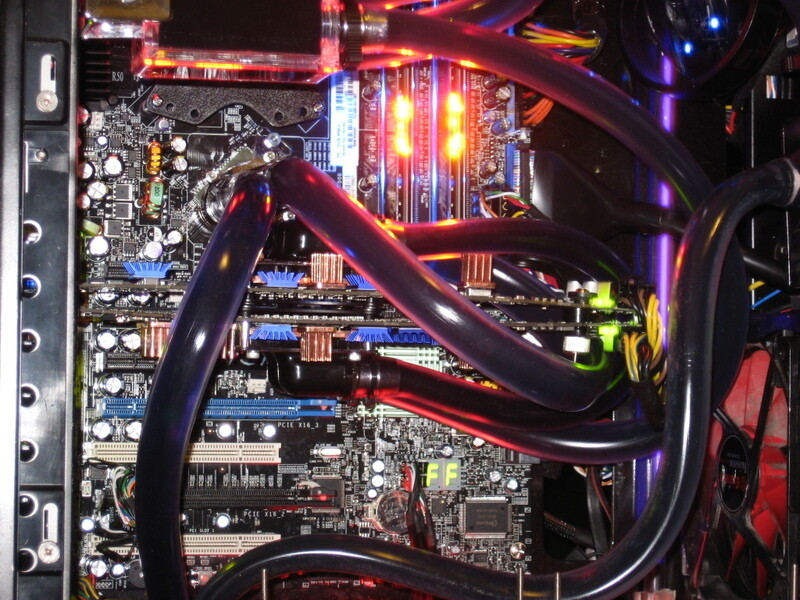

Custom Lightings - Case lights modded to be all red. Replaced all blue leds on the 230mm fan as well as the 2 front 120mm fans to red. Placed the front 140mm fan(with red n orange lights) on top where the tray was to suck out warm air. Placed a 4" cold cathode light in front beneath the Thermaltake flap above the drivebays. Black interior paint; Custom Watercooling setup for 9800GX2 - Reversed the cores of the GX2 so they face outward. Used 2 MCW60s to cool the GPUs and Ramsinks on Rams, mosfets and Bridge chipset. Succesful for a time being with temps around 35C each core. However, this became an unsuccesful setup due to the fact that the bridge chip had to be actively cooled otherwise it will keep hitting 110C and shuts off display. Custom mounted 240mm BIX2 rad on the outside using simply a cut out fan box. Another 240mm Swiftech rad inside. Flow goes: pump > CPU > outside Rad > Res > GPU1 > GPU2 > chipset > Interior Rad > Repeat
This is actually my 1 year old pc that I no longer have. Sold most of the parts n wat i still have i will use for a F@H PC. I just never had a chance to post up pics of it. Loved this PC but was F'ing way too heavy to carry around. My next PC will be an i7 rig. It's actually completed n running right now, i just need one final item n its all set. I believe u will love my upcoming i7 rig :) p.s. Most pics were taken after 4-5 months of use (thus the slightly dirty fans). The GPU setup was done around that time. All fans on rads are 120mm Ultra Kaze 3000rpm.
Add your own comment

13 Comments on Dark Phoenix

#3
to6ko91
nice but the watter tubing is all over the gaff 7/10
Posted on Reply
#4
aquariuz
to6ko91nice but the watter tubing is all over the gaff 7/10
im sorry but what do u mean its all over the gaff? if ure saying that there's tubing running around the case, that's because I'm watercooling everything. Try watercooling a GX2 without a proper FB block. And on top of that, I don't want to kink the tubes trying to make them shorter. Thanks anyways.
Posted on Reply
#5
to6ko91
aquariuzim sorry but what do u mean its all over the gaff? if ure saying that there's tubing running around the case, that's because I'm watercooling everything. Try watercooling a GX2 without a proper FB block. And on top of that, I don't want to kink the tubes trying to make them shorter. Thanks anyways.
thats exactly what I meant to say (there are tubes everywhere around the case) sorry for the slang
P.S. maybe if you move the reservoir to the cd tray you wont have to do a loop around to go to the cpu and maybe if you had a longer tube connecting to the bottom rad it would look a lot neater
Posted on Reply
#6
aquariuz
alrite, pls to those who vote, pls let me know wat u guys think of my rig. Don't just go posting any numbers without explanation as to why my rig deserves the numbers voted to it.

thnx
aqua
Posted on Reply
#7
theorw
I am mostly impresed about the VGA MOD!!
How did u manage to operate the card?Doesnt it have an sli bridge pcb between the PCBs like the 7950 GX2 did once....?(thats how long i have to watch the nvidia 2blecards...)
Posted on Reply
#9
aquariuz
theorwI am mostly impresed about the VGA MOD!!
How did u manage to operate the card?Doesnt it have an sli bridge pcb between the PCBs like the 7950 GX2 did once....?(thats how long i have to watch the nvidia 2blecards...)
oh, with the 9800GX2, the sli bridge is a flexible strip connector that can be bent around in almost any shape. So originally, the strip was bent inward like a U with a lip to connect each end to a card. Then, when i flip them around, the strip rotates itself outward like a reversed U. It is long enough to go around. See image below, see the strip on the far left of the card?



btw, i cant take full credit for that mod. A great guy in my forum started the idea n i applied it to my build.
Posted on Reply
#10
to6ko91
aquariuzoh, with the 9800GX2, the sli bridge is a flexible strip connector that can be bent around in almost any shape. So originally, the strip was bent inward like a U with a lip to connect each end to a card. Then, when i flip them around, the strip rotates itself outward like a reversed U. It is long enough to go around. See image below, see the strip on the far left of the card?



btw, i cant take full credit for that mod. A great guy in my forum started the idea n i applied it to my build.
wow I just realized that the insed of the card is out .... SMART
Posted on Reply
#11
t77snapshot
I gave you a 9/10 for all your custom modding like flipping the vga card and replacing the leds in the fans. Awesome cable management, great hardware, clean paint job. Overall looks incredible! Cant wait to see your new rig.
Posted on Reply
#12
theorw
aquariuzoh, with the 9800GX2, the sli bridge is a flexible strip connector that can be bent around in almost any shape. So originally, the strip was bent inward like a U with a lip to connect each end to a card. Then, when i flip them around, the strip rotates itself outward like a reversed U. It is long enough to go around. See image below, see the strip on the far left of the card?

i57.photobucket.com/albums/g220/aquariuz23/My%20PCs/IMG_0757.jpg

btw, i cant take full credit for that mod. A great guy in my forum started the idea n i applied it to my build.
YES I C THE STRIP!GREAT JOB THERE!Now many could do it but since the card is being replaced by 285s and 295s i dont think it ll happenStill the current owners should do it.I would!
Posted on Reply
#13
pentastar111
Very nice. Extremely insane but very nice. The work on the graphics card is very cool.
