Introduction
AMD's HD 7700 Series has been out for a while now and most board partners have released their customs designs. The card is based on AMD 28 nanometer silicon combined with the GCN shader architecture that promises lower power consumption at increased performance.
Club 3D's Radeon HD 7750 is one of the rare gaming-capable low-profile cards on the market today. It is actually the fastest low-profile graphics card you can buy, thanks to its relatively fast Cape Verde graphics processor. In this review, we will find out whether that is good enough for serious gaming using your HTPC.
Coming with such a unique feature set, Club3D is asking a price premium of around 20 EUR for the low-profile capability. Their card retails at € 115, which is similar to the pricing of a typical HD 7770.
HD 7750 Market Segment Analysis | Radeon HD 5670 | GeForce GT 640 | Radeon HD 6670 | GeForce GTS 450 | Radeon HD 5750 | Radeon HD 5770 | Radeon HD 7750 | Club3D HD 7750 | GeForce GTX 550 Ti | Radeon HD 6790 | Radeon HD 6850 | Radeon HD 7770 | GeForce GTX 460 |
---|
Shader Units | 400 | 384 | 480 | 192 | 720 | 800 | 512 | 512 | 192 | 800 | 960 | 640 | 336 |
---|
ROPs | 8 | 16 | 8 | 16 | 16 | 16 | 16 | 16 | 24 | 16 | 32 | 16 | 32 |
---|
Graphics Processor | Redwood | GK107 | Turks | GF106 | Juniper | Juniper | Cape Verde | Cape Verde | GF116 | Barts | Barts | Cape Verde | GF104 |
---|
Transistors | 627M | ???M | 716M | 1170M | 1040M | 1040M | 1500M | 1500M | 1170M | 1700M | 1700M | 1500M | 1950M |
---|
Memory Size | 1024 MB | 2048 MB | 1024 MB | 1024 MB | 1024 MB | 1024 MB | 1024 MB | 1024 MB | 1024 MB | 1024 MB | 1024 MB | 1024 MB | 1024 MB |
---|
Memory Bus Width | 128 bit | 128 bit | 128 bit | 128 bit | 128 bit | 128 bit | 128 bit | 128 bit | 192 bit | 256 bit | 256 bit | 128 bit | 256 bit |
---|
Core Clock | 775 MHz | 902 MHz | 800 MHz | 783 MHz | 700 MHz | 850 MHz | 800 MHz | 800 MHz | 900 MHz | 840 MHz | 775 MHz | 1000 MHz | 675 MHz |
---|
Memory Clock | 1000 MHz | 891 MHz | 1000 MHz | 900 MHz | 1150 MHz | 1200 MHz | 1125 MHz | 1125 MHz | 1026 MHz | 1050 MHz | 1000 MHz | 1125 MHz | 900 MHz |
---|
Price | $70 | $110 | $65 | $90 | $90 | $110 | $100 | $125 | $115 | $130 | $135 | $125 | $140 |
---|
Packaging
We received the card in a plain package designed for system integrators. Retail cards will come with a nicely designed package of course.
Contents
You will receive:
- Graphics card
- Driver CD + documentation
The Card

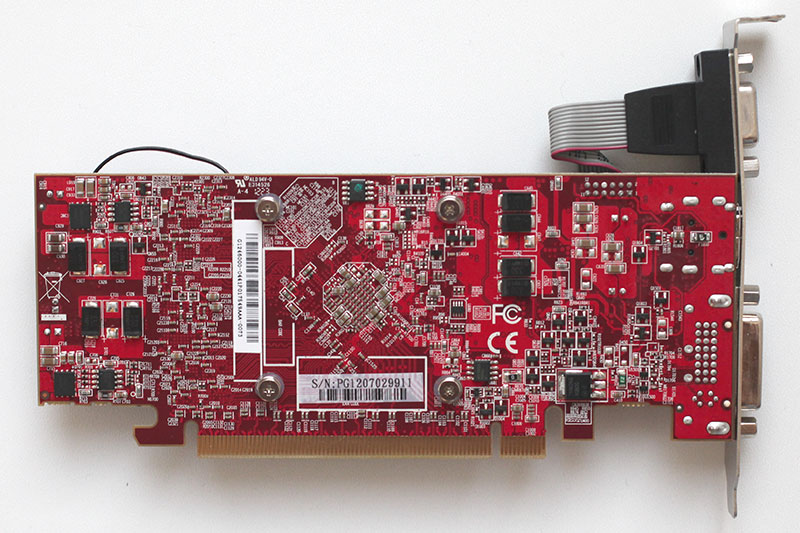

Club 3D's card comes with a surprisingly compact footprint for a HD 7750. You can just remove the analog VGA output to make it fit into a low-profile PC.

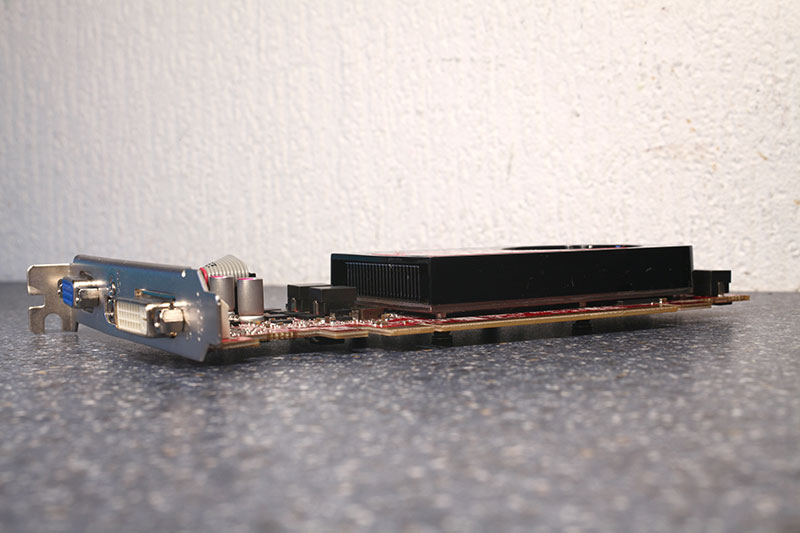

The card requires a single slot in your system.
Display connectivity options include one dual-link DVI ports, one full-size HDMI port, and one detachable VGA output. You may use all the outputs at the same time.
An HDMI sound device is included in the GPU as well. It is HDMI 1.4a compatible, and includes HD audio and Blu-ray 3D movies support. The DisplayPort outputs are version 1.2 which enables the use of hubs and Multi-Stream Transport.

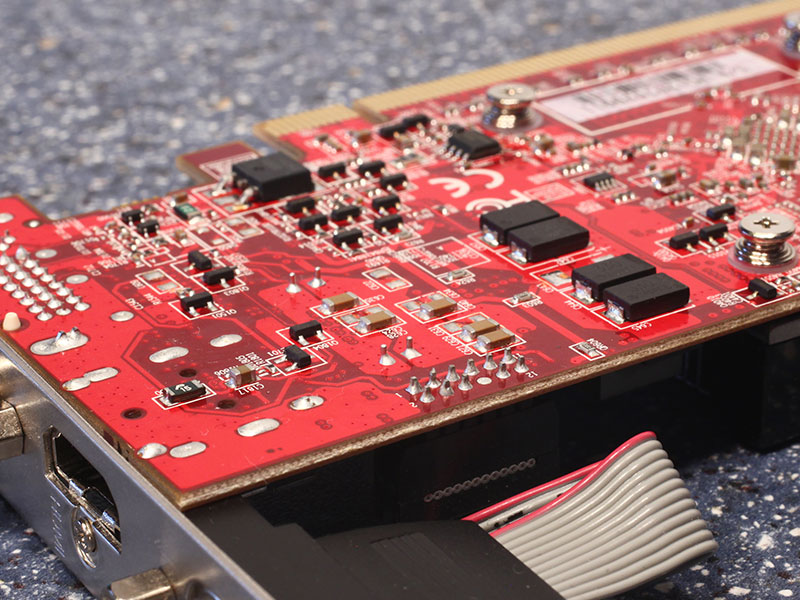

The card has no CrossFire connectors, all multi-GPU data is transferred via the PCI-Express bus.

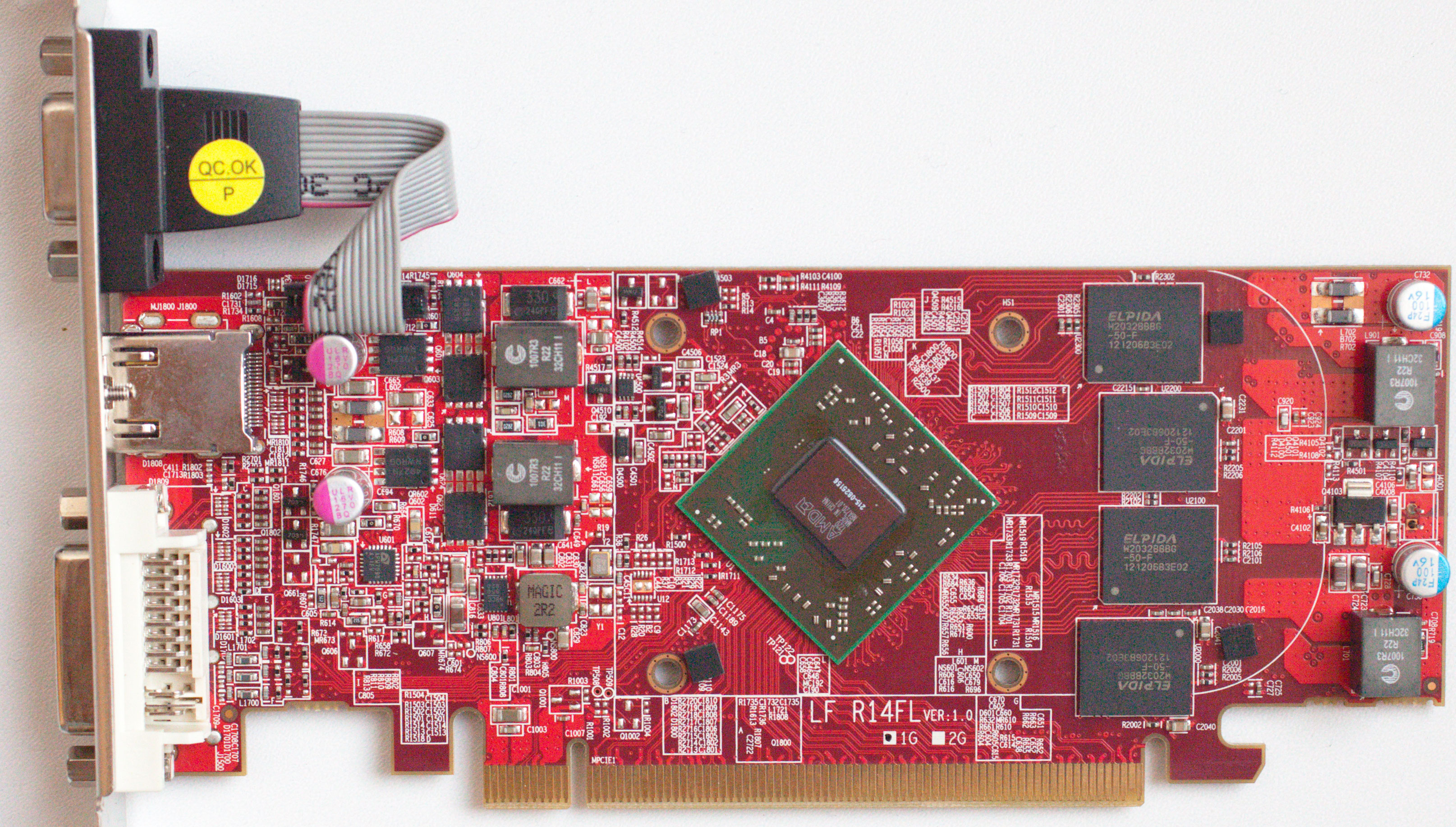

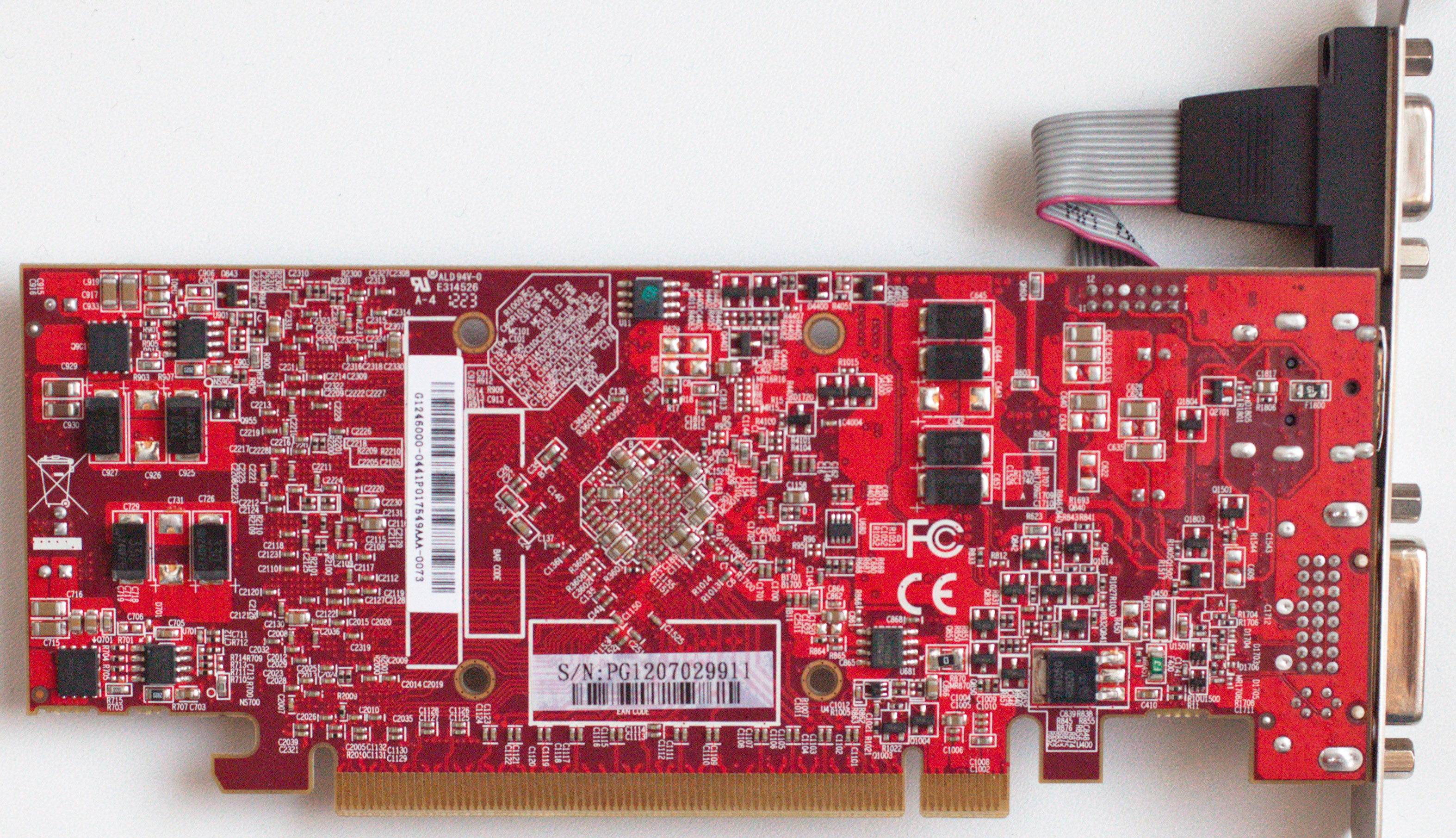

Pictured above are the front and back, showing the disassembled board. High-res versions are also available (
front,
back). If you choose to use these images for voltmods, etc., please include a link back to this site or let us post your article.
