AAF Optimus Modded Driver For Windows 10 & Windows 11 - Only for Realtek HDAUDIO Chips

[AAF Optimus]

Question, this is the right installation setup to get the dolby access app?

Any of the Dolby Atmos options will enable Dolby Access.



[Zladimir]

From what I recall DolbyAccess does not need to be "enabled", just installed from the MS Store (on any WinPC) and licensed, supporting any device (for headphones/hometheatre from any WinPC).



[Jorgeapp]

Installed correctly, i think... at least looks different from the black one in the main spoiler.
But the sound is very strong now



[AAF Optimus]

But the sound is very strong now

Installed correctly

YES.

at least looks different from the black one in the main spoiler.

Dark background is set by default only in Dolby Atmos Speaker System For Gaming.

Here

In the "System Devices" class, there must be some device named "Intel Smart Sound Technology". If it exists, update its driver for the AAF bus driver.



[Zladimir]

@AAF Optimus I fixed my problems with Dolby Atmos for Gaming by just manually installing all the drivers and software components from your package, instead of using your installer. It works now like I want, thank you.
However, I have two question
1. What is the difference between main and alternative processing for DTSX ?
2. What is the difference between Realtek APO and APO2 ?



[FengXi]

YES.

Dark background is set by default only in Dolby Atmos Speaker System For Gaming.


In the "System Devices" class, there must be some device named "Intel Smart Sound Technology". If it exists, update its driver for the AAF bus driver.

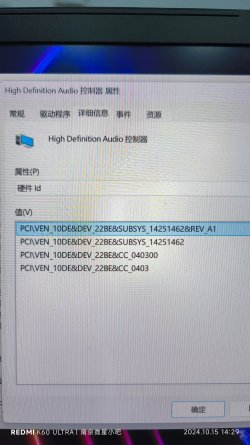

I'll try, and after doing that give you the Hardware IDs ?

YES.

Dark background is set by default only in Dolby Atmos Speaker System For Gaming.


In the "System Devices" class, there must be some device named "Intel Smart Sound Technology". If it exists, update its driver for the AAF bus driver.

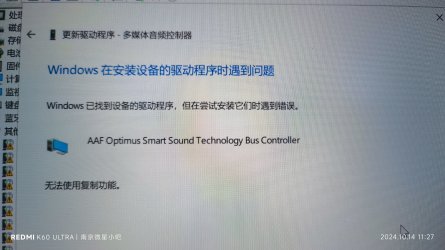

I met this in 24H2



[Lucky8]

Welcome back Alan.



[AAF Optimus]

1. What is the difference between main and alternative processing for DTSX ?

There are two options provided to ensure DTS:X works with this package.

What is the difference between Realtek APO and APO2 ?

Realtek APO - The modified version of the Realtek processing library to enable 5.1 modes (Dolby Digital Live; DTS Interactive).
Realtek APO2 - The Realtek Gen3 standard processing libraries.

I met this in 24H2

Try installing the Microsoft "High Definition Audio Driver".
Manufacturer: Microsoft; Model: High Definition Audio Controller.



[restless14]

its not working for win11 24h2 nothing work the old version used to work in 23h2



[FengXi]

There are two options provided to ensure DTS:X works with this package.

Realtek APO - The modified version of the Realtek processing library to enable 5.1 modes (Dolby Digital Live; DTS Interactive).
Realtek APO2 - The Realtek Gen3 standard processing libraries.


Try installing the Microsoft "High Definition Audio Driver".
Manufacturer: Microsoft; Model: High Definition Audio Controller.

Looks like the bus driver won't work on 24H2 but can work on older versions



[Ferather]

24H2 has issues at the moment, I believe Realtek are investigating. I really don't know why some of you are bothering with a bus driver.

If you really want the latest bus driver, download the chipset drivers for your motherboard.

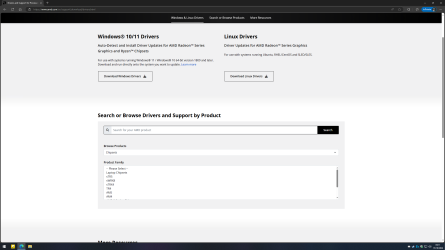

AMD: Drivers and Support for Processors and Graphics | Select chipset.

----



[FengXi]

24H2 has issues at the moment, I believe Realtek are investigating. I really don't know why some of you are bothering with a bus driver.

If you really want the latest bus driver, download the chipset drivers for your motherboard.
AMD: Drivers and Support for Processors and Graphics | Select chipset.

----

It's MSI's problem no bus driver no sound (intel sst)

YES.

Dark background is set by default only in Dolby Atmos Speaker System For Gaming.


In the "System Devices" class, there must be some device named "Intel Smart Sound Technology". If it exists, update its driver for the AAF bus driver.

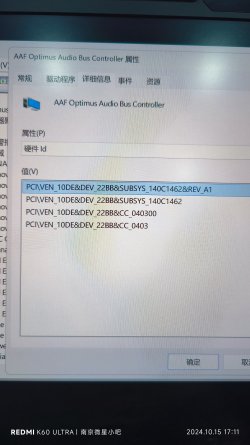

The only device can be updated is this

There are two options provided to ensure DTS:X works with this package.

Realtek APO - The modified version of the Realtek processing library to enable 5.1 modes (Dolby Digital Live; DTS Interactive).
Realtek APO2 - The Realtek Gen3 standard processing libraries.


Try installing the Microsoft "High Definition Audio Driver".
Manufacturer: Microsoft; Model: High Definition Audio Controller.

One more



[restless14]

24H2 has issues at the moment, I believe Realtek are investigating. I really don't know why some of you are bothering with a bus driver.

If you really want the latest bus driver, download the chipset drivers for your motherboard.
AMD: Drivers and Support for Processors and Graphics | Select chipset.

----

any solution or there is no hope in 24h2???



[nicegirl05]

Dear members of the TechPowerUp Forum.

I come to inform you that I am slowly returning to the DriverMod Realtek project.
I'm releasing a driver update after this past time.

Thanks for Understanding.

DIRECTORY LINK FOR UPDATES

MOST UPDATED VERSION: 9738

Spoiler: CHANGELOG

Spoiler: 9738

• This first version comes with changes to Dolby Atmos variations. They will now be loaded by the Dolby Access application. Due to the fact that the application files are large, it is not advantageous to integrate it into the installer, therefore, if it is not automatically installed by the Microsoft Store, it will need to be manually installed. A link will be created on the Desktop that will take you directly to the Dolby Access application.
• This first version comes with changes to DTS APO 4x. The presets have been updated, as have the audio processing libraries. They now have two options to choose from (main and alternative processing) to provide maximum functionality for DTS:X Ultra. (Courtesy of @Ferather).

Spoiler: 9738 - UPDATE 1

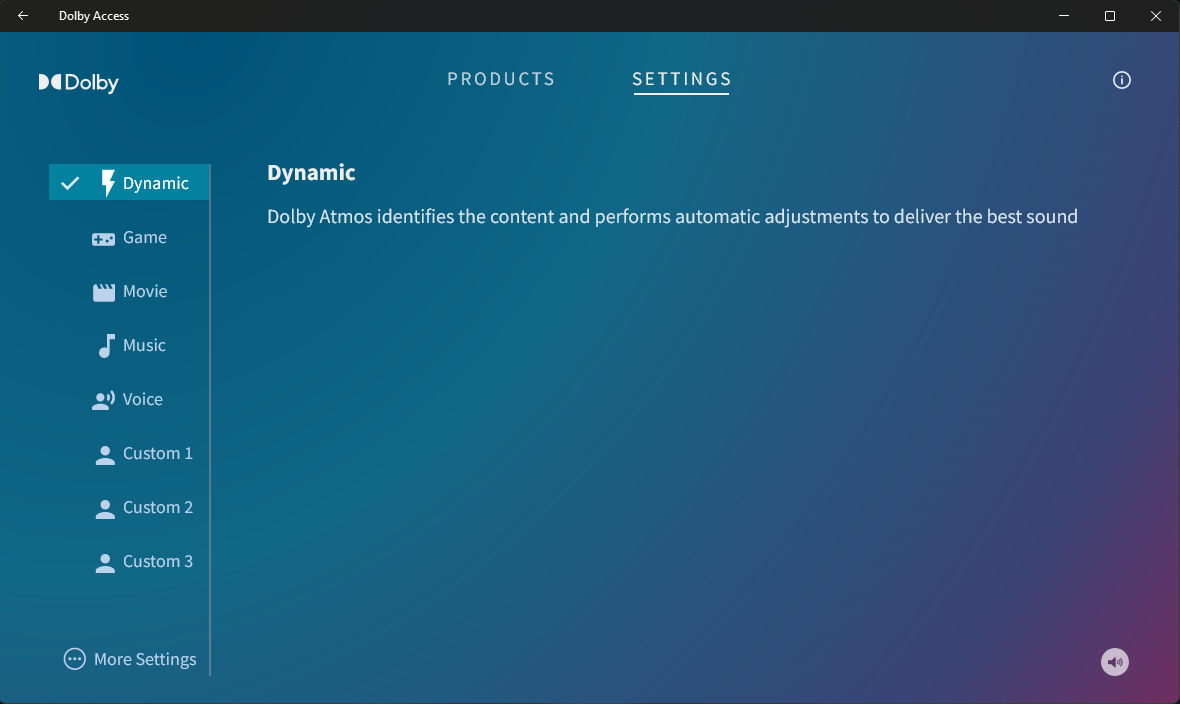

• This version contains updates to Dolby Atmos presets, enabling the Dynamic profile in the app and disabling AutoProfile. Furthermore, the DefaultSettings files (XML and JSON) were removed and replaced with Operator_Settings_Default (JSON), where only the necessary lines are, removing all the garbage.

View attachment 366402

i wanted to ask well u be makeing any solutions for home theaters (so anyone with more than 3 speakers ) over hdmi passthrough i have dolby atmos working perfectly with the oem application but very sadly due to windows limitations i cant use dtsx home theater well u be makeing this a option for ppl who want to use dtsx spatial audio on windows with games movies music all content as atm i only have dolby atmos home theater in the spatial audio section of windows



[Ferather]

@FengXi, typical MSI, most the time I see these kind of issues its MSI, they also like to disable and lock out standard features.
@sidou, not that I know of, personally I am still using Win10, Win11 (Win 10X) is not a benefit to me, yet.

You can still read how performance (games other) is no different on Win11 vs Win10, unless that's changed somehow.

Win11, previously named Win10X does support DTS:X encoding over the spatial APO, Win10 not.



[FengXi]

@FengXi, typical MSI, most the time I see these kind of issues its MSI, they also like to disable and lock out standard features.
@sidou, not that I know of, personally I am still using Win10, Win11 (Win 10X) is not a benefit to me, yet.

You can still read how performance (games other) is no different on Win11 vs Win10, unless that's changed somehow.

Win11, previously named Win10X does support DTS:X encoding over the spatial APO, Win10 not.

yeah fuck MSI



[Ferather]

No brand is perfect, but as I said before 85%+ of sound issues I have seen are MSI boards. Good GPU's though.



[FengXi]

No brand is perfect, but as I said before 85%+ of sound issues I have seen are MSI boards. Good GPU's though.

These intel MSI laptops is driving me crazy

I'm wondering why 9648 can be installed sucessfully but 9738 can't



[Fener]

Sorry for the trivial question, but could I also install these drivers on an x570 tuf plus wifi? I have a Realtek ALC S1200A card. I must use driver store explore to remove any inf. audio driver?



[Ferather]

Yes.



[FengXi]

I copied 9648 installer to 9738 and the error is gone



[sput]

I got dts sound unbound oem licensed through the motherboard (asus x570-e).

Anyone knows if the license remains valid if I install these drivers? Just need dd live for the spdif.



[nicegirl05]

I got dts sound unbound oem licensed through the motherboard (asus x570-e).

Anyone knows if the license remains valid if I install these drivers? Just need dd live for the spdif.

as long as u only install dolby from this driver u should be ok



[avidgamer121]

is default installation good enough for better sound quality?



[496175433]

Glad to see you again.
Nsudo_8.0.1.0 in your package is unusable in Win11 24H2.
I find NSudo_9.0_Preview1_9.0.2676.0 is usable in 24H2. https://github.com/M2TeamArchived/N....0-Preview1/NSudo_9.0_Preview1_9.0.2676.0.zip
Because of this reason, I still stay at 23H2.
Can you consider replacing Nsudo built-in, or switching to other privilege escalation tools?
