Aio vs custom cooling

Joined
Jun 3, 2012
Messages
1,275 (0.38/day)
Location
Denmark
Processor I7 10700kf
Motherboard Msi Z490 A-pro
Cooling Cooler Master MasterLiquid ML360R RGB
Memory 2x16gb G skill Ripjaws V 4000mhz cl 18
Video Card(s) PowerColor Radeon RX 6700 XT Red Devil
Storage 1x 2tb intel 665p,1x2tb kingston a400 2 x tb external usb harddrives
Display(s) 1x AOC CQ32G2SE/BK 1440p,165hz va panel,1x AOC C24G2U/BK 1080p 165hz va panel.
Case ThermalTake Core X71
Audio Device(s) Rotel A11 Tribute Topping E30
Power Supply Evga supernova 650watt p2
Mouse Logitech G403
Keyboard Razer Blackwidow v3 pro
Software Windows 10 64 bit, kaspersky Internet Security 20
Often when we see linus or JayzTwoCents build a pc they often use custom cooling instead of an aio

Sometimes it's because they build in a small case and need as short tubes as possible, sometimes it's just because custom water cooling cools better

But how, how does a custom water cooling cool better than an aio ?

Joined
Jan 13, 2021
Messages
46 (0.23/day)
Processor AMD 5800X
Motherboard MSI MPG B550 GAMING EDGE WIFI
Cooling Water Cooler SilverStone PF360-ARGB
Memory HyperX Fury, 32GB (4x8GB), 3600MHz, DDR4, CL17, HX436C17FB3K4/32
Video Card(s) RX 6800 XT Sapphire Nitro+ OC
Display(s) Acer Predator X34 34"
Power Supply Sharkoon 850W, 80 Plus Gold, SilentStorm CoolZero
Software Windows 10 x64 Build 19042.804 (20H2)
If you use custom water cooling with the CPU and GPU then you will much better performance and that's because GPU are just like CPU air coolers. Therefore, the heat from the GPU interferes with CPU's AIO. In contrast, with custom water cooling most of the heat is absorbed by the water. Finally, with custom water cooling you have 2 radiators instead of one.

Joined
Jun 3, 2012
Messages
1,275 (0.38/day)
Location
Denmark
Processor I7 10700kf
Motherboard Msi Z490 A-pro
Cooling Cooler Master MasterLiquid ML360R RGB
Memory 2x16gb G skill Ripjaws V 4000mhz cl 18
Video Card(s) PowerColor Radeon RX 6700 XT Red Devil
Storage 1x 2tb intel 665p,1x2tb kingston a400 2 x tb external usb harddrives
Display(s) 1x AOC CQ32G2SE/BK 1440p,165hz va panel,1x AOC C24G2U/BK 1080p 165hz va panel.
Case ThermalTake Core X71
Audio Device(s) Rotel A11 Tribute Topping E30
Power Supply Evga supernova 650watt p2
Mouse Logitech G403
Keyboard Razer Blackwidow v3 pro
Software Windows 10 64 bit, kaspersky Internet Security 20
But who does custom watercooling cool better than an aio

When doing custom water cooling you don't need 2 radiators for a cpu and gpu

Joined
May 2, 2017
Messages
4,278 (2.76/day)
Location
Norwegian, currently in Lund, Sweden
Processor AMD Ryzen 5 1600X
Motherboard Biostar X370GTN
Cooling Custom CPU+GPU water loop
Memory 16GB G.Skill TridentZ DDR4-3200 C16
Video Card(s) AMD R9 Fury X
Storage 500GB 960 Evo (OS ++), 500GB 850 Evo (Games)
Display(s) Dell U2711
Case NZXT H200i
Power Supply EVGA Supernova G2 750W
Mouse Logitech G602
Keyboard Lenovo Compact Keyboard with Trackpoint
Software Windows 10 Pro
But who does custom watercooling cool better than an aio

When doing custom water cooling you don't need 2 radiators for a cpu and gpu
To the extent that it does (that depends on the water loop as well as the AIO - some current AIOs are excellent (Arctic, EK in particular)), there are some reasons:
  • Better cold plates with larger microfin arrays, allowing for more efficient heat transfer to the liquid
  • Cooper rather than aluminium radiators, leading to better heat dissipation for the same size radiator
  • Also often thicker radiators
  • Higher flow rate due to more powerful pumps, again aiding dissipation
  • (possibly) higher volume of liquid in the loop, taking longer to reach heat soak/thermal equilibrium, leading to perceived better performance in short workloads
Also:
  • AIOs use cheap, low flow rate pumps
  • AIOs use cheap, generic and not particularly good cold plates
  • AIOs typically use cheap, shitty fans focused on aesthetics rather than performance
Still, the differences aren't that huge. A good AIO is an excellent cooler. The reason you can cool a CPU and GPU in a small loop is because GPUs are ridiculously easy to watercool, with their heat load spread evenly across a large die and thus allowing for very efficient heat transfer to the liquid. No GPU under 300W really needs more than a 120mm radiator as long as you're fine running it's fan at a moderate rpm. Just look at the thermal and noise performance of AMD's reference AIO GPUs (Fury X, Vega LC, also likely the rumored 6900XT LC). CPUs are on the other hand very difficult to cool due to their high thermal density and indirect cooling (having an IHS in between the die and cooler).


FreedomEclipse

~Technological Technocrat~
Joined
Apr 20, 2007
Messages
21,684 (4.16/day)
Location
London,UK
System Name Codename: Icarus Mk.VI
Processor Intel 8600k@4.8Ghz
Motherboard Asus ROG Strixx Z370-F
Cooling CPU: BeQuiet! Dark Rock Pro 4 {1xCorsair ML120 Pro|5xML140 Pro}
Memory 32GB XPG Gammix D10 {2x16GB}
Video Card(s) Gigabyte 1080Ti Gaming OC|Accelero Xtreme IV
Storage Samsung 970Evo 512GB SSD (Boot)|WD Blue 1TB SSD|2x 3TB Toshiba DT01ACA300
Display(s) Asus PB278Q 27"
Case Corsair 760T (White)
Audio Device(s) Yamaha RX-V573|Speakers: JBL Control One|Auna 300-CN|Wharfedale Diamond SW150
Power Supply Corsair AX760
Mouse Logitech G900/G502
Keyboard Duckyshine Dead LED(s) III
Software Windows 10 Pro
Benchmark Scores (ノಠ益ಠ)ノ彡┻━┻
AIOs typically use cheap, shitty fans focused on aesthetics rather than performance

This honestly depends on the brand of AIO itself. EK supply their Vardar fans which are pretty decent but loud at high RPMs. Arctic have their P12s or P14s which are cheap but really really good. Even most upper tier Corsair AIOs now come with ML fans which perform fairly well though maybe not as good as their original SP fans but a lot quieter due to the bearing. BeQuiet use their own Pure Wings fans which i have no experience with but are probably pretty good. Fractal with their Dynamic X2 or Venturi fans -- again excellent fans. Maybe Coolermaster or Enermax supply their AIOs with crap fans.

Joined
Feb 20, 2020
Messages
2,301 (4.39/day)
Location
Texas
System Name Ghetto Rigs x299 & z490 & x99 & Q9550 Old timer
Processor 9940x w/Optimus SigV2 & 10900k w/Optimus Foundation & 5930k w/EK Magnitude & Q9550 w/EK Evo
Motherboard X299 Rampage VI Apex & z490 Maximus XII Apex & x99 Sabertooth & Acer WG43M
Cooling D5 combo/280 GTX/ VRM water block copper/280 GTX/ D5 Top/Optimus sigV2/TitanXp/Mora 360x2
Memory Trident-Z 3600C16 4x8gb & Trident-Z 3600c16 2x8gb & Trident-Z 3200c14 4x8gb & 4x2gb crucial
Video Card(s) Titan Xp & 1080ti ftw3 & evga 980ti gaming & Onboard graphic's need another gpu
Storage 970 evo plus 500gb & 970 evo 500gb many 2.5" ssd's and WD BLK hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 second floor for 2nd rad x2/ Cherry Entertainment center/ 2 Test benches
Audio Device(s) Built in Realtek x2 with Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1200P2 & 1000P2 with APC AX1500 & 850P2 with CyberPower-GX1325U & 1-750P2-extra
Mouse Redragon Perdition x3
Keyboard G910 & G710+x2
Software Win-7 pro x3 and Linux Cinnamon 20.1x2 & win-10 pro x3
Hi,
About the best thing 2 cents does is custom piping
Reality is an aio will save you a lot of time and money, have a 5 year warranty and if goes bad you get a new one for rma shipping costs one way
These things are not custom loop options lol

Joined
Aug 27, 2011
Messages
768 (0.21/day)
Processor Intel core i9 10900k @5.5ghz
Motherboard Asus Maximus XII APEX
Cooling Custom loop 3*360 45mm thick+ 3 x mo-ra3 420 +Dual D5 pump and dual ddc pump
Memory 2x16gb Gskillz Trident Z 4600mhz cl16
Video Card(s) EVGA FTW3 ULTRA RTX 3090
Storage 1TB Samsung 860Evo,2*2tb Samsung 970Evo Plus, 1tb Intel 660p nvme
Display(s) LG Ultragear 27" IPS 1440P 144HZ
Case Dynamic XL
Audio Device(s) Creative Omni 5.1 usb sound card
Power Supply Corsair AX1600i
Mouse Model O-
Keyboard Hyper X Alloy Origin Core
You can lower water temp of a custom loop by adding more radiator and lower cpu or gpu temp by using a good waterblock. AIO cant do that. However, if between 360mm AIO and 360mm custom loop, they are the same thing unless you have a very good waterblock which may yield 5c-7c lower.

Joined
Nov 25, 2019
Messages
286 (0.47/day)
Location
Taiwan
Processor i5-9600K
Motherboard Gigabyte Z390 Gaming X
Cooling Scythe Mugen 5
Memory Micron Ballistix Sports LT 3000 8G*4
Video Card(s) MSI 2070 Ventus
Storage Adata SX6000 Pro 512G
Display(s) Gigabyte M32Q
Case Phanteks Eclipse P350X
Audio Device(s) Edifier C3X
Power Supply Super Flower Leadex Gold 650W
Mouse Razer Basilisk Essensial
Keyboard Ducky ONE Horizon
Other than the radiator/water block difference, custom loops usually have higher liquid flow rate and also more liquid within, the higher flow rate helps transfer the heat to the radiator while the larger liquid volume leads to a higher heat capacity and thus extends the time for to reach thermal equilibrium during heavy load of the CPU/GPU.

I have a simple custom loop myself and it looks awesome, but I gotta say unless you have a lot of money and time to waste, don't get a custom loop.

Joined
Jan 16, 2008
Messages
1,192 (0.24/day)
Location
Milwaukee, Wisconsin, USA
Processor i7-3770K
Motherboard Biostar Hi-Fi Z77
Cooling Swiftech H20 (w/Custom External Rad Enclosure)
Memory 16GB DDR3-2400Mhz
Video Card(s) Alienware GTX 1070
Storage 1TB Samsung 850 EVO
Display(s) 32" LG 1440p
Case Cooler Master 690 (w/Mods)
Audio Device(s) Creative X-Fi Titanium
Power Supply Corsair 750-TX
Mouse Logitech G5
Keyboard G. Skill Mechanical
Software Windows 10 (X64)
In my book It's like asking what's better, a stock car or one that has been customized? Car manufacturers use parts that are price conscious and work just fine. Aftermarket parts are often better quality with improved performance, but are more expensive. Of course some people spend fortunes on their cars. A lot of it is what matters to you.

I bought a used custom loop kit with a D5 and 360 radiator from a TPU member over a decade ago and it still works great. I think I paid $120 (iirc) for it. Not much more than an AIO then or now.

Joined
Jun 21, 2021
Messages
100 (2.70/day)
Processor AMD Ryzen 5900X (PBO enabled, no other OC) + Alphacool waterblock
Motherboard ASUS ROG Strix B550-I Gaming
Cooling custom loop: 360mm XSPC & 360mm Alphacool radiators, Noctua NF-F12 fans; NF-S12 chassis fans
Memory 32GB Corsair Vengeance DDR4-3600 (no aRGB)
Video Card(s) ASUS TUF Gaming GeForce RTX 3080 OC 10GB + Alphacool waterblock
Storage two fast m.2 SSDs and 4GB SATA SSD (the boot drive is a Sabrent Rocket Plus)
Display(s) LG OLED55C1PUB 4K@120Hz TV
Case Lian-Li O11D Mini
Audio Device(s) onboard Realtek chip (AAF driver)
Power Supply SilverStone SX800 SFX-L
Mouse Glorious D Minus
Keyboard Keychron C1 tenkeyless (Gateron Reds)
VR HMD Menlo Park, CA dogchow (Oculus Rift S)
Software Redmond, WA dogchow (Windows 10 Pro, $7 from Keysoff)
Benchmark Scores My system matches standard results. I only use benchmarks to set fan curves. I don't care about the

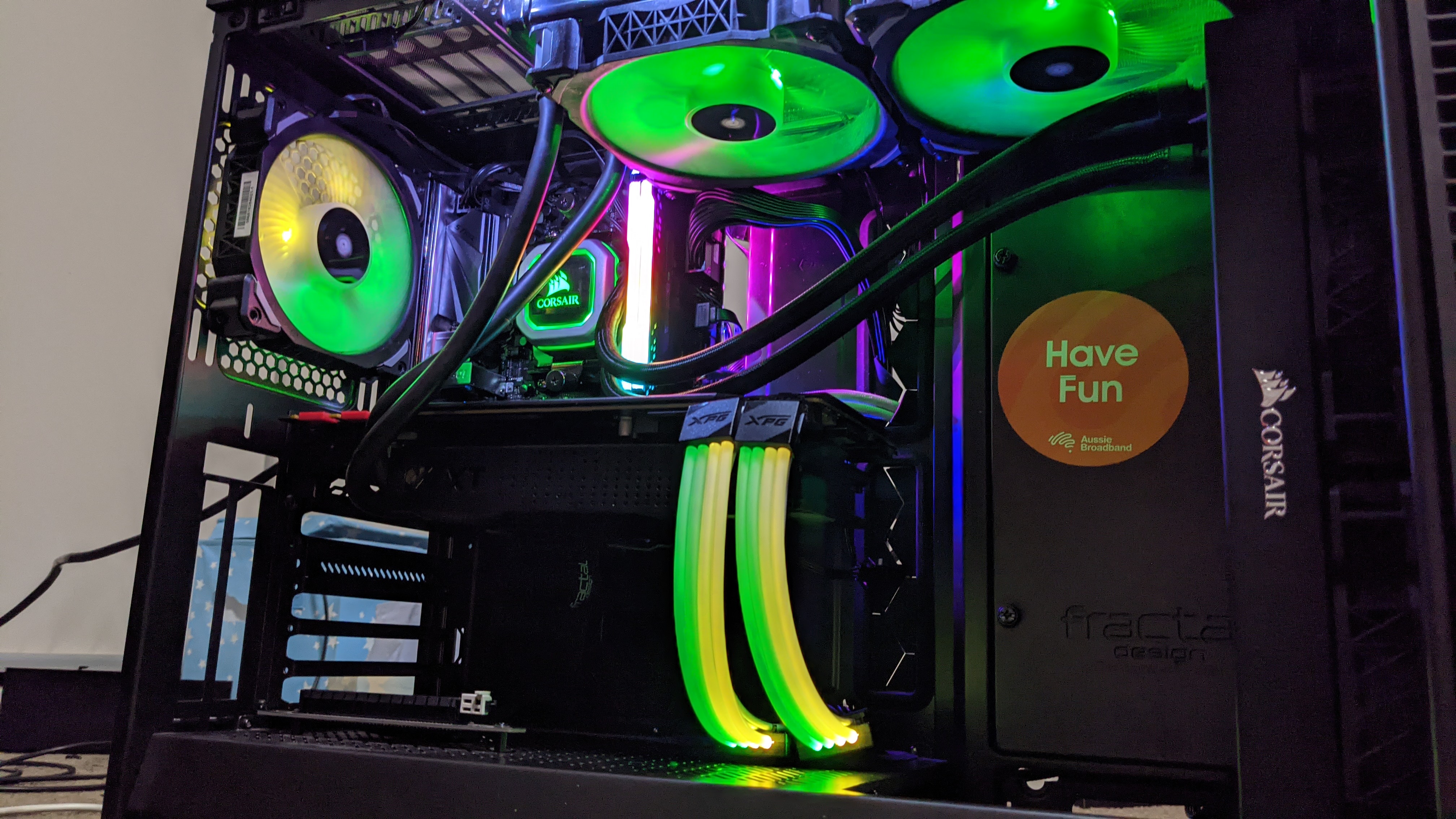

As someone who has moved from AIO cooling (both CPU and GPU) to a custom loop, I have some observations.

First of all, the volume/flow rate of the cooling liquid is not particularly important. I've ran my custom loop at a very slow pump speed while using the same fans (Noctua NF-F12) as I've used on AIO CLC loops (I always swap out the AIO manufacturer's bundled fans with Noctuas so I'm comparing apples to apples concerning the fans). Increasing the pump RPMs on the custom loop doesn't affect the temperature in any significant way.

Even using the same Noctua fans (high static pressure) on the same size radiator (120mm, 240mm, 360mm) the custom loop cools better. This appears to be largely due to the limitations of the cooling block design in AIO loops versus custom loops. In the latter, there is typically no pump in the cooling block so the coolant channels can be designed to provide better flow and coverage.

It's worth pointing out that a pump in a cooling block also generates its own heat. Asetek holds the patent on the cooling block mounted pump. On a custom loop, the pump is often a discrete loop component.

Thus a pumpless CPU cooling block paired with a 120mm radiator on a custom loop should run cooler than an AIO CLC with a 120mm radiator.

There's also the difference in radiator design between AIO units and custom loop radiators. It appears the radiator design is significant despite the fact that they look nearly identical externally. This is on top of the radiator thickness which apparently is a big deal (more cooling area).

For a while I used the NZXT Kraken G12 bracket on an Nvidia GeForce RTX 2070 SUPER Founders Edition card and the EVGA 120mm AIO CLC cooler. Later, I modded an EVGA 240mm AIO CLC cooler to accept the Kraken G12 bracket. That worked well from a heat dissipation standpoint. Today I have an Alphacool GPU block on the 2070 SUPER paired with a 240mm radiator.

Again the biggest difference is the cooling block design followed by radiator design. The NZXT Kraken G12 solution is really a hack. It only cools the graphics processor silicon, again with a cooling block that has a built-in motor. You still have a 92mm fan blowing air on the GDDR4 chips and VRM. The Alphacool GPU cooling block provides liquid cooling for most of the key silicon on the PCB.

I am not doing any significant overclocking either with my CPU (Ryzen 5600X) nor GPU (2070 SUPER). The performance between the AIO cooled system and custom loop systems are essentially the same.

There are three main differences between AIO loops and custom loops. First, the radiator fans in the custom loop run slower to provide adequate cooling. Second, the Alphacool GPU block is thin enough for me to use the graphics card in an SFF case (NZXT H210) whereas the NZXT Kraken G12 hack wouldn't have worked. Third is the cost.

I read a comment by another TPU reader than implementing a custom cooling loop on a mid-tier GPU like a GeForce xx70 series card isn't cost effective. Now that I've done it myself, I completely agree (and I paid $500 MSRP for my 2070 SUPER a year ago, not today's crazy scalper prices). I learned a lot moving from a rather ordinary AIO-cooled micro-ATX build to a custom-cooled mini-ITX SFF build while spending a bunch of money without gaining anything but acoustic performance. But at the time, the 2070 SUPER was what I had (and it had already been modded for AIO cooling).

From a price-performance perspective, I should have just stuck with the EVGA AIO CLC 120mm cooler for the Ryzen 5600X and used the full block Alphacool Eiswolf AIO 240mm cooler on the 2070 SUPER rather than the NZXT Kraken G12 kludge.

But hey, I have a decent gaming build with aRGB cooling blocks in a pretty case. That's worth something; it helped keep my mind occupied during the pandemic lockdown.

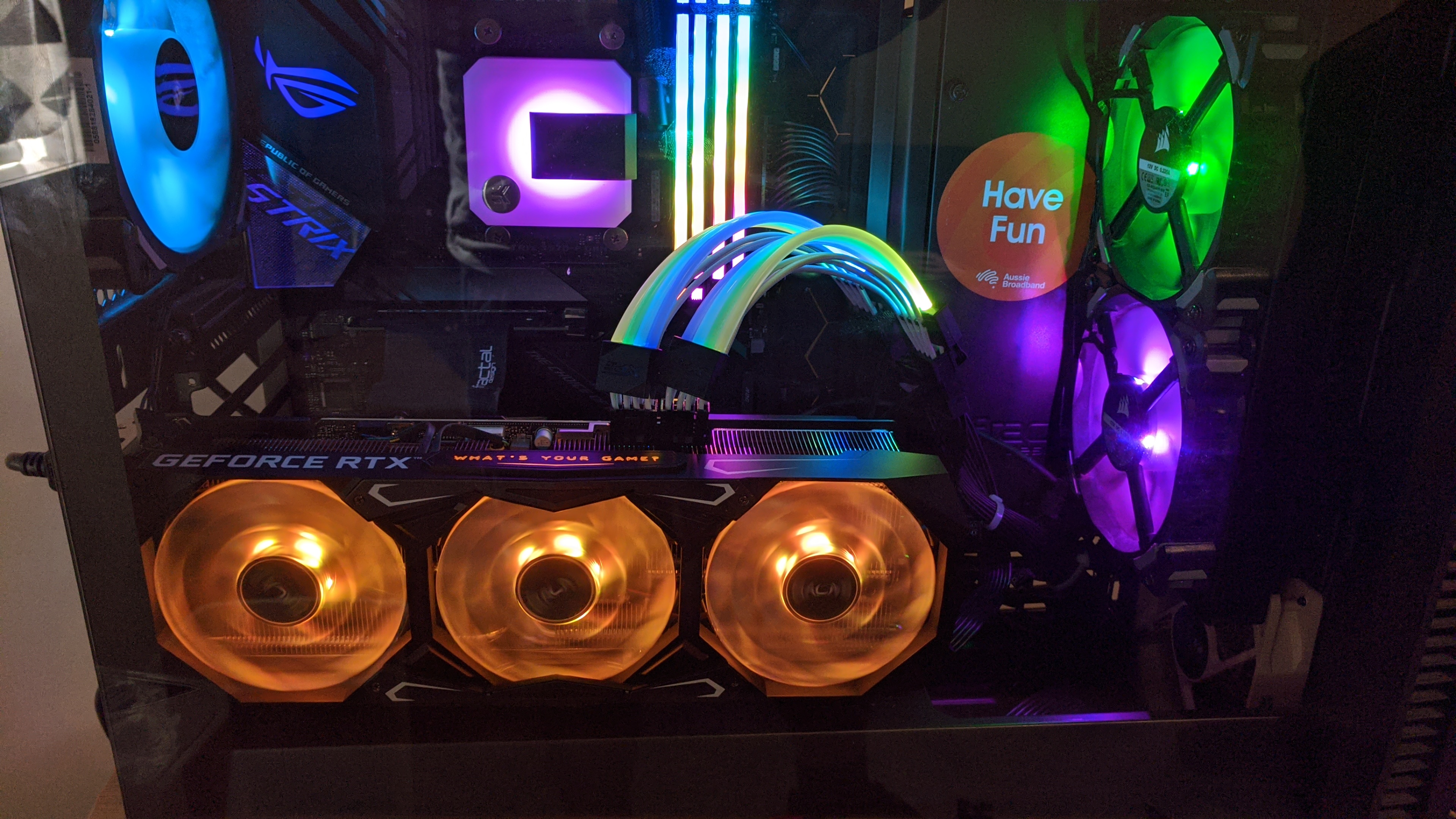

I did take my recent custom cooling experience to a newer build. Again, there is a steep cost associated with custom cooling. And there simply aren't that many AIO-type cooling solutions for GPUs like the NZXT Kraken G12.

Last edited:

hat

Enthusiast
Joined
Nov 20, 2006
Messages
21,473 (4.00/day)
Location
Ohio
System Name Starlifter :: Dragonfly
Processor i7 2600k 4.4GHz :: Athlon II x4 630 3.5GHz
Motherboard ASUS P8P67 Pro :: GIgabyte GA-770T-USB3
Cooling Cryorig M9 :: Thermaltake Big Typhoon
Memory 4x4GB DDR3 2133 :: 2x4GB DDR3 1866
Video Card(s) 2x PNY GTX1070 :: GT720
Storage Plextor M5s 128GB, 2x1TB Seagate 1TB RAID 0 :: Mushkin Enhanced 60GB SSD, WD Caviar Blue 1TB
Display(s) Acer P216HL HDMI :: None
Case Antec SOHO 1030B :: Old White Full Tower
Audio Device(s) Creative X-Fi Titanium Fatal1ty Pro - Bose Companion 2 Series III :: None
Power Supply FSP Hydro GE 550w :: something
Software Windows 10 Pro - Plex Server on Dragonfly
Benchmark Scores >9000
Often when we see linus or JayzTwoCents build a pc they often use custom cooling instead of an aio

Sometimes it's because they build in a small case and need as short tubes as possible, sometimes it's just because custom water cooling cools better

But how, how does a custom water cooling cool better than an aio ?
Mostly for the same reason a custom built PC can be better than a prebuilt. With an AIO, you get what you get, and it does a decent job, but the components aren't going to be the greatest. The pump may not be as strong as the pump you might choose to put in your custom loop. Most (but not all) AIO radiators are aluminum, while you would usually choose a copper radiator for your custom loop. Your custom loop will also probably have a reservoir, something AIO units lack. Some time ago there was somebody who added a reservoir to his AIO, I believe a Corsair H50, and just doing that alone improved his temperatures considerably.


FireFox

The Power Of Intel
Joined
Feb 19, 2014
Messages
6,967 (2.57/day)
Location
Germany
System Name BlackWidow
Processor Intel i7 10700K
Motherboard Asus ROG Maximus XII Hero
Cooling Custom Loop
Memory 32GB G.SKILL Trident Z RGB 3600Hz
Video Card(s) EVGA GEFORCE RTX 3080 XC3 Ultra
Storage Samsung 970 EVO PLUS 500GB/1TB - WD Blue SN550 1TB - 2 X WD Blue 1TB - 3 X WD Black 1TB
Display(s) Asus ROG PG278QR 2560x1440 144Hz (Overclocked 165Hz )/ Samsung
Case Corsair Obsidian 1000D
Audio Device(s) I prefer Gaming-Headset
Power Supply Enermax MaxTytan 1250W 80+ Titanium
Mouse Logitech G502 spectrum
Keyboard Virtuis Advanced Gaming Keyboard
Software Windows 10 Enterprise
Benchmark Scores My PC runs FiFA
Finally, with custom water cooling you have 2 radiators instead of one.
In part it's true but not always works that way, some people use a single Rad to cool both, CPU and GPU

Joined
Jan 17, 2010
Messages
11,877 (2.82/day)
Location
Oregon
System Name Juliette // HTPC
Processor Intel i7 9700K // Intel i5 4570
Motherboard ASUS Prime Z390X-A // Gigabyte H97M -D3H
Cooling Noctua NH-U12 Black // Silverstone NT-06 Pro
Memory Corsair DDR4 3600 32gb //G.SKILL Ripjaws X Series 8GB 1600
Video Card(s) EVGA GeForce RTX 2080 XC ULTRA GAMING// EVGA GTX 1050 ti
Storage Samsung 970 EVO NVMe 1Tb, Intel 665p Series M.2 2280 1TB // Samsung 1Tb SSD
Display(s) ASUS VP348QGL 34" Quad HD 3440 x 1440 // 55" LG 4K SK8000 Series
Case Corsair Obsidian Series 550D // Silverstone Granada GD05
Audio Device(s) Focusrite Scarlett 4i4 // HDMI to Samsung HW-R650 sound bar
Power Supply Corsair TX850M // SeaSonic G Series 550w
Mouse Cooler Master MM710 53G
Keyboard Logitech 920-009300 G512 SE
Software Windows 10 Pro // Windows 10 Pro
Simple answer, volume of water and radiator surface area
Have you ever drained a AIO? Not much there

Joined
Nov 24, 2018
Messages
1,347 (1.38/day)
Location
south wales uk
System Name 1. The Devils Dialysis VR rig 2. intel teliscope rig 3.MSI GP72MVR Leopard Pro .
Processor 1.3900x @stock 2. i7 7700k @5. 3. i7 7700hq
Motherboard 1.aorus x570 ultra 2. z270 Maximus IX Hero
Cooling 1.Hard tube loop, cpu and gpu 2. Hard loop cpu only
Memory 1.hyperx preditor @3600 16gb 2.vengence 32gb @3000 3. 16gb hyperx @2400
Video Card(s) 1.MSI 1080 8gb with EKWB 2. Sapphire Nitro+ rx580 8gb @1450 3. gtx 1060 3gb
Storage 1 M.2 500gb , 2 3tb HDs 2. 256gb ssd, 3tbHD 3. 256 m.2. 1tb ssd
Display(s) 1.LG 50inch UHD , oculus rift S. 2 SONY bravia 1080p, . 3. 17 inch 120 hz display
Case 1. Thermaltake P5 2. loop
Audio Device(s) 1 Onboard 2 Onboard 3 Onboard
Power Supply 1.seasonic gx 850w 2. seasonic gx 750w
Mouse 1 ROG Gladius 2 Corsair m65 pro
Keyboard 1. ROG Strix Flare 2. Corsair F75 RBG 3. steelseries RBG
VR HMD rift and rift S
Software 1. win 10 enterpise 2. win10 pro 3, win10 home
Benchmark Scores 1.7821 cb20 ,cb15 3442 1c 204 cpu-z 1c 539 12c 8847 2. 1106 cb 3.cb 970
i use a single rad to cool both cpu and gpu and it isnt a thick one and coolness is confirmed, aio vs custom loop, water vol and speed is better on a custom loop but a custom loop costs a hell of a lot more than a aio but a aio do a very good job so id say its down to what you like best.


FireFox

The Power Of Intel
Joined
Feb 19, 2014
Messages
6,967 (2.57/day)
Location
Germany
System Name BlackWidow
Processor Intel i7 10700K
Motherboard Asus ROG Maximus XII Hero
Cooling Custom Loop
Memory 32GB G.SKILL Trident Z RGB 3600Hz
Video Card(s) EVGA GEFORCE RTX 3080 XC3 Ultra
Storage Samsung 970 EVO PLUS 500GB/1TB - WD Blue SN550 1TB - 2 X WD Blue 1TB - 3 X WD Black 1TB
Display(s) Asus ROG PG278QR 2560x1440 144Hz (Overclocked 165Hz )/ Samsung
Case Corsair Obsidian 1000D
Audio Device(s) I prefer Gaming-Headset
Power Supply Enermax MaxTytan 1250W 80+ Titanium
Mouse Logitech G502 spectrum
Keyboard Virtuis Advanced Gaming Keyboard
Software Windows 10 Enterprise
Benchmark Scores My PC runs FiFA
Joined
Mar 10, 2010
Messages
9,015 (2.17/day)
Location
Manchester uk
System Name RyzenGtEvo/ Asus strix scar II
Processor Amd R7 3800X@4.350/525/ Intel 8750H
Motherboard Crosshair hero7 @bios 2703/?
Cooling 360EK extreme rad+ 360$EK slim all push, cpu Monoblock Gpu full cover all EK
Memory Corsair Vengeance Rgb pro 3600cas14 32Gb in four sticks./16Gb
Video Card(s) Sapphire refference Rx vega 64 EK waterblocked/Rtx 2060
Storage Silicon power qlc nvmex3 in raid 0/8Tb external/1Tb samsung Evo nvme 2Tb sata ssd
Display(s) Samsung UAE28"850R 4k freesync.
Case Lianli p0-11 dynamic
Audio Device(s) Xfi creative 7.1 on board ,Yamaha dts av setup, corsair void pro headset
Power Supply corsair 1200Hxi
Mouse Roccat Kova/ Logitech G wireless
Keyboard Roccat Aimo 120
VR HMD Oculus rift
Software Win 10 Pro
Benchmark Scores 8726 vega 3dmark timespy/ laptop Timespy 6506
Often when we see linus or JayzTwoCents build a pc they often use custom cooling instead of an aio

Sometimes it's because they build in a small case and need as short tubes as possible, sometimes it's just because custom water cooling cools better

But how, how does a custom water cooling cool better than an aio ?
For a start custom pumps are better, the pipes are thicker and the radiator's are not made quite so much to a price.

Joined
Apr 12, 2013
Messages
4,247 (1.40/day)
AIOs typically use cheap, shitty fans focused on aesthetics rather than performance
And yet many of them come with 5-6 years warranty? I mean if cheap, shitty stuff lasts so long then really is it actually that cheap/shitty :wtf:

Joined
Jun 3, 2012
Messages
1,275 (0.38/day)
Location
Denmark
Processor I7 10700kf
Motherboard Msi Z490 A-pro
Cooling Cooler Master MasterLiquid ML360R RGB
Memory 2x16gb G skill Ripjaws V 4000mhz cl 18
Video Card(s) PowerColor Radeon RX 6700 XT Red Devil
Storage 1x 2tb intel 665p,1x2tb kingston a400 2 x tb external usb harddrives
Display(s) 1x AOC CQ32G2SE/BK 1440p,165hz va panel,1x AOC C24G2U/BK 1080p 165hz va panel.
Case ThermalTake Core X71
Audio Device(s) Rotel A11 Tribute Topping E30
Power Supply Evga supernova 650watt p2
Mouse Logitech G403
Keyboard Razer Blackwidow v3 pro
Software Windows 10 64 bit, kaspersky Internet Security 20
Simple answer, volume of water and radiator surface area
Have you ever drained a AIO? Not much there
Arctic freezer II

Joined
Feb 20, 2020
Messages
2,301 (4.39/day)
Location
Texas
System Name Ghetto Rigs x299 & z490 & x99 & Q9550 Old timer
Processor 9940x w/Optimus SigV2 & 10900k w/Optimus Foundation & 5930k w/EK Magnitude & Q9550 w/EK Evo
Motherboard X299 Rampage VI Apex & z490 Maximus XII Apex & x99 Sabertooth & Acer WG43M
Cooling D5 combo/280 GTX/ VRM water block copper/280 GTX/ D5 Top/Optimus sigV2/TitanXp/Mora 360x2
Memory Trident-Z 3600C16 4x8gb & Trident-Z 3600c16 2x8gb & Trident-Z 3200c14 4x8gb & 4x2gb crucial
Video Card(s) Titan Xp & 1080ti ftw3 & evga 980ti gaming & Onboard graphic's need another gpu
Storage 970 evo plus 500gb & 970 evo 500gb many 2.5" ssd's and WD BLK hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 second floor for 2nd rad x2/ Cherry Entertainment center/ 2 Test benches
Audio Device(s) Built in Realtek x2 with Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1200P2 & 1000P2 with APC AX1500 & 850P2 with CyberPower-GX1325U & 1-750P2-extra
Mouse Redragon Perdition x3
Keyboard G910 & G710+x2
Software Win-7 pro x3 and Linux Cinnamon 20.1x2 & win-10 pro x3
And yet many of them come with 5-6 years warranty? I mean if cheap, shitty stuff lasts so long then really is it actually that cheap/shitty :wtf:
Hi,
Last I looked corsair for an example used ML series fans on their newer aio's
ML series are very good fans not cheap I have many non rgb twin packs they were nicely priced too.
Most older were SP series not the greatest but still most these aio's go for quiet not high rpm and noisy

Arctic freezer II
I've heard good things about that aio


Mussels

Moderprator
Staff member
Joined
Oct 6, 2004
Messages
50,503 (8.23/day)
Location
Oystralia
System Name Rainbow Sparkles
Processor Ryzen R7 5800X (EK Quantum Velocity block) (PBO tweaked, 4.4-5.05GHz)
Motherboard Asus x570 Gaming-F
Cooling Custom EK loop, 360mm top exhaust rad 280mm front intake rad
Memory 64GB DDR4 3600 Corsair Vengeance RGB @ 3800 C16
Video Card(s) Galax RTX 3090 SG 24GB - EK Quantum ARGB block w/ active backplate 1750MHz 737mv | 10950MHz VRAM
Storage 1TB Sasmsung 970 Pro NVME + 500GB 850 Evo
Display(s) Gigabyte G32QC + Phillips 328m6fjrmb (2x 32" 1440p 165Hz/144Hz curved )
Case Fractal Design R6
Audio Device(s) Razer Leviathan + Corsair Void pro RGB, Blue Yeti mic
Power Supply Corsair HX 750i (Platinum, fan off til 300W)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE
VR HMD Oculus Rift S
Software Windows 10 pro x64 (all systems)
Benchmark Scores Lots of RGB, so you know it's fast.
I can finally help answer this!

1. Custom loops are way quieter. The D5 pump is AMAZING.
2. Having ran two AIO's in a system for a year, i can say a custom loop runs WAY cooler, WAY quieter, and fits in a much smaller case.
3. GPU support. With the exception of pure GPU cooling on the NZXT G12 (with no modern GPU support, and no active VRA\ VRM cooling), why aircool your 65W CPU when theres a 300W-400W GPU there? I cant get an AIO to slap onto my 3090's VRMs
4. The sheer customizability. Holy crap i blew a lot of money whenever i changed hardware and the goddamn AIOs would no longer fit, or the hoses were the wrong lengths. Oops sorry, hits your RAM now. New mobo? woops hits the oversized VRM heatsink, gotta go front mounted now. Gotta flip the AIO over to make the hose reach, oops now the temps are 15C higher (yeah, that all happened)

downside: i'm still crying at what i've paid, i resorted to GPU mining on the 3090 to pay for its water cooling upgrade

attached is the pics as i went through all this bullcrap with dual AIOs, , a GPU with an AIO that just goddamn sucked (dual AIO just sucks unless the hose length is perfect) then a CPU AIO starving the air cooled GPU with its stupid custom heatsinks to cool the VRMs, and finally giving in to custom water on the GPU - then realising the 280mm rad i had on the custom loop cant be top mounted because it hits the RAM, and having to get a slim 360mm for the top and a CPU block -.-

I have ADHD (and probably ASD) and random noises like rattling fans drive. me. f*cking. bonkers.
GTX 1080 with a kraken G12 and dual corsair AIO (cool, but noisy AIO pump. could not be oriented or located ANY other way, jammed into the 24 pin power cable and RAM)
AIO GPU - crap hose length, frustrating fan cables, and ofc it leaked.
Admittedly the native AIO GPU and CPU AIO looked SWEEEEET.
3080 leaked, 3090 was the only thing in stock. Air + AIO? yeah 105C VRAM temps said oof.
Lets fight with cooling this bitch when the AIO blocks the cool air intake...
Custom water (mostly second hand parts) for GPU, GPU temps 40C lower. CPU temps... did not like the preheated air.
What i should have caved in and done all along.

Joined
Jun 3, 2012
Messages
1,275 (0.38/day)
Location
Denmark
Processor I7 10700kf
Motherboard Msi Z490 A-pro
Cooling Cooler Master MasterLiquid ML360R RGB
Memory 2x16gb G skill Ripjaws V 4000mhz cl 18
Video Card(s) PowerColor Radeon RX 6700 XT Red Devil
Storage 1x 2tb intel 665p,1x2tb kingston a400 2 x tb external usb harddrives
Display(s) 1x AOC CQ32G2SE/BK 1440p,165hz va panel,1x AOC C24G2U/BK 1080p 165hz va panel.
Case ThermalTake Core X71
Audio Device(s) Rotel A11 Tribute Topping E30
Power Supply Evga supernova 650watt p2
Mouse Logitech G403
Keyboard Razer Blackwidow v3 pro
Software Windows 10 64 bit, kaspersky Internet Security 20
Nzxt kranken is also good. Simple answer, volume of water and radiator surface area,don't apply to them since performance is as good as a equally priced custom water cooling

Joined
Apr 12, 2013
Messages
4,247 (1.40/day)
i changed hardware and the goddamn AIOs would no longer fit
You had the same issue with AM4? Maybe going from 3xx series chipsets to x570 but aren't you glad you don't have to change mobos nearly every year like Intel forced you to?


Mussels

Moderprator
Staff member
Joined
Oct 6, 2004
Messages
50,503 (8.23/day)
Location
Oystralia
System Name Rainbow Sparkles
Processor Ryzen R7 5800X (EK Quantum Velocity block) (PBO tweaked, 4.4-5.05GHz)
Motherboard Asus x570 Gaming-F
Cooling Custom EK loop, 360mm top exhaust rad 280mm front intake rad
Memory 64GB DDR4 3600 Corsair Vengeance RGB @ 3800 C16
Video Card(s) Galax RTX 3090 SG 24GB - EK Quantum ARGB block w/ active backplate 1750MHz 737mv | 10950MHz VRAM
Storage 1TB Sasmsung 970 Pro NVME + 500GB 850 Evo
Display(s) Gigabyte G32QC + Phillips 328m6fjrmb (2x 32" 1440p 165Hz/144Hz curved )
Case Fractal Design R6
Audio Device(s) Razer Leviathan + Corsair Void pro RGB, Blue Yeti mic
Power Supply Corsair HX 750i (Platinum, fan off til 300W)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE
VR HMD Oculus Rift S
Software Windows 10 pro x64 (all systems)
Benchmark Scores Lots of RGB, so you know it's fast.
Oh i forgot, and because AIOs look like this eventually and you cant tell without destroying them


My photo, from a thermaltake 120mm AIO on a 'dead' system i refurbished

You had the same issue with AM4? Maybe going from 3xx series chipsets to x570 but aren't you glad you don't have to change mobos nearly every year like Intel forced you to?
Not the socket directly, i mean the mobo would move where the socket is and the AIO would no longer reach, or it'd hit VRM heatsinks, RAM and so on.

Joined
Feb 17, 2010
Messages
787 (0.19/day)
System Name Borg Cube
Processor R5 3600
Motherboard X470 Taichi
Cooling Water
Memory 32GB @3800CL16
Video Card(s) RX Vega 64
Storage Silicon Power A80 1TB x2
Display(s) Samsung UE590
Case HAF XB
Audio Device(s) Logitech Z623
Power Supply LEADEX III
Mouse Cooler Master MM710
Keyboard Logi G105
Software 10 Pro
Benchmark Scores https://hwbot.org/user/damric/
I did several water builds earlier this year ranging from dirt cheap to expensive.

First, let it be known that you can indeed build a good full custom loop for very little as long as you don't mind waiting a little bit for overseas parts from places like ebay, aliexpress, banggood, ect.

Example: my folding rig:

Vinyl Hose (I swear it's identical the EK stuff) from HW store: $8.
Bykski CPU block, ebay: $20
240mm aluminum radiators, ebay: $17
AE-YOLOWIN-WP, Aliexpress: $15
Generic GPU block, ebay: $15
Multipack fittings, ebay: $15
Barrow Reservoir, ppcs: $15
1 gallon distilled water, grocery store: $2

Total: $107, and you could shave off even more money if you glue on the cheapest of all water blocks from banggood.com.

Second, it's possible to take old AIOs and mod the hell out of them because they actually use plastic barbs. I was very happy to take some 3/8" vinyl hose and a mason jar and improve an old H50 (copper rad) that still had a working pump. Now it has a reservoir and clear tubing for less than $10.

In my main rig I spent much more on more extravagant stuff like a 1080mm copper rad, dual D5s, full cover blocks, ect, easily over $500.

Joined
Jun 3, 2012
Messages
1,275 (0.38/day)
Location
Denmark
Processor I7 10700kf
Motherboard Msi Z490 A-pro
Cooling Cooler Master MasterLiquid ML360R RGB
Memory 2x16gb G skill Ripjaws V 4000mhz cl 18
Video Card(s) PowerColor Radeon RX 6700 XT Red Devil
Storage 1x 2tb intel 665p,1x2tb kingston a400 2 x tb external usb harddrives
Display(s) 1x AOC CQ32G2SE/BK 1440p,165hz va panel,1x AOC C24G2U/BK 1080p 165hz va panel.
Case ThermalTake Core X71
Audio Device(s) Rotel A11 Tribute Topping E30
Power Supply Evga supernova 650watt p2
Mouse Logitech G403
Keyboard Razer Blackwidow v3 pro
Software Windows 10 64 bit, kaspersky Internet Security 20
I can finally help answer this!

1. Custom loops are way quieter. The D5 pump is AMAZING.
2. Having ran two AIO's in a system for a year, i can say a custom loop runs WAY cooler, WAY quieter, and fits in a much smaller case.
3. GPU support. With the exception of pure GPU cooling on the NZXT G12 (with no modern GPU support, and no active VRA\ VRM cooling), why aircool your 65W CPU when theres a 300W-400W GPU there? I cant get an AIO to slap onto my 3090's VRMs
4. The sheer customizability. Holy crap i blew a lot of money whenever i changed hardware and the goddamn AIOs would no longer fit, or the hoses were the wrong lengths. Oops sorry, hits your RAM now. New mobo? woops hits the oversized VRM heatsink, gotta go front mounted now. Gotta flip the AIO over to make the hose reach, oops now the temps are 15C higher (yeah, that all happened)

downside: i'm still crying at what i've paid, i resorted to GPU mining on the 3090 to pay for its water cooling upgrade

attached is the pics as i went through all this bullcrap with dual AIOs, , a GPU with an AIO that just goddamn sucked (dual AIO just sucks unless the hose length is perfect) then a CPU AIO starving the air cooled GPU with its stupid custom heatsinks to cool the VRMs, and finally giving in to custom water on the GPU - then realising the 280mm rad i had on the custom loop cant be top mounted because it hits the RAM, and having to get a slim 360mm for the top and a CPU block -.-

I have ADHD (and probably ASD) and random noises like rattling fans drive. me. f*cking. bonkers.
GTX 1080 with a kraken G12 and dual corsair AIO (cool, but noisy AIO pump. could not be oriented or located ANY other way, jammed into the 24 pin power cable and RAM)
View attachment 204832
AIO GPU - crap hose length, frustrating fan cables, and ofc it leaked.
View attachment 204831
Admittedly the native AIO GPU and CPU AIO looked SWEEEEET.
View attachment 204830
3080 leaked, 3090 was the only thing in stock. Air + AIO? yeah 105C VRAM temps said oof.
View attachment 204829
Lets fight with cooling this bitch when the AIO blocks the cool air intake...
View attachment 204828
Custom water (mostly second hand parts) for GPU, GPU temps 40C lower. CPU temps... did not like the preheated air.
View attachment 204827
What i should have caved in and done all along.
Nr 1 not true

Nzxt kraken x63 and Cooler Master MasterLiquid ML360R RGB has a pump that is silnet you don't notice them at max rpm

My PowerCooler rx 6700 xt red devil stays at below 70c when gaming (depends on the game) and below 60c when not gaming, i don't need to cool it, it's also very silent (silent bios).

I7 10700kf at lower vcore then my i5 10600k at 4.9ghz, i can run my i7 at 5.0ghz but even with a 360mm aio im getting mid 90's or avarage in the early 90's in prime 95 small fft. Custom water cooling a silent pump + Reservoirs alone costs more than a arctic freezer II 360mm aio and it performs really good, although i feel my Nzxt kraken X63 and Cooler Master MasterLiquid ML360R RGB has a more silent pump, i can't see why you wan't to buy what's equal to 3x arctic freezer II 360mm aio's to get a decent custom water cooling for a cpu, unless your rendering every week or have an i9 or ryzen 9 with 12 or 16 cores you want to max out with a rx 6900xt or rtx 3900 xt and 3-4 high res,high hz monitors

Top
