Can I use curve optimizer and offset undervolt at a same time?

Joined
Jan 8, 2024
Messages
12 (0.04/day)
Processor AMD Ryzen R5 5600X
Motherboard Asus X470-F
Cooling Thermalright Phantom Spirit 120
Memory Corsair Vengeance 2X8 3200MHz
Video Card(s) Powercolor Red Devil RX 6700 XT
Storage WD SN570 1TB
Display(s) Philips 2K monitor
Case Fractal Define R5
Power Supply EVGA G2 850W
Software Windows 10
Last year I bought AMD CPU R5 5600X. I done some test and everything was fine. I don't game too often, this summer I played Helldivers 2 and temperature was going to max 85C. Room temperature was also high, around 34C. Now temperature in Helldivers 2 are in low 70C - room temperature 24C. Yesterday I done some test in 3DMark and I noticed that clock frequency now have lot of oscilation but benchmark score are the same.

3DMark - CPU Profile - OLD.PNG



3DMark - Firestrike Extreme - OLD.PNG


3DMark - Time Spy - OLD.PNG

CPU profile NEW.PNG

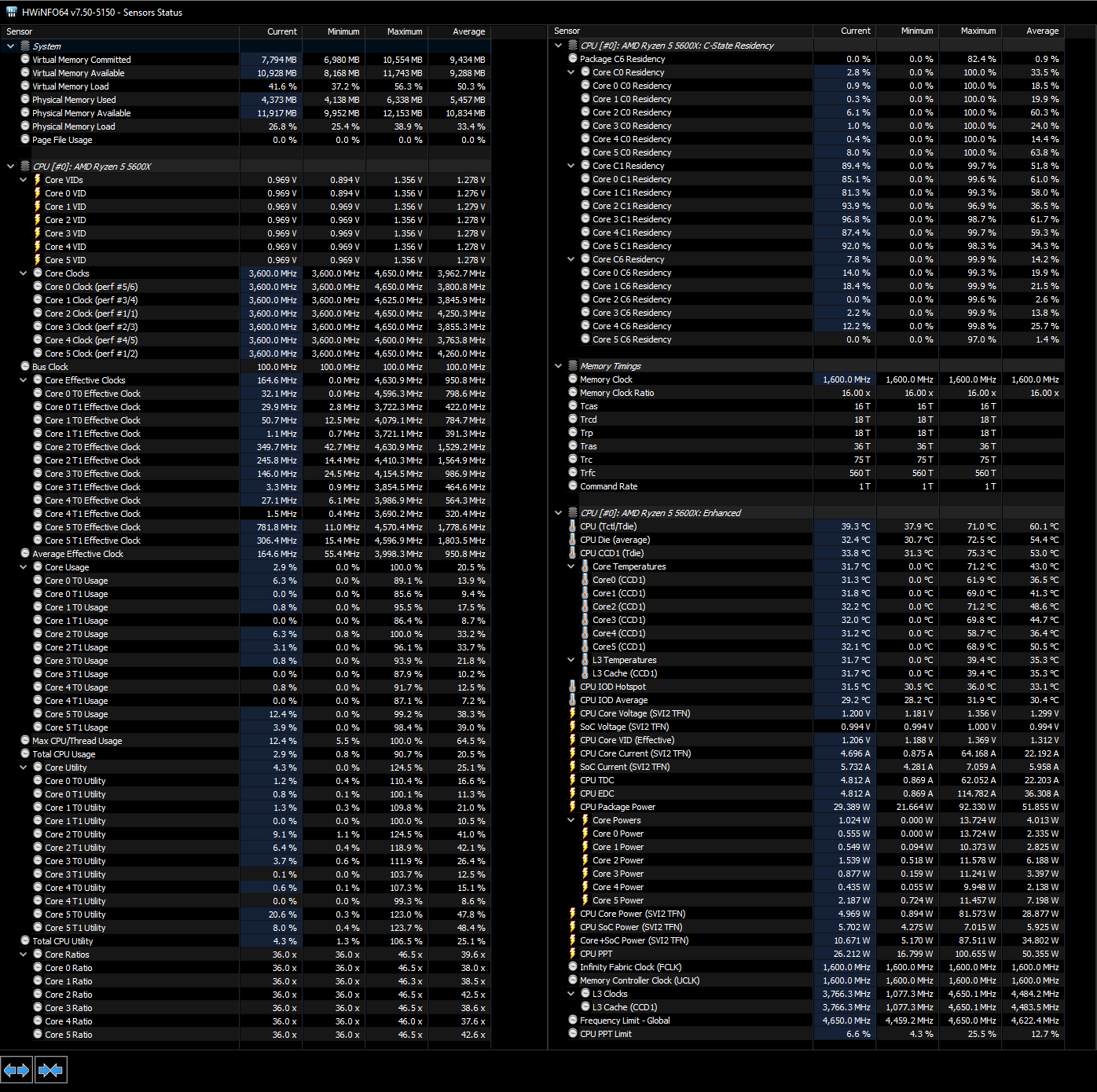

CPU profile HW info_NEW.PNG


FireStrike extreme- New.PNG


FireStrike extreme hwinfo_NEW.PNG

TimeSpy NEW.PNG

TimeSpy hwinfo_NEW.PNG

1. Why does clock frequency tend to oscilate now but before one year was stable?

2. Curve optimizer increases perfomance but also temperature. Can I use at a same time curve optimizer and offset undervolting? I would try these some combinations and put BIOS settings and benchmark progress here.

I can test stabillity in 3DMark, OCCT or any other program you want.

Last edited:
Joined
Nov 16, 2023
Messages
1,348 (3.77/day)
Location
Nowhere
System Name I don't name my rig
Processor 14700K
Motherboard Asus TUF Z790
Cooling Air/water/DryIce
Memory DDR5 G.Skill Z5 RGB 6000mhz C36
Video Card(s) RTX 4070 Super
Storage 980 Pro
Display(s) Some LED 1080P TV
Case Open bench
Audio Device(s) Some Old Sherwood stereo and old cabinet speakers
Power Supply Corsair 1050w HX series
Mouse Razor Mamba Tournament Edition
Keyboard Logitech G910
VR HMD Quest 2
Software Windows
Benchmark Scores Max Freq 13700K 6.7ghz DryIce Max Freq 14700K 7.0ghz DryIce Max all time Freq FX-8300 7685mhz LN2
If this is a stable setup for 1 year, you probably better off NOT making any changes and just enjoy the rig. Minor differences in PBO say 50 to 100mhz increase or decrease won't have a very large impact on benchmarking and gaming 3D.

The fluctuation is the CPU running where it needs to be, probably based on background tasks that may have been implemented through time via windows updates and user installed applications.
Generally to overclock it requires more power and not less. Of course this depends on temps and overhead, PBO only gives 200mhz increase either way, otherwise you run a static overclock.

It looks good, I wouldn't change anything.


Ruru

S.T.A.R.S.
Joined
Dec 16, 2012
Messages
12,608 (2.90/day)
Location
Jyväskylä, Finland
System Name 4K-gaming
Processor AMD Ryzen 7 5800X @ PBO +200 -20CO
Motherboard Asus ROG Crosshair VII Hero
Cooling Arctic Freezer 50, EKWB Vector TUF
Memory 32GB Kingston HyperX Fury DDR4-3466
Video Card(s) Asus GeForce RTX 3080 TUF OC 10GB
Storage A pack of SSDs totaling 3.2TB + 3TB HDDs
Display(s) 27" 4K120 IPS + 32" 4K60 IPS + 24" 1080p60
Case Corsair 4000D Airflow White
Audio Device(s) Asus TUF H3 Wireless / Corsair HS35
Power Supply EVGA Supernova G2 750W
Mouse Logitech MX518 + Asus ROG Strix Edge Nordic
Keyboard Roccat Vulcan 121 AIMO
VR HMD Oculus Rift CV1
Software Windows 11 Pro
Benchmark Scores It runs Crysis
PBO only gives 200mhz increase either way, otherwise you run a static overclock.
Depends of the board though. My Crosshair VII for example can give moar than 200MHz.

Joined
Nov 16, 2023
Messages
1,348 (3.77/day)
Location
Nowhere
System Name I don't name my rig
Processor 14700K
Motherboard Asus TUF Z790
Cooling Air/water/DryIce
Memory DDR5 G.Skill Z5 RGB 6000mhz C36
Video Card(s) RTX 4070 Super
Storage 980 Pro
Display(s) Some LED 1080P TV
Case Open bench
Audio Device(s) Some Old Sherwood stereo and old cabinet speakers
Power Supply Corsair 1050w HX series
Mouse Razor Mamba Tournament Edition
Keyboard Logitech G910
VR HMD Quest 2
Software Windows
Benchmark Scores Max Freq 13700K 6.7ghz DryIce Max Freq 14700K 7.0ghz DryIce Max all time Freq FX-8300 7685mhz LN2
Depends of the board though. My Crosshair VII for example can give moar than 200MHz.
CROSSHAIR VII !!! So can give more, but what is the limit? And is that with a 5600, or it doesn't matter what cpu is installed?? My kids 5600G and ROG B450-I only allows 200mhz, but of course that's all I have to compare with. :)


Ruru

S.T.A.R.S.
Joined
Dec 16, 2012
Messages
12,608 (2.90/day)
Location
Jyväskylä, Finland
System Name 4K-gaming
Processor AMD Ryzen 7 5800X @ PBO +200 -20CO
Motherboard Asus ROG Crosshair VII Hero
Cooling Arctic Freezer 50, EKWB Vector TUF
Memory 32GB Kingston HyperX Fury DDR4-3466
Video Card(s) Asus GeForce RTX 3080 TUF OC 10GB
Storage A pack of SSDs totaling 3.2TB + 3TB HDDs
Display(s) 27" 4K120 IPS + 32" 4K60 IPS + 24" 1080p60
Case Corsair 4000D Airflow White
Audio Device(s) Asus TUF H3 Wireless / Corsair HS35
Power Supply EVGA Supernova G2 750W
Mouse Logitech MX518 + Asus ROG Strix Edge Nordic
Keyboard Roccat Vulcan 121 AIMO
VR HMD Oculus Rift CV1
Software Windows 11 Pro
Benchmark Scores It runs Crysis
CROSSHAIR VII !!! So can give more, but what is the limit? And is that with a 5600, or it doesn't matter what cpu is installed?? My kids 5600G and ROG B450-I only allows 200mhz, but of course that's all I have to compare with. :)
I'll check on next reboot. Though I use the 200MHz option as it gives up to 5.05GHz on my 5800X. :rockout:

Joined
Nov 16, 2023
Messages
1,348 (3.77/day)
Location
Nowhere
System Name I don't name my rig
Processor 14700K
Motherboard Asus TUF Z790
Cooling Air/water/DryIce
Memory DDR5 G.Skill Z5 RGB 6000mhz C36
Video Card(s) RTX 4070 Super
Storage 980 Pro
Display(s) Some LED 1080P TV
Case Open bench
Audio Device(s) Some Old Sherwood stereo and old cabinet speakers
Power Supply Corsair 1050w HX series
Mouse Razor Mamba Tournament Edition
Keyboard Logitech G910
VR HMD Quest 2
Software Windows
Benchmark Scores Max Freq 13700K 6.7ghz DryIce Max Freq 14700K 7.0ghz DryIce Max all time Freq FX-8300 7685mhz LN2
I'll check on next reboot. Though I use the 200MHz option as it gives up to 5.05GHz on my 5800X. :rockout:
5600X isn't likely to hit some 5ghz even on that board lol.

Joined
Jan 8, 2024
Messages
12 (0.04/day)
Processor AMD Ryzen R5 5600X
Motherboard Asus X470-F
Cooling Thermalright Phantom Spirit 120
Memory Corsair Vengeance 2X8 3200MHz
Video Card(s) Powercolor Red Devil RX 6700 XT
Storage WD SN570 1TB
Display(s) Philips 2K monitor
Case Fractal Define R5
Power Supply EVGA G2 850W
Software Windows 10
If this is a stable setup for 1 year, you probably better off NOT making any changes and just enjoy the rig. Minor differences in PBO say 50 to 100mhz increase or decrease won't have a very large impact on benchmarking and gaming 3D.

The fluctuation is the CPU running where it needs to be, probably based on background tasks that may have been implemented through time via windows updates and user installed applications.
Generally to overclock it requires more power and not less. Of course this depends on temps and overhead, PBO only gives 200mhz increase either way, otherwise you run a static overclock.

It looks good, I wouldn't change anything.

My primary goal is to lower temperature and try to maintain performance (+/-5%). I learned if you use only offset undervolt that will except temperature also lower CPU clock and with it performance. I will try to find sweet spot in the next week. If there is minimal difference I will return to default settings.


MBO is Asus x470-F, CPU cooler is Thermalright Phantom Spirit 120.

Nobody didn't mention that CO and offset undervolt aren't compatible so I will go with that.

I can't start with testing today, don't know for tomorrow but until the end of tuesday I will post pictures of BIOS setting and first CO and offset undervolt benchmark result.

What to use for stress test stability testing? OCCT is good but has a lot of options, don't know which one to set. Maybe go with 3DMark CPU profile test?


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
8,437 (3.76/day)
Location
Winnipeg, Canada
Processor AMD R7 5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Frozen Edge 360, 3x TL-B12 V2, 2x TL-B12 V1
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact
Audio Device(s) JBL Bar 700
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
You shouldn't need to touch the voltage at all. Use the curve with your own power limits in conjunction with boost override and you are off to the races.

I like Linpack Xtreme for all core loads, and SuperPi 32M for single core loads. I also use OCCT from time to time.

Joined
Nov 16, 2023
Messages
1,348 (3.77/day)
Location
Nowhere
System Name I don't name my rig
Processor 14700K
Motherboard Asus TUF Z790
Cooling Air/water/DryIce
Memory DDR5 G.Skill Z5 RGB 6000mhz C36
Video Card(s) RTX 4070 Super
Storage 980 Pro
Display(s) Some LED 1080P TV
Case Open bench
Audio Device(s) Some Old Sherwood stereo and old cabinet speakers
Power Supply Corsair 1050w HX series
Mouse Razor Mamba Tournament Edition
Keyboard Logitech G910
VR HMD Quest 2
Software Windows
Benchmark Scores Max Freq 13700K 6.7ghz DryIce Max Freq 14700K 7.0ghz DryIce Max all time Freq FX-8300 7685mhz LN2
My primary goal is to lower temperature and try to maintain performance (+/-5%). I learned if you use only offset undervolt that will except temperature also lower CPU clock and with it performance. I will try to find sweet spot in the next week. If there is minimal difference I will return to default settings.


MBO is Asus x470-F, CPU cooler is Thermalright Phantom Spirit 120.

Nobody didn't mention that CO and offset undervolt aren't compatible so I will go with that.

I can't start with testing today, don't know for tomorrow but until the end of tuesday I will post pictures of BIOS setting and first CO and offset undervolt benchmark result.

What to use for stress test stability testing? OCCT is good but has a lot of options, don't know which one to set. Maybe go with 3DMark CPU profile test?
It's not that CO and under-volt aren't compatible, they do the same thing essentially. One or the other. Most people seem to stick with CO and even at a per core level.

May I ask? Why the under-volting?? You have temps some people dream. Just keep the cooler clean and it will always perform well.


Ruru

S.T.A.R.S.
Joined
Dec 16, 2012
Messages
12,608 (2.90/day)
Location
Jyväskylä, Finland
System Name 4K-gaming
Processor AMD Ryzen 7 5800X @ PBO +200 -20CO
Motherboard Asus ROG Crosshair VII Hero
Cooling Arctic Freezer 50, EKWB Vector TUF
Memory 32GB Kingston HyperX Fury DDR4-3466
Video Card(s) Asus GeForce RTX 3080 TUF OC 10GB
Storage A pack of SSDs totaling 3.2TB + 3TB HDDs
Display(s) 27" 4K120 IPS + 32" 4K60 IPS + 24" 1080p60
Case Corsair 4000D Airflow White
Audio Device(s) Asus TUF H3 Wireless / Corsair HS35
Power Supply EVGA Supernova G2 750W
Mouse Logitech MX518 + Asus ROG Strix Edge Nordic
Keyboard Roccat Vulcan 121 AIMO
VR HMD Oculus Rift CV1
Software Windows 11 Pro
Benchmark Scores It runs Crysis
Joined
Nov 16, 2023
Messages
1,348 (3.77/day)
Location
Nowhere
System Name I don't name my rig
Processor 14700K
Motherboard Asus TUF Z790
Cooling Air/water/DryIce
Memory DDR5 G.Skill Z5 RGB 6000mhz C36
Video Card(s) RTX 4070 Super
Storage 980 Pro
Display(s) Some LED 1080P TV
Case Open bench
Audio Device(s) Some Old Sherwood stereo and old cabinet speakers
Power Supply Corsair 1050w HX series
Mouse Razor Mamba Tournament Edition
Keyboard Logitech G910
VR HMD Quest 2
Software Windows
Benchmark Scores Max Freq 13700K 6.7ghz DryIce Max Freq 14700K 7.0ghz DryIce Max all time Freq FX-8300 7685mhz LN2
The PBO range goes up to 2000 as I checked :laugh:
2000Mhz!!
Does it ramp v-core accordingly? Have you tried like 500mhz? How does it go?? Fast?


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
8,437 (3.76/day)
Location
Winnipeg, Canada
Processor AMD R7 5800X3D
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Frozen Edge 360, 3x TL-B12 V2, 2x TL-B12 V1
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact
Audio Device(s) JBL Bar 700
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
I always aim for +200, but usually +150 to be stable as a table

Joined
Feb 23, 2019
Messages
6,029 (2.89/day)
Location
Poland
Processor Ryzen 7 5800X3D
Motherboard Gigabyte X570 Aorus Elite
Cooling Thermalright Phantom Spirit 120 SE
Memory 2x16 GB Crucial Ballistix 3600 CL16 Rev E @ 3800 CL16
Video Card(s) RTX3080 Ti FE
Storage SX8200 Pro 1 TB, Plextor M6Pro 256 GB, WD Blue 2TB
Display(s) LG 34GN850P-B
Case SilverStone Primera PM01 RGB
Audio Device(s) SoundBlaster G6 | Fidelio X2 | Sennheiser 6XX
Power Supply SeaSonic Focus Plus Gold 750W
Mouse Endgame Gear XM1R
Keyboard Wooting Two HE
Curve Optimizer should help drop temperatures, not increase them as it's adjusting voltage on per core or on all core basis. I never used negative offset in combination with CO.


Ruru

S.T.A.R.S.
Joined
Dec 16, 2012
Messages
12,608 (2.90/day)
Location
Jyväskylä, Finland
System Name 4K-gaming
Processor AMD Ryzen 7 5800X @ PBO +200 -20CO
Motherboard Asus ROG Crosshair VII Hero
Cooling Arctic Freezer 50, EKWB Vector TUF
Memory 32GB Kingston HyperX Fury DDR4-3466
Video Card(s) Asus GeForce RTX 3080 TUF OC 10GB
Storage A pack of SSDs totaling 3.2TB + 3TB HDDs
Display(s) 27" 4K120 IPS + 32" 4K60 IPS + 24" 1080p60
Case Corsair 4000D Airflow White
Audio Device(s) Asus TUF H3 Wireless / Corsair HS35
Power Supply EVGA Supernova G2 750W
Mouse Logitech MX518 + Asus ROG Strix Edge Nordic
Keyboard Roccat Vulcan 121 AIMO
VR HMD Oculus Rift CV1
Software Windows 11 Pro
Benchmark Scores It runs Crysis
2000Mhz!!
Does it ramp v-core accordingly? Have you tried like 500mhz? How does it go?? Fast?
Nah my CPU goes unstable even at +250 :D

and I don't want to kill it with autovoltage spikes with too high PBO :(

Joined
Nov 16, 2023
Messages
1,348 (3.77/day)
Location
Nowhere
System Name I don't name my rig
Processor 14700K
Motherboard Asus TUF Z790
Cooling Air/water/DryIce
Memory DDR5 G.Skill Z5 RGB 6000mhz C36
Video Card(s) RTX 4070 Super
Storage 980 Pro
Display(s) Some LED 1080P TV
Case Open bench
Audio Device(s) Some Old Sherwood stereo and old cabinet speakers
Power Supply Corsair 1050w HX series
Mouse Razor Mamba Tournament Edition
Keyboard Logitech G910
VR HMD Quest 2
Software Windows
Benchmark Scores Max Freq 13700K 6.7ghz DryIce Max Freq 14700K 7.0ghz DryIce Max all time Freq FX-8300 7685mhz LN2
Nah my CPU goes unstable even at +250 :D

and I don't want to kill it with autovoltage spikes with too high PBO :(
For sure, more speed requires more power = more thermal release. BUT if it's manageable, 90c or less, there's no reason not to go for it!!! (IMO)

2nd gen really liked cold temps from what I remember. It would pin all cores to 4.3ghz all the time with chilled water loop (tap to drain) which I did also try a TEC with too. And that was with the system on auto. Didn't have to mess with PBO or anything of the such.

Joined
Jan 8, 2024
Messages
12 (0.04/day)
Processor AMD Ryzen R5 5600X
Motherboard Asus X470-F
Cooling Thermalright Phantom Spirit 120
Memory Corsair Vengeance 2X8 3200MHz
Video Card(s) Powercolor Red Devil RX 6700 XT
Storage WD SN570 1TB
Display(s) Philips 2K monitor
Case Fractal Define R5
Power Supply EVGA G2 850W
Software Windows 10
You shouldn't need to touch the voltage at all. Use the curve with your own power limits in conjunction with boost override and you are off to the races.

I like Linpack Xtreme for all core loads, and SuperPi 32M for single core loads. I also use OCCT from time to time.

It's not that CO and under-volt aren't compatible, they do the same thing essentially. One or the other. Most people seem to stick with CO and even at a per core level.

May I ask? Why the under-volting?? You have temps some people dream. Just keep the cooler clean and it will always perform well.

I forgot to mention above that when I had in hot summer 85C in Helldivers 2 that one of the core was at 90C. That is the main reason I want to lower temperature just a little with undervolting.

You say that curve optimizer is also undervolt, but I done test with default and CO -10 negative and with CO-10 temp is higher.


Asus BIOS has two PBO option. I read that I should use only that in AMD Overclocking. This one on picture is not recommended to use. I left it on default. Should I turn it off?

Asus PBO.jpeg


Precision Boost Overdrive
Advanced
PBO limits -> Motherboard - Should I use Manual option?

Curve Optimizer
All cores
Negative -> -10

I didn't touch CPU Boost Clock Override +100-200MHz option.

PBO limits.jpeg


Once again I measure temperature on default in 3DMark. Room tempereature was 22C.

CPU-Z



CPU Profile benchmark



FireStrike Extreme benchmark



TimeSpy benchmark


CPU-Z - Small increase in multi thread score



CPU Profile benchmark



FireStrike Extreme benchmark



TimeSpy benchmark


Why do I see temperature increase with Curve Optimizer -10? This is without offset undervolt.

What BIOS settings to change next?

Joined
Nov 16, 2023
Messages
1,348 (3.77/day)
Location
Nowhere
System Name I don't name my rig
Processor 14700K
Motherboard Asus TUF Z790
Cooling Air/water/DryIce
Memory DDR5 G.Skill Z5 RGB 6000mhz C36
Video Card(s) RTX 4070 Super
Storage 980 Pro
Display(s) Some LED 1080P TV
Case Open bench
Audio Device(s) Some Old Sherwood stereo and old cabinet speakers
Power Supply Corsair 1050w HX series
Mouse Razor Mamba Tournament Edition
Keyboard Logitech G910
VR HMD Quest 2
Software Windows
Benchmark Scores Max Freq 13700K 6.7ghz DryIce Max Freq 14700K 7.0ghz DryIce Max all time Freq FX-8300 7685mhz LN2
I forgot to mention above that when I had in hot summer 85C in Helldivers 2 that one of the core was at 90C. That is the main reason I want to lower temperature just a little with undervolting.

You say that curve optimizer is also undervolt, but I done test with default and CO -10 negative and with CO-10 temp is higher.


Asus BIOS has two PBO option. I read that I should use only that in AMD Overclocking. This one on picture is not recommended to use. I left it on default. Should I turn it off?

View attachment 366714

Precision Boost Overdrive
Advanced
PBO limits -> Motherboard - Should I use Manual option?

Curve Optimizer
All cores
Negative -> -10

I didn't touch CPU Boost Clock Override +100-200MHz option.

View attachment 366715


Once again I measure temperature on default in 3DMark. Room tempereature was 22C.

CPU-Z

View attachment 366719

CPU Profile benchmark

View attachment 366716

FireStrike Extreme benchmark

View attachment 366717

TimeSpy benchmark

View attachment 366718

CPU-Z - Small increase in multi thread score

View attachment 366721

CPU Profile benchmark

View attachment 366720

FireStrike Extreme benchmark

View attachment 366722

TimeSpy benchmark

View attachment 366723

Why do I see temperature increase with Curve Optimizer -10? This is without offset undervolt.

What BIOS settings to change next?
For -CO to work (under-volting), needs to be used individual core usage.

Joined
Jan 8, 2024
Messages
12 (0.04/day)
Processor AMD Ryzen R5 5600X
Motherboard Asus X470-F
Cooling Thermalright Phantom Spirit 120
Memory Corsair Vengeance 2X8 3200MHz
Video Card(s) Powercolor Red Devil RX 6700 XT
Storage WD SN570 1TB
Display(s) Philips 2K monitor
Case Fractal Define R5
Power Supply EVGA G2 850W
Software Windows 10
And PBO limits seems very important. When I switched from Motherboard to Auto in PBO limits, I saw drop in temperature.

3DMark - CPU Profile



3DMark - FireStrike Extreme



3DMark -TimeSpy


3DMark - CPU Profile



3DMark -TimeSpy


Auto in PBO Limits is for default CPU factory power limits?

How much average count can I go down before I encounter an error? -15? I will try later with -15 or -20 count.

Joined
Aug 9, 2019
Messages
1,671 (0.87/day)
Processor 7800X3D 2x16GB CO
Motherboard Asrock B650m HDV
Cooling Peerless Assassin SE
Memory 2x16GB DR A-die@6000c30 tuned
Video Card(s) Asus 4070 dual OC 2610@915mv
Storage WD blue 1TB nvme
Display(s) Lenovo G24-10 144Hz
Case Corsair D4000 Airflow
Power Supply EVGA GQ 650W
Software Windows 10 home 64
Benchmark Scores Superposition 8k 5267 Aida64 58.5ns
Last year I bought AMD CPU R5 5600X. I done some test and everything was fine. I don't game too often, this summer I played Helldivers 2 and temperature was going to max 85C. Room temperature was also high, around 34C. Now temperature in Helldivers 2 are in low 70C - room temperature 24C. Yesterday I done some test in 3DMark and I noticed that clock frequency now have lot of oscilation but benchmark score are the same.



1. Why does clock frequency tend to oscilate now but before one year was stable?

2. Curve optimizer increases perfomance but also temperature. Can I use at a same time curve optimizer and offset undervolting? I would try these some combinations and put BIOS settings and benchmark progress here.

I can test stabillity in 3DMark, OCCT or any other program you want.
I did that on my 5800X3D. I used -30 allcore + -56mv offset. It worked great :)

I forgot to mention above that when I had in hot summer 85C in Helldivers 2 that one of the core was at 90C. That is the main reason I want to lower temperature just a little with undervolting.

You say that curve optimizer is also undervolt, but I done test with default and CO -10 negative and with CO-10 temp is higher.


Asus BIOS has two PBO option. I read that I should use only that in AMD Overclocking. This one on picture is not recommended to use. I left it on default. Should I turn it off?

View attachment 366714

Precision Boost Overdrive
Advanced
PBO limits -> Motherboard - Should I use Manual option?

Curve Optimizer
All cores
Negative -> -10

I didn't touch CPU Boost Clock Override +100-200MHz option.

View attachment 366715


Once again I measure temperature on default in 3DMark. Room tempereature was 22C.

CPU-Z

View attachment 366719

CPU Profile benchmark

View attachment 366716

FireStrike Extreme benchmark

View attachment 366717

TimeSpy benchmark

View attachment 366718

CPU-Z - Small increase in multi thread score

View attachment 366721

CPU Profile benchmark

View attachment 366720

FireStrike Extreme benchmark

View attachment 366722

TimeSpy benchmark

View attachment 366723

Why do I see temperature increase with Curve Optimizer -10? This is without offset undervolt.

What BIOS settings to change next?
Try reducing soc, vddg, vddp, vdd18, edc and tdc. Do them one by one. They all contribute to heat :)

Joined
Sep 3, 2019
Messages
3,480 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
And PBO limits seems very important. When I switched from Motherboard to Auto in PBO limits, I saw drop in temperature.

3DMark - CPU Profile



3DMark - FireStrike Extreme



3DMark -TimeSpy

3DMark - CPU Profile



3DMark -TimeSpy

Auto in PBO Limits is for default CPU factory power limits?

How much average count can I go down before I encounter an error? -15? I will try later with -15 or -20 count.
PBO on Auto means disabled, so power (W) and current (A) limits are the defaults.
When you set it to MB limits those limits are set freakishly high so then the main constraint is temperature.

If you want to control it you have to set PBO to advanced and manually set the desired limits.

You can monitor these limits on HWiNFO64 with CPU PPT, EDC, TDC sensors and PowerReportingDeviation(only for 100% CPU load).

Joined
Feb 23, 2019
Messages
6,029 (2.89/day)
Location
Poland
Processor Ryzen 7 5800X3D
Motherboard Gigabyte X570 Aorus Elite
Cooling Thermalright Phantom Spirit 120 SE
Memory 2x16 GB Crucial Ballistix 3600 CL16 Rev E @ 3800 CL16
Video Card(s) RTX3080 Ti FE
Storage SX8200 Pro 1 TB, Plextor M6Pro 256 GB, WD Blue 2TB
Display(s) LG 34GN850P-B
Case SilverStone Primera PM01 RGB
Audio Device(s) SoundBlaster G6 | Fidelio X2 | Sennheiser 6XX
Power Supply SeaSonic Focus Plus Gold 750W
Mouse Endgame Gear XM1R
Keyboard Wooting Two HE
I don't know what OP is trying to optimize here, Helldivers 2 is a heavy multithreaded workload, similar to running CP 2077. Seeing 70C is to be expected with CPU at 50-60% load probably at max frequency. Any temp drops OP is seeing right now are due to:
- ambient temps being reduced,
- power limits being gimped by turning off PBO.

SoC is already at 0.995 V, I doubt any changes to VDDG/VDDP will bring any temperature changes.

OP - fill in your system specs, that should be the first thing you do when you're asking for help.

Run Cinebench R23, check temps and scores with PBO2 off and enabled.

Also, check this thread:

And apply the suggested PBO limits for higher performance on 5600X. Run R23 again and compare temps and scores.

Any additional improvements to temp should be achieved by adjusting Curve Optimizer, as it is pretty much down to individual samples no one can tell you when you can encounter errors. Easiest is to start at -30 and reduce it if you see instability.

Joined
Jan 8, 2024
Messages
12 (0.04/day)
Processor AMD Ryzen R5 5600X
Motherboard Asus X470-F
Cooling Thermalright Phantom Spirit 120
Memory Corsair Vengeance 2X8 3200MHz
Video Card(s) Powercolor Red Devil RX 6700 XT
Storage WD SN570 1TB
Display(s) Philips 2K monitor
Case Fractal Define R5
Power Supply EVGA G2 850W
Software Windows 10
I did that on my 5800X3D. I used -30 allcore + -56mv offset. It worked great :)


Try reducing soc, vddg, vddp, vdd18, edc and tdc. Do them one by one. They all contribute to heat :)

Great! I will look into that!

I don't know what OP is trying to optimize here, Helldivers 2 is a heavy multithreaded workload, similar to running CP 2077. Seeing 70C is to be expected with CPU at 50-60% load probably at max frequency. Any temp drops OP is seeing right now are due to:
- ambient temps being reduced,
- power limits being gimped by turning off PBO.

SoC is already at 0.995 V, I doubt any changes to VDDG/VDDP will bring any temperature changes.

OP - fill in your system specs, that should be the first thing you do when you're asking for help.

Run Cinebench R23, check temps and scores with PBO2 off and enabled.

Also, check this thread:

And apply the suggested PBO limits for higher performance on 5600X. Run R23 again and compare temps and scores.

Any additional improvements to temp should be achieved by adjusting Curve Optimizer, as it is pretty much down to individual samples no one can tell you when you can encounter errors. Easiest is to start at -30 and reduce it if you see instability.

I filled my system spec.

Yes, right now I am having great temps but because of the summer (one core was at 90C) I want to invest little time and study/apply Curve Optimizer to my CPU.

Thank you for the link, I will read that carefully with understanding. Tomorrow after work I am going on a trip until the end of weekend. After I return I will continue testing :)


Joined
Sep 3, 2019
Messages
3,480 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
Great! I will look into that!



I filled my system spec.

Yes, right now I am having great temps but because of the summer (one core was at 90C) I want to invest little time and study/apply Curve Optimizer to my CPU.

Thank you for the link, I will read that carefully with understanding. Tomorrow after work I am going on a trip until the end of weekend. After I return I will continue testing :)

You have options to tune the CPU with PBO (advanced+manual) settings to you liking.

Curve Optimizer
Boost Overdrive
PPT/EDC/TDC limits

And of course you can set a custom CPU max temp (90C is default), for example 80~85C or even lower if you like.

Joined
Jan 8, 2024
Messages
12 (0.04/day)
Processor AMD Ryzen R5 5600X
Motherboard Asus X470-F
Cooling Thermalright Phantom Spirit 120
Memory Corsair Vengeance 2X8 3200MHz
Video Card(s) Powercolor Red Devil RX 6700 XT
Storage WD SN570 1TB
Display(s) Philips 2K monitor
Case Fractal Define R5
Power Supply EVGA G2 850W
Software Windows 10
I set every core in Curve optimizer to negative -20, I liked the temperature difference so I decided to stay on that value. Otherwise it would seem to me that it would be a very long testing because you need to test every core individually for a long time and I didn't want to squezze every last drop of voltage count, I was happy where I am.

So far I tested in:
- every core individually 8 hours in CoreCycler - Prime95 - Huge FFT
- 2X set of 3 cores in CoreCycler - Prime 95 - Small FFT - Core cycle - 5mn - 8 hours
- 1 hour - OCCT - CPU - Extreme Variable AVX2 - Core cycling every 6 seconds
- 1 hour - OCCT - CPU + RAM - Large Extreme Variable AVX2 - Core cycling every 3mn
- 1 hour - OCCT - CPU + RAM - Large Extreme Variable AVX2 - All cores
- Cinebench 30mn MultiScore
- Asus real bench - 8hours
- 3X - 3DMark; TimeSpy stress test (20 runs); FireStrike Extreme stress test (20 runs); Steel Nomad stress test (20 runs); CPU Profile - 5 runs
- Helldivers 2 - 2 hours

Not a single crash or WHEA error in HWiNFO64. Should I test more or this looks very stable?

Last edited:
Joined
Sep 3, 2019
Messages
3,480 (1.84/day)
Location
Thessaloniki, Greece
System Name PC on since Aug 2019, 1st CPU R5 3600 + ASUS ROG RX580 8GB >> MSI Gaming X RX5700XT (Jan 2020)
Processor Ryzen 9 5900X (July 2022), 220W PPT limit, 80C temp limit, CO -6-14, +50MHz (up to 5.0GHz)
Motherboard Gigabyte X570 Aorus Pro (Rev1.0), BIOS F39b, AGESA V2 1.2.0.C
Cooling Arctic Liquid Freezer II 420mm Rev7 (Jan 2024) with off-center mount for Ryzen, TIM: Kryonaut
Memory 2x16GB G.Skill Trident Z Neo GTZN (July 2022) 3667MT/s 1.42V CL16-16-16-16-32-48 1T, tRFC:280, B-die
Video Card(s) Sapphire Nitro+ RX 7900XTX (Dec 2023) 314~467W (375W current) PowerLimit, 1060mV, Adrenalin v24.10.1
Storage Samsung NVMe: 980Pro 1TB(OS 2022), 970Pro 512GB(2019) / SATA-III: 850Pro 1TB(2015) 860Evo 1TB(2020)
Display(s) Dell Alienware AW3423DW 34" QD-OLED curved (1800R), 3440x1440 144Hz (max 175Hz) HDR400/1000, VRR on
Case None... naked on desk
Audio Device(s) Astro A50 headset
Power Supply Corsair HX750i, ATX v2.4, 80+ Platinum, 93% (250~700W), modular, single/dual rail (switch)
Mouse Logitech MX Master (Gen1)
Keyboard Logitech G15 (Gen2) w/ LCDSirReal applet
Software Windows 11 Home 64bit (v24H2, OSBuild 26100.2161), upgraded from Win10 to Win11 on Jan 2024
I set every core in Curve optimizer to negative -20, I liked the temperature difference so I decided to stay on that value. Otherwise it would seem to me that it would be a very long testing because you need to test every core individually for a long time and I didn't want to squezze every last drop of voltage count, I was happy where I am.

So far I tested in:
- every core individually 8 hours in CoreCycler - Prime95 - Huge FFT
- 2X set of 3 cores in CoreCycler - Prime 95 - Small FFT - Core cycle - 5mn - 8 hours
- 1 hour - OCCT - CPU - Extreme Variable AVX2 - Core cycling every 6 seconds
- 1 hour - OCCT - CPU + RAM - Large Extreme Variable AVX2 - Core cycling every 3mn
- 1 hour - OCCT - CPU + RAM - Large Extreme Variable AVX2 - All cores
- Cinebench 30mn MultiScore
- Asus real bench - 8hours
- 3X - 3DMark; TimeSpy stress test (20 runs); FireStrike Extreme stress test (20 runs); Steel Nomad stress test (20 runs); CPU Profile - 5 runs
- Helldivers 2 - 2 hours

Not a single crash or WHEA error in HWiNFO64. Should I test more or this looks very stable?
Personally I think you’re ok with all these tests.
Now the ultimate test is to use it as you wish for a couple of weeks and see if it’s stable.

I usually run very few, very little synthetic tests and go quickly to use my PC as I want.

Top
