At 75°C it evaporates much faster than at 25°C; the problem is the Boltzmann distribution of velocities, some have what is takes to 'boil' off; so actually it both boils and freezes, some evaporates off, the rest cools down.

Taking into account evaporation and pump out is overthinking? These are real things.

A capacitor rated at 105°C will perform just fine at 105°C? Have you seen their rated life at that temperature? months, not years.

Straw man argument.

Evaporation is a trait specific to water (does oil evaporate??) and it's own specific chemical stability. Even ice evaporates (sublimation). That has nothing to do with thermal paste.

Anyway, I'm done with this conversation and trying to keep up with your endless meanderings. Cheers.

Joined
Jan 11, 2005
Messages
199 (0.03/day)
Evaporation is a trait specific to water (does oil evaporate??) and it's own specific chemical stability. Even ice evaporates (sublimation). That has nothing to do with thermal paste.

Anyway, I'm done with this conversation and trying to keep up with your endless meanderings. Cheers.

Technically, not true.
Evaporation is simply the separation of individual molecules from a material. Many objects and liquids will perform like this. It isn't intrinsic to H2O.
99% isopropyl Alcohol evaporates at room temperature even faster than water does. Apply a thin layer of 99% iso to a CPU IHS or GPU to clean it off and it evaporates in seconds.

Then we get into "Erosion" which is getting extremely off topic. We don't need go deep on a tangent about about chemistry and physical science.

And technically, "boiling" point is a form of evaporation, where the entire material transitions from a liquid to a gas.
Probably most important to overclockers is Liquid Nitrogen, which boils at room temperature and evaporates all over the place, probably the best well known example besides water itself, and dry ice (which isn't water).

Anyway I don't think evaporation is what anyone should be talking about here. What we're focused on is the actual separation of materials from an alloy or mixture into their individual components (e.g. the "Soupy" MX-4, etc), which one can call "Dryout" of paste, as opposed to "Pump out", where the paste is intact but gets slowly pushed off an even layer from the die, leaving hot spots (expansion/contraction+uneven/imbalanced heatsinks/bad mounting pressure).

Joined
Jul 5, 2013
Messages
25,421 (6.54/day)
Location
USA
Evaporation is a trait specific to water
False. All elements can evaporate as all elements have a liquid state depending on temperature.

(does oil evaporate??)
It does, the only question is how fast and at what temp range.

Anyway, I'm done with this conversation and trying to keep up with your endless meanderings. Cheers.
Oh come on now, let's be friendly. Andy's not trying to irritate you..

Joined
Feb 20, 2020
Messages
8,852 (6.04/day)
Location
Louisianna
System Name Ghetto Rigs z490|x99|Acer 17 Nitro 7840hs/ 5600c40-2x16/ 4060/ 1tb acer stock m.2/ 4tb sn850x
Processor 10900k w/Optimus Foundation | 5930k w/Black Noctua D15
Motherboard z490 Maximus XII Apex | x99 Sabertooth
Cooling oCool D5 res-combo/280 GTX/ Optimus Foundation/ gpu water block | Blk D15
Memory Trident-Z Royal 4000c16 2x16gb | Trident-Z 3200c14 4x8gb
Video Card(s) Titan Xp-water | evga 980ti gaming-w/ air
Storage 970evo+500gb & sn850x 4tb | 860 pro 256gb | Acer m.2 1tb/ sn850x 4tb| Many2.5" sata's ssd 3.5hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 | Cherry Entertainment center on Test bench
Audio Device(s) Built in Realtek x2 with 2-Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1000P2 with APC AX1500 | 850P2 with CyberPower-GX1325U
Mouse Redragon Perdition x3
Keyboard G710+x3
Software Win-7 pro x3 and win-10 & 11pro x3
Benchmark Scores Are in the benchmark section
Hi,
Thermal paste one subject that gets heated by more than 1 or 2c too lol


Space Lynx

Astronaut
Joined
Oct 17, 2014
Messages
15,435 (4.52/day)
Location
Kepler-186f
my parents PC's need re-pasted, they are ancient APU based systems the first Ryzen offered I believe. going to use mx-5 for them as well. its been about 5-7 years since i re-pasted did a full cleaning on theirs... so that will be fun... haha... I think my mom is running my 2500k cpu and 5570 gpu..., I can't remember. my dad has the APU

Joined
Apr 9, 2018
Messages
781 (0.36/day)
False. All elements can evaporate as all elements have a liquid state depending on temperature.

It does, the only question is how fast and at what temp range.

Oh come on now, let's be friendly. Andy's not trying to irritate you..

Then why does a bucket of motor oil sit in a shed and it's still there after 30 years, hmm? It's in a liquid state, so where's the evaporation?

I'm not mad, it's just tired of talking to people who have an imaginary degree in chemical engineering and make baseless claims with no connection to reality. Blanket statements are overly simplistic and the behavior of products should be considered on a case-by-case basis.

Last edited:
Joined
Jul 5, 2013
Messages
25,421 (6.54/day)
Location
USA
Then why does a bucket of motor oil sit in a shed and it's still there after 30 years, hmm? It's in a liquid state, so where's the evaporation?
In general, typical room temps are not hot enough to do so. Heat it up to 200C and you'll see some action.

I'm not mad, it's just tired of talking to people who have an imaginary degree in chemical engineering and make baseless claims with no connection to reality.
As someone who holds several degrees, I would be willing to give him the benefit of the doubt due to a number of contributions Andy has made to numerous conversations. Additionally, there is also a language barrier to consider. His primary language is not English. He does his best to converse in English(very well IMHO) but sometimes things get lost in the translation.

EDIT: After a PM conversation it would seem I got him confused with another user. It would seem English is his primary language. Still, everyone thinks and communicates in a different way and this can sometime still get lost in the process.

We're all friends here, lets be chill.

Last edited:
Joined
Apr 9, 2018
Messages
781 (0.36/day)
In general typical room temps are not hot enough to do so. Heat it up to 200C and you'll see some action.


As someone who holds several degrees, I would be willing to give him the benefit of the doubt due to a number of contributions Andy has made to numerous conversations. Additionally, there is also a language barrier to consider. His primary language is Spanish, not English. He does his best to converse in English(very well IMHO) but sometimes things get lost in the translation.

We're all friends here, lets be chill.

That's cool, I have a few degrees in engineering myself. Mechanical and agricultural mainly, but I never mention them because they tend to have little to do with discussions about computing.

I don't know, a Mechanical Engineer would have done courses in thermodynamics and so be well prepared for thermal conduction.

I studied thermodynamics and did my dissertation on heat storage in latent heat materials. Pretty well prepared for it.

@95Viper Amen. I've had enough of talking about things that have nothing to do with thermal paste, it's a total waste of everyone's time.

Last edited:

95Viper

Super Moderator
Staff member
Joined
Oct 12, 2008
Messages
12,601 (2.24/day)
OK, stay on topic.
Do not do the "I have the bigger ego/degrees/intelligence or whatever you have".
As, said before... discuss the topic and not each other.

Thank You and Have a Nice Day.

Last edited:
Joined
Mar 21, 2021
Messages
4,210 (3.93/day)
Location
Colorado, U.S.A.
System Name HP Compaq 8000 Elite CMT
Processor Intel Core 2 Quad Q9550
Motherboard Hewlett-Packard 3647h
Memory 16GB DDR3
Video Card(s) Asus NVIDIA GeForce GT 1030 2GB GDDR5 (fan-less)
Storage 2TB Micron SATA SSD; 2TB Seagate Firecuda 3.5" HDD
Display(s) Dell P2416D (2560 x 1440)
Power Supply 12V HP proprietary
Software Windows 10 Pro 64-bit
Joined
Feb 20, 2020
Messages
8,852 (6.04/day)
Location
Louisianna
System Name Ghetto Rigs z490|x99|Acer 17 Nitro 7840hs/ 5600c40-2x16/ 4060/ 1tb acer stock m.2/ 4tb sn850x
Processor 10900k w/Optimus Foundation | 5930k w/Black Noctua D15
Motherboard z490 Maximus XII Apex | x99 Sabertooth
Cooling oCool D5 res-combo/280 GTX/ Optimus Foundation/ gpu water block | Blk D15
Memory Trident-Z Royal 4000c16 2x16gb | Trident-Z 3200c14 4x8gb
Video Card(s) Titan Xp-water | evga 980ti gaming-w/ air
Storage 970evo+500gb & sn850x 4tb | 860 pro 256gb | Acer m.2 1tb/ sn850x 4tb| Many2.5" sata's ssd 3.5hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 | Cherry Entertainment center on Test bench
Audio Device(s) Built in Realtek x2 with 2-Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1000P2 with APC AX1500 | 850P2 with CyberPower-GX1325U
Mouse Redragon Perdition x3
Keyboard G710+x3
Software Win-7 pro x3 and win-10 & 11pro x3
Benchmark Scores Are in the benchmark section
Joined
Mar 21, 2021
Messages
4,210 (3.93/day)
Location
Colorado, U.S.A.
System Name HP Compaq 8000 Elite CMT
Processor Intel Core 2 Quad Q9550
Motherboard Hewlett-Packard 3647h
Memory 16GB DDR3
Video Card(s) Asus NVIDIA GeForce GT 1030 2GB GDDR5 (fan-less)
Storage 2TB Micron SATA SSD; 2TB Seagate Firecuda 3.5" HDD
Display(s) Dell P2416D (2560 x 1440)
Power Supply 12V HP proprietary
Software Windows 10 Pro 64-bit

Attachments

  • mil-spec.png
    210.1 KB · Views: 69
Joined
Oct 22, 2014
Messages
13,210 (3.87/day)
Location
Sunshine Coast
System Name Black Box
Processor Intel Xeon E3-1260L v5
Motherboard MSI E3 KRAIT Gaming v5
Cooling Tt tower + 120mm Tt fan
Memory G.Skill 16GB 3600 C18
Video Card(s) Asus GTX 970 Mini
Storage Kingston A2000 512Gb NVME
Display(s) AOC 24" Freesync 1m.s. 75Hz
Case Corsair 450D High Air Flow.
Audio Device(s) No need.
Power Supply FSP Aurum 650W
Mouse Yes
Keyboard Of course
Software W10 Pro 64 bit
Are there any military specs for thermal grease?
Fun fact, Grease is a lubricant, intended for the reduction of friction on moving parts.
But I guess you already knew that. :banghead:

Joined
Mar 21, 2021
Messages
4,210 (3.93/day)
Location
Colorado, U.S.A.
System Name HP Compaq 8000 Elite CMT
Processor Intel Core 2 Quad Q9550
Motherboard Hewlett-Packard 3647h
Memory 16GB DDR3
Video Card(s) Asus NVIDIA GeForce GT 1030 2GB GDDR5 (fan-less)
Storage 2TB Micron SATA SSD; 2TB Seagate Firecuda 3.5" HDD
Display(s) Dell P2416D (2560 x 1440)
Power Supply 12V HP proprietary
Software Windows 10 Pro 64-bit
Last edited:
Joined
Jan 11, 2005
Messages
199 (0.03/day)

FuzeIce Plus seems to be the exact same paste as SYY-157.


It's possible SYY, FuzeIce Plus and Halnziye HY-P13 are all related, in the same way that TFX and ZF-EX are.
Even the packaging of HY-P13 and SYY is the same.

the words "make your cooling life" on the Halnziye website are the same words on the back of the packaging of SYY. Might be the same factories involved.

Last edited:
Joined
Mar 21, 2021
Messages
4,210 (3.93/day)
Location
Colorado, U.S.A.
System Name HP Compaq 8000 Elite CMT
Processor Intel Core 2 Quad Q9550
Motherboard Hewlett-Packard 3647h
Memory 16GB DDR3
Video Card(s) Asus NVIDIA GeForce GT 1030 2GB GDDR5 (fan-less)
Storage 2TB Micron SATA SSD; 2TB Seagate Firecuda 3.5" HDD
Display(s) Dell P2416D (2560 x 1440)
Power Supply 12V HP proprietary
Software Windows 10 Pro 64-bit
Last edited:
Joined
Jul 5, 2013
Messages
25,421 (6.54/day)
Location
USA
Ok folks, testing is done.

Let's state the particulars.

The system being used is a Dell Precision T3500 with an Intel Xeon W3680 using the stock cooler and a steady state 3700RPM 92mm fan. The testing software was Prime95. Temp monitoring software is HWInfo. The thermal interface materials being tested are as follows:
Dragon Star DRG102, compound very similar to Arctic Silver 5
Automotive Copper thread grease
Noctua NT-H1
Arctic Cooling MX-5

The tests were conducted as follows:
3 runs of 2 stages of Prime95 calculations which run for a little over 11 minutes per each TIM.

Here is how each was applied. I did not take photos of the Noctua NT-H1 as I forgot to. It didn't look any different than the DRG102.

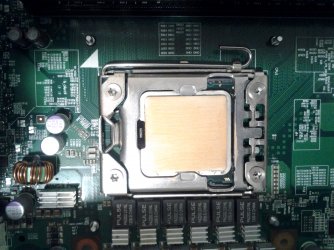

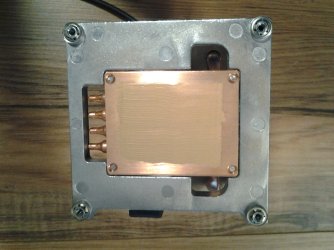

DRG102

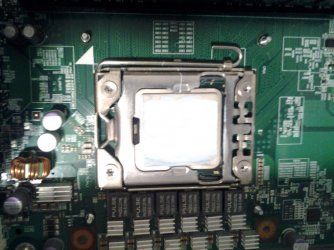

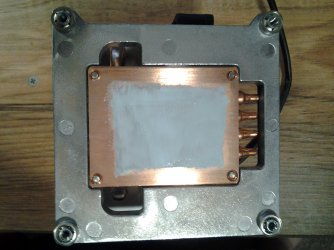

Copper Grease

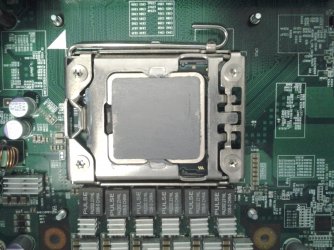

MX-5

As you can see, I spread the TIM out in very thin layers. The DRG102 and Copper Grease were the easiest to spread evenly. NT-H1 was a little more difficult but only a bit. MX-5 was a bit of challenge but with a few minutes of work it spread out fine. It is as "sticky" as everyone claims of course, however this is a minor thing.

Here are the test results.

Dragon Star DRG102

This performance ranks third best in the tests.

Automotive Cooper thread grease

This performance ranks fourth in the tests.

Noctua NT-H1

This performance was second best in the tests.

Arctic Cooling MX-5

This performance was the best of the tests.

My conclusion is that MX-5 is a very impressive TIM. It bested NT-H1 by several degrees C in both idle and full load tests. It also bested the DRG102 handily. The copper grease proved inferior to the rest, even though the temps were within reason as expected given that the compound was used in this same system for nearly a year and performed well. NT-H1 is widely regarded as a premium TIM and has shown itself to be an excellent performer. For MX-5 to perform better than such shows it to be, at the very least, competitive with premium TIM's and at most superior to many of the of the top shelf brand TIMs.

The screenshots are here for you all to draw your own conclusions though.

IMPORTANT EDIT;
For the record, this testing was done as much for fun as it was out of scientific, professional and personal curiosity. The testing methodologies used are based on known valid methods but are NOT all inclusive. I'm NOT going to test every TIM on the market, nor am I going to test on a multitude of platforms. These tests are focused on the topic of discussion here, Arctic Cooling MX-5. I deliberately chose to use a TIM that is a budget known good performer, a product not specifically designed for the purpose at hand(for giggles and to be an odd-ball) and a TIM that is considered to be a premium product for testing against MX-5.

That said, if you have a problem or complaint about the testing methods used or the fact that the products tested were limited, feel free to buy your own products to test, spend your own time conducting said testing and then post your own results. Whining about what I did or didn't do that somehow doesn't meet with your satisfaction will only earn you an unpleasant reaction, which will likely include open and public mocking.

Only warning.

Last edited:
Joined
Feb 20, 2020
Messages
8,852 (6.04/day)
Location
Louisianna
System Name Ghetto Rigs z490|x99|Acer 17 Nitro 7840hs/ 5600c40-2x16/ 4060/ 1tb acer stock m.2/ 4tb sn850x
Processor 10900k w/Optimus Foundation | 5930k w/Black Noctua D15
Motherboard z490 Maximus XII Apex | x99 Sabertooth
Cooling oCool D5 res-combo/280 GTX/ Optimus Foundation/ gpu water block | Blk D15
Memory Trident-Z Royal 4000c16 2x16gb | Trident-Z 3200c14 4x8gb
Video Card(s) Titan Xp-water | evga 980ti gaming-w/ air
Storage 970evo+500gb & sn850x 4tb | 860 pro 256gb | Acer m.2 1tb/ sn850x 4tb| Many2.5" sata's ssd 3.5hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 | Cherry Entertainment center on Test bench
Audio Device(s) Built in Realtek x2 with 2-Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1000P2 with APC AX1500 | 850P2 with CyberPower-GX1325U
Mouse Redragon Perdition x3
Keyboard G710+x3
Software Win-7 pro x3 and win-10 & 11pro x3
Benchmark Scores Are in the benchmark section
Hi,
Nice but you really need a new wallpaper lol

Tightened my water block on 9940x with mx-5 and core temp spread is now a lot better 38-42c on just a little 4.2 everyday clock I use not bad on 14 cores might crank it up this weekend see what happens at 4.9

Before temps were whack bad highest was 49c think I said earlier on this thread.
Funny how pressure helps and I thought all four were pretty evenly tightened but I do not spread very often I use x method

Joined
Mar 21, 2021
Messages
4,210 (3.93/day)
Location
Colorado, U.S.A.
System Name HP Compaq 8000 Elite CMT
Processor Intel Core 2 Quad Q9550
Motherboard Hewlett-Packard 3647h
Memory 16GB DDR3
Video Card(s) Asus NVIDIA GeForce GT 1030 2GB GDDR5 (fan-less)
Storage 2TB Micron SATA SSD; 2TB Seagate Firecuda 3.5" HDD
Display(s) Dell P2416D (2560 x 1440)
Power Supply 12V HP proprietary
Software Windows 10 Pro 64-bit

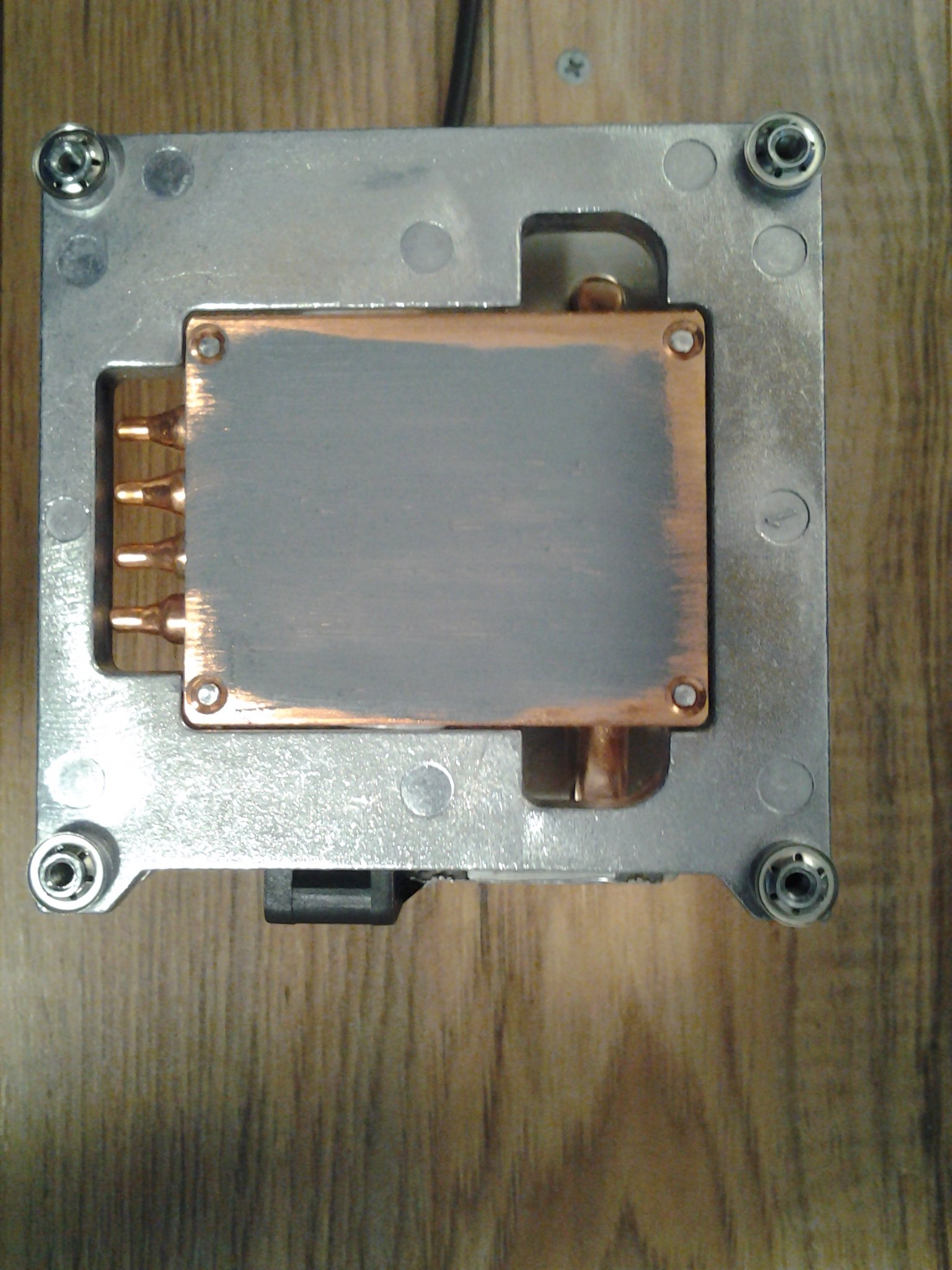

Any great advantage applying it to both surfaces?

I'd still argue that since most any good TIM gives good results, longevity is important and wish you had included the infamous 40% diaper cream as that gave good results for me (as good as GD900) and might drive a comparison on more than just temperature.

Just in case it comes up, I am NOT suggesting the real life use of 40% diaper cream, but I find it sobering that it performs so well. Anyone willing to test it (to verify my results)?

Last edited:
Joined
Aug 21, 2015
Messages
1,656 (0.53/day)
Location
North Dakota
System Name Office
Processor Ryzen 5600G
Motherboard ASUS B450M-A II
Cooling be quiet! Shadow Rock LP
Memory 16GB Patriot Viper Steel DDR4-3200
Video Card(s) Gigabyte RX 5600 XT
Storage PNY CS1030 250GB, Crucial MX500 2TB
Display(s) Dell S2719DGF
Case Fractal Define 7 Compact
Power Supply EVGA 550 G3
Mouse Logitech M705 Marthon
Keyboard Logitech G410
Software Windows 10 Pro 22H2
Any great advantage applying it to both surfaces?

Cryorig instructions recommend tinting the cold plate, so I'm inclined to say "probably". ;)

Joined
Sep 3, 2020
Messages
128 (0.10/day)
System Name The Mutt
Processor intel Core i5 10th gen. - $230.00
Motherboard Gigabyte z-490 Vision D - $264.00 at posting
Cooling MX1 plus Water block, P32-D5 Pump/reservoir, 2x 480 CLD Rad w/ 4 Thermaltake quad fans.
Memory G Skill Trident Z Royal 64GB (2x32GB) - $209.00 at posting
Video Card(s) Gigabyte GeForce GTX 1660 Super - $229.00 at posting
Storage Silicon Power 1TB M-2 - 94$ as of posting
Display(s) Vizio 65" 3-D, Sharp Aquos 65" , Samsung 65 UHD"
Case Thermaltake Core P7
Audio Device(s) Onkyo 7.1 Receiver TX-NR - 609 Focusrite 2i2 - $159.00
Power Supply Thermaltake iRGB 1000w
Mouse Red Dragon M801 Sniper Pro - $45.99
Keyboard lifeworks RGB
Software Windows 10 Pro - $19.00
Benchmark Scores alas, none....yet
yeah I saw that when I ordered. for ten cents its worth it imo, just in case. lol also the little spatula might come in handy for other stuff so meh.

If you've seen the movie 'Stripes', then you know it's always wise to keep a spatula handy. :pimp:


:D

Joined
Jan 11, 2005
Messages
199 (0.03/day)
Ok folks, testing is done.

Let's state the particulars.

The system being used is a Dell Precision T3500 with an Intel Xeon W3680 using the stock cooler and a steady state 3700RPM 92mm fan. The testing software was Prime95. Temp monitoring software is HWInfo. The thermal interface materials being tested are as follows:
Dragon Star DRG102, compound very similar to Arctic Silver 5
Automotive Copper thread grease
Noctua NT-H1
Arctic Cooling MX-5

The tests were conducted as follows:
3 runs of 2 stages of Prime95 calculations which run for a little over 11 minutes per each TIM.

Here is how each was applied. I did not take photos of the Noctua NT-H1 as I forgot to. It didn't look any different than the DRG102.

DRG102
View attachment 202525View attachment 202526

Copper Grease
View attachment 202527View attachment 202528

MX-5
View attachment 202529View attachment 202530

As you can see, I spread the TIM out in very thin layers. The DRG102 and Copper Grease were the easiest to spread evenly. NT-H1 was a little more difficult but only a bit. MX-5 was a bit of challenge but with a few minutes of work it spread out fine. It is as "sticky" as everyone claims of course, however this is a minor thing.

Here are the test results.

Dragon Star DRG102
View attachment 202519
This performance ranks third best in the tests.

Automotive Cooper thread grease
View attachment 202520
This performance ranks fourth in the tests.

Noctua NT-H1
View attachment 202521
This performance was second best in the tests.

Arctic Cooling MX-5
View attachment 202522
This performance was the best of the tests.

My conclusion is that MX-5 is a very impressive TIM. It bested NT-H1 by several degrees C in both idle and full load tests. It also bested the DRG102 handily. The copper grease proved inferior to the rest, even though the temps were within reason as expected given that the compound was used in this same system for nearly a year and performed well. NT-H1 is widely regarded as a premium TIM and has shown itself to be an excellent performer. For MX-5 to perform better than such shows it to be, at the very least, competitive with premium TIM's and at most superior to many of the of the top shelf brand TIMs.

The screenshots are here for you all to draw your own conclusions though.

MX-5 is indeed impressive on a desktop CPU or a video card.
It's atrocious on laptops though. Too thin. Same problem as "new" KPx (old KPx was awesome on laptops).

Status
Not open for further replies.
Top
