So I've had a bit of a ghetto mod going in one of my Dells. Recently rebuilt it to work better and with a 129mm fan instead of a 92mm fan. Here are the results;
View attachment 206944
View attachment 206945
View attachment 206946

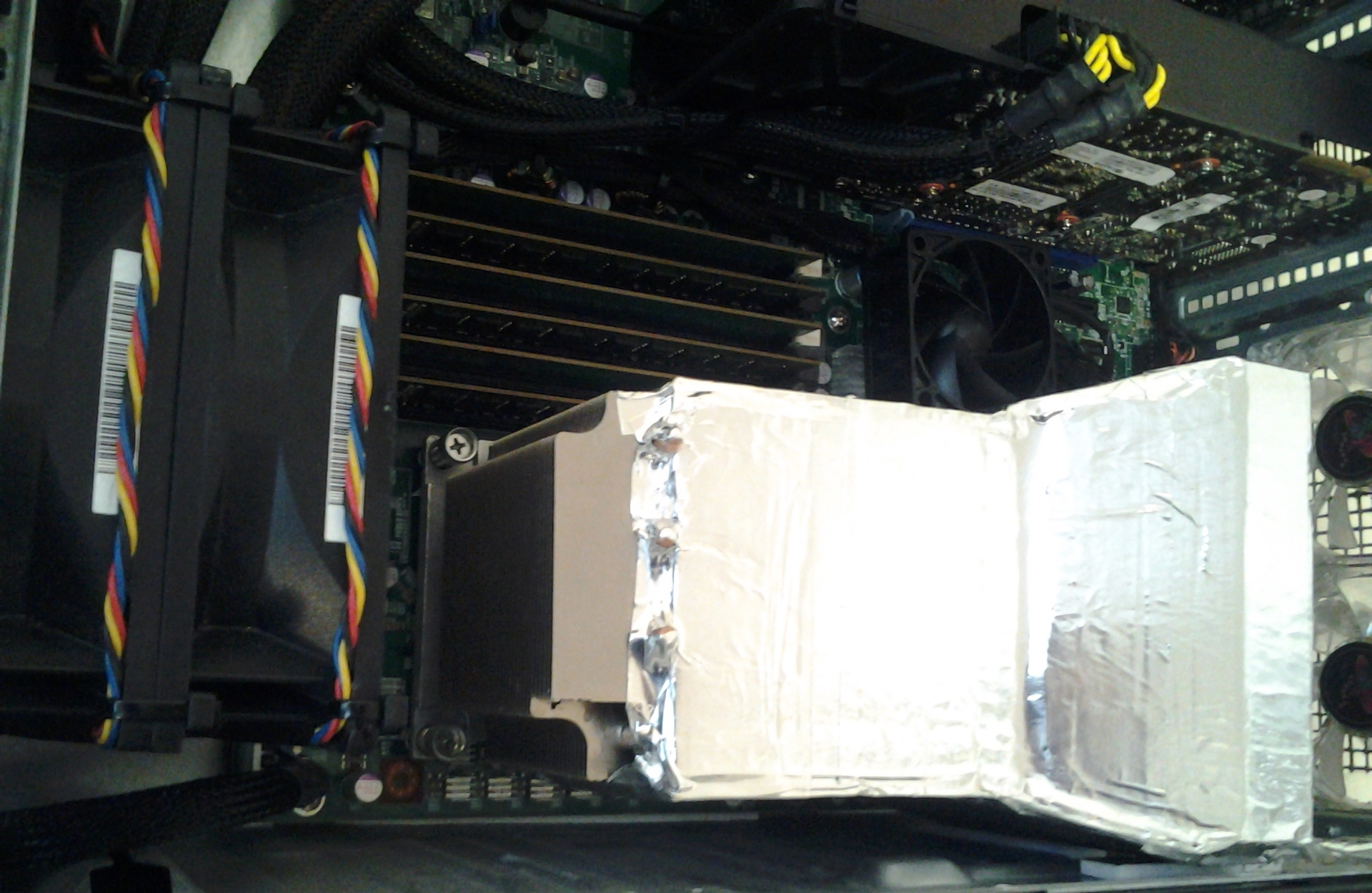

It's basically a wind tunnel with one end wrapped around the back of the heatsink and the other end wrapped around the 120mm fan. The effect is much better cooling and much lower noise than the 92mm fan provided. And even though it's a bit ghetto, I think it looks really cool! No pun intended.

BTW, yes I know the cable management isn't great. It's a T3500 and there's only so much you can do..
yeah, it's ghetto and neat solution too
