Recently I got a special graphics card form Chinese flea market 闲鱼.


Its model is GeForce GT 1010, GPU-Z recognized it. But interestingly, the memory interface is 32-bit , with 1GB GDDR5 running at 1502Mhz (3004MHz), only half of the regular model.

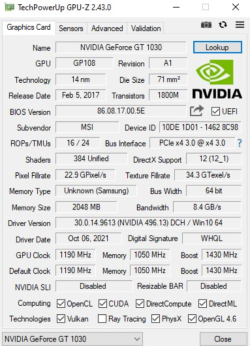

Here is the GPU-Z screenshot.


I remove the heat sink ,that is REAL GP108

There is only one VRAM on the motherboard




The brand is 旭祥(Xuxiang),I don't know this, but from some website, Xuxiang is likely to be a sock puppet or subsidiary of 七彩虹(Colorful), which is the largest NVIDIA GPU manufacturer in Chinese Mainland, compete with other manufacturers like ASUS MSI in the market.




Attachments

  • 1653207482200.png
    1.3 MB · Views: 13

FreedomEclipse

~Technological Technocrat~
Joined
Apr 20, 2007
Messages
22,439 (4.04/day)
Location
London,UK
System Name Codename: Icarus Mk.VI
Processor Intel 8600k@4.8Ghz
Motherboard Asus ROG Strixx Z370-F
Cooling CPU: BeQuiet! Dark Rock Pro 4 {1xCorsair ML120 Pro|5xML140 Pro}
Memory 32GB XPG Gammix D10 {2x16GB}
Video Card(s) Gigabyte 1080Ti Gaming OC|Accelero Xtreme IV
Storage Samsung 970Evo 512GB SSD (Boot)|WD Blue 1TB SSD|2x 3TB Toshiba DT01ACA300
Display(s) Asus PB278Q 27"
Case Corsair 760T (White)
Audio Device(s) Yamaha RX-V573|Speakers: JBL Control One|Auna 300-CN|Wharfedale Diamond SW150
Power Supply Corsair AX760
Mouse Logitech G900/G502
Keyboard Duckyshine Dead LED(s) III
Software Windows 10 Pro
Benchmark Scores (ノಠ益ಠ)ノ彡┻━┻
And the Legacy of Pascal carries on! LONG LIVE THE KING! :rockout:

What was the price of the card?


ARF

Joined
Jan 28, 2020
Messages
2,138 (2.41/day)
Location
the country of the absurds (#$topHatingRussians)
System Name ARF System
Processor 24-logical processor 70 MB L2&3 Cache AMD Ryzen 9 5900X AM4
Motherboard MSI MAG X570 Tomahawk WiFi AM4
Cooling Arctic Freezer 34 eSports DUO
Memory 2x16 GB DDR4-3200 Corsair Vengeance LPX
Video Card(s) AMD Radeon
Storage 512 GB XPG Gammix S11 Pro M.2 2280 PCIe 3.0 x4
Display(s) 3840x2160 LG 24UD58-B 4K UHD
Case SeriouX Makenna Middle Tower ATX
Audio Device(s) Realtek® ALC1200
Power Supply 750 W Deepcool DQ750ST Gold
Mouse AbconCore A660 Gaming Mouse
Keyboard Logitech Wave
Software Microsoft Windows 10 Pro 64
Joined
Sep 21, 2020
Messages
722 (1.11/day)
Processor AMD FX 8300 @ 4.5
Motherboard Asus Sabertooth 990FX R2.0
Cooling Thermalright Macho Rev.B
Memory 16GB Corsair Dominator Platinum 2400MHz CL10
Video Card(s) Asus HD7970 @ 1135/1750 + Prolimatech MK-26 + 2x 140mm
Storage 256GB Toshiba Q Pro MLC + 500GB WD VelociRaptor
Display(s) Dell U2412M
Case Cooler Master CM690 II Advanced USB 3.0 + Lamptron FC6
Audio Device(s) Audiotrak Prodigy Cube Black (JRC MUSES 8820D) + CAL (recabled)
Power Supply 750W Enermax Platimax
Mouse Logitech Cordless Desktop Wave
Keyboard Logitech Cordless Desktop Wave
Software Windows 7 Ultimate
Interesting find, thanks for sharing! Did you run any benchmarks on it?


qubit

Overclocked quantum bit
Joined
Dec 6, 2007
Messages
17,322 (3.25/day)
Location
Quantum Well UK
System Name Quantumville™
Processor Intel Core i7-2700K @ 4GHz
Motherboard Asus P8Z68-V PRO/GEN3
Cooling Noctua NH-D14
Memory 16GB (2 x 8GB Corsair Vengeance Black DDR3 PC3-12800 C9 1600MHz)
Video Card(s) MSI RTX 2080 SUPER Gaming X Trio
Storage Samsung 850 Pro 256GB | WD Black 4TB | WD Blue 6TB
Display(s) BenQ XL2720Z (144Hz, 3D Vision 2, 1080p) | Asus MG28UQ (4K, 60Hz, FreeSync compatible)
Case Cooler Master HAF 922
Audio Device(s) Creative Sound Blaster X-Fi Fatal1ty PCIe
Power Supply Corsair HX 850W v1
Mouse Microsoft Intellimouse Pro - Black Shadow
Keyboard Yes
Software Windows 10 Pro 64-bit
I bought a tiddly AMD card with a 32-bit bus plus small amount of RAM for about a tenner years ago and it runs surprisingly well for what it is. Forget the model now. I'd love to have a GT 1010 to add to my collection. Shame they never released them as retail cards.


UFBYRw

New Member
Joined
May 22, 2022
Messages
4 (0.09/day)
And the Legacy of Pascal carries on! LONG LIVE THE KING! :rockout:

What was the price of the card?
It cost me 160 RMB Yuan(about $24)
Actually this is not the real price, this graphics card is an OEM product, not for retail, it is just the price set by the person who dismantled it from some device (may be an abandoned industrial control computer?:confused:) and sold the graphics card.

Last edited:

FreedomEclipse

~Technological Technocrat~
Joined
Apr 20, 2007
Messages
22,439 (4.04/day)
Location
London,UK
System Name Codename: Icarus Mk.VI
Processor Intel 8600k@4.8Ghz
Motherboard Asus ROG Strixx Z370-F
Cooling CPU: BeQuiet! Dark Rock Pro 4 {1xCorsair ML120 Pro|5xML140 Pro}
Memory 32GB XPG Gammix D10 {2x16GB}
Video Card(s) Gigabyte 1080Ti Gaming OC|Accelero Xtreme IV
Storage Samsung 970Evo 512GB SSD (Boot)|WD Blue 1TB SSD|2x 3TB Toshiba DT01ACA300
Display(s) Asus PB278Q 27"
Case Corsair 760T (White)
Audio Device(s) Yamaha RX-V573|Speakers: JBL Control One|Auna 300-CN|Wharfedale Diamond SW150
Power Supply Corsair AX760
Mouse Logitech G900/G502
Keyboard Duckyshine Dead LED(s) III
Software Windows 10 Pro
Benchmark Scores (ノಠ益ಠ)ノ彡┻━┻
Not more than 19$... :kookoo:

Even 1050ti's were selling for £200-300 at retailers during lockdown. Ebay was closer to £500 while the real go getters were selling at £700.

GT710's were around £80-100+

  • Haha
Reactions: ARF

ARF

Joined
Jan 28, 2020
Messages
2,138 (2.41/day)
Location
the country of the absurds (#$topHatingRussians)
System Name ARF System
Processor 24-logical processor 70 MB L2&3 Cache AMD Ryzen 9 5900X AM4
Motherboard MSI MAG X570 Tomahawk WiFi AM4
Cooling Arctic Freezer 34 eSports DUO
Memory 2x16 GB DDR4-3200 Corsair Vengeance LPX
Video Card(s) AMD Radeon
Storage 512 GB XPG Gammix S11 Pro M.2 2280 PCIe 3.0 x4
Display(s) 3840x2160 LG 24UD58-B 4K UHD
Case SeriouX Makenna Middle Tower ATX
Audio Device(s) Realtek® ALC1200
Power Supply 750 W Deepcool DQ750ST Gold
Mouse AbconCore A660 Gaming Mouse
Keyboard Logitech Wave
Software Microsoft Windows 10 Pro 64

UFBYRw

New Member
Joined
May 22, 2022
Messages
4 (0.09/day)
Interesting find, thanks for sharing! Did you run any benchmarks on it?
I tried 3Dmark, but only 1GB VRAM is not enough. TimeSpy and FireStrike got very low graphics score though I pre-overclocked this card ,the core running at 2000MHz and the memory running at 1752(7008)MHz while benchmarking or gaming, the default freq is about 1709 & 1502


Last edited:

tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
4,337 (1.69/day)
Location
Western Canada
Processor 5900X
Motherboard Crosshair VIII Impact (4201)
Memory 32GB 3800CL14 1.54V
Video Card(s) TUF RTX 3070 Ti 1980@0.931V
Case Cerberus
Power Supply SF750
To be fair, even though this is clearly a race to the bottom, I wouldn't be surprised if this 32-bit GT1010 still beat the GT1030 DDR4 with its 64-bit DDR4-2100

Though, it'd be nice to bench with a LP card that doesn't need CSM, GT610 and HD5450 are both getting annoying in 2022



Aquinus

Resident Wat-man
Joined
Jan 28, 2012
Messages
12,702 (3.33/day)
Location
Concord, NH
System Name Apollo
Processor Intel Core i9 9880H
Motherboard Some proprietary Apple thing.
Memory 64GB DDR4-2667
Video Card(s) AMD Radeon Pro 5600M, 8GB HBM2
Storage 1TB Apple NVMe, 4TB External
Display(s) Laptop @ 3072x1920 + 2x LG 5k Ultrafine TB3 displays
Case MacBook Pro (16", 2019)
Audio Device(s) AirPods Pro, Sennheiser HD 380s w/ FIIO Alpen 2, or Logitech 2.1 Speakers
Power Supply 96w Power Adapter
Mouse Logitech MX Master 3
Keyboard Logitech G915, GL Clicky
Software MacOS 12.1
Sounds like a great card for a headless machine.


FreedomEclipse

~Technological Technocrat~
Joined
Apr 20, 2007
Messages
22,439 (4.04/day)
Location
London,UK
System Name Codename: Icarus Mk.VI
Processor Intel 8600k@4.8Ghz
Motherboard Asus ROG Strixx Z370-F
Cooling CPU: BeQuiet! Dark Rock Pro 4 {1xCorsair ML120 Pro|5xML140 Pro}
Memory 32GB XPG Gammix D10 {2x16GB}
Video Card(s) Gigabyte 1080Ti Gaming OC|Accelero Xtreme IV
Storage Samsung 970Evo 512GB SSD (Boot)|WD Blue 1TB SSD|2x 3TB Toshiba DT01ACA300
Display(s) Asus PB278Q 27"
Case Corsair 760T (White)
Audio Device(s) Yamaha RX-V573|Speakers: JBL Control One|Auna 300-CN|Wharfedale Diamond SW150
Power Supply Corsair AX760
Mouse Logitech G900/G502
Keyboard Duckyshine Dead LED(s) III
Software Windows 10 Pro
Benchmark Scores (ノಠ益ಠ)ノ彡┻━┻

eidairaman1

The Exiled Airman
Joined
Jul 2, 2007
Messages
36,591 (6.68/day)
Location
Republic of Texas (True Patriot)
System Name PCGOD
Processor AMD FX 8350@ 5.0GHz
Motherboard Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory 16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s) AMD Radeon 290 Sapphire Vapor-X
Storage Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s) NEC Multisync LCD 1700V (Display Port Adapter)
Case AeroCool Xpredator Evil Blue Edition
Audio Device(s) Creative Labs Sound Blaster ZxR
Power Supply Seasonic 1250 XM2 Series (XP3)
Mouse Roccat Kone XTD
Keyboard Roccat Ryos MK Pro
Software Windows 7 Pro 64
Sounds like a great card for a headless machine.

Or a media center with HW decoding/acceleration

Just a display adapter.

Recently I got a special graphics card form Chinese flea market 闲鱼.
View attachment 248418
View attachment 248419
Its model is GeForce GT 1010, GPU-Z recognized it. But interestingly, the memory interface is 32-bit , with 1GB GDDR5 running at 1502Mhz (3004MHz), only half of the regular model.
Here is the GPU-Z screenshot.
View attachment 248409

I remove the heat sink ,that is REAL GP108
View attachment 248415
There is only one VRAM on the motherboard

View attachment 248411


The brand is 旭祥(Xuxiang),I don't know this, but from some website, Xuxiang is likely to be a sock puppet or subsidiary of 七彩虹(Colorful), which is the largest NVIDIA GPU manufacturer in Chinese Mainland, compete with other manufacturers like ASUS MSI in the market.


View attachment 248416

It's a Legit card because the Nomenclature of GP108 matches up with GT 1010.

If it were a GF116 and claimed to be a 1050 Ti GPU-Z would flag it as Fake.

You did the research so its good enough.

Please do us a favor by opening GPU-Z and click the black arrow next to the White UEFI check box and Upload the Bios Through GPU-Z to the VGA bios Collection/Database, you should get a link to the file, Be as Detailed with the description as possible.

Copy/paste link here


UFBYRw

New Member
Joined
May 22, 2022
Messages
4 (0.09/day)
Just a display adapter.



It's a Legit card because the Nomenclature of GP108 matches up with GT 1010.

If it were a GF116 and claimed to be a 1050 Ti GPU-Z would flag it as Fake.

You did the research so its good enough.

Please do us a favor by opening GPU-Z and click the black arrow next to the White UEFI check box and Upload the Bios Through GPU-Z to the VGA bios Collection/Database, you should get a link to the file, Be as Detailed with the description as possible.

Copy/paste link here
Upload completed, here is the link:
