GTX 670 is recognized for My PC as GTX 680 doesnt work

[pavle]

Oh my... It appears that you've never soldered anything. Do you have a friend with a soldering iron and some experience in that work? You should really replace damaged resistor on the card with a similar value one and it just might work without flashing anything because I can see from the picture that there is a damaged component on your card.
Just measure its value/resistance on the other GTX 670 you have and then you'll know what kind to put on this one.



[sankroy]

I'm sorry I misinterpreted :blush. Here is your changed ID. But I would first solder on the right resistance resistor before trying to flash anything...

This fi

Oh my... It appears that you've never soldered anything. Do you have a friend with a soldering iron and some experience in that work? You should really replace damaged resistor on the card with a similar value one and it just might work without flashing anything because I can see from the picture that there is a damaged component on your card.
Just measure its value/resistance on the other GTX 670 you have and then you'll know what kind to put on this one.

In this part is the problem?



[pavle]

Well to me it looks like the right element (probably resistor) under the sign Q504 is damaged. But I cannot look at the card first person, so just flash it and see what happens.
Have a PCI graphics card ready though so you can flash it again if it doesn't show picture after this flash. Proceed at your own risk.



[sankroy]

Well to me it looks like the right element (probably resistor) under the sign Q504 is damaged. But I cannot look at the card first person, so just flash it and see what happens.
Have a PCI graphics card ready though so you can flash it again if it doesn't show picture after this flash. Proceed at your own risk.

You refer where You see a piece of metal between the contacts ?



[pavle]

Yes.



[sankroy]

Yes.

I saw that , i removed it

I'll checked with Bios 670 You changed id to 1180 and I hope don't give and error, about subsystem



[MrGRiMv25]

This fi


In this part is the problem?View attachment 163377

Resistor u504 is one of the ones that deals with board ID so if that was accidentally chipped off while you were changing the thermal paste then that's very likely what caused the problem.



[sankroy]

Resistor u504 is one of the ones that deals with board ID so if that was accidentally chipped off while you were changing the thermal paste then that's very likely what caused the problem.

Where is that resistor? Back or front card? Thanks in Advanced

Resistor u504 is one of the ones that deals with board ID so if that was accidentally chipped off while you were changing the thermal paste then that's very likely what caused the problem.

I checked but gtx 670 don't use chip on u504



[Caring1]

Well to me it looks like the right element (probably resistor) under the sign Q504 is damaged. But I cannot look at the card first person, so just flash it and see what happens.
Have a PCI graphics card ready though so you can flash it again if it doesn't show picture after this flash. Proceed at your own risk.

According to this pic, there are a number of them missing.

https://images.anandtech.com/doci/5818/GeForce_GTX_670_B-1.jpg



[sankroy]

According to this pic, there are a number of them missing.

https://images.anandtech.com/doci/5818/GeForce_GTX_670_B-1.jpg

Where is missing? At right side to the screw, I checked just 7 resistors in this case .



[Caring1]

Where is missing? At right side to the screw, I checked just 7 resistors in this case .

I count 12 in the pic I linked, yours has less.



[sankroy]

I count 12 in the pic I linked, yours has less.

This card Will.never work again



[MrGRiMv25]

This card Will.never work again

That's a shame, hopefully you can find another card to replace it with.



[R-T-B]

It is impossible to unlock the shaders.

The shaders aren't unlocked, and that's why his drivers won't load.

GPU-Z just asks the bios for the shader count. He installed a 680 bios... do the math.



[Nike_486DX]

Where is missing? At right side to the screw, I checked just 7 resistors in this case .

Well, as you can see there are some resistors missing in that area, u probably knocked some of them off while changing the thermal compound...
- As i saw in one of the earlier posts, u were using some patched version of NVflash , try to use the original one, also use the --protectoff arg.
- It may also be that the card has a gpu or vram related problem (very common in cards of that age, GTX 670 is already 8 years old), so put it for a couple of minutes in a baking oven (PCB only, google for further instructions to do it properly)
- Use Windows 7 (it is still better than Win10)

...If nothing works well u know what to do in that case.



[sankroy]

Well, as you can see there are some resistors missing in that area, u probably knocked some of them off while changing the thermal compound...
- As i saw one of the earlier posts, u were using some patched version of NV

Any suggestion to fix it without those resistors?



[Nike_486DX]

Any suggestion to fix it without those resistors?

try to force flash it under DOS, also try the original NVflash (in Windows)
https://www.techpowerup.com/download/nvidia-nvflash-with-certificate-checks-bypassed/ try this
https://www.techpowerup.com/download/nvidia-nvflash/ and this

use --protectoff argument

also bake the card in an oven, i had received a gtx 680 years ago, had error -43, just baked it and it worked (for a couple of months lol)



[sankroy]

try to force flash it under DOS, also try the original NVflash (in Windows)
https://www.techpowerup.com/download/nvidia-nvflash-with-certificate-checks-bypassed/ try this
https://www.techpowerup.com/download/nvidia-nvflash/ and this

use --protectoff argument

also bake the card in an oven, i had received a gtx 680 years ago, had error -43, just baked it and it worked (for a couple of months lol)

This card have 43 error too! I have a gas oven but don't have exactly the grades centigrades , just I know 220 centigrades but this oven have 1 2 3 4 5 and I have an heat gun too

try to force flash it under DOS, also try the original NVflash (in Windows)
https://www.techpowerup.com/download/nvidia-nvflash-with-certificate-checks-bypassed/ try this
https://www.techpowerup.com/download/nvidia-nvflash/ and this

use --protectoff argument

also bake the card in an oven, i had received a gtx 680 years ago, had error -43, just baked it and it worked (for a couple of months lol)

I supposed NVFlash work in win 10 cause I flashed a ROM 1180 GTX 680 it was flashed but it doesnt work , the error is the same in devices manager

I'm sorry I misinterpreted :blush. Here is your changed ID. But I would first solder on the right resistance resistor before trying to flash anything...

Hi my friend! can you change the subsystem id?

Thanks in advanced again!!!



[pavle]

Here is link to Hiren's Boot CD (XP) pre-boot evironment v15.2. I flash all my Geforces this way. Use the nvflash (32-bit) that I attached - used to be on techpowerup's site...v52-65.
Anyhow - you'll have access to your disk, but without the clutter that prevents you to flash with nvflash unless there's something wrong with the card.
Otherwise just get data on missing components on your card and solder them on again or have some one solder them...
Link: https://www.techspot.com/downloads/6966-hirens-bootcd.html



[sankroy]

Here is link to Hiren's Boot CD (XP) pre-boot evironment v15.2. I flash all my Geforces this way. Use the nvflash (32-bit) that I attached - used to be on techpowerup's site...v52-65.
Anyhow - you'll have access to your disk, but without the clutter that prevents you to flash with nvflash unless there's something wrong with the card.
Otherwise just get data on missing components on your card and solder them on again or have some one solder them...
Link: https://www.techspot.com/downloads/6966-hirens-bootcd.html

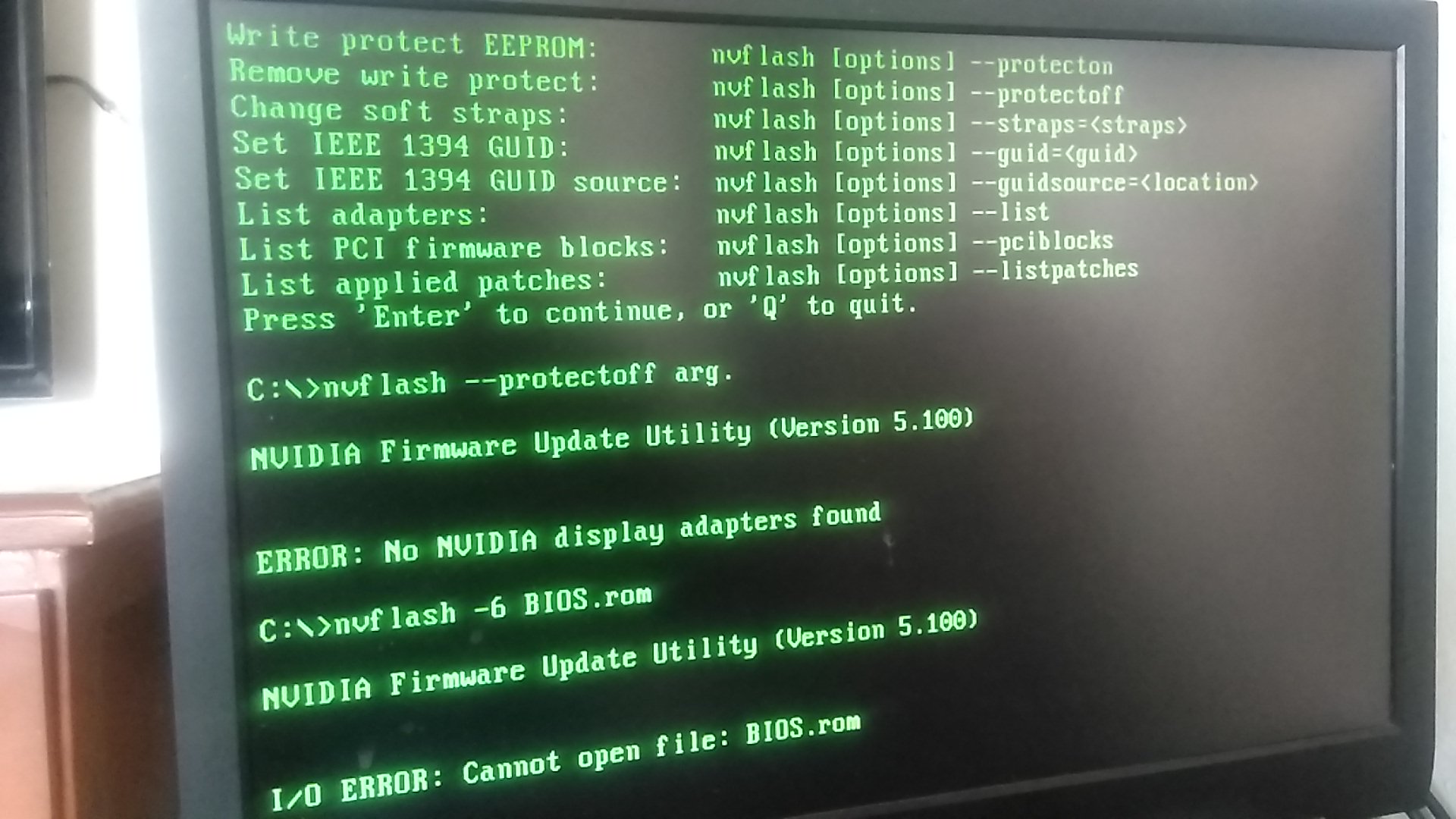

From hiren boot cd and I have this error

I'm conected from the GTX 670 vía VGA

Can I do now?

Thanks in Advanced

Who know where is the BIOS Chip at gtx670?

See this picture Thanks!

Look at the picture , but the PC is freezing ! Of course because it's a gtx 670 no 680

I think that Using the soic8 programmer maybe the gpu card works fine



[pavle]

In Hiren's CD you should start "miniXP" and out of them you can access your disk via windows explorer and run nvflash using command prompt. Nvflash and BIOS have to be in the same directory/folder.
Here is the 2682 ID BIOS.



[sankroy]

Ok my friend

In Hiren's CD you should start "miniXP" and out of them you can access your disk via windows explorer and run nvflash using command prompt. Nvflash and BIOS have to be in the same directory/folder.
Here is the 2682 ID BIOS.

Almost done the work, I think! Please Just change the firmware ID, I hope so you can change it

Thanks again!



[pavle]

LOL!
Oh my - what a franken-BIOS we ended up with.
I probably can change it but - is it going to work and work reliably - that is a whole another can of shaderliciousness... Let me see...
Again - flash it at your own risk - if you brick it, I won't be at fault. I see red flags all over the place.



[sankroy]

LOL!
Oh my - what a franken-BIOS we ended up with.
I probably can change it but - is it going to work and work reliably - that is a whole another can of shaderliciousness... Let me see...

Ok My friend , you can do it!!!

I think just to do it and the gpu work fine! I hope so!

Im flashed but the problem continue

Thanks for all my friend!

Just I can do is test putting on the oven or flashing with soic8 programer that I must to buy to test that!

Error Cod 43 maybe has a hardware problem this gpu for example any resistor missing



[pavle]

I would first try and replace all the missing/damaged components on the card. Just search on Google -> Images, there has to be a high resolution image of the card.
I'm curious if the card is actually unlocked to all 1536 shaders.
