HELP OC G.SKILL 2X16 GB -04320X8820C

Joined
Aug 24, 2022
Messages
51 (0.51/day)
HI GUYS,

looking to maximize my ram set . G. skills f4-3600C16D-32GTZNC

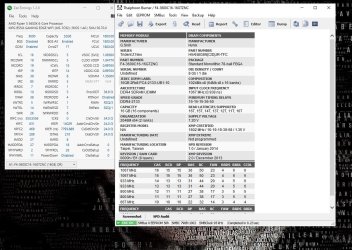

version. 04320X8820c. Please see my current default xmp settings and readings attached.


Attachments

  • ccccc.JPG
    214.7 KB · Views: 150
Joined
Feb 3, 2019
Messages
1,694 (1.21/day)
Location
Chicago Land
Processor 12400F
Motherboard Asus B660-G (BCLK enabled!!)
Cooling Stock Air
Memory Patriot C36 series 5200mhz
Video Card(s) Asus strix GTX 980 OC
Storage Samsung 980 pro m2
Display(s) 21" - 55"
Case None
Power Supply Antec CP series 1000w
Mouse Razar Mamba Tournament Edition
Keyboard Logitech G910
Benchmark Scores 1800 single core CB R23 at 4.6ghz
To maximize this kit, return it and get the same part number without the "C" at the end.


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
4,998 (1.84/day)
Location
Western Canada
Processor 5800X3D
Motherboard ROG X570 Impact (4006 reous mod)
Cooling PA120
Memory 32GB 3733CL14
Video Card(s) TUF RTX 3070 Ti - 1980@0.931V
Storage 1TB SN750 - 2TB SN850X - 1TB Blue3D
Case OBT Mini v1.1
Power Supply SF750
8820C is CJR, like all of G.skill's cheap -C kits. CJR is okay as a daily but really only if you get it for a really good price. Didn't you already have a dual rank Micron Rev.B kit? You pretty much made a sidegrade (best case)/downgrade (worst case).

If you want something you can actually tweak, the 3600 16-16-16 kits are B-die (but can be kind of a middling bin). Go for 3600CL14 if you want a good start.

Don't expect much OC headroom out of it, it's CJR (anecdotally damages itself past 1.45v). 3600 16-19-19, 3800 16-20-20, maybe 4000 18-21(?)-21 if you're lucky.

5900x cjr.png

Joined
Aug 24, 2022
Messages
51 (0.51/day)
8820C is CJR, like all of G.skill's cheap -C kits. CJR is okay as a daily but really only if you get it for a really good price. Didn't you already have a dual rank Micron Rev.B kit? You pretty much made a sidegrade (best case)/downgrade (worst case).

If you want something you can actually tweak, the 3600 16-16-16 kits are B-die (but can be kind of a middling bin). Go for 3600CL14 if you want a good start.

Don't expect much OC headroom out of it, it's CJR (anecdotally damages itself past 1.45v). 3600 16-19-19, 3800 16-20-20, maybe 4000 18-21(?)-21 if you're lucky.

View attachment 260472
feeling real lucky here...
i benched the corsair 3200c16 v3.44 and bought this new set with high expectations ( g.slill f4-3600C16D-32GTZNC v.04320X8820c) $159

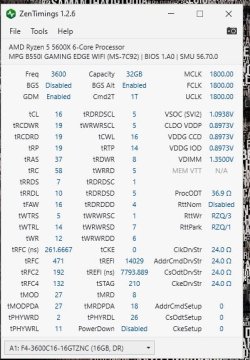

anyways , doesnt seem to be doing so bad ... i was able to get to 3800 but 17-20-40 . this is where im at now


Attachments

  • aasasas.JPG
    60.7 KB · Views: 42
Joined
Feb 3, 2019
Messages
1,694 (1.21/day)
Location
Chicago Land
Processor 12400F
Motherboard Asus B660-G (BCLK enabled!!)
Cooling Stock Air
Memory Patriot C36 series 5200mhz
Video Card(s) Asus strix GTX 980 OC
Storage Samsung 980 pro m2
Display(s) 21" - 55"
Case None
Power Supply Antec CP series 1000w
Mouse Razar Mamba Tournament Edition
Keyboard Logitech G910
Benchmark Scores 1800 single core CB R23 at 4.6ghz
Joined
Feb 3, 2019
Messages
1,694 (1.21/day)
Location
Chicago Land
Processor 12400F
Motherboard Asus B660-G (BCLK enabled!!)
Cooling Stock Air
Memory Patriot C36 series 5200mhz
Video Card(s) Asus strix GTX 980 OC
Storage Samsung 980 pro m2
Display(s) 21" - 55"
Case None
Power Supply Antec CP series 1000w
Mouse Razar Mamba Tournament Edition
Keyboard Logitech G910
Benchmark Scores 1800 single core CB R23 at 4.6ghz
Well shit . Could you please send the Link please on what I should actually have bought ?
This is a newegg link, but I seen them on ebay for like a buck and a quarter.


Joined
Oct 16, 2018
Messages
683 (0.45/day)
Location
Uttar Pradesh, India
Processor AMD R7 1700X @ 4100Mhz
Motherboard MSI B450M MORTAR MAX (MS-7B89)
Cooling Phanteks PH-TC14PE
Memory Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14
Video Card(s) XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC)
Storage Samsung SSD 850 EVO 250GB
Display(s) Acer KG271 1080p @ 81Hz
Power Supply SuperFlower Leadex II 750W 80+ Gold
Keyboard Redragon Devarajas RGB
Software Microsoft Windows 10 (10.0) Professional 64-bit
Benchmark Scores https://valid.x86.fr/mvvj3a
To maximize this kit, return it and get the same part number without the "C" at the end.
To make 100% sure you get a G.SKill Samsung B-Die kit look for 8810B on the sticker.

You can also try this website


Joined
Feb 3, 2019
Messages
1,694 (1.21/day)
Location
Chicago Land
Processor 12400F
Motherboard Asus B660-G (BCLK enabled!!)
Cooling Stock Air
Memory Patriot C36 series 5200mhz
Video Card(s) Asus strix GTX 980 OC
Storage Samsung 980 pro m2
Display(s) 21" - 55"
Case None
Power Supply Antec CP series 1000w
Mouse Razar Mamba Tournament Edition
Keyboard Logitech G910
Benchmark Scores 1800 single core CB R23 at 4.6ghz
To make 100% sure you get a Samsung B-Die kit look for 8810B on the sticker.
View attachment 260474
That's why I like newegg. They list the actual timing set IE: 16-16-16-36. Pure distinctive indication of Samsung B-Die. No other die make will cary that timing set. The A dies are close 16-18-18, but funk all that noise, they don't clock as well.

feeling real lucky here...
i benched the corsair 3200c16 v3.44 and bought this new set with high expectations ( g.slill f4-3600C16D-32GTZNC v.04320X8820c) $159
anyways , doesnt seem to be doing so bad ... i was able to get to 3800 but 17-20-40 . this is where im at now
Yeah, way no good. The kit without the C will probably do 4000mhz on the XMP timing set and a little V-Dimm oomph.


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
4,998 (1.84/day)
Location
Western Canada
Processor 5800X3D
Motherboard ROG X570 Impact (4006 reous mod)
Cooling PA120
Memory 32GB 3733CL14
Video Card(s) TUF RTX 3070 Ti - 1980@0.931V
Storage 1TB SN750 - 2TB SN850X - 1TB Blue3D
Case OBT Mini v1.1
Power Supply SF750
feeling real lucky here...
i benched the corsair 3200c16 v3.44 and bought this new set with high expectations ( g.slill f4-3600C16D-32GTZNC v.04320X8820c) $159
anyways , doesnt seem to be doing so bad ... i was able to get to 3800 but 17-20-40 . this is where im at now

To be clear, if you're just looking for something to set and forget, CJR is fine for 3600 16-19-19 and 3733 16-19/20-19/20. 3800 is a lil tougher, I never got CL16 to work on mine.

The problem is that CJR basically doesn't scale with voltage. Freq is kinda crap (4000/4133 if lucky, but timings worse than Micron). On paper it'll still scale tCL with VDIMM, but CJR just runs out of steam. DJR is a much better overclocker (imo a little too good, since both Intel (except Comet Lake) and AMD break Gear 1/1:1 to make full use of it).......but you'll never find DJR this cheap with G.skill.

Joined
Feb 3, 2019
Messages
1,694 (1.21/day)
Location
Chicago Land
Processor 12400F
Motherboard Asus B660-G (BCLK enabled!!)
Cooling Stock Air
Memory Patriot C36 series 5200mhz
Video Card(s) Asus strix GTX 980 OC
Storage Samsung 980 pro m2
Display(s) 21" - 55"
Case None
Power Supply Antec CP series 1000w
Mouse Razar Mamba Tournament Edition
Keyboard Logitech G910
Benchmark Scores 1800 single core CB R23 at 4.6ghz
To be clear, if you're just looking for something to set and forget, CJR is fine for 3600 16-19-19 and 3733 16-19/20-19/20. 3800 is a lil tougher, I never got CL16 to work on mine.

The problem is that CJR basically doesn't scale with voltage. Freq is kinda crap (4000/4133 if lucky, but timings worse than Micron). On paper it'll still scale tCL with VDIMM, but CJR just runs out of steam. DJR is a much better overclocker (imo a little too good, since both Intel (except Comet Lake) and AMD break Gear 1/1:1 to make full use of it).......but you'll never find DJR this cheap with G.skill.
Spot on. Loosen timings and leave the XMP voltage alone. Maybe a 0.01v bump for v-droop.

I suggest Disabling "power down mode", should be located down the timings list there usually next to "gear down mode". This will prevent the memory from throttling when idle and helps with the infamous AMD + SK Hynix "Freeze ups".

My end suggestion is always return and get the kit without the "C" and I've been thanked numerous times for that. (LTT forums).

Joined
Aug 24, 2022
Messages
51 (0.51/day)
Spot on. Loosen timings and leave the XMP voltage alone. Maybe a 0.01v bump for v-droop.

I suggest Disabling "power down mode", should be located down the timings list there usually next to "gear down mode". This will prevent the memory from throttling when idle and helps with the infamous AMD + SK Hynix "Freeze ups".

My end suggestion is always return and get the kit without the "C" and I've been thanked numerous times for that. (LTT forums).
Thank you . If I can find it on Amazon I will swap it ..

Is this it ?

Joined
Oct 16, 2018
Messages
683 (0.45/day)
Location
Uttar Pradesh, India
Processor AMD R7 1700X @ 4100Mhz
Motherboard MSI B450M MORTAR MAX (MS-7B89)
Cooling Phanteks PH-TC14PE
Memory Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14
Video Card(s) XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC)
Storage Samsung SSD 850 EVO 250GB
Display(s) Acer KG271 1080p @ 81Hz
Power Supply SuperFlower Leadex II 750W 80+ Gold
Keyboard Redragon Devarajas RGB
Software Microsoft Windows 10 (10.0) Professional 64-bit
Benchmark Scores https://valid.x86.fr/mvvj3a
Yes that is guaranteed to be Samsung B-die its specs are 3600 16-16-16 @ 1.35V


This is also Samsung B-die abit cheaper and no RGB

Joined
Jan 4, 2022
Messages
17 (0.05/day)
Location
Contrite, California
System Name MIGHTY_MOUSE_v3
Processor i9 11900
Motherboard MSI MEG Z590I UNIFY (MS-7D05)
Cooling Thermalright Silver Soul 135 Black
Memory G-Skill F4-3200C14-16GTZR
Video Card(s) RTX 3060ti FTW3 Ultra
Storage WD BLACK SN770 / WD BLUE SN570 / WD BLACK 4TB
Display(s) Samsung U28E510
Case Fractal Torrent Nano Black DARK TINT (5 Prism Fans: 4x140mm/1x120mm)
Audio Device(s) HT Omega HALO USB feeding a pair of M-Audio EX-66
Power Supply Seasonic Focus GX 750
Mouse Razer Death Adder 1800dpi (Lunar White)
Keyboard Linux Cool Keys (PS/2) / Ideazon MERC Stealth
Software KDE Neon 5.23 / win10Prox64 21H2
Benchmark Scores http://www.3dmark.com/spy/27438479

tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
4,998 (1.84/day)
Location
Western Canada
Processor 5800X3D
Motherboard ROG X570 Impact (4006 reous mod)
Cooling PA120
Memory 32GB 3733CL14
Video Card(s) TUF RTX 3070 Ti - 1980@0.931V
Storage 1TB SN750 - 2TB SN850X - 1TB Blue3D
Case OBT Mini v1.1
Power Supply SF750
i love gskill kits but i DO rather like these kits (as a semi-low-pro non.rainbow.brite alternative) for my z390/590 builds [they are single rank if that's pertinent to you]
https://www.newegg.com/oloy-16gb-288-pin-ddr4-sdram/p/N82E16820821426?Item=N82E16820821426

i'm also partial to newegg and/or memoryC for buying rams over sk'amazon [based on dodgy usps shipping issues, etc...]

Both single rank, OP has 2DIMM board, not gonna work

otherwise, the new patriot kit is excellent value for 4x8

Joined
Jan 4, 2022
Messages
17 (0.05/day)
Location
Contrite, California
System Name MIGHTY_MOUSE_v3
Processor i9 11900
Motherboard MSI MEG Z590I UNIFY (MS-7D05)
Cooling Thermalright Silver Soul 135 Black
Memory G-Skill F4-3200C14-16GTZR
Video Card(s) RTX 3060ti FTW3 Ultra
Storage WD BLACK SN770 / WD BLUE SN570 / WD BLACK 4TB
Display(s) Samsung U28E510
Case Fractal Torrent Nano Black DARK TINT (5 Prism Fans: 4x140mm/1x120mm)
Audio Device(s) HT Omega HALO USB feeding a pair of M-Audio EX-66
Power Supply Seasonic Focus GX 750
Mouse Razer Death Adder 1800dpi (Lunar White)
Keyboard Linux Cool Keys (PS/2) / Ideazon MERC Stealth
Software KDE Neon 5.23 / win10Prox64 21H2
Benchmark Scores http://www.3dmark.com/spy/27438479

tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
4,998 (1.84/day)
Location
Western Canada
Processor 5800X3D
Motherboard ROG X570 Impact (4006 reous mod)
Cooling PA120
Memory 32GB 3733CL14
Video Card(s) TUF RTX 3070 Ti - 1980@0.931V
Storage 1TB SN750 - 2TB SN850X - 1TB Blue3D
Case OBT Mini v1.1
Power Supply SF750
Right . I guess I don’t care for rgds but needs to be compatible with MSI b550i Wi-Fi edge and Ryzen 5 5600x

How about this one?

The actual kit on that page is B-die (3600 14-15-15) but it's single rank. The kit that you searched for on Amazon (3800 16-19-19), I'm not sure if that's a very low B-die bin, a new high CJR bin, or a low DJR bin.

Here's mine: https://www.gskill.com/product/165/166/1604305764/F4-3600C14D-32GTZR

G.skill has multiple versions of every kit. As long as you make sure the specs are the same (ie. 2x16GB 3600 14-15-15), all other differences are just aesthetic, just heatspreader choices (Ripjaws, Z RGB, Z, Z Neo, etc)

Last edited:
Joined
Aug 24, 2022
Messages
51 (0.51/day)
You know what
I think I’m just get stay with this one at 3600 or get the one from Newegg but I’m tired of messing with memory OC


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
4,998 (1.84/day)
Location
Western Canada
Processor 5800X3D
Motherboard ROG X570 Impact (4006 reous mod)
Cooling PA120
Memory 32GB 3733CL14
Video Card(s) TUF RTX 3070 Ti - 1980@0.931V
Storage 1TB SN750 - 2TB SN850X - 1TB Blue3D
Case OBT Mini v1.1
Power Supply SF750
You know what
I think I’m just get stay with this one at 3600 or get the one from Newegg but I’m tired of messing with memory OC

Understandable, nothing wrong with that. Especially if you weren't able to get your previous Micron kit down tighter than 3600 18-21-21. You can use my old CJR timings as a bit of a reference to tighten yours a bit (don't copy them though, they're not the best), or 16-19-19 XMP is honestly fine too.

32GB of B-die still isn't cheap - personally I felt the pretty penny I paid was worth it in being able to mess around with OC, but if just running at XMP you may as well not spend that sort of money on B-die.

Joined
Aug 24, 2022
Messages
51 (0.51/day)
aight yolo, I ordered from Newegg the b die and will return the one I have to Amazon after the weekend. I figured the $50 bucks difference it’s worth it .So once I receive it I will follow up with you guys to try this again

thanks for the help by the way
I appreciate it

Joined
Feb 3, 2019
Messages
1,694 (1.21/day)
Location
Chicago Land
Processor 12400F
Motherboard Asus B660-G (BCLK enabled!!)
Cooling Stock Air
Memory Patriot C36 series 5200mhz
Video Card(s) Asus strix GTX 980 OC
Storage Samsung 980 pro m2
Display(s) 21" - 55"
Case None
Power Supply Antec CP series 1000w
Mouse Razar Mamba Tournament Edition
Keyboard Logitech G910
Benchmark Scores 1800 single core CB R23 at 4.6ghz
aight yolo, I ordered from Newegg the b die and will return the one I have to Amazon after the weekend. I figured the $50 bucks difference it’s worth it .So once I receive it I will follow up with you guys to try this again

thanks for the help by the way
I appreciate it
Here you go. Pay attention to this thread.

The kit will have everyone going circles and circles. But this guy has 2x kits installed 64gb total.


Joined
Aug 24, 2022
Messages
51 (0.51/day)
I just went over it .‘a man he did everything but noticing the ram overkill on a 3600.
did I get that right?

Joined
Feb 3, 2019
Messages
1,694 (1.21/day)
Location
Chicago Land
Processor 12400F
Motherboard Asus B660-G (BCLK enabled!!)
Cooling Stock Air
Memory Patriot C36 series 5200mhz
Video Card(s) Asus strix GTX 980 OC
Storage Samsung 980 pro m2
Display(s) 21" - 55"
Case None
Power Supply Antec CP series 1000w
Mouse Razar Mamba Tournament Edition
Keyboard Logitech G910
Benchmark Scores 1800 single core CB R23 at 4.6ghz
I just went over it .‘a man he did everything but noticing the ram overkill on a 3600.
did I get that right?
Well thats everyone's desire. To run the XMP profile I mean. If a person gets 4000mhz memory, it's expected to run it.

He's running a 5900x, which would support normally 3200mhz and 32gb of memory populating 2 slots.

The bummer is, he'd be under rated the memory frequency at the given XMP timing and it would perform worse if dialed back to 3200mhz. And he would probably still have the same issue running all 4 sticks.

It's just not a great set of memory to pair with a Ryzen machine. The memory controller is a little picky it seems.

Was hoping he would reply so I can try and navigate assistance, but at the end of the day, I will be suggesting the same kit I suggested for you and running only 32gb. But if he needs 64gb, he could dial the b-die kit back to 3200mhz and it might just remain stable. That requires testing though, but he'd have a lot less problems.

Top
