Share your AIDA 64 cache and memory benchmark here

[E-curbi]

This is my best (lowest) AIDA64 mem latency score so far.

35.7ns with 4100Mhz 15-15-15-34 and only a mild OC on the processor. Woohoo!

My north bridge - ring bus always reads 1000Mhz lower than the value I set in bios, no idea why. Probably a Z390 Dark board - AIDA 64 issue. The motherboard also does not send any memory clock speed signal to Windows 10 task manager. Some sort of disconnect between EVGA and Windows.

Did get this crazy low score once using an older bios, but I believe it was only a software artifact.

... at least the north bridge was reading correctly that day. Maybe I should return to bios v1.04. lol



[mildew]

My rig is historical, but still is playing the latest games at 60fps



[E-curbi]

My rig is historical, but still is playing the latest games at 60fps

View attachment 135911

That's an amazing score bro, from 2012?

7-8 years and we've only dropped from 44ns to 34ns, WOW, your rig must have been the FASTEST available at that time, still an amazing score in 2019.

I have seen a Kaby Lake Quad Core score at 33ns, but the lowest Coffee Lake 6 and 8cores I've seen is 34ns. But then, I don't get out much. lol



[mildew]

Thanks , yes the Ivy Bridge era is 2012, using a 1070TI so obviously much newer on that front. Hoping it will be adequate for Cyberpunk2077 and Dying Light 2. Next upgrade will be a 3700x based rig , but hopefully i can put that off for a few years and get one second hand!



[dennymotion]

just bought ryzen 5 3600 with ballistix 3000cl15, activated xmp profile and got latency 83 and read speed 42000.
is it ok?
latency 83 looks bad



[Voltaj .45 ACP]

just bought ryzen 5 3600 with ballistix 3000cl15, activated xmp profile and got latency 83 and read speed 42000.
is it ok?
latency 83 looks bad

is fclk 1500 in bios?3000/2= must be 1500.ai tweaker if asus or someting like that.search this setting not leave auto.83 is too much your settings are wrong.try manual.



[crucifier]

the best Ryzen 3gen latency I've seen is around 62ns at 3800 - with 1:1 bus/memory settings.


Intel's latency won't go down easily through 36-37 ns barrier. I don't now why, but it takes much more effort to get any lower.
I think there is an Windows or AIDA calculation limit, because I haven't seen lower than 34ns.

Moreover with that kind of settings memory become very temperature sensitive.



[NoJuan999]

G.Skill Ripjaws V Series 16GB (2 x 8GB) 3600 MHz (F4-3600C16D-16GVKC ) @ 16-19-19-19-39-58:

G.Skill Ripjaws V Series 16GB (2 x 8GB) 3600 MHz (F4-3600C16D-16GVKC ) @ 16-18-18-18-38-58:



[Voltaj .45 ACP]

G.Skill Ripjaws V Series 16GB (2 x 8GB) 3600 MHz (F4-3600C16D-16GVKC ) @ 16-19-19-19-39-58:
View attachment 136737

G.Skill Ripjaws V Series 16GB (2 x 8GB) 3600 MHz (F4-3600C16D-16GVKC ) @ 16-18-18-18-38-58:
View attachment 136738



[Bobmitmen]

GSkill Ripjaws 5 3200 15-15-35

F4-3200C15Q-32GVK - Overview - G.SKILL International Enterprise Co., Ltd.

Ripjaws V series DDR4 DRAM memory is designed for sleek aesthetics and performance, making it an ideal choice for building a new PC system or for upgrading your system memory.

www.gskill.com



[VoltHertz]

My first memory overclock... it is a corsair dominator platinum 3466 mhz cl16... and now it is a 4040mhz cl14.... voltage at 1.66... is that too high? can i use it like for 6 years to go???



[NoJuan999]

G.Skill Ripjaws V Series 16GB (2 x 8GB) 3733 MHz (F4-3600C16D-16GVKC ) @ 16-19-19-19-38-58:



[Voltaj .45 ACP]

My first memory overclock... it is a corsair dominator platinum 3466 mhz cl16... and now it is a 4040mhz cl14.... voltage at 1.66... is that too high? can i use it like for 6 years to go???
View attachment 137032

can i use it like for 6 years to go???

no.missing HT will be problem or you'll go higher res.1080p is a cpu killer and 9700k already hard times in some games today.



[Arctucas]

Under 33ns latency.



[Deleted member 185158]

3600 sticks at 3733mhz CL14-14-14-28 1T



[Voltaj .45 ACP]

3600 sticks at 3733mhz CL14-14-14-28 1T

View attachment 137995

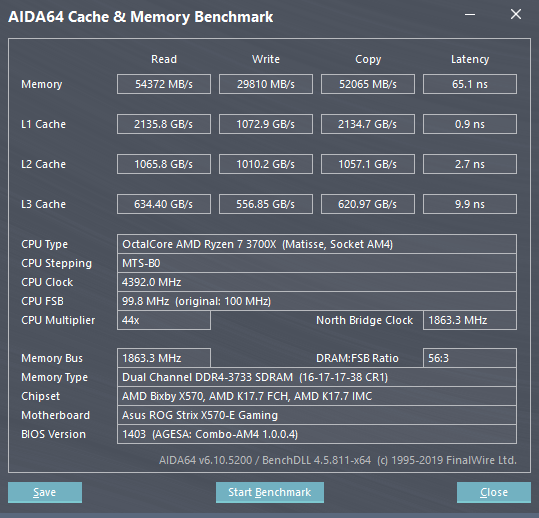

i coulnd't run above 3466 mhz on my asus x470 prime pro.3600 adata cl17 ram.now same ram in asus x570 strix-e with 3700x and it runs 4200 cl16.running above 3466 on ryzen+ is one point, made manual 4.3 ghz on 2700x is another point and you should share your subtimings because my 3733 cl16 3700x latency is 65.



[jesdals]



[Deleted member 185158]

i coulnd't run above 3466 mhz on my asus x470 prime pro.3600 adata cl17 ram.now same ram in asus x570 strix-e with 3700x and it runs 4200 cl16.running above 3466 on ryzen+ is one point, made manual 4.3 ghz on 2700x is another point and you should share your subtimings because my 3733 cl16 3700x latency is 65.

That's G.Skill 3600 sticks CL16. Running 1.600v for accomplishment.
That was not a daily configuration, I run closer to 3200mhz daily at the same timing set.
However at 3200mhz I can pull off Cas 12-12-12.
I was XMP sub timings, no major changes except tRFC I run that much tighter around 374 ticks.



[Voltaj .45 ACP]

That's G.Skill 3600 sticks CL16. Running 1.600v for accomplishment.
That was not a daily configuration, I run closer to 3200mhz daily at the same timing set.
However at 3200mhz I can pull off Cas 12-12-12.
I was XMP sub timings, no major changes except tRFC I run that much tighter around 374 ticks.

my adata spectre d41 3600 cl17 goes 4200 cl16 with 1.5v.probably more than enough voltage.you're not set timings why am i getting 65ns?mine is daily with all auto.anyway thank you.



[Deleted member 185158]

my adata spectre d41 3600 cl17 goes 4200 cl16 with 1.5v.probably more than enough voltage.you're not set timings why am i getting 65ns?mine is daily with all auto.anyway thank you.

Try CL 14-14-14-28 starting at 3200 and work your way up. Set tRFC 450 or lower.



[Voltaj .45 ACP]

Try CL 14-14-14-28 starting at 3200 and work your way up. Set tRFC 450 or lower.

3200 cl14 oh c'mon man work with me i'm telling ya these rams are monster bu somehow i couldn't get lower ns.this is old bios maybe today it will be good a little more but i won't try it.i know trfc trick.something different about you.cpu mobo ghz i don't know you didn't even trying and below 60.i admit defeat to 2700x which is my second system's cpu but 3000 corsair rams and couldn't hit 3001 and cpu max 4150 mhz.my first system is super.one of bad one of good how this could happen it's so bipolar.oh wait..



[Deleted member 178884]

Cheap 64gb d-die kit - still a work in progress ; )



[Deleted member 185158]

View attachment 138294

3200 cl14 oh c'mon man work with me i'm telling ya these rams are monster bu somehow i couldn't get lower ns.this is old bios maybe today it will be good a little more but i won't try it.i know trfc trick.something different about you.cpu mobo ghz i don't know you didn't even trying and below 60.i admit defeat to 2700x which is my second system's cpu but 3000 corsair rams and couldn't hit 3001 and cpu max 4150 mhz.my first system is super.one of bad one of good how this could happen it's so bipolar.oh wait..

These are XMP stock timings - I tweak off of these even at lower frequency.
@ 1801 MHz 16-16-16-36 (CL-RCD-RP-RAS) / 52-631-469-289-10-7-44 (RC-RFC1-RFC2-RFC4-RRDL-RRDS-FAW)

Change RFC1 to 374.

Don't run silly 14-15-15 timings.
Get them straight at 14-14-14-28-40 (or less) and change command rate to 2T

Post at 3200mhz, test latency. Then work up to 3733mhz, each time run the latency test.
Don't loosen the timings if it doesn't like it past 3600mhz. Raise DRAM voltage to 1.60v. (might need this much because of the tighter timings)

Anything beyond this I will not post in open forums.

Cheap 64gb d-die kit - still a work in progress ; )
View attachment 138298

Not sure how good the IMC is on that 7980X.
Even with that D-Die, that memory will squeeze up.
Would set 1.40v at 17-17-17-38-58 is good. 2T
You could probably cut that tRFC in half at 250, but would try 350 first.
Hope this helps!!



[Deleted member 178884]

Not sure how good the IMC is on that 7980X.

pretty good currently the VCCIO is at 1.1V Vccio / 0.935V load on the VCCSA
DIMM seems to be at 1.44V load.

You could probably cut that tRFC in half at 250, but would try 350 first.

Unfortunately not. It doesn't post at a tRFC of 480 or lower.

Would set 1.40v at 17-17-17-38-58 is good. 2T

Probably won't post.



[Deleted member 185158]

pretty good currently the VCCIO is at 1.1V Vccio / 0.935V load on the VCCSA
DIMM seems to be at 1.44V load.

Unfortunately not. It doesn't post at a tRFC of 480 or lower.

Probably won't post.

No lower than 480! meh it is hynix, perhaps the frequency is just too high for lower.
1.44 is a little overshoot. Not a bad thing. Just put a fan on them sticks. The cooler the better.
You can raise the vCCIO and vCCSA a little bit if your on liquid cooling.

Will they post faster than XMP without changing anything?
