The 4800 series Driver, OCing, Cooling, Tweaking & Discussion Thread
OK, time is almost up and we need to start up a thread dedicated to all 4800 series:
-Drivers
-Over clocking
-Tweaking
-Modding
-Cooling
It makes it much easier for anyone who wants to buy this card to find what they are looking for in one thread. Right now (at the time of this OP) it's a bit early. However, I am assuming that some internet stores should leak the card out early. Well, I'm hoping they do
. In the meantime, keep this thread in mind as the card's release isn't to far now.
Before
After
The heatsink looks pretty good. I only did a mild lapping to remove the discoloration in the prior pic. There are hairline marks but nothing to worry about IMO.

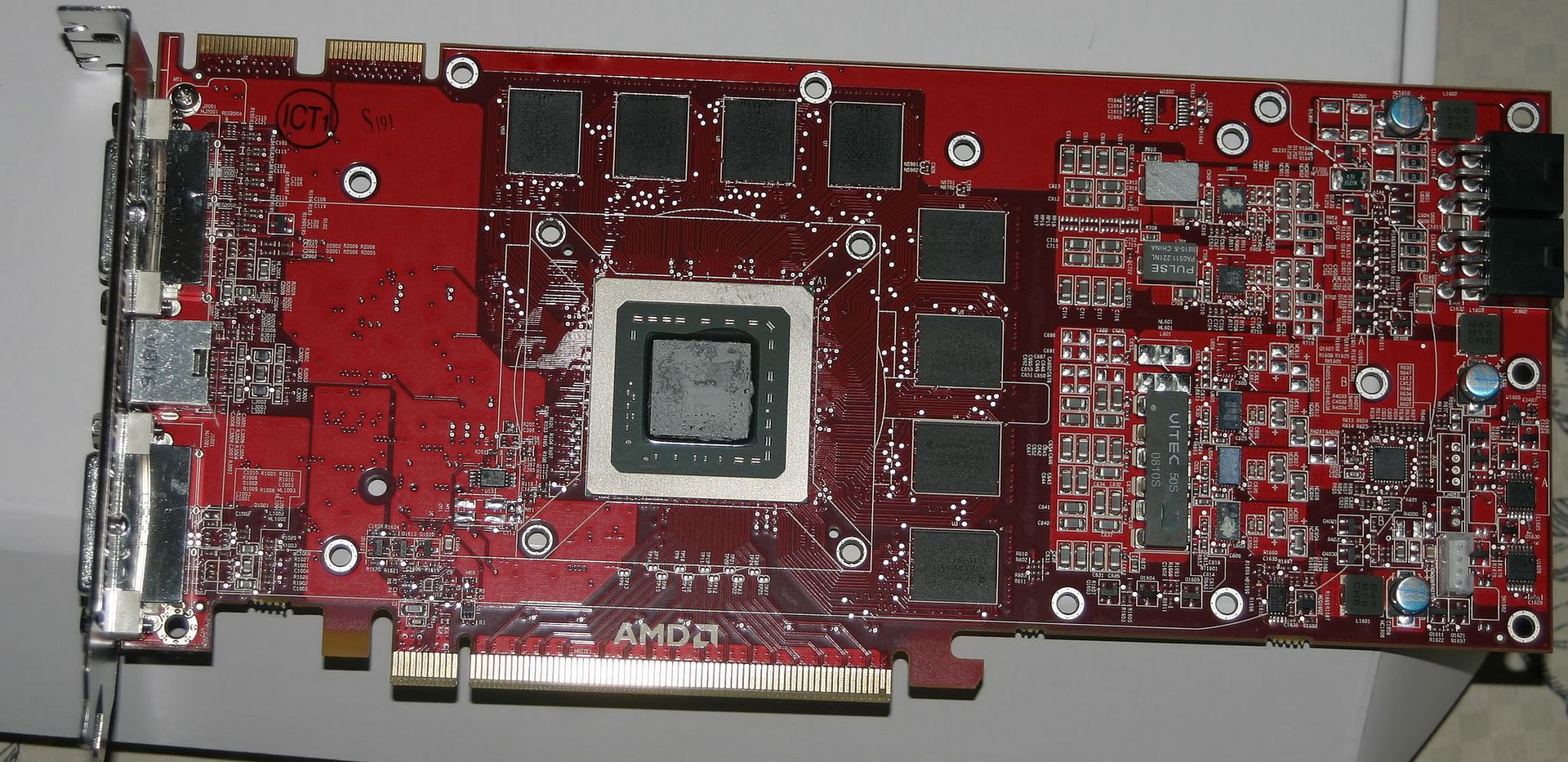

The OEM thermal compound impression looks good (nothing out of the ordinary). When removing the thermal compound it was a little dry but nothing to worry about IMO.
I took a measurement of the vreg heatsink (if it's called something else let me know). The holes measured 3 3/16" not 3 1/4". I tried my best to get that right so my apology.
Memory ICs used
Overall view of 4800
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Idle temps at 500/900 after using MX2 thermal compound.
This is the temp at idle
Temps after 15 minutes of Grid racing in San Francisco track (most graphically challenging track IMO). The fan speed went from 22% to 26%, a 4% difference. The temps only increased 3C between idle and load. I can only guess that the minor lap and MX2 made a difference. I've read some reports that temps were much higher then 3C in 3D mode. However, I didn't take any thermal measurements using the OEM TC.
Idle temps after playing grid for roughly 25 minutes. Looks like MX2 needs cure time.
Fan is now at 65%. Idle temp is now 52C. I had trouble getting the profile mod to work using Cat 8.6. It didn't work until I use Cat 8.6 Update. That is a 37C idle difference. I have to admit though, that's pretty loud. Not a fan noise loud but air moving loud.
Temps after 15 minutes of Grid racing in San Francisco track. Temp was 58C but SS took it at 57C.
Ambient temps were between 30c-31c throughout the tests
Here is my results using 98% GPU usage. It would go to over 100% but then go back to 98%. I let it sit for a few minutes until the temps no longer moved. Temo reached 60% with the fan at 65%. Ambient temps read 29.7C.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
I was able to water cool the 4870 with a DangerDen Maze4. However, I still had to use the OEM front plate that the fan is attached to so I could properly cool the vregs. Although the memory ICs are "covered" the vregs are important to cool in this case. I was able to use the OEM heatsink bracket as I wanted to reuse it. I tested the contact between the Maze4 and GPU die using thermal compound and contact looks good. Below are some pics:
This photo shows the OEM bracket along with the Maze4.

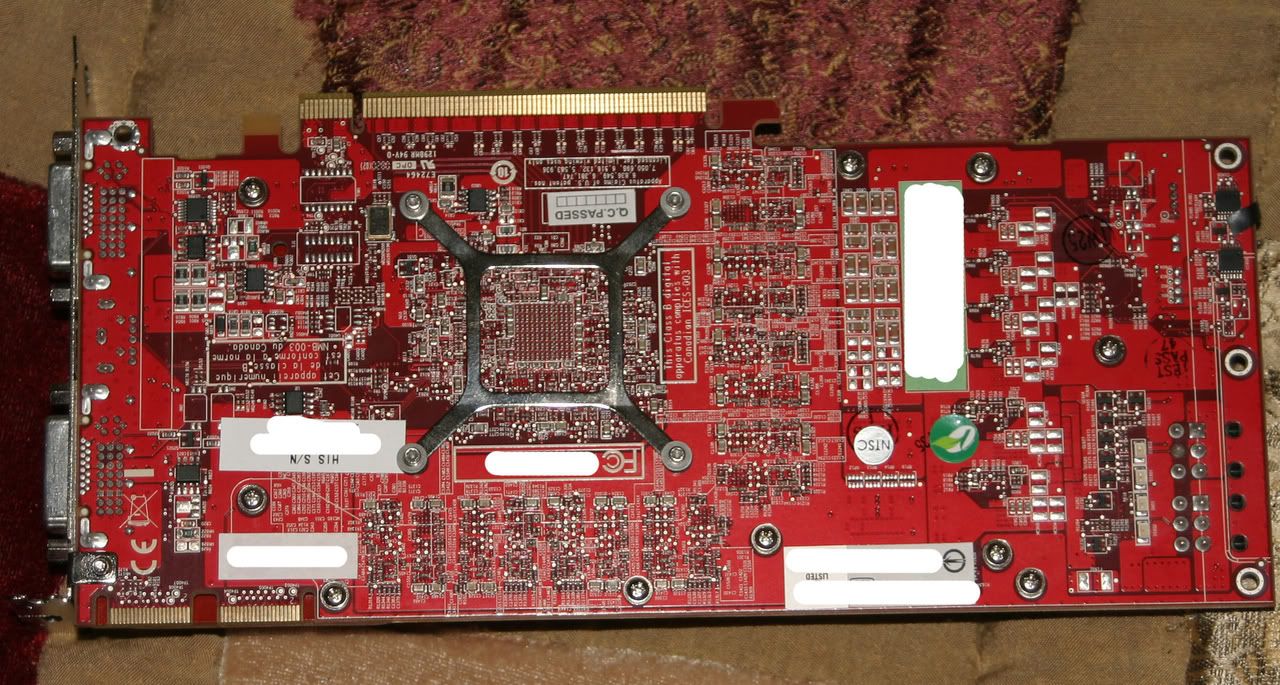

This photo shows the back of the 4870 using the OEM heat sink bracket.
This photo shows that I used Neoprene & rubber washers between the actual heat sink bracket and the video card. This will protect the video card from damage.
As for temps, idle temps are 36C-37C and load temps at 98% GPU load is 40C after several minutes. I did find disparity between CCC's GPU load and GPU-Z GPU load.
Idle temps
Load temps at 98% GPU load. However, GPU-Z shows 96% load.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
HD 2900XT 858/900
4870 750/1800
HD 2900XT 858/900
4870 750/1800
4870 750/1800 stock, CPU @ 3.600GHz
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
If you wan to change the fan speed of your 4850/4870, etc then you could do the following.
-Start up Cat
-Unlock CCC's Overclocker
-review all you settings to make sure thats how you want to save them
-click on the profile tab and select Profile Manager
-select the items you want to include in your profile (3D is a must)
or
-choose "This profile includes: all cat control settings"
-Give your profile a name and save it
-open up explorer and go to: C:\Documents and Settings\your name\Local Settings\Application Data\ATI\ACE
-Starting with Cat 8.7 the folder is now located at: C:\Documents and Settings\your name\Local Settings\Application Data\ATI\ACE\Profiles
-you should find the profile you saved
-open it up with notepad, once you do you should find the following:
-change to
............<Property name="FanSpeedAlgorithm" value="Manual" />
Note: You can leave it on automatic. FanSpeedPercentTarget from 25 to 55 should still work. However, this will not fully help idle temps
-change to
............<Property name="Want" value="55" /> (or any other numerical value)
-save and exit the xml file
-go back to Profiles Manager screen, select your profile and select the activate and close
button
-close Catalyst Control Center
-play a game and see if the fan revs up.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
4800 Series OC'ing Tool
If you wan to change the voltage of your 4850/4870, etc then you could do the following.
-Start up Cat
-review all you settings to make sure thats how you want to save them
-click on the profile tab and select Profile Manager
-select the items you want to include in your profile (3D is a must)
or
-choose "This profile includes: all cat control settings"
-Give your profile a name and save it
-open up explorer and go to: C:\Documents and Settings\your name\Local Settings\Application Data\ATI\ACE
--Starting with Cat 8.7 the folder is now located at: C:\Documents and Settings\your name\Local Settings\Application Data\ATI\ACE\Profiles
-you should find the profile you saved
-open it up with notepad, once you do you should find the following:
4870
4850
You want to adjust the the third line. For example from 1263 to 1273, etc. You are going to need to "experiment" with that to see if it offers you any gains. If the 4800 series is anything like the 2900 you should notice an improvement at higher OC's.
Side note: Don't mess with the memory voltage. Leave that at 0. Also, be mindful of this voltage increase, make sure you have proper cooling. Evaluate your temps using GPUz by paying close attention to the 3 temp readings. My suggestion is to keep the fan at 65% or higher. Increase the fan speed above 65% according to how much additional voltage you add. Also note that if you change the voltage it may boot up to that voltage change until you manually change it back to the original voltage setting. There is some risk involved doing this as there is no documentation yet on what method is best to OC these cards. So you do so at your own risk! If you don't feel comfortable, don't mess with the voltage settings!
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Make sure you have net .NET Frameworks 2.0 installed, reboot. Next install .NET Compact Framework 2.0 Service Pack 1, reboot. Finally, download and install Visual C++ 2005.
Keep in mind that MS Visual C++ 2008 is the lastest build and is compatible with .NET Framework 3.5
x86 version
If you use Futuremark's 3D Mark 2006 v1.1.0 make sure you have installed the February 2008 hotfix
You will also need the lastest build of directx using March 2008 update and install it in safe mode.
source
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
If for any reason a game doesn't properly function with a X2 or crossfire setup you can change the executable of that game to:
AFR-FriendlyD3D.exe
or
WarGame-G4WLive.exe or UT3.exe for unreal engine games
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
OK, time is almost up and we need to start up a thread dedicated to all 4800 series:
-Drivers
-Over clocking
-Tweaking
-Modding
-Cooling
It makes it much easier for anyone who wants to buy this card to find what they are looking for in one thread. Right now (at the time of this OP) it's a bit early. However, I am assuming that some internet stores should leak the card out early. Well, I'm hoping they do
. In the meantime, keep this thread in mind as the card's release isn't to far now.4870 Heatsink & View of Card Itself
Before
After
The heatsink looks pretty good. I only did a mild lapping to remove the discoloration in the prior pic. There are hairline marks but nothing to worry about IMO.
The OEM thermal compound impression looks good (nothing out of the ordinary). When removing the thermal compound it was a little dry but nothing to worry about IMO.
I took a measurement of the vreg heatsink (if it's called something else let me know). The holes measured 3 3/16" not 3 1/4". I tried my best to get that right so my apology.
Memory ICs used
Overall view of 4800
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
STOCK COOLING
Idle temps at 500/900 after using MX2 thermal compound.
This is the temp at idle
Temps after 15 minutes of Grid racing in San Francisco track (most graphically challenging track IMO). The fan speed went from 22% to 26%, a 4% difference. The temps only increased 3C between idle and load. I can only guess that the minor lap and MX2 made a difference. I've read some reports that temps were much higher then 3C in 3D mode. However, I didn't take any thermal measurements using the OEM TC.
Idle temps after playing grid for roughly 25 minutes. Looks like MX2 needs cure time.
Fan is now at 65%. Idle temp is now 52C. I had trouble getting the profile mod to work using Cat 8.6. It didn't work until I use Cat 8.6 Update. That is a 37C idle difference. I have to admit though, that's pretty loud. Not a fan noise loud but air moving loud.
Temps after 15 minutes of Grid racing in San Francisco track. Temp was 58C but SS took it at 57C.
Ambient temps were between 30c-31c throughout the tests
Here is my results using 98% GPU usage. It would go to over 100% but then go back to 98%. I let it sit for a few minutes until the temps no longer moved. Temo reached 60% with the fan at 65%. Ambient temps read 29.7C.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
WATER COOLING
I was able to water cool the 4870 with a DangerDen Maze4. However, I still had to use the OEM front plate that the fan is attached to so I could properly cool the vregs. Although the memory ICs are "covered" the vregs are important to cool in this case. I was able to use the OEM heatsink bracket as I wanted to reuse it. I tested the contact between the Maze4 and GPU die using thermal compound and contact looks good. Below are some pics:
This photo shows the OEM bracket along with the Maze4.
This photo shows the back of the 4870 using the OEM heat sink bracket.
This photo shows that I used Neoprene & rubber washers between the actual heat sink bracket and the video card. This will protect the video card from damage.
As for temps, idle temps are 36C-37C and load temps at 98% GPU load is 40C after several minutes. I did find disparity between CCC's GPU load and GPU-Z GPU load.
Idle temps
Load temps at 98% GPU load. However, GPU-Z shows 96% load.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
GAMES
HD 2900XT 858/900
4870 750/1800
HD 2900XT 858/900
4870 750/1800
4870 750/1800 stock, CPU @ 3.600GHz
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAN SPEED
If you wan to change the fan speed of your 4850/4870, etc then you could do the following.
-Start up Cat
-Unlock CCC's Overclocker
-review all you settings to make sure thats how you want to save them
-click on the profile tab and select Profile Manager
-select the items you want to include in your profile (3D is a must)
or
-choose "This profile includes: all cat control settings"
-Give your profile a name and save it
-open up explorer and go to: C:\Documents and Settings\your name\Local Settings\Application Data\ATI\ACE
-Starting with Cat 8.7 the folder is now located at: C:\Documents and Settings\your name\Local Settings\Application Data\ATI\ACE\Profiles
-you should find the profile you saved
-open it up with notepad, once you do you should find the following:
-change to
............<Property name="FanSpeedAlgorithm" value="Manual" />
Note: You can leave it on automatic. FanSpeedPercentTarget from 25 to 55 should still work. However, this will not fully help idle temps
-change to
............<Property name="Want" value="55" /> (or any other numerical value)
-save and exit the xml file
-go back to Profiles Manager screen, select your profile and select the activate and close
button
-close Catalyst Control Center
-play a game and see if the fan revs up.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
VOLTAGE TWEAKS (May no longer work on current cat releases)
4800 Series OC'ing Tool
If you wan to change the voltage of your 4850/4870, etc then you could do the following.
-Start up Cat
-review all you settings to make sure thats how you want to save them
-click on the profile tab and select Profile Manager
-select the items you want to include in your profile (3D is a must)
or
-choose "This profile includes: all cat control settings"
-Give your profile a name and save it
-open up explorer and go to: C:\Documents and Settings\your name\Local Settings\Application Data\ATI\ACE
--Starting with Cat 8.7 the folder is now located at: C:\Documents and Settings\your name\Local Settings\Application Data\ATI\ACE\Profiles
-you should find the profile you saved
-open it up with notepad, once you do you should find the following:
4870
4850
You want to adjust the the third line. For example from 1263 to 1273, etc. You are going to need to "experiment" with that to see if it offers you any gains. If the 4800 series is anything like the 2900 you should notice an improvement at higher OC's.
Side note: Don't mess with the memory voltage. Leave that at 0. Also, be mindful of this voltage increase, make sure you have proper cooling. Evaluate your temps using GPUz by paying close attention to the 3 temp readings. My suggestion is to keep the fan at 65% or higher. Increase the fan speed above 65% according to how much additional voltage you add. Also note that if you change the voltage it may boot up to that voltage change until you manually change it back to the original voltage setting. There is some risk involved doing this as there is no documentation yet on what method is best to OC these cards. So you do so at your own risk! If you don't feel comfortable, don't mess with the voltage settings!
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PROGRAMS
Make sure you have net .NET Frameworks 2.0 installed, reboot. Next install .NET Compact Framework 2.0 Service Pack 1, reboot. Finally, download and install Visual C++ 2005.
Keep in mind that MS Visual C++ 2008 is the lastest build and is compatible with .NET Framework 3.5
x86 version
If you use Futuremark's 3D Mark 2006 v1.1.0 make sure you have installed the February 2008 hotfix
You will also need the lastest build of directx using March 2008 update and install it in safe mode.
source
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Cross-Fire Tweaks
If for any reason a game doesn't properly function with a X2 or crossfire setup you can change the executable of that game to:
AFR-FriendlyD3D.exe
or
WarGame-G4WLive.exe or UT3.exe for unreal engine games
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Certified PSUs
For anyone wondering AMD does have certified PSUs-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Rebates
If you ever wondered if your purchase involves a rebate take a look at the MIR website.
Last edited:
idk, is that 1000 point difference alot?
