The Official Thermal Interface Material thread

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,944 (3.73/day)
Location
Winnipeg, Canada
Processor AMD R9 5900X
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Aqua Elite 360 V3 1x TL-B12, 2x TL-C12 Pro, 2x TL K12
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
I am using SYY-157 on my 5600X, this application is about 6 months old now I guess.. still works good though..

Screenshot 2023-01-18 123424.png

Joined
Nov 15, 2021
Messages
2,803 (2.87/day)
Location
Knoxville, TN, USA
System Name Work Computer | Unfinished Computer
Processor Core i7-6700 | Ryzen 5 5600X
Motherboard Dell Q170 | Gigabyte Aorus Elite Wi-Fi
Cooling A fan? | Truly Custom Loop
Memory 4x4GB Crucial 2133 C17 | 4x8GB Corsair Vengeance RGB 3600 C26
Video Card(s) Dell Radeon R7 450 | RTX 2080 Ti FE
Storage Crucial BX500 2TB | TBD
Display(s) 3x LG QHD 32" GSM5B96 | TBD
Case Dell | Heavily Modified Phanteks P400
Power Supply Dell TFX Non-standard | EVGA BQ 650W
Mouse Monster No-Name $7 Gaming Mouse| TBD
I got a tube of TF7 for free with my PA120 SE.

Anything different/unusual about it?

It will be going on a 5800X3D.

My other option is an industrial paste that applies something like lithium grease mixed with hair gel... I should do a test of it vs others but I can't be bothered.

Last edited:

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,944 (3.73/day)
Location
Winnipeg, Canada
Processor AMD R9 5900X
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Aqua Elite 360 V3 1x TL-B12, 2x TL-C12 Pro, 2x TL K12
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
I got a tube of TFX for free with my PA120 SE
Wow good deal do0d!

I think it was the best TIM I have used so far, but I only bought one tube.. I will have to get another one. I am using Ceramique on my X3D right now, and an old SYY application with my 5600X.

Joined
Nov 15, 2021
Messages
2,803 (2.87/day)
Location
Knoxville, TN, USA
System Name Work Computer | Unfinished Computer
Processor Core i7-6700 | Ryzen 5 5600X
Motherboard Dell Q170 | Gigabyte Aorus Elite Wi-Fi
Cooling A fan? | Truly Custom Loop
Memory 4x4GB Crucial 2133 C17 | 4x8GB Corsair Vengeance RGB 3600 C26
Video Card(s) Dell Radeon R7 450 | RTX 2080 Ti FE
Storage Crucial BX500 2TB | TBD
Display(s) 3x LG QHD 32" GSM5B96 | TBD
Case Dell | Heavily Modified Phanteks P400
Power Supply Dell TFX Non-standard | EVGA BQ 650W
Mouse Monster No-Name $7 Gaming Mouse| TBD
Wow good deal do0d!

I think it was the best TIM I have used so far, but I only bought one tube.. I will have to get another one. I am using Ceramique on my X3D right now, and an old SYY application with my 5600X.
Oops, see edit above.

Brain.exe has suffered a memory buffer overflow.


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,944 (3.73/day)
Location
Winnipeg, Canada
Processor AMD R9 5900X
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Aqua Elite 360 V3 1x TL-B12, 2x TL-C12 Pro, 2x TL K12
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
Joined
Dec 14, 2018
Messages
126 (0.06/day)
Location
Finland
System Name No name, yet..
Processor AMD 1800X at stock settings.
Motherboard AsRock X370 itx/ac, /diy vrm heatsink.
Cooling Alphacool Eisbaer 240LT.
Memory 2 x 8gb G.Skill Flare 3200/CL14.
Video Card(s) Gigabyte RTX 2060 oc rev2.
Storage Samsung 960 Evo 500GB m.2, Crucial MX500 2TB sata.
Display(s) HP ZR24W.
Case DIY ITX.
Power Supply Be Quiet 500W sfx-l
Software Win10 home, Ubuntu linux.
For years I used Fischer Elektronik's WLPF-20(?) paste, for I got that free from my work. I thought that, if it's good for tram's high power motor driver parts, it should be good for my CPUs.

Well, I don't have access to it anymore. I've been using the pastes that came with two Noctua coolers and one Alphacool AIO after that. Haven't noticed any big differences in temps. Just regular use, no OC.

Years ago used that paste with i7 2600K+Megahalems cooler and OC'd it to 4.2 or 4.3GHz just changing the multiplier. Never tried above that, it was enough for me.

Are there any tests to be found with WLPF pastes?

Joined
Mar 21, 2021
Messages
4,728 (3.89/day)
Location
Colorado, U.S.A.
System Name CyberPowerPC ET8070
Processor Intel Core i5-10400F
Motherboard Gigabyte B460M DS3H AC-Y1
Memory 2 x Crucial Ballistix 8GB DDR4-3000
Video Card(s) MSI Nvidia GeForce GTX 1660 Super
Storage Boot: Intel OPTANE SSD P1600X Series 118GB M.2 PCIE
Display(s) Dell P2416D (2560 x 1440)
Power Supply EVGA 500W1
Software Windows 11 Home
Joined
Dec 14, 2018
Messages
126 (0.06/day)
Location
Finland
System Name No name, yet..
Processor AMD 1800X at stock settings.
Motherboard AsRock X370 itx/ac, /diy vrm heatsink.
Cooling Alphacool Eisbaer 240LT.
Memory 2 x 8gb G.Skill Flare 3200/CL14.
Video Card(s) Gigabyte RTX 2060 oc rev2.
Storage Samsung 960 Evo 500GB m.2, Crucial MX500 2TB sata.
Display(s) HP ZR24W.
Case DIY ITX.
Power Supply Be Quiet 500W sfx-l
Software Win10 home, Ubuntu linux.
Fascinating
Home - Fischerelektronik, Product: WLPF 20

has a thermal conductivity of 0.5 W/m.K
I noticed that too. But it worked great.

I noticed that too. But it worked great.
It wasn't "the perfect" paste, as the oil (or something) separated if not used regularly or not shaken from time to time. But it did the cooling job fine. And by regularly I mean several months/allmost a year unused or untouched. They were in (too) big syringes and usage wasn't even weekly.

Maybe my use case is in lower reguirement class... So it doesn't really matter, what paste to use.

Still, it would be nice to see some reviews of it.

Joined
Mar 21, 2021
Messages
4,728 (3.89/day)
Location
Colorado, U.S.A.
System Name CyberPowerPC ET8070
Processor Intel Core i5-10400F
Motherboard Gigabyte B460M DS3H AC-Y1
Memory 2 x Crucial Ballistix 8GB DDR4-3000
Video Card(s) MSI Nvidia GeForce GTX 1660 Super
Storage Boot: Intel OPTANE SSD P1600X Series 118GB M.2 PCIE
Display(s) Dell P2416D (2560 x 1440)
Power Supply EVGA 500W1
Software Windows 11 Home

Attachments

  • SuperLube.jpg
    19.9 KB · Views: 35
Joined
Mar 21, 2021
Messages
4,728 (3.89/day)
Location
Colorado, U.S.A.
System Name CyberPowerPC ET8070
Processor Intel Core i5-10400F
Motherboard Gigabyte B460M DS3H AC-Y1
Memory 2 x Crucial Ballistix 8GB DDR4-3000
Video Card(s) MSI Nvidia GeForce GTX 1660 Super
Storage Boot: Intel OPTANE SSD P1600X Series 118GB M.2 PCIE
Display(s) Dell P2416D (2560 x 1440)
Power Supply EVGA 500W1
Software Windows 11 Home

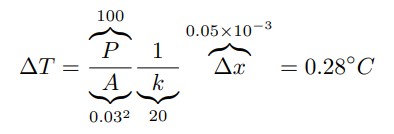

I'm not sure thermal conductivity is the be all and end all
  • 100W power
  • 3 cm x 3 cm area
  • 1/20th mm thickness
  • 20 W/m.K thermal conductivity
results in a 0.28 °C drop

So even a thermal conductivity of 2 W/m.K would have just 2.8 °C drop


Attachments

  • temp drop.jpg
    temp drop.jpg
    9.7 KB · Views: 39
Joined
Nov 15, 2021
Messages
2,803 (2.87/day)
Location
Knoxville, TN, USA
System Name Work Computer | Unfinished Computer
Processor Core i7-6700 | Ryzen 5 5600X
Motherboard Dell Q170 | Gigabyte Aorus Elite Wi-Fi
Cooling A fan? | Truly Custom Loop
Memory 4x4GB Crucial 2133 C17 | 4x8GB Corsair Vengeance RGB 3600 C26
Video Card(s) Dell Radeon R7 450 | RTX 2080 Ti FE
Storage Crucial BX500 2TB | TBD
Display(s) 3x LG QHD 32" GSM5B96 | TBD
Case Dell | Heavily Modified Phanteks P400
Power Supply Dell TFX Non-standard | EVGA BQ 650W
Mouse Monster No-Name $7 Gaming Mouse| TBD
I'm not sure thermal conductivity is the be all and end all
  • 100W power
  • 3 cm x 3 cm area
  • 1/20th mm thickness
  • 20 W/m.K thermal conductivity
results in a 0.28 °C drop

So even a thermal conductivity of 2 W/m.K would have just 2.8 °C drop
Bear in mind that the temperature differential is often quite large between the IHS and the baseplate.

Joined
Jul 5, 2013
Messages
26,070 (6.47/day)
I'm not sure thermal conductivity is the be all and end all
  • 100W power
  • 3 cm x 3 cm area
  • 1/20th mm thickness
  • 20 W/m.K thermal conductivity
results in a 0.28 °C drop

So even a thermal conductivity of 2 W/m.K would have just 2.8 °C drop
There are soooooo many variables that go into thermal conductivity that talking about the numbers is nearly pointless. The proof is in the pudding, as they say, and real world testing is what counts.


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
7,944 (3.73/day)
Location
Winnipeg, Canada
Processor AMD R9 5900X
Motherboard Asus Crosshair VIII Dark Hero
Cooling Thermalright Aqua Elite 360 V3 1x TL-B12, 2x TL-C12 Pro, 2x TL K12
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) Zotac 4070 Ti Trinity OC
Storage WD SN850 1TB, SN850X 2TB, Asus Hyper M.2, 2x SN770 1TB
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply Seasonic Vertex GX-1000, Monster HDP1800
Mouse Logitech G502 Hero
Keyboard Logitech G213
VR HMD Oculus 3
Software Yes
Benchmark Scores Yes
Yup. That's now my go-to.

Running it on Zen3, Zen4, and Alder Lake. Smooooth Sailing.

Goes on like decadent silver buttercream frosting.

Mmmmm. Frosting.
Yeah it’s good stuff, I tried to tell everyone I could.. pretty sure they got sick of it :D

Joined
Mar 21, 2021
Messages
4,728 (3.89/day)
Location
Colorado, U.S.A.
System Name CyberPowerPC ET8070
Processor Intel Core i5-10400F
Motherboard Gigabyte B460M DS3H AC-Y1
Memory 2 x Crucial Ballistix 8GB DDR4-3000
Video Card(s) MSI Nvidia GeForce GTX 1660 Super
Storage Boot: Intel OPTANE SSD P1600X Series 118GB M.2 PCIE
Display(s) Dell P2416D (2560 x 1440)
Power Supply EVGA 500W1
Software Windows 11 Home
Joined
Apr 17, 2021
Messages
62 (0.05/day)
Probably the separation of oil from constituent heat-transferring particles?

Joined
Feb 20, 2020
Messages
9,340 (5.80/day)
Location
Louisiana
System Name Ghetto Rigs z490|x99|Acer 17 Nitro 7840hs/ 5600c40-2x16/ 4060/ 1tb acer stock m.2/ 4tb sn850x
Processor 10900k w/Optimus Foundation | 5930k w/Black Noctua D15
Motherboard z490 Maximus XII Apex | x99 Sabertooth
Cooling oCool D5 res-combo/280 GTX/ Optimus Foundation/ gpu water block | Blk D15
Memory Trident-Z Royal 4000c16 2x16gb | Trident-Z 3200c14 4x8gb
Video Card(s) Titan Xp-water | evga 980ti gaming-w/ air
Storage 970evo+500gb & sn850x 4tb | 860 pro 256gb | Acer m.2 1tb/ sn850x 4tb| Many2.5" sata's ssd 3.5hdd's
Display(s) 1-AOC G2460PG 24"G-Sync 144Hz/ 2nd 1-ASUS VG248QE 24"/ 3rd LG 43" series
Case D450 | Cherry Entertainment center on Test bench
Audio Device(s) Built in Realtek x2 with 2-Insignia 2.0 sound bars & 1-LG sound bar
Power Supply EVGA 1000P2 with APC AX1500 | 850P2 with CyberPower-GX1325U
Mouse Redragon 901 Perdition x3
Keyboard G710+x3
Software Win-7 pro x3 and win-10 & 11pro x3
Benchmark Scores Are in the benchmark section
Yeah it’s good stuff, I tried to tell everyone I could.. pretty sure they got sick of it :D
Hi,
Yeah I forgot I had that stuff already on my old laptop and put mx-6 on it the other day before I installed win-10 22h2 updates
Lets just say mx-6 isn't all that good there :/

Joined
Sep 9, 2020
Messages
181 (0.13/day)
Location
Brazil
Processor AMD Ryzen 5 5600X
Motherboard Asus TUF Gaming B550-Plus
Cooling Thermalright Frost Commander 140
Memory 2x16 3200@3733 Crucial Ballistix
Video Card(s) Gigabyte RX 5600 XT WindForce OC 6G (GV-R56XTWF2OC)
Storage Some
Display(s) Acer XV280K
Case Cooler Master HAF XB EVO
Power Supply Cooler Master MWE 650 Bronze
Mouse Logitech G502SE
Keyboard Ajazz AK35i with AKKO CS Rose Red Switches and white YMDK PBT keys
Hi,
Yeah I forgot I had that stuff already on my old laptop and put mx-6 on it the other day before I installed win-10 22h2 updates
Lets just say mx-6 isn't all that good there :/
Honeywell PTM7950 or some other PCM is what you should have used...

Last edited:
Joined
Oct 3, 2019
Messages
246 (0.14/day)
System Name Ryzen 1
Processor Ryzen 5800X
Motherboard MSI B550 Gaming Plus
Cooling Scythe Fuma 2
Memory 32GB Patriot Viper 3600 CL16
Video Card(s) AMD RX 7800 XT 16GB
Storage SSD's
Display(s) HP X32 32" 1440p 165Hz
Case Phanteks P400A
Power Supply Superflower Leadex III 750w
GD-2 order came pretty quick... Not bad for $5 total, you even get a couple finger condoms ;)

Joined
Sep 9, 2020
Messages
181 (0.13/day)
Location
Brazil
Processor AMD Ryzen 5 5600X
Motherboard Asus TUF Gaming B550-Plus
Cooling Thermalright Frost Commander 140
Memory 2x16 3200@3733 Crucial Ballistix
Video Card(s) Gigabyte RX 5600 XT WindForce OC 6G (GV-R56XTWF2OC)
Storage Some
Display(s) Acer XV280K
Case Cooler Master HAF XB EVO
Power Supply Cooler Master MWE 650 Bronze
Mouse Logitech G502SE
Keyboard Ajazz AK35i with AKKO CS Rose Red Switches and white YMDK PBT keys
GD-2 order came pretty quick... Not bad for $5 total, you even get a couple finger condoms ;)

They usually send condoms when the paste is dense.
Good sign as I like dense pastes. :cool:

Joined
Jan 25, 2020
Messages
2,097 (1.28/day)
System Name DadsBadAss
Processor I7 13700k w/ HEATKILLER IV PRO Copper Nickel
Motherboard MSI Z790 Tomahawk Wifi DDR4
Cooling BarrowCH Boxfish 200mm-HWLabs SR2 420/GTX&GTS 360-BP Dual D5 MOD TOP- 2x Koolance PMP 450S
Memory 4x8gb HyperX Predator RGB DDR4 4000
Video Card(s) Asrock 6800xt PG D w/ Byski A-AR6900XT-X
Storage WD SN850x 1TB NVME M.2/Adata XPG SX8200 PRO 1TB NVMe M.2
Display(s) Acer XG270HU
Case ThermalTake X71 w/5 Noctua NF-A14 2000 IP67 PWM/3 Noctua NF-F12 2000 IP67 PWM/3 CorsairML120 Pro RGB
Audio Device(s) Klipsch Promedia 2.1
Power Supply Seasonic Focus PX-850 w/CableMod PRO ModMesh RT-Series Black/Blue
Mouse Logitech G502
Keyboard Black Aluminun Mechanical Clicky Thing With Blue LEDs, hows that for a name?!
Software Win11pro
I just used tf7 for the first time but I have no point of reference as its a new build (13700k). Temps seem fine so far, idling around 35-37c with a pa120 and quiet curve. Haven't had anytime to do more than install w11 and the usual apps but am hoping to put it through it's paces this weekend. Then it's on to wcing, ugh.

Joined
Mar 4, 2016
Messages
555 (0.18/day)
Location
Zagreb, Croatia
System Name D30 w.2x E5-2680; T5500 w.2x X5675;2x P35 w.X3360; 2x Q33 w.Q9550S/Q9400S & laptops.
They usually send condoms when the paste is dense.
Good sign as I like dense pastes. :cool:
No, those are ESD fingertips, to protect the MBO circuits while installing. ;)

Top
