Acer FA100 1 TB Review

Test Setup »

Packaging

Package Front
Package Back


The Drive

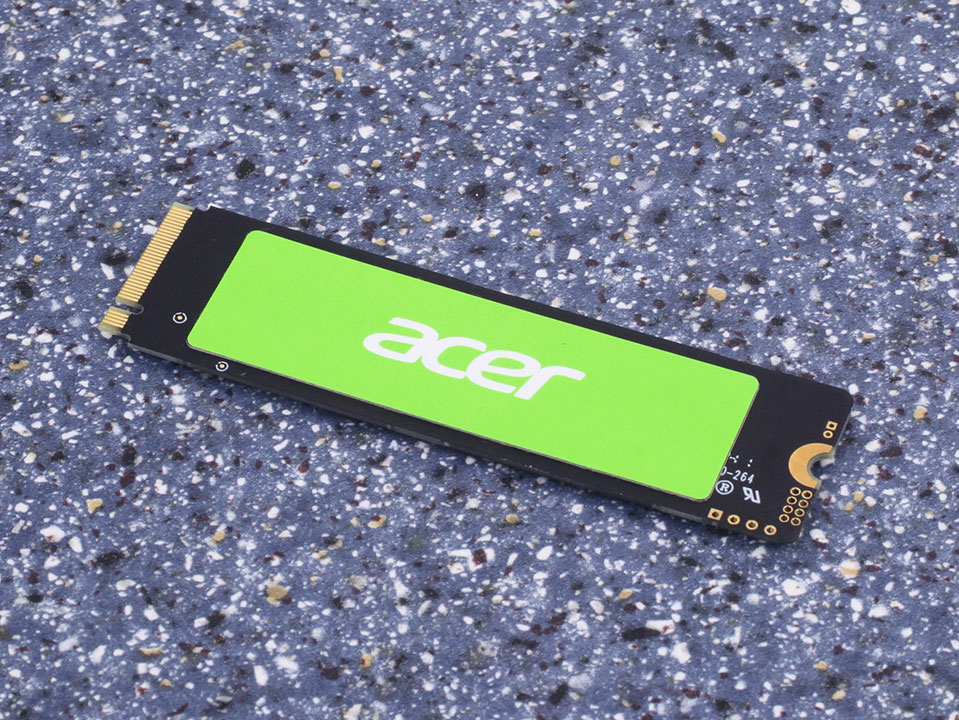

SSD Front
SSD Back

The drive uses the M.2 2280 form factor, which makes it 22 mm wide and 80 mm long.

SSD Interface Connector

Like most M.2 NVMe SSDs, the Acer FA100 connects to the host system over a PCI-Express 3.0 x4 interface.

SSD Teardown PCB Front

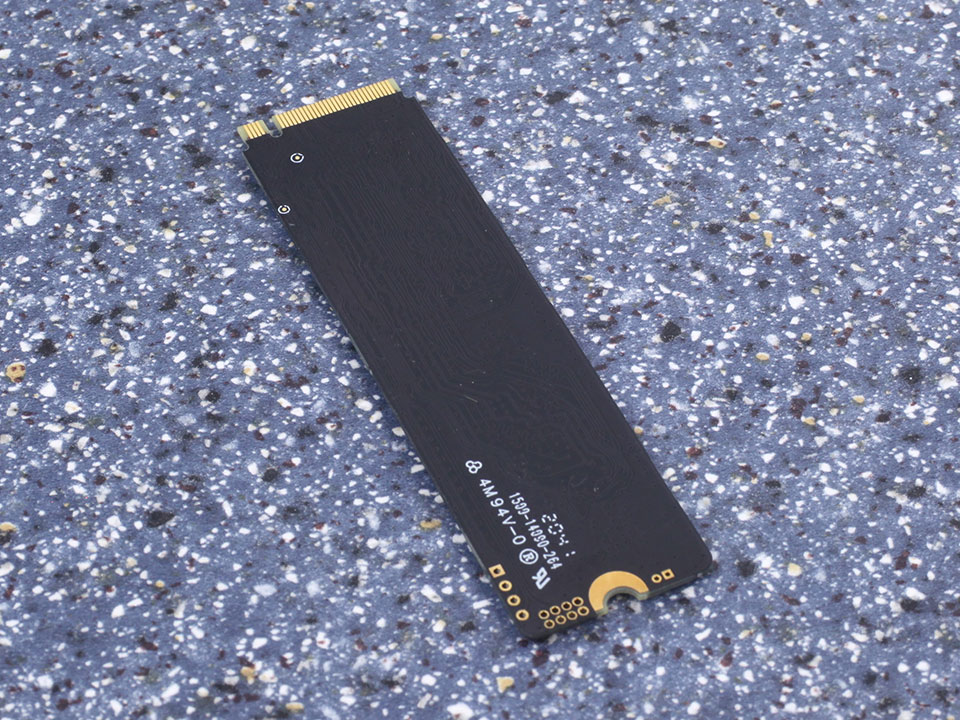

SSD Teardown PCB Back

On the PCB, you'll find the controller and four flash chips.


On the back of the SSD, Acer has put a sticker with copper foil inside. While it's not a proper heatsink, it probably helps spread the heat over a larger surface area.

Chip Component Analysis

SSD Controller

We've seen the Innogrit IG5216 controller before, on the Lexar NM620. It has four flash channels and supports the NVMe 1.4 specification.

SSD Flash Chips

The four 3D TLC flash chips are rebranded by BIWIN; my best guess is they are Micron 64-layer 3D TLC.
