Packaging and Contents

The Drive

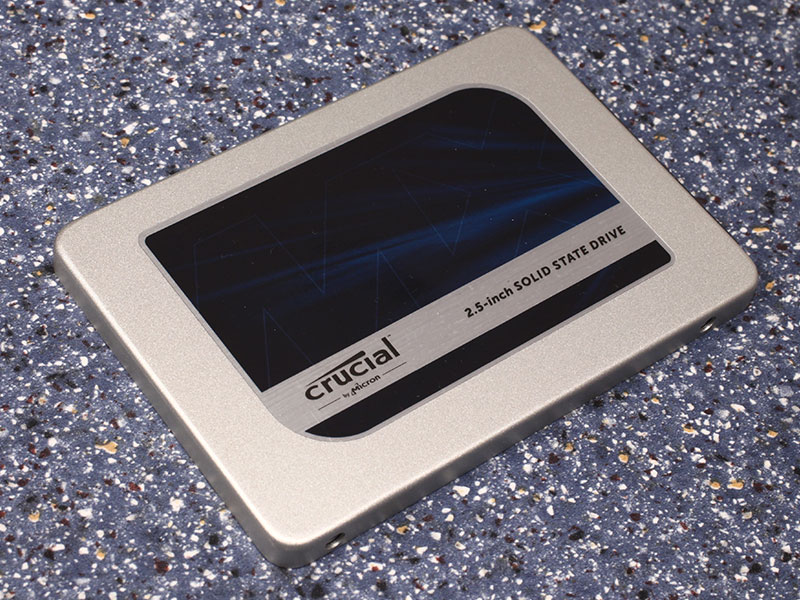

The drive conforms to the dimensions set forth by the 2.5" form factor. It is made of metal to improve its durability and is only 7 mm thick, which makes it compatible with Intel's Ultrabook specification.

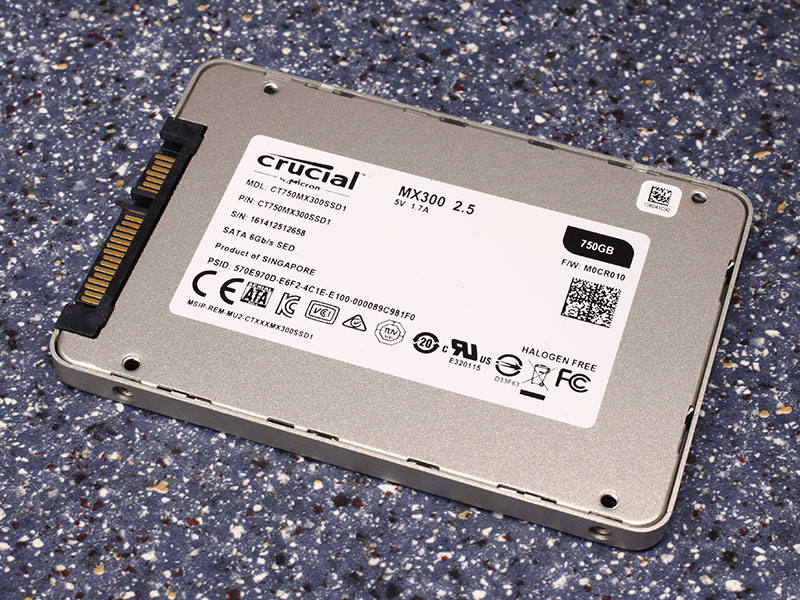

Like most recent SSDs, the Crucial MX300 uses the SATA 6 Gbps interface. It is compatible with any older SATA standard, but will, in such a case, work at reduced performance.


You will find the SSD controller and eight flash chips on the PCB. A DRAM chip is also present; it provides the SSD controller with RAM.

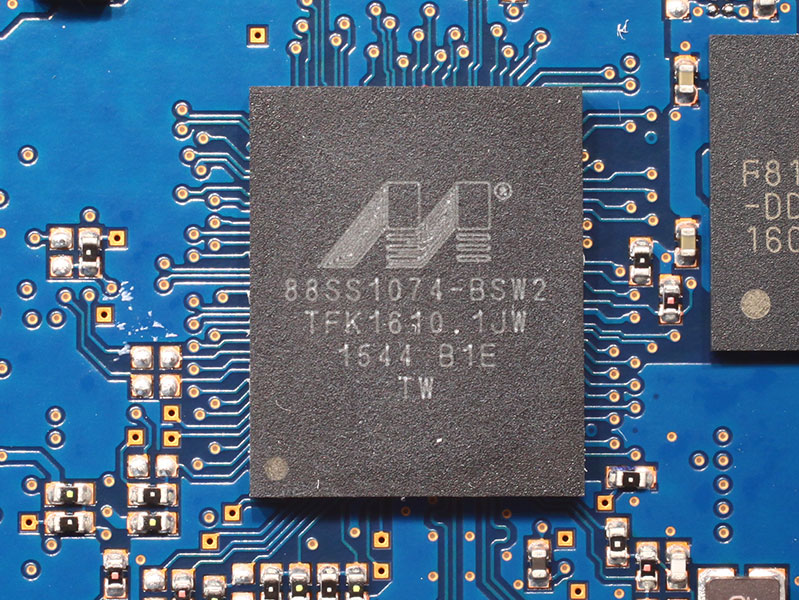

The Marvel controller is a new variant that now supports TLC flash.


The eight TLC flash chips, produced by Micron, are built on a 15 nanometer 3D NAND process.
