HyperX Pulsefire Haste 2 Review 7

HyperX Pulsefire Haste 2 Review

Sensor & Performance »

Build Quality

Overall build quality is very solid. There is no rattle when shaking the mouse. When applying lateral pressure, no creaking or flexing of the shell can be observed. Activating the side buttons by squeezing the sides is impossible. Lastly, accidental clicks do not occur.

Buttons


Main buttons on the Pulsefire Haste 2 are very good. There is some pre-travel, and post-travel is low to moderate, but button response is firm and snappy nonetheless. Despite being visually separated from the shell, button movement is low even when provoked. Button stiffness is medium. A pair of HyperX-branded switches, which are modified TTC Gold Dustproof, are used here.


Side buttons are very good. Both pre and post-travel are low, though the back button in particular can be pushed in further if sufficient force is applied. Button response is firm and satisfying, though the back button sounds somewhat hollow. The actuation point is even across the entirety of these. Button size and placement are good, as actuation is possible rather easily by rolling one's thumb across. A set of Kailh switches (orange plunger, gray case) is used for these.

At the top of the mouse is a button for cycling through the set CPI levels, which feels fine. A seemingly unbranded tactile switch (blue plunger) is used for this one.

Scroll Wheel


The scroll wheel is good to very good. Noise levels are elevated, but tactility is quite good, providing decently separated steps and controlled scrolling. The encoder comes from TTC (white or "silver") and has a height of 10 mm. The middle (scroll wheel) click requires low force for actuation. A seemingly unbranded tactile switch is used here.

Surface

The Pulsefire Haste 2 has a matte surface all over. Grip is fine, and it doesn't attract fingerprints or dirt too much. It is easy to clean, and there are no signs of wear left after doing so. All in all, excellent materials.

Button Sound Test


Disassembly

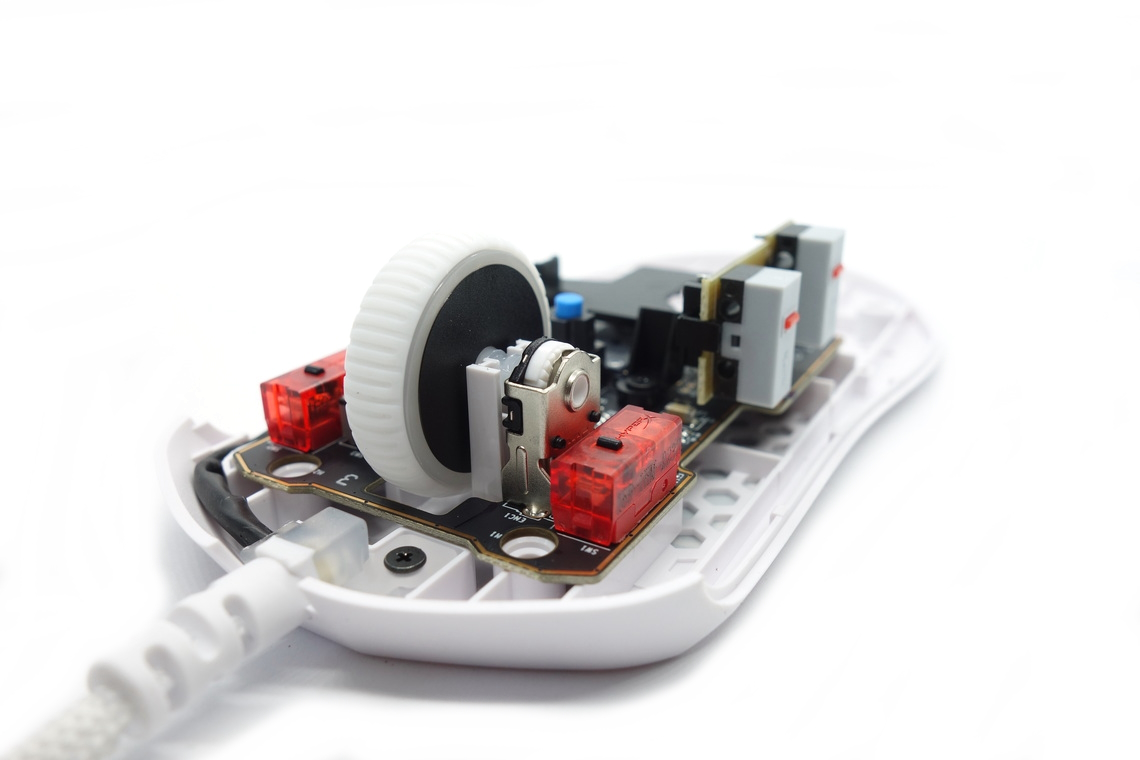

Disassembling the Pulsefire Haste 2 is easy. First, all skates as well as the screws beneath them need to be removed. The top and bottom shell are then readily separated.

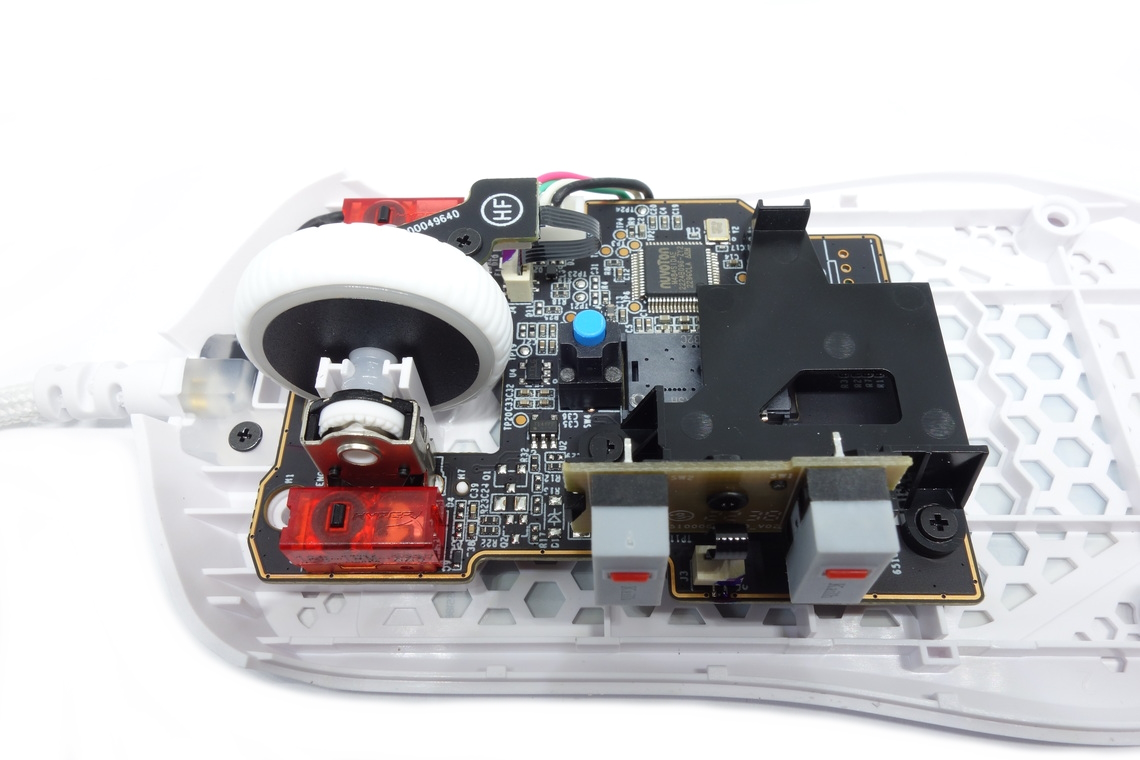

Tooling is shared with the Pulsefire Haste 2 Wireless, though this barely impacts the efficiency of the design. The side buttons sit on their own PCB screwed to a plastic assembly, which otherwise would hold the battery, and is connected through a ribbon cable. An auxiliary PCB next to the scroll wheel provides wheel illumination. Everything else sits on the very thin main PCB, which is affixed to the bottom only by three screws also used to affix the plastic assembly, as well as a single screw used for the auxiliary scroll wheel PCB. The MCU is a Nuvoton M484SIDAE, whose datasheet can be found here. The production date of the main PCB is the 39th week of 2022.


As for the soldering and general quality of the PCB, I'm unable to find any noteworthy flaws.
Next Page »Sensor & Performance
View as single page
