The Card

Graphics Card Front
Graphics Card Back

Visually, the GeForce GTX Titan resembles NVIDIA's GTX 690. It uses the same sexy unibody design with a magnesium alloy shell and Plexiglas window. Unlike the GTX 690, there is only a single window, and the fan has been moved further to the back, which makes sense as there is only one GPU to cool now. Length of the card is 27 cm, which is a bit shorter than the GTX 690.

Graphics Card Height

Installing the card requires two slots in your system.

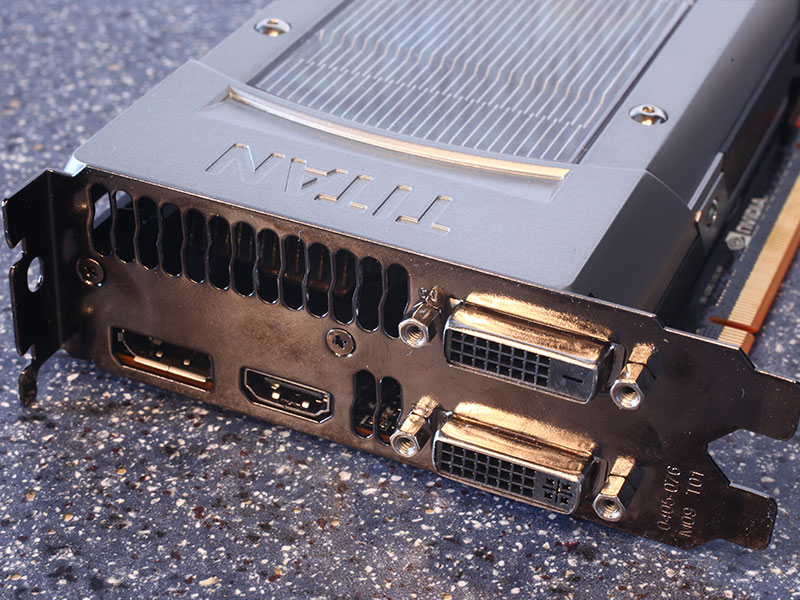

Monitor Outputs, Display Connectors

Display connectivity options include two DVI ports, one full-size DisplayPort, and one full-size HDMI port. You may use all outputs at the same time, so triple-monitor surround gaming is possible with one card.

The GPU also includes an HDMI sound device. It is HDMI 1.4a compatible, which includes HD audio and Blu-ray 3D movies support.


Two SLI connectors are available, which means you can pair the GTX Titan with up to three other GTX Titans for a Quad-SLI rig - if you can afford it.

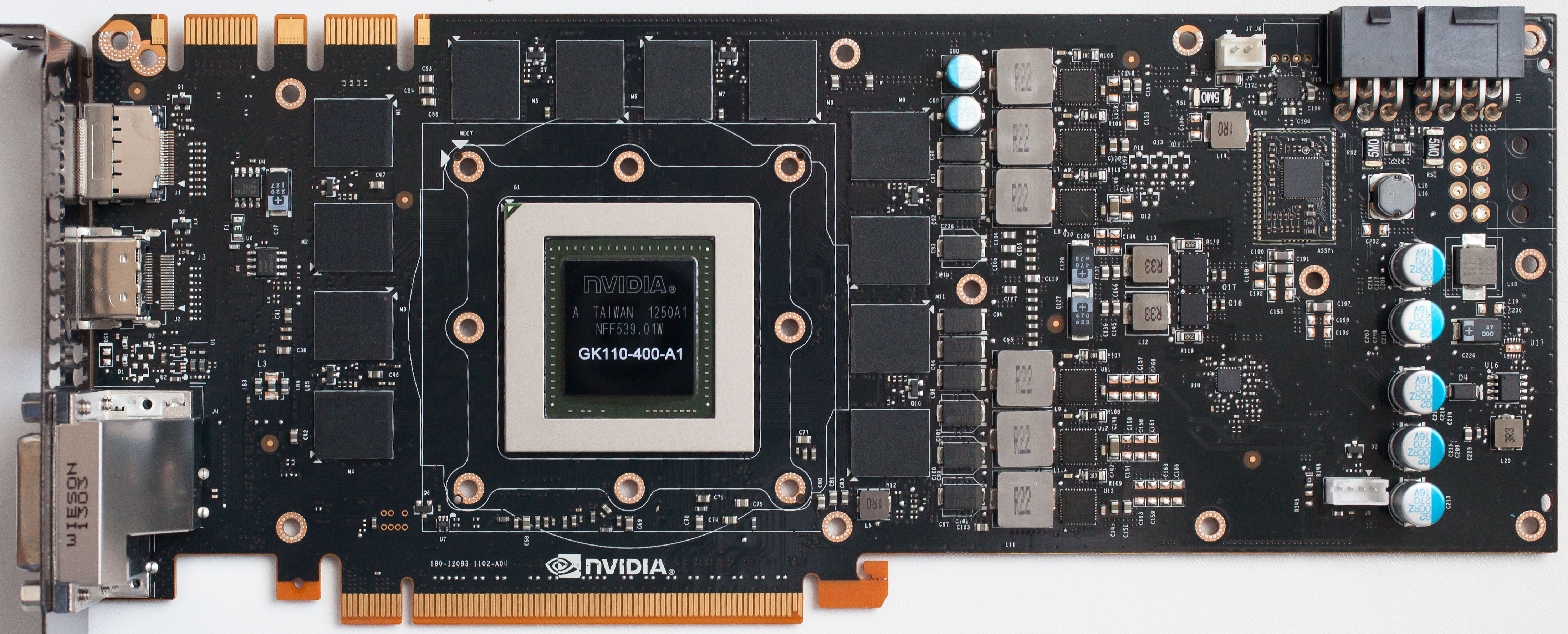

Graphics Card Teardown PCB Front

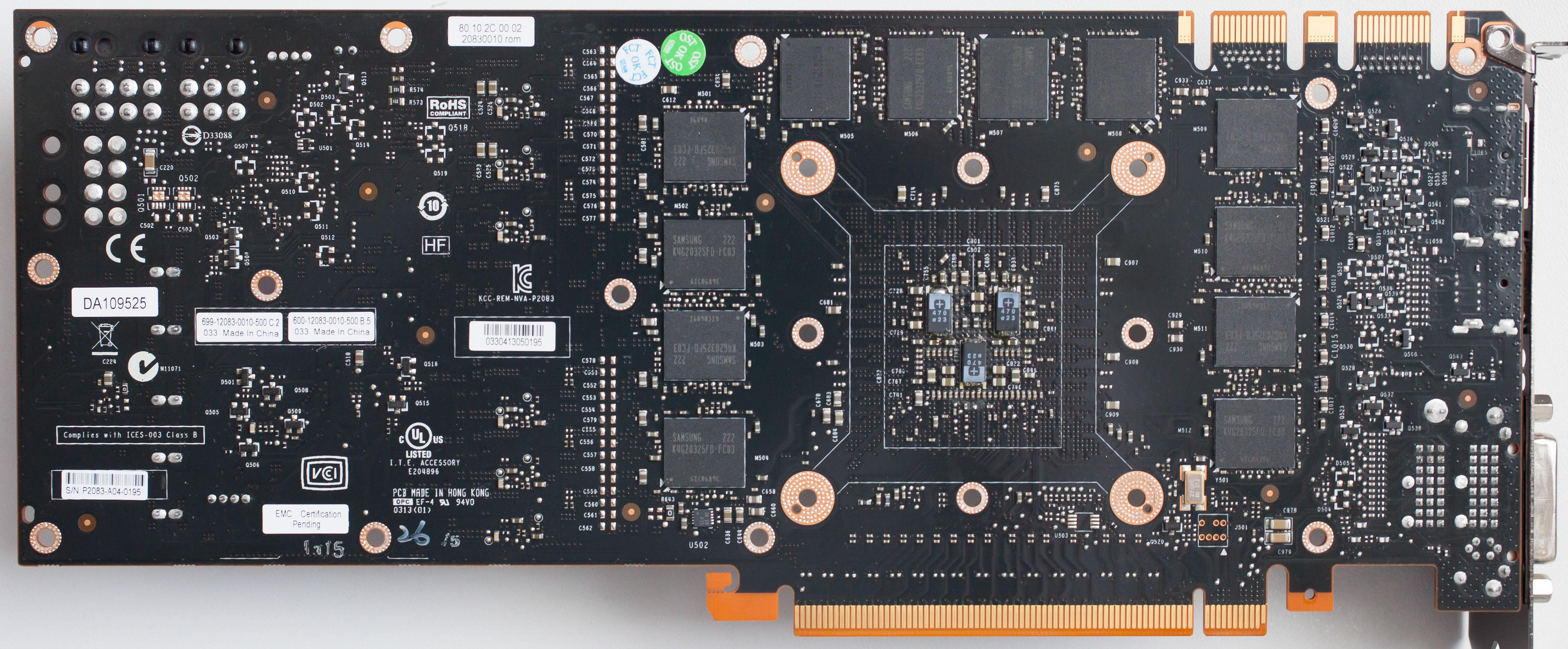

Graphics Card Teardown PCB Back

Pictured above are the front and back, showing the disassembled board. High-res versions are also available (front, back). If you choose to use these images for voltmods, etc., please include a link back to this site, or let us post your article.
