Team Group T-Force Cardea A440 Pro 2 TB Review

Test Setup »

Packaging

Package Front
Package Back


The Drive

SSD Front
SSD Back

The drive uses the M.2 2280 form factor, which makes it 22 mm wide and 80 mm long.

SSD Interface Connector

While most other M.2 NVMe SSDs transfer data over the PCI-Express 3.0 x4 interface, the T-Force Cardea A440 Pro connects to the host system using a PCI-Express 4.0 x4 interface, which doubles the theoretical bandwidth.


Inside the package, you'll find this aluminium heatsink. It is not preinstalled because laptop users or users who have a motherboard with integrated M.2 heatsink would then have to remove the heatsink, possibly breaking the SSD in the process.


The thermal pad is a little bit too short to cover all components, which is surprising, but not a big deal; what matters is that the controller in the middle is cooled properly.

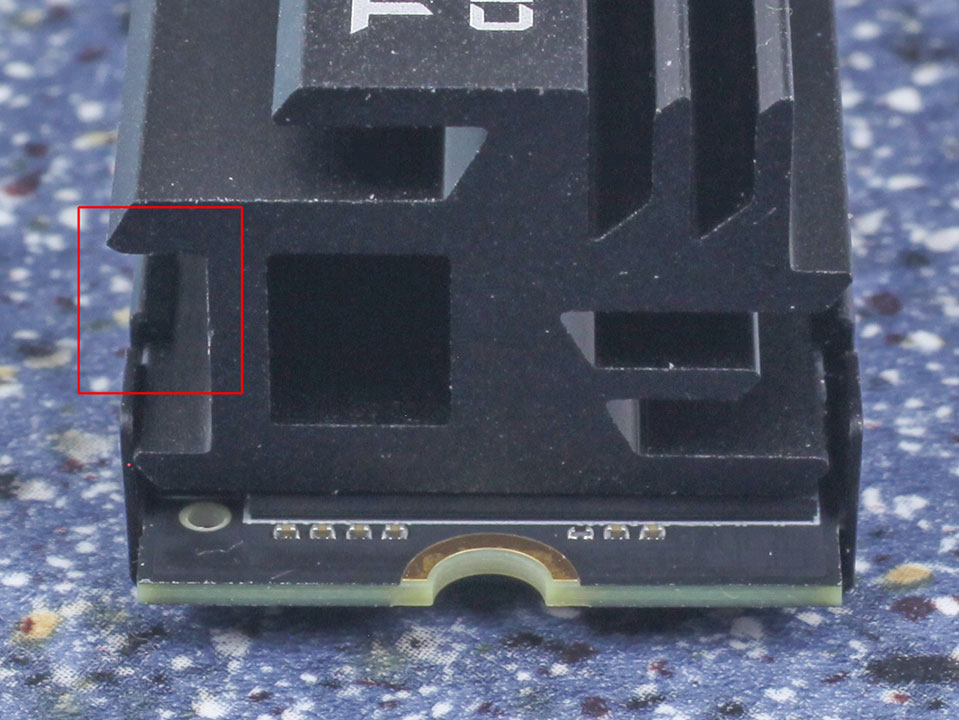

If we take a closer look, we can see that the heatsink is held in place by these metal clip pins. While this kind of mounting is alright, I'd prefer a system with screws as that's more reliable.


Once installed, the A440 Pro with its heatsink looks mighty good.

SSD Teardown PCB Front
SSD Teardown PCB Back

On the PCB, you'll find the controller and eight flash chips; two DRAM cache chips are installed, too.

Chip Component Analysis

SSD Controller

The Phison PS5018-E18 is Phison's PCI-Express 4.0 controller with eight channels. It is produced on TSMC's 12 nanometer node and uses five Arm Cortex R5 CPU cores. The E18 supports NVMe 1.4, TLC, DDR4 memory, and up to 32 dies.

SSD Flash Chips

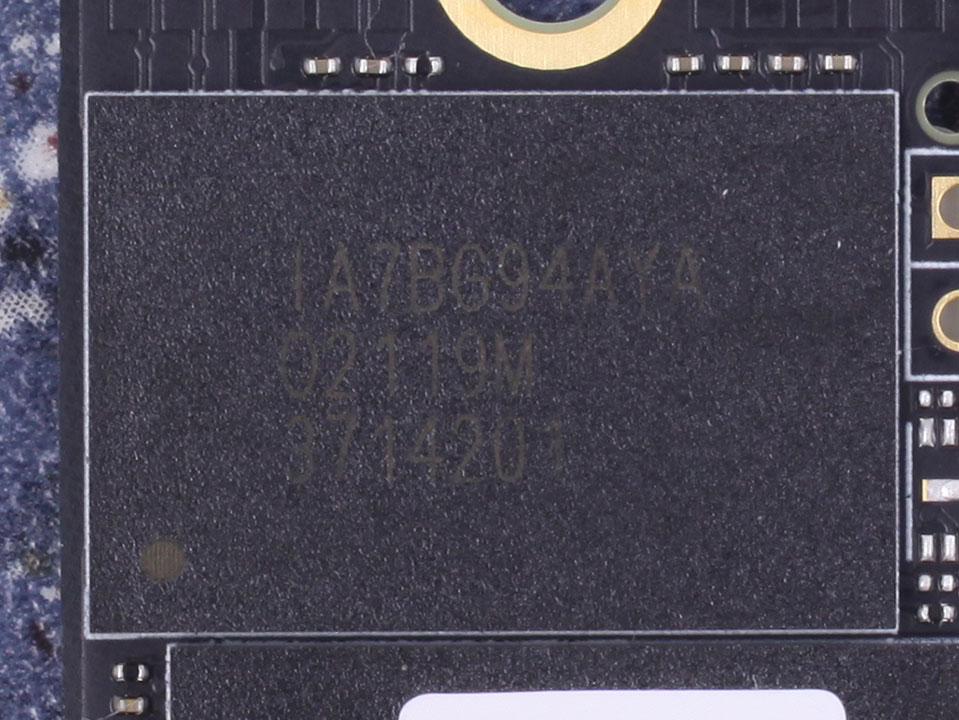

The eight flash chips are Micron 176-layer 3D TLC NAND B47R. Each chip has a capacity of 256 GB.

SSD DRAM Chip

Two Hynix DDR4-2666 chips provide 2 GB of fast DRAM storage for the controller to store the mapping tables.
