[xela]

thank you. now i know why it didn't work. Alan & YOU ARE THE BEST

A question ... in HDXRT.inf ...

What are ... SPERI_SFX_CLSID = "{1B917FE2-47D1-425D-A26E-AFCDBDA7A2E8}"

SPERI_MFX_CLSID = "{5B98E1AC-A670-4311-B4F8-DC25E30CFBFF}"

SPERI_EFX_CLSID = "{93520346-FA48-4F56-8CB0-D92CC1775E37}"

SPERI_OSFX_CLSID = "{42E82F48-20E9-4B35-962A-4439059670D4}"

SPERI_OMFX_CLSID = "{272B9432-8AFD-4935-84B4-A77CFA09815E}"

WHAT IS; ... SPERI_CLSID ???

( I am a beginner in audio driver mode. Thanks for understanding.)



[Ferather]

@Metal-Tom

Noted, as mentioned I did not test them with my current driver. Good luck on your modding.

----

@xela

Speri is a play on Xperi, which is owned by DTS. As far as I can tell. On a side note, I am about to do similar as you, except with APO4 and DTS X Ultra. Yesterday I got APO4 over SPDIF.
At the moment I seem to be stuck on a default profile for DTS X Ultra, but I am still in the process of making things work, so far APO4 is working, but is missing info.



[xela]

THX



[Ferather]

Hmm got a little stuck now, I made further progress, even the DTS X apps download and install from the store, all work but one, DTS X Ultra. I got APO4 fully working, but the app is not quite correct.
It detects multichannel just perfectly, however if I switch to stereo or headphones it quickly flickers headphones, and then turn its self off. I am obviously missing something.

It could be licensing and some sort of preventing use unless a valid key is active in the machine, or some files or settings. Hopefully it can be fixed.



====

Is anyone willing to help me with DTS X Ultra? I can upload a beta version of the driver release along with additional files. It seems to be 99% working, but stuck with what seems like profiles.
By profiles, I mean the xml and binary files that are issued-produced by vendors (example Asus), that are installed to the APO4x folder in System32/DTS.




If I install a profile, and switch from speakers to headphones, EQ, Device Setup, and a few other buttons show and work for 1 second.



[Hearick]

Hmm got a little stuck now, I made further progress, even the DTS X apps download and install from the store, all work but one, DTS X Ultra. I got APO4 fully working, but the app is not quite correct.
It detects multichannel just perfectly, however if I switch to stereo or headphones it quickly flickers headphones, and then turn its self off. I am obviously missing something.

It could be licensing and some sort of preventing use unless a valid key is active in the machine, or some files or settings. Hopefully it can be fixed.

View attachment 186457 View attachment 186458

====

Is anyone willing to help me with DTS X Ultra? I can upload a beta version of the driver release along with additional files. It seems to be 99% working, but stuck with what seems like profiles.
By profiles, I mean the xml and binary files that are issued-produced by vendors (example Asus), that are installed to the APO4x folder in System32/DTS.

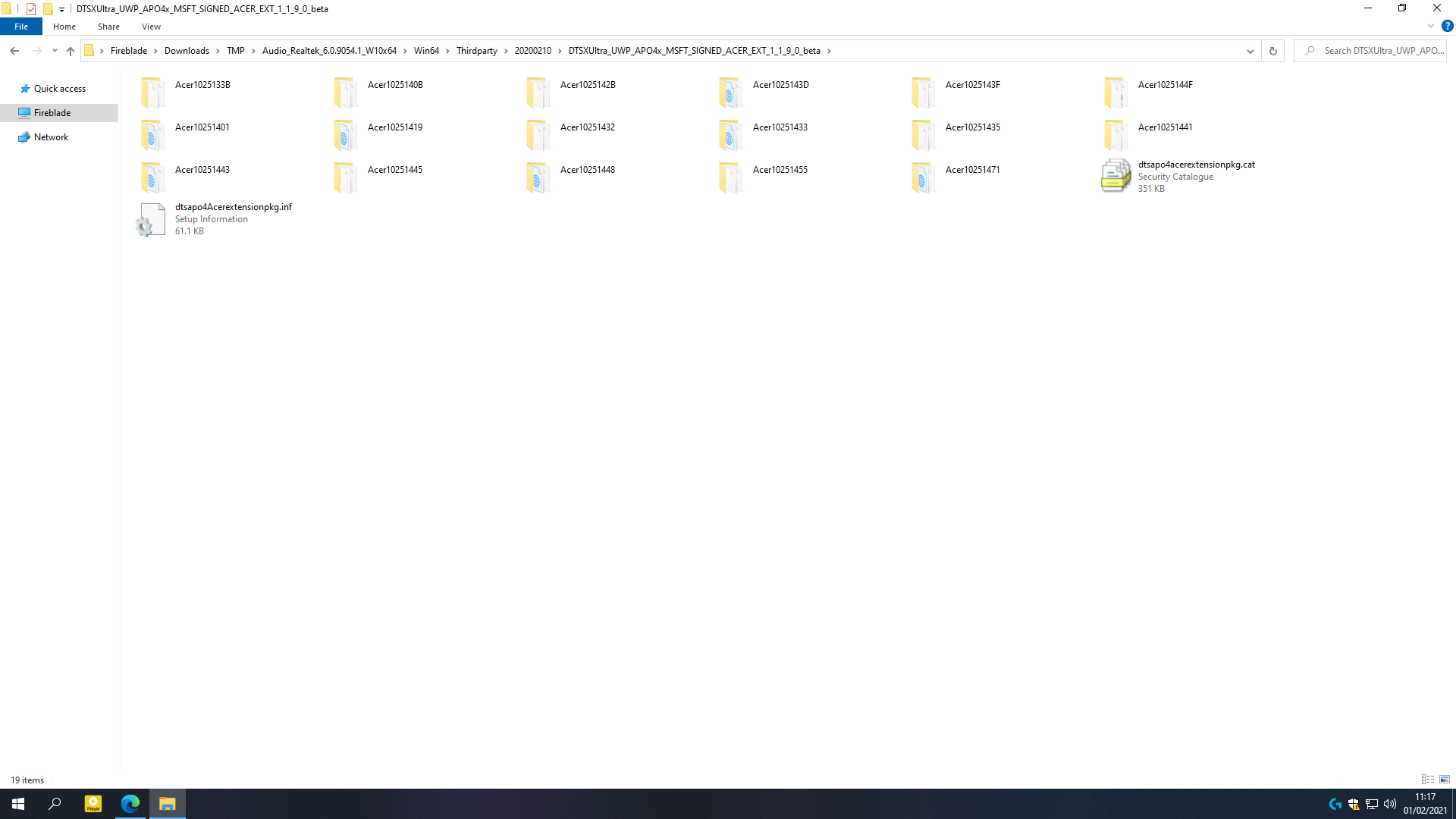

View attachment 186465 View attachment 186466
View attachment 186467 View attachment 186468

If I install a profile, and switch from speakers to headphones, EQ, Device Setup, and a few other buttons show for 1 second.

How could I help ? I don't know much of audio nor modding but I would like to help



[Ferather]

If you can manage to find either a modified or generic DTS profile for Ultra X, then I would be amazed, and very happy!
At the moment I am happy with APO4 on SPDIF, analogue is still on APO3 for Headphones:X v1.



[Hearick]

If you can manage to find either a modified or generic DTS profile for Ultra X, then I would be amazed, and very happy!
At the moment I am happy with APO4 on SPDIF, analogue is still on APO3 for Headphones:X v1.

I think DTS X Ultra is only meant to work on APO4 and that's why there is a "glitch" when you try to make it work on APO3.

Another thing that I believe is that Realtek audio arent gonna support it because there ain't enough bandwidth across optical, analogue or coaxial to support it.

And what do you mean by Profile ?



[Ferather]

I'm not making it run on APO3, APO4 works differently to the previous APO3, it's not input as CLSID's such as LFX/GFX or SFX/MFX, like with APO3.
By profile I mean the files you get with a specific motherboard, for example Asus motherboard X, or Acer motherboard Y.

You can have many SFX/MFX or LFX/GFX installed, in use, and they can work independently.

----

Sample of my Inf file for the driver (HDXRT.inf):

HKR,InterfaceSetting\SysCustomizedFx\EP\0,"{7A8B74C8-FA66-4460-8542-D6119C59E9D4},4",%REG_DWORD%,0x100 ;; DTS APO 3 on Realtek Device
HKR,InterfaceSetting\SysCustomizedFx\EP\0,"{7A8B74C8-FA66-4460-8542-D6119C59E9D4},10",%REG_DWORD%,0x009 ;; DTS APO 4 Audio Processing

HKR,InterfaceSetting\SysCustomizedFx_DTSC\FX\0,%PKEY_CompositeFX_StreamEffectClsid%,%REG_MULTI_SZ%,%DTSSpreader_LFX_CLSID%,%REALTEK_SFX_CLSID%
HKR,InterfaceSetting\SysCustomizedFx_DTSC\FX\0,%PKEY_CompositeFX_ModeEffectClsid%,%REG_MULTI_SZ%,%DTS_MFX_CLSID%,%REALTEK_MFX_CLSID%
HKR,InterfaceSetting\SysCustomizedFx_DTSC\FX\0,%PKEY_CompositeFX_EndpointEffectClsid%,%REG_MULTI_SZ%,%DTS_EFX_CLSID%,%DTSEncoder_EFX_CLSID%
HKR,InterfaceSetting\SysCustomizedFx_DTSC\FX\0,%PKEY_CompositeFX_Offload_StreamEffectClsid%,%REG_MULTI_SZ%,%DTS_OSFX_CLSID%,%REALTEK_OSFX_CLSID%
HKR,InterfaceSetting\SysCustomizedFx_DTSC\FX\0,%PKEY_CompositeFX_Offload_ModeEffectClsid%,%REG_MULTI_SZ%,%DTS_OMFX_CLSID%,%REALTEK_OMFX_CLSID%

Note: 'DTS_XXX' is APO4

----

Sample of 'dts_apo4_oem_config.xml', that comes with each motherboard and vendor:

<control name="EFX:Eagle-GPEQ Blob 48k">dts_gpeq_ext_spk_mode6_48k.bin</control>
<control name="EFX:Eagle-GPEQ Blob 44k">dts_gpeq_ext_spk_mode6_44k.bin</control>

<chain_v2 position="SFX" input="Any" output="Any">
<process tech_id="DTS Eagle" instance_id="SFX"/>
</chain_v2>
<chain_v2 position="OSFX" input="Any" output="Any">
<process tech_id="DTS Eagle" instance_id="OSFX"/>
</chain_v2>
<chain_v2 position="MFX" input="Stereo" output="Stereo">
<process tech_id="DTS Eagle" instance_id="MFX"/>
</chain_v2>
<chain_v2 position="OMFX" input="Stereo" output="Stereo">
<process tech_id="DTS Eagle" instance_id="OMFX"/>
</chain_v2>
<chain_v2 position="EFX" input="Stereo" output="Stereo">
<process tech_id="DTS Eagle" instance_id="EFX"/>

----



[Hearick]

I'm not making it run on APO3, APO4 works differently to the previous APO3, it's not input as CLSID's such as LFX/GFX or SFX/MFX, like with APO3.
By profile I mean the files you get with a specific motherboard, for example Asus motherboard X, or Acer motherboard Y.

You can have many SFX/MFX or LFX/GFX installed, in use, and they can work independently.

----

Sample of my Inf file for the driver (HDXRT.inf):

HKR,InterfaceSetting\SysCustomizedFx\EP\0,"{7A8B74C8-FA66-4460-8542-D6119C59E9D4},4",%REG_DWORD%,0x100 ;; DTS APO 3 on Realtek Device
HKR,InterfaceSetting\SysCustomizedFx\EP\0,"{7A8B74C8-FA66-4460-8542-D6119C59E9D4},10",%REG_DWORD%,0x009 ;; DTS APO 4 Audio Processing

HKR,InterfaceSetting\SysCustomizedFx_DTSC\FX\0,%PKEY_CompositeFX_StreamEffectClsid%,%REG_MULTI_SZ%,%DTSSpreader_LFX_CLSID%,%REALTEK_SFX_CLSID%
HKR,InterfaceSetting\SysCustomizedFx_DTSC\FX\0,%PKEY_CompositeFX_ModeEffectClsid%,%REG_MULTI_SZ%,%DTS_MFX_CLSID%,%REALTEK_MFX_CLSID%
HKR,InterfaceSetting\SysCustomizedFx_DTSC\FX\0,%PKEY_CompositeFX_EndpointEffectClsid%,%REG_MULTI_SZ%,%DTS_EFX_CLSID%,%DTSEncoder_EFX_CLSID%
HKR,InterfaceSetting\SysCustomizedFx_DTSC\FX\0,%PKEY_CompositeFX_Offload_StreamEffectClsid%,%REG_MULTI_SZ%,%DTS_OSFX_CLSID%,%REALTEK_OSFX_CLSID%
HKR,InterfaceSetting\SysCustomizedFx_DTSC\FX\0,%PKEY_CompositeFX_Offload_ModeEffectClsid%,%REG_MULTI_SZ%,%DTS_OMFX_CLSID%,%REALTEK_OMFX_CLSID%

Note: 'DTS_XXX' is APO4

----

Sample of 'dts_apo4_oem_config.xml', that comes with each motherboard and vendor:

<control name="EFX:Eagle-GPEQ Blob 48k">dts_gpeq_ext_spk_mode6_48k.bin</control>
<control name="EFX:Eagle-GPEQ Blob 44k">dts_gpeq_ext_spk_mode6_44k.bin</control>

<chain_v2 position="SFX" input="Any" output="Any">
<process tech_id="DTS Eagle" instance_id="SFX"/>
</chain_v2>
<chain_v2 position="OSFX" input="Any" output="Any">
<process tech_id="DTS Eagle" instance_id="OSFX"/>
</chain_v2>
<chain_v2 position="MFX" input="Stereo" output="Stereo">
<process tech_id="DTS Eagle" instance_id="MFX"/>
</chain_v2>
<chain_v2 position="OMFX" input="Stereo" output="Stereo">
<process tech_id="DTS Eagle" instance_id="OMFX"/>
</chain_v2>
<chain_v2 position="EFX" input="Stereo" output="Stereo">
<process tech_id="DTS Eagle" instance_id="EFX"/>

----

View attachment 186513

I found this searching online

It's for x86 computers

PS : Could you give the beta, please ? And when you finally making it work you give us the update ^^



[Metal-Tom]

@Ferather: do you know about the UAD Inf-Editor? Alan Fox deployed this in multiple Versions, and they all are crashing w/o any Error-Code. I've done any Ways to load it better: I reduced the Content onto the necessary Files, Pathlength reduced... first on a simple HDD. Then I moved the Package to my C-Drive on a NVMe-SSD, and it crashed anyways. Grrrr!!!

It's sadly, that @alanfox2000 isn't so active anymore



[Ferather]

@Hearick

I will upload it tomorrow, I also looked over the files you sent, could be useful but the apo4 xml is for Headphones:X V2, which is still an upgrade.

----

@Metal-Tom

No I just use Programmers notepad, It did find this post though, maybe its a newer version?

UADInfEditor_v1.32 (mediafire.com)



[Hearick]

@Hearick

I will upload it tomorrow, I also looked over the files you sent, could be useful but the apo4 xml is for Headphones:X V2, which is still an upgrade.

----

@Metal-Tom

No I just use Programmers notepad, It did find this post though, maybe its a newer version?

UADInfEditor_v1.32 (mediafire.com)

Oh okay

I will continue searching



[xela]

I have finished my driver (based on AAF Realtek DCH Audio Driver - DTS)
I removed everything that was DTS.
I added: - Dolby Atmos for Gaming.
-Dolby Digital Plus Home Theater (DS1)
-Dolby Home Theater v4 (PCEE4)
Thanks (Alan Finotty & Ferather)



[Metal-Tom]

I have finished my driver (based on AAF Realtek DCH Audio Driver - DTS)
I removed everything that was DTS.
I added: - Dolby Atmos for Gaming.
-Dolby Digital Plus Home Theater (DS1)
-Dolby Home Theater v4 (PCEE4)
Thanks (Alan Finotty & Ferather)

Could you pls make an Installer for both + provide it?



[SynthwaveRetro]

This is a self made compilation driver based on 'Alan's DCH Mods' (all credit to him), with full DTS support. It can also be installed in circumstances where installers don't function, or if direct files are needed.
I aimed at the minimum needed to get amazing surround audio, I did NOT focus on packing lots of third party apps that can break, stop functioning over time, or after updates.

This pack includes: AAF DCH Driver 6.0.9091.1 + DTS Suite including encoder (DTS Interactive, DTS Connect, Neo PC, Surround Sensation, Boost, and more).

View attachment 185631 View attachment 185632
View attachment 185633 View attachment 185634

Please make sure all other drivers are fully removed before installing, also note you will need to disable driver signing (see here).

----

If you are like me and dislike stereo expand matrix's, and are using E-APO to get stereo surround, use 'Pre-Mix' and 'SFX/MFX'.
Note: Pre-Mix on speakers will disable the DTS effects, make sure your not using them first (mostly for stereo).

View attachment 185635

Equaliser APO - Stereo Surround Upmixer - Guide here.

----

Download: https://www.mediafire.com/folder/p173wf4i4udgs/AAF+Drivers

Apps: Realtek Console, DTS Headphone X and Redistributables.

DTS (sound system) - Wikipedia

I Need For Intel because AAF 6.0.9098.2 DTS\HDXRT.inf gave me Bluescreen of death



[Ferather]

@SynthwaveRetro

Can you try this .inf, replace the current one, I changed some code from amd64, which was the original code. I apologize, I dont have Intel.



[Hearick]

@SynthwaveRetro

Can you try this .inf, replace the current one, I changed some code from amd64, which was the original code. I apologize, I dont have Intel.

Hello @Ferather , do you have a release hour for the beta ? Thanks for the great work I'll continue searching for your files



[Ferather]

Waiting for SynthwaveRetro to respond if the .inf changes are working, then I can just release it.



[Hearick]

Waiting for SynthwaveRetro to respond if the .inf changes are working, then I can just release it.

I have a Intel portable pc

How can I help ?



[Ferather]

Sure, just download AAF 6.0.9098.2 DTS + the HDXRT.zip above, replace the .inf and see if it installs. Thanks.



[xela]

for Metal-Tom
AAFDrvInst_UAD_Dolby-ATM_PCEE4_DDP_6.0.9098.4(intel/amd);
-Dolby Atmos for Gaming.
-Dolby Digital Plus Home Theater (DS1)
-Dolby Home Theater v4 (PCEE4)
Link;Dolby

Ferather sorry i used your forum​



[Ferather]

@xela

Carry on, I wanted to make a open version of AAF. Here is the source for updates: Release 6.0.9098.1 · pal1000/Realtek-UAD-generic · GitHub



[Hearick]

Sure, just download AAF 6.0.9098.2 DTS + the HDXRT.zip above, replace the .inf and see if it installs. Thanks.

So... You will have to wait for him xD



[Ferather]

not a Realtek sound card



[xela]

I am a beginner. After a week of documentation
I managed to make my first driver.
Thanks for the help. (I didn't use RTK Device Tool that you sent me)
I am still documenting. HOW TO ACTIVATE DOLBY DIGITAL LIVE? & HOW TO ACTIVATE DTS INTERACTIVE? With RTK Device Tool .I can't find pictures

Sorry for my bad english.I'm not english
