Intel 14 nm Node Compared to TSMC's 7 nm Node Using Scanning Electron Microscope

Joined
Feb 1, 2013
Messages
938 (0.31/day)
System Name Gentoo64 /w Cold Coffee
Processor 9900K 5.2GHz 1.304v Raystorm Pro
Motherboard GAZ390MG
Cooling GTX360 + MCR120-XP, EK-XRES
Memory 2x16GB TridentZ 3700-C15-2T 1.5v
Video Card(s) RTX 3080 Bykski Eagle
Storage Samsung 970 EVO 500GB, 860 QVO 2TB
Display(s) CU34G2X 3440x1440 144Hz
Case FT03-T mATX
Audio Device(s) SBz
Power Supply SS-850KM3
Mouse G502
Keyboard G710+
Software Gentoo/Windows 10
Benchmark Scores Always only ever very fast
Where are the particles that are poofing in and out of existence?

Joined
Sep 17, 2014
Messages
14,700 (6.12/day)
Location
The Washing Machine
Processor i7 8700k 4.6Ghz @ 1.24V
Motherboard AsRock Fatal1ty K6 Z370
Cooling beQuiet! Dark Rock Pro 3
Memory 16GB Corsair Vengeance LPX 3200/C16
Video Card(s) MSI GTX 1080 Gaming X @ 2100/5500
Storage Samsung 850 EVO 1TB + Samsung 830 256GB + Crucial BX100 250GB + Toshiba 1TB HDD
Display(s) Gigabyte G34QWC (3440x1440)
Case Fractal Design Define C TG
Audio Device(s) Situational :)
Power Supply EVGA G2 750W
Mouse Logitech G502 Protheus Spectrum
Keyboard Lenovo Thinkpad Trackpoint II (Best K/B ever... <3)
Software W10 x64
Post has been updated. Mistakes and errors happen, but we've always been open (as we should) to feedback and corrections. We too want to have quality content, but sometimes things fall through the cracks.

No worries, it does happen - and everywhere, too, I'm not too bothered with it personally ;)

Joined
Jul 9, 2015
Messages
2,767 (1.31/day)
System Name My all round PC
Processor i5 750
Motherboard ASUS P7P55D-E
Memory 8GB
Video Card(s) Sapphire 380 OC... sold, waiting for Navi
Storage 256GB Samsung SSD + 2Tb + 1.5Tb
Display(s) Samsung 40" A650 TV
Case Thermaltake Chaser mk-I Tower
Power Supply 425w Enermax MODU 82+
Software Windows 10
I would like to see a comparison vs Intel 10nm product.

Joined
Jan 14, 2019
Messages
564 (0.69/day)
Location
United Kingdom
System Name Nebulon-B
Processor AMD Ryzen 9 5950X
Motherboard ASUS TUF Gaming B550M-Plus (WiFi)
Cooling Corsair H100i Platinum RGB
Memory 2x 16 GB Corsair Dominator Platinum RGB 3200 MHz CL16 DDR4
Video Card(s) ASUS ROG Strix Radeon RX 5700 XT
Storage 1 TB Corsair MP600 Core, 1 TB Corsair MP400, 512 GB ADATA SU900
Display(s) Samsung C24F396
Case AeroCool Aero One Mini Eclipse
Audio Device(s) Genius SP-HF160 speakers, AKG Y50 headphones
Power Supply Seasonic Prime Ultra Platinum 550W
Mouse Cherry MW 8
Keyboard MagicForce 68
Software Windows 10
Benchmark Scores 3DMark Time Spy: ~10,000 points
If they're not 14 and 7 nm transistors, then why do we call them such?

Joined
Nov 4, 2005
Messages
10,743 (1.90/day)
System Name MoFo 2
Processor AMD PhenomII 1100T @ 4.2Ghz
Motherboard Asus Crosshair IV
Cooling Swiftec 655 pump, Apogee GT,, MCR360mm Rad, 1/2 loop.
Memory 8GB DDR3-2133 @ 1900 8.9.9.24 1T
Video Card(s) HD7970 1250/1750
Storage Agility 3 SSD 6TB RAID 0 on RAID Card
Display(s) 46" 1080P Toshiba LCD
Case Rosewill R6A34-BK modded (thanks to MKmods)
Audio Device(s) ATI HDMI
Power Supply 750W PC Power & Cooling modded (thanks to MKmods)
Software A lot.
Benchmark Scores Its fast. Enough.
If they're not 14 and 7 nm transistors, then why do we call them such?

Cause we need to name things to communicate the idea or thought going I to them.

Notice the transistor density of 7nm is much higher than that of Intel's. So while the gate size may be close to the same the density also matters.


On a side note, the density may be part of the reason AMD is struggling with breaking the 5Ghz barrier with this node, the power density increases as transistor density increases, meaning fewer watts per transistor allowed due to thermal constraints. The only way out is to shrink the transistors and leave more space around them to dissipate the heat.

Joined
Jan 13, 2011
Messages
210 (0.06/day)
If they're not 14 and 7 nm transistors, then why do we call them such?
Marketing to the public, people who actually have to order from a foundry get more useful information.
Why do people think samsung had a 7nm process since 2018 because they advertise it to the public even when it's was basically not usable
Different logic/i.o/cache/memory all comes in different densities and all can end up on the same chip.
Also just because they make a 2 chips on the same 7nm process doesn't mean the 2 chips with similar logic made by different companies are the same. They can end up being different sizes because there are more things to consider when designing a chip.

Joined
Jun 3, 2010
Messages
1,752 (0.44/day)
If they're not 14 and 7 nm transistors, then why do we call them such?
Gate size will remain, but now there will be multiple strips of MBC gate now. More dimensions than 2d in a section.
I think of it as there will be more tunneling and less conduction. Like hamr tech in hard drives, conduction will take facilitation to proceed in higher gate resistances than previously available.

Joined
Feb 1, 2013
Messages
938 (0.31/day)
System Name Gentoo64 /w Cold Coffee
Processor 9900K 5.2GHz 1.304v Raystorm Pro
Motherboard GAZ390MG
Cooling GTX360 + MCR120-XP, EK-XRES
Memory 2x16GB TridentZ 3700-C15-2T 1.5v
Video Card(s) RTX 3080 Bykski Eagle
Storage Samsung 970 EVO 500GB, 860 QVO 2TB
Display(s) CU34G2X 3440x1440 144Hz
Case FT03-T mATX
Audio Device(s) SBz
Power Supply SS-850KM3
Mouse G502
Keyboard G710+
Software Gentoo/Windows 10
Benchmark Scores Always only ever very fast
so the advantage of amd over intel is mainly on the architecture and not on the node.
even worse than we thought :laugh:
How much more specifically does AMD have to call out GameCache, and its doubled throughput on AES? Given they did enhance security around speculative execution, the advantages are still based primarily around the low-hanging fruits. Seems like Jim Keller brought Ryzen up to Intel IPC standards, then AMD just polished it.

Joined
Feb 20, 2019
Messages
2,368 (3.02/day)
System Name Flavour of the month. I roll through hardware like it's not even mine (it often isn't).
Processor 3900X, 5800X, 2700U
Motherboard Aorus X570 Elite, B550 DS3H
Cooling Alphacool CPU+GPU soft-tubing loop (Laing D5 360mm+140mm), AMD Wraith Prism
Memory 32GB Patriot 3600CL17, 32GB Corsair LPX 3200CL16, 16GB HyperX 2400CL14
Video Card(s) 2070S, 5700XT, Vega10
Storage 1TB WD S100G, 2TB Adata SX8200 Pro, 1TB MX500, 500GB Hynix 2242 bastard thing, 16TB of rust + backup
Display(s) Dell SG3220 165Hz VA, Samsung 65" Q9FN 120Hz VA
Case NZXT H440NE, Silverstone GD04 (almost nothing original left inside, thanks 3D printer!)
Audio Device(s) CA DacMagic+ with Presonus Eris E5, Yamaha RX-V683 with Q Acoustics 3000-series, Sony MDR-1A
Power Supply BeQuiet StraightPower E9 680W, Corsair RM550, and a 45W Lenovo DC power brick, I guess.
Mouse G303, MX Anywhere 2, Another MX Anywhere 2.
Keyboard CM QuickFire Stealth (Cherry MX Brown), Logitech MX Keys (not Cherry MX at all)
Software W10
Benchmark Scores I once clocked a Celeron-300A to 564MHz on an Abit BE6 and it scored over 9000.
4.8 Zen2 gates occupy the space of 4 Intel 14nm gates, so about a 20% linear density increase and about a 45% overall area density increase.

That's not a non-trivial advantage, but definitely less than I expected from 14nm > 7nm based on the marketing lies.

Next I want to know how much of a jump TSMC 28 > 14nm was. We were stuck on 28nm for so long that I thought Moore's Law was completely dead back then.

plz don't post any news about the 8auer (the Fermer) he's just a troll
Source? What has he done to earn his troll status - I don't really follow him closely....

Joined
Feb 11, 2009
Messages
3,240 (0.73/day)
System Name Cyberline
Processor Intel Core i7 2600k
Motherboard Asus P8P67 LE Rev 3.0
Cooling Tuniq Tower 120
Memory Corsair (4x2) 8gb 1600mhz
Video Card(s) AMD RX480
Storage Samsung 750 Evo 250gb SSD + WD 1tb x 2 + WD 2tb
Display(s) Philips 32inch LPF5605H (television)
Case antec 600
Audio Device(s) Focusrite 2i4 (USB)
Power Supply Seasonic 620watt 80+ Platinum
Mouse Elecom EX-G
Keyboard Rapoo V700
Software Windows 10 Pro 64bit
plz don't post any news about the 8auer (the Fermer) he's just a troll

farmer* and yay your second post slandering a well respected individual!

Joined
Jan 27, 2015
Messages
675 (0.30/day)
System Name Legion
Processor i9-10850K
Motherboard Asus Prime Z490M Plus
Cooling Air
Memory G.Skill Ripjaws V 32GB (2 x 16GB) DDR4-3200 F4-3200C16D-32GVK
Video Card(s) EVGA GeForce RTX 2060 KO Ultra
Storage Inland Premium 256GB SSD 3D NAND M.2 2280 PCIe NVMe 3.0 x4 + WD Blue 1TB SATA SSD
Display(s) Acer K272HUL 1440p / 34" MSI MAG341CQ 3440x1440
Case Lian Li 205M
Power Supply PowerSpec 650W 80+ Bronze Semi-Modular PS 650BSM
Mouse Logitech MX Anywhere 25
Keyboard Logitech MX Keys
Software Lots
4.8 Zen2 gates occupy the space of 4 Intel 14nm gates, so about a 20% linear density increase and about a 45% overall area density increase.

That's not a non-trivial advantage, but definitely less than I expected from 14nm > 7nm based on the marketing lies.

Next I want to know how much of a jump TSMC 28 > 14nm was. We were stuck on 28nm for so long that I thought Moore's Law was completely dead back then.


Source? What has he done to earn his troll status - I don't really follow him closely....


For all practical purposes, Intel could have called "14nm+++" a "10nm" node and that would have been just as legit as TSMC's 7nm node name.

If you look into Intel 10nm, Tiger Lake is their 2nd generation "10nm" node and it has most of the same characteristics as TSMCs 2nd generation "7nm" node. It is more dense than TSMC 1st gen 7nm which is used on Zen 2.

This means that technically Tiger Lake @ 10nm+ will be on a superior node to Zen 2 7nm (first gen node).

IIRC Zen 3 is to use TSMC 7nm 2nd gen, which is on par with Intel 10nm+ (or 10nm superfin or w/e they are calling it now).

The problem of course is that Intel has no plans to use 10nm+ for desktop. This is where their real crunch will come in, while they use 10nm+ to defend their laptop and server space, they've deprecated the desktop space in importance until 2022 when Intel 7nm (5nm TSMC equivalent) comes online.

I guess we will know in 3-6 months when we can see Rocket Lake (Intel 14nm) vs Zen 3 (TSMC 2nd gen 7nm).

Joined
Jun 3, 2010
Messages
1,752 (0.44/day)
For all practical purposes, Intel could have called "14nm+++" a "10nm" node and that would have been just as legit as TSMC's 7nm node name.
No, they wouldn't meet the sizing criteria.
That is what I've been telling. The saving on interconnect dynamic power is almost the same. That makes them equal on power efficiency, but that does not cover the rest of transistor benchmarks.

They cannot push more current, but can maintain the same resistance.

In light of the notion of this thread, I honestly think Samsung can disrupt the market. Gate features are the most developed backbones of the industry. The question is who will seperate the wheat from the chaff - tunneling effects are best exploited when there is not a single bandgap like the blinders are semiclosed(I totally make it up, astroturf style).

Joined
Jan 27, 2015
Messages
675 (0.30/day)
System Name Legion
Processor i9-10850K
Motherboard Asus Prime Z490M Plus
Cooling Air
Memory G.Skill Ripjaws V 32GB (2 x 16GB) DDR4-3200 F4-3200C16D-32GVK
Video Card(s) EVGA GeForce RTX 2060 KO Ultra
Storage Inland Premium 256GB SSD 3D NAND M.2 2280 PCIe NVMe 3.0 x4 + WD Blue 1TB SATA SSD
Display(s) Acer K272HUL 1440p / 34" MSI MAG341CQ 3440x1440
Case Lian Li 205M
Power Supply PowerSpec 650W 80+ Bronze Semi-Modular PS 650BSM
Mouse Logitech MX Anywhere 25
Keyboard Logitech MX Keys
Software Lots
No, they wouldn't meet the sizing criteria.
That is what I've been telling. The saving on interconnect dynamic power is almost the same. That makes them equal on power efficiency, but that does not cover the rest of transistor benchmarks.
...


These are 10nm ish nodes. Intel is nearly double the density of other 8-11nm fabs. Who is lying here? Hint : It's not Intel. Their competitors are claiming 8nm when it's more like 12 nm.



And Intel 10nm is MORE dense than Samgung and TSMC 1st/2nd gen 7nm :




Here's the 12-16nm node. Intel's 14nm is more dense than any of the competitors "12nm-16nm" nodes. It's *a lot* closer to Samsung's "10nm" node than Samungs 10nm is to Intel's 10nm node.

Point here being these node names are utter marketing garbage. Meaningless marketing BS.


Joined
Jun 3, 2010
Messages
1,752 (0.44/day)

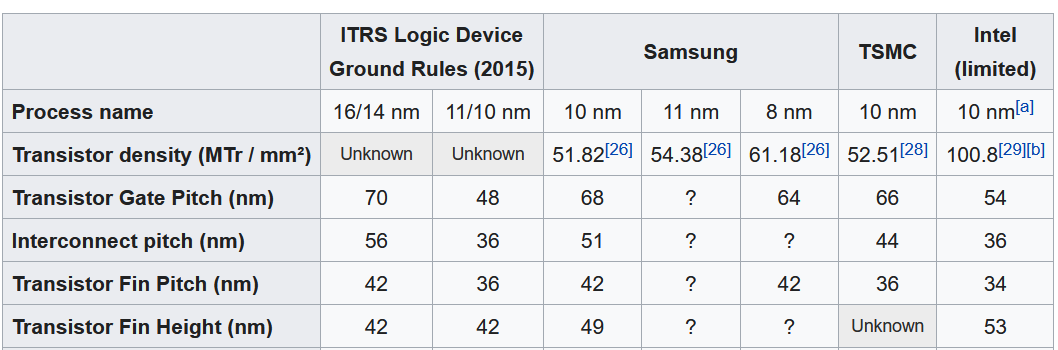

These are 10nm ish nodes. Intel is nearly double the density of other 8-11nm fabs. Who is lying here? Hint : It's not Intel. Their competitors are claiming 8nm when it's more like 12 nm.

View attachment 169611

And Intel 10nm is MORE dense than Samgung and TSMC 1st/2nd gen 7nm :

View attachment 169613


Here's the 12-16nm node. Intel's 14nm is more dense than any of the competitors "12nm-16nm" nodes. It's *a lot* closer to Samsung's "10nm" node than Samungs 10nm is to Intel's 10nm node.

Point here being these node names are utter marketing garbage. Meaningless marketing BS.

View attachment 169612
These are not exclusive. We are talking about 14nm.

I just tried to entertain a fresh perspective. 14nm good 10/7nm bad > reassess motives, retool the gate physics kinda stuff. I do think MBC fet is not classical physics stuff, but this is coming from a non-EE guy.

Like when you rub glass rod(insulator) with a cloth, these new kinds of gates will find ways to push charge and not current over higher insulation gates, like sieves letting water through and not vibrating rocks. You may say I'm a dreamer, but eventhough the market is dead for hdds, hamr is still a thing. They indeed launched the crap smr before that, true, but this is much the same as hamr which is coming down the line nonetheless.
Electric current and magnetic resistance is somewhat coupled, so they say. It ought to prevent current if they can hone in on the magnetic component.

Joined
Oct 22, 2014
Messages
11,656 (4.93/day)
Location
Sunshine Coast
System Name Black Box
Processor Intel i5-9600KF
Motherboard NZXT N7 Z370 Black
Cooling Cooler Master 240 RGB AIO / Stock
Memory Thermaltake Toughram 16GB 4400MHz DDR4 or Gigabyte 16GB 3600MHz DDR4 or Adata 8GB 2133Mhz DDR4
Video Card(s) Asus Dual 1060 6GB
Storage Kingston A2000 512Gb NVME
Display(s) AOC 24" Freesync 1m.s. 75Hz
Case Corsair 450D High Air Flow.
Audio Device(s) No need.
Power Supply FSP Aurum 650W
Mouse Yes
Keyboard Of course
Software W10 Pro 64 bit
Poofing is good, they lower electrical resistance as they do in ssds.
It must be the lube they use that reduces static. /s :p

Joined
Jun 3, 2010
Messages
1,752 (0.44/day)
It must be the lube they use that reduces static. /s :p
I wonder if we can use the pinprick method to see if the resistance has dropped below our window of tolerance. Gosh, I can almost form logical sentences full of misappropriated terms. I wish I could use my astroturfing talents in other fields.


koblongata

New Member
Joined
Jun 26, 2019
Messages
6 (0.01/day)
The thermal reduction is about right, but have to admit that AMD's design can be improved upon, BUT then again, AMD has chosen to retain using the same socket for years, that played a major rule too. I would choose to use AMD's latest chipset if I were building a new computer for sure, you can only hope Intel don't switch compatible chipset almost every other year.


ARF

Joined
Jan 28, 2020
Messages
1,333 (3.02/day)
These are 10nm ish nodes. Intel is nearly double the density of other 8-11nm fabs. Who is lying here? Hint : It's not Intel. Their competitors are claiming 8nm when it's more like 12 nm.

View attachment 169611

Intel's 10nm process violates the Ground Rules for 11/10nm process.
They should have used names like 13nm and 15nm for the so called fake "10nm, 11nm and 8nm".

Joined
Aug 20, 2007
Messages
14,531 (2.91/day)
System Name Pioneer
Processor Intel i9 9900k
Motherboard ASRock Z390 Taichi
Cooling Noctua NH-D15 + A whole lotta Sunon and Corsair Maglev blower fans...
Memory G.SKILL Ripjaws V Series 64GB (4 x 16GB) DDR4-3200
Video Card(s) EVGA GeForce RTX 2080 SUPER XC ULTRA
Storage 2x Mushkin Pilot-E 2TB NVMe SSDs in bootable RAID0 by HIGHPOINT - SSD7202
Display(s) 55" LG 55" B9 OLED 4K Display
Case Thermaltake Core X31
Audio Device(s) VGA HDMI->Panasonic SC-HTB20/Schiit Modi MB/Asgard 2 DAC/Amp to AKG Pro K7712 Headphones
Power Supply Seasonic Prime Titanium 750W
Mouse ROCCAT Kone EMP
Keyboard WASD CODE 104-Key w/ Cherry MX Green Keyswitches, Doubleshot Vortex PBT White Transluscent Keycaps
Software Windows 10 Enterprise (Product of work, yes it's legit)
Benchmark Scores www.3dmark.com/fs/23478641 www.3dmark.com/spy/13863605 www.3dmark.com/pr/306218
no everyone is native speaker, you know what the sentence means, so everything is fine

I for one appreciated proof-reading posts when I was an temp-editor here. I don't view them as critical, rather helpful.

Intel's 10nm process violates the Ground Rules for 11/10nm process.
They should have used names like 13nm and 15nm for the so called fake "10nm, 11nm and 8nm".

Dude. Everyone is lying about their node size. Intel isn't alone.


osakaboy

New Member
Joined
Nov 28, 2020
Messages
1 (0.01/day)
Very interesting.
Since the nanometer measure is more marketing, can someone tell me what the real nm size is for TSMC 5nm nodes are?

Other questions
From what I have read, it seems that the insane performance of the M1 Macbook might have more to do with the jump from Intel 10nm to TSMC 5nm. This would potentially provide somewhere around a 35% speed improvement, 65% less power, and a 3.3X density improvement even without using a new architecture. This would mean that M1 performance might have little to do with ARM vs x86. I mean, the architectures are not very different in modern days.

ARMv8.1-M from Feb 2019 added 150 new instructions for signal processing and vector math. Group some of these instructions together into common operations and they start to look like CISC. AMD and Intel now use Microcode which takes a complex instruction and breaks it up into its component tasks which starts to look like the instruction pipeline on a RISC chip. RISC chips can actually require a large cache.

So how is Apple's design different than native ARM I wonder? There are limits to what its ARM license allows. Even Apple can’t radically alter the ARM instruction set or the programmer’s model without permission from ARM.

Joined
Apr 12, 2013
Messages
4,030 (1.38/day)
If you look into Intel 10nm, Tiger Lake is their 2nd generation "10nm" node and it has most of the same characteristics as TSMCs 2nd generation "7nm" node. It is more dense than TSMC 1st gen 7nm which is used on Zen 2.
It's third gen "10nm" with ICL being the second gen ~
The reason why I’m writing about this topic is because it is all a bit of a mess. Intel is a company so large, with many different business units each with its own engineers and internal marketing personnel/product managers, that a single change made by the HQ team takes time to filter down to the other PR teams, but also filter back through the engineers, some of which make press-facing appearances. That’s before any discussions as to whether the change is seen as positive or negative by those affected.

I reached out to Intel to get their official decoder ring for the 10++ to new SuperFin naming. The official response I received was in itself confusing, and the marketing person I speak to wasn’t decoding from the first 2018 naming change, but from the original pre-2017 naming scheme. Between my contacts and I we spoke over the phone so I could hear what they wanted to tell me and so I could tell them what I felt were the reasons for the changes. Some of the explanations I made (such as Intel not wanting to acknowledge Ice Lake 10nm is different to Cannon Lake 10nm, or that Ice Lake 10nm is called that way to hide the fact that Cannon Lake 10nm didn’t work) were understandably left with a no comment.

However, I now have an official decoder ring for you, to act as a reference for both users and Intel’s own engineers alike.


Does anyone really think that the original 10nm was anything but a complete disaster? Perhaps the article would help change minds of some of these skeptics.

Top
