Post your CrystalDiskMark speeds

T4C Fantasy

CPU & GPU DB Maintainer
Staff member
Joined
May 7, 2012
Messages
2,348 (0.86/day)
Location
Rhode Island
System Name Whaaaat Kiiiiiiid!
Processor Intel Core i9-9900K @ 5.0GHz
Motherboard Gigabyte Z390 AORUS Ultra
Cooling Corsair H150i AIO Cooler
Memory Corsair Dominator Platinum 16GB DDR4-3200
Video Card(s) Zotac GeForce RTX 2080 Ti Triple Fan @ 2040MHz
Storage Samsung 970 PRO 512GB + Crucial MX300 512GB + OCZ Vertex 4 256GB
Display(s) 27" LG 27MU67-B 4K, + 27" Acer Predator XB271HU 1440P
Case Thermaltake Core X9 Snow
Audio Device(s) Logitech G933 Headset
Power Supply SeaSonic Platinum 1050W Snow Silent
Mouse Logitech G900
Keyboard Logitech G910
Software Windows 10 Pro
Benchmark Scores FFXV: 19329
Download CrystalDiskMark 6.0.2
press the "All" button, the clickable speed link will show your picture, so even though I wont show it in the list, people will see it in your post.
list in your submission post the exact model of your drive even if its a long serial number. I will not be putting the full drive name in list so people will have to find out from your post.

"Seq Q32T1 (R/W)" Speeds are clickable, leading to the original post.
NameDriveSizeTypeRPMConnectorSeq Q32T1 (R/W)Raid
dennisx333Samsung 970 PRO512GBNVMeM.27018.5 / 2319.3Raid 1
ahujetSamsung SM961512GBNVMeM.23642.6 / 1799.7
FouquinSamsung PM981256GBNVMeM.23625.3 / 1567.6
biffzinkerSamsung 970 EVO500GBNVMeM.23611.8 / 2462.6
P4-630Samsung 970 EVO500GBNVMeM.23577.9 / 2486.5
HardiSamsung 970 EVO Plus500GBNVMeM.23573.2 / 3248.4
T4C FantasySamsung 970 PRO512GBNVMeM.23572.8 / 2345.6
VarioSamsung 970 PRO512GBNVMeM.23571.0 / 2331.3
rodrigoxSamsung 970 EVO250GBNVMeM.23567.7 / 1538.4
racer243lSamsung 970 EVO1TBNVMeM.23561.2 / 2491.5
CrAsHnBuRnXpSamsung 970 EVO1TBNVMeM.23561.1 / 2498.6
dj21qsSamsung 970 PRO512GBNVMeM.23549.8 / 2257.6
sam_86314Samsung 970 EVO500GBNVMeM.23548.3 / 2450.2
exodusprime1337Samsung 970 EVO Plus1TBNVMeM.23516.2 / 3341.7
Knoxx39Samsung 970 EVO250GBNVMeM.23515.4 / 1531.7
VarioInland Premium1TBNVMeM.23479.7 / 3231.5
exodusprime1337WD Black500GBNVMeM.23425.5 / 2540.3
Enterprise24Transcend PCIE 220S1TBNVMePCIe3406.5 / 3171.4
ArctucasSamsung 960 EVO500GBNVMeM.23393.8 / 2950.7Raid 0
sam_86314Samsung 970 EVO250GBNVMeM.23273.6 / 1447.2
Knoxx39Samsung 960 EVO250GBNVMeM.23250.3 / 1567.3
PsychoholicSamsung 960 EVO1TBNVMeM.23248.1 / 1938.0
xkm1948Samsung 960 PRO1TBNVMeM.23240.4 / 1955.3
kyckaSamsung 960 PRO512GBNVMeM.23238.2 / 2005.2
xkm1948ADATA SX8200960GBNVMeM.23144.9 / 1742.0
kyckaHP EX920512GBNVMeM.23135.6 / 1658.5
CrAsHnBuRnXpSamsung 970 EVO250GBNVMeM.23106.4 / 1398.6
1986nathWD Black256GBNVMeM.23078.5 / 1613.7
xkm1948Samsung 960 PRO1TBNVMeM.23064.0 / 1997.9
Aqeel ShahzadDell Express1.6TBNVMePCIe3008.9 / 2196.8
cdawallSamsung PM961512GBNVMeM.23008.2 / 1682.7
GamingElliotSamsung 960 EVO250GBNVMeM.22974.4 / 1480.0
jesdalsSamsung 960 EVO1TBNVMeM.22954.7 / 1788.1
PsychoholicIntel Optane 900P280GBAICPCIe 3.0 x42737.3 / 2269.6
cdawallSamsung SM951512GBNVMeM.22126.9 / 1590.0
cdawallSamsung SM951512GBNVMeM.22114.4 / 1596.1
GamingElliotADATA XPG SX6000 Pro1TBNVMeM.22089.5 / 1601.8
chevy350Samsung 950 PRO256GBNVMeM.22053.4 / 938.2
JismSamsung 970 EVO500GBNVMeM.21783.6 / 1376.8
Tsukiyomi91Samsung 960 EVO250GBNVMeM.21750.6 / 1241.1
TomgangSamsung 950 PRO256GBNVMeM.2 (PCIe 2.0 x4)1712.9 / 938.8
hhy2kToshiba256GBNVMeM.2 (PCIe 2.0 x4)1669.5 / 1123.7
sam_86314Samsung SM951256GBAHCIM.21571.9 / 1296.7
M0raficWD Black250GBNVMeM.21525.2 / 1508.9
Liviu CojocaruKingston SA1000M480GBNVMeM.2 (PCIe 2.0 x4)1455.1 / 498.1
laranjePlextor M8SeY1TBNVMeM.2 (PCIe 2.0 x4)1419.1 / 867.2
Solaris17Seagate Exos8TBHDD7,200iSCSI1166.9 / 491.3Raid 0
cdawallSamsung Apple SSD SM1024F1TBSSDM.2 (PCIe 2.0 x4)1145.4 / 1002.2
INSTG8RSamsung 850 EVO1TBSSDSATA III1062.0 / 1026.0Raid 0
HugisSamsung SM961256GBNVMeM.2 (PCIe 2.0 x2)836.0 / 816.0
Devil1950Samsung PM981256GBNVMeM.2 (PCIe 2.0 x2)819.3 / 795.5
newtekie1Crucial BX500120GBSSDSATA III740.9 / 499.9Raid 1
1986nathKingston HyperX Savage240GBSSDSATA III564.6 / 547.8
xkm1948ADATA SU8002TBSSDSATA III564.6 / 525.5
HardiSamsung 850 PRO1TBSSDSATA III564.4 / 536.7
NoJuan999Crucial MX5001TBSSDSATA III564.0 / 516.9
P4-630Samsung 850 PRO512GBSSDSATA III563.2 / 533.6
xkm1948Samsung 860 EVO2TBSSDSATA III562.9 / 532.3
P4-630Samsung 860 EVO1TBSSDSATA III562.7 / 533.2
MrGeniusWD Blue 3D NAND2TBSSDSATA III562.3 / 526.9
Tsukiyomi91Intel SSDC2KW240H6240GBSSDSATA III (mSATA)562.1 / 498.2
racer243lSamsung 860 EVO1TBSSDSATA III560.8 / 530.8
Durvelle27Micron M600256GBSSDSATA III (mSATA)560.8 / 502.6
SoNic67ADATA SU8001TBSSDSATA III560.3 / 502.2
biffzinkerSanDisk Ultra II480GBSSDSATA III558.1 / 524.7
Final_FighterSamsung MZNTY128HDHP128GBSSDSATA III558.1 / 385.4
T4C FantasyOCZ Vertex 4256GBSSDSATA III557.8 / 510.8
KomshijaMushkin Triactor240GBSSDSATA III557.5 / 513.8
Devil1950Kingston SA400480GBSSDSATA III555.0 / 516.4
windwhirlMushkin Triactor 3DL256GBSSDSATA III554.2 / 465.5
BroudkaTeam L5 LITE 3D480GBSSDSATA III554.1 / 486.5
shovenoseCrucial BX200480GBSSDSATA III553.4 / 476.2
AthloniteSamsung 860 EVO500GBSSDSATA III552.7 / 378.3
biffzinkerSamsung 850 EVO250GBSSDSATA III552.6 / 533.2
T4C FantasyHynix HFS256G39TND256GBSSDM.2552.2 / 263.4
kyckaMushkin Reactor1TBSSDSATA III552.1 / 412.0
HugisSamsung 850 EVO120GBSSDSATA III551.0 / 530.5
Knoxx39Samsung 850 EVO250GBSSDSATA III550.5 / 524.2
Knoxx39Samsung 840 EVO250GBSSDSATA III549.2 / 529.9
P4-630Samsung256GBSSDM.2548.0 / 520.7
KomshijaTeam L3 EVO480GBSSDSATA III546.1 / 492.9
qu4k3rSilicon Power A55512GBSSDSATA III546.1 / 440.8
sam_86314Kingston UV400240GBSSDSATA III544.8 / 524.0
shovenoseWD Blue250GBSSDSATA III544.0 / 490.4
rodrigoxSamsung 840 EVO120GBSSDSATA III541.0 / 534.1
AhokZYashASamsung 850 EVO120GBSSDSATA III539.2 / 518.6
shovenoseCrucial BX500120GBSSDSATA III536.4 / 474.8
lynx29Micron 11002TBSSDSATA III534.6 / 522.5
kyckaCrucial MX300750GBSSDSATA III534.2 / 515.8
SoNic67Samsung 860 EVO1TBSSDSATA III533.9 / 479.4
biffzinkerIntel 520120GBSSDSATA III533.9 / 156.9
T4C FantasyCrucial MX300525GBSSDSATA III528.2 / 473.9
TomgangMicron 1100256GBSSDM.2527.4 / 500.2
NoJuan999Samsung 850 EVO500GBSSDSATA III527.1 / 512.8
sam_86314Crucial MX300525GBSSDSATA III525.6 / 447.0
sam_86314ADATA SU800128GBSSDM.2523.2 / 418.1
kyckaCrucial M500960GBSSDSATA III522.3 / 441.8
VarioInland Professional120GBSSDSATA III514.6 / 387.0
XiGMAKiDCorsair Neutron GTX120GBSSDSATA III514.4 / 316.9
racer243lCrucial MX300525GBSSDSATA III509.9 / 419.3
EskimonsterOCZ Vertex 4256GBSSDSATA III507.0 / 432.7
sam_86314PNY CS900120GBSSDSATA III504.5 / 380.5
windwhirlKingstone HyperX Fury240GBSSDSATA III502.9 / 199.9
cjcoxSamba4TBHDD7,200SAS493.2 / 573.5Raid 6
AhokZYashAIntel SSD DC S3510120GBSSDSATA III467.9 / 136.1
biffzinkerPNY SSD7CS121120GBSSDSATA III460.5 / 299.3
shovenoseKingston A400120GBSSDSATA III456.8 / 205.6
shovenoseKingston SSDNow V30060GBSSDSATA III449.0 / 123.9
Good3alzInland Professional120GBSSDSATA III434.0 / 476.7
qu4k3rSanDisk Ultra Plus256GBSSDSATA III420.9 / 321.7
SoNic673ware LSI 9750-8i4TBHDD7,200SATA III412.4 / 325.3Raid 5
M0raficHitachi3TBHDD7,200SAS II358.7 / 304.1Raid 5
AhokZYashASeagate ST360057SSUN600G1.2TBHDD15,000SAS II334.8 / 330.0Raid 0

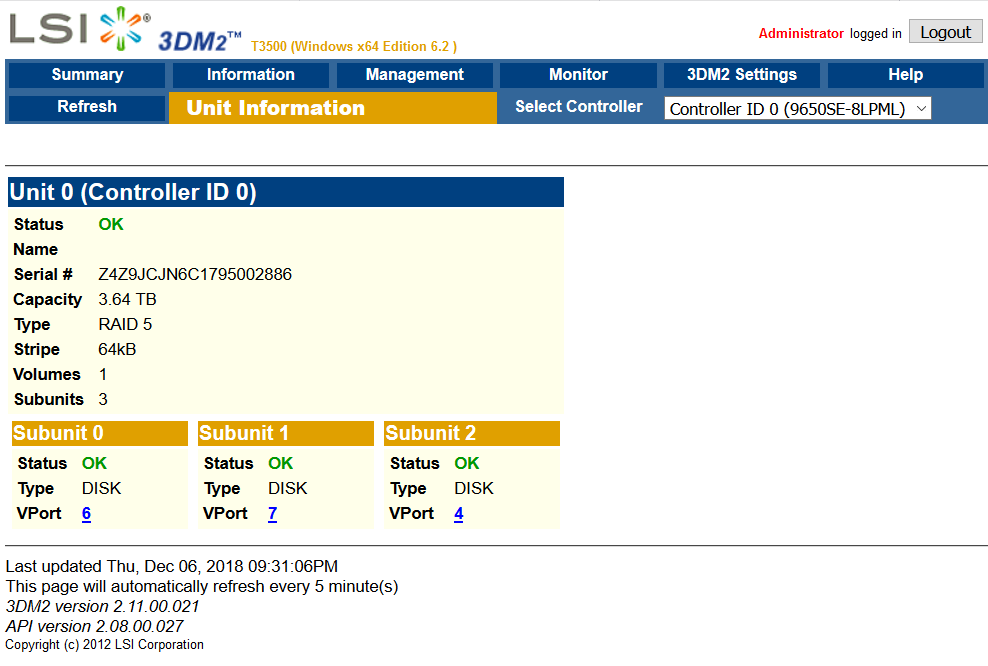

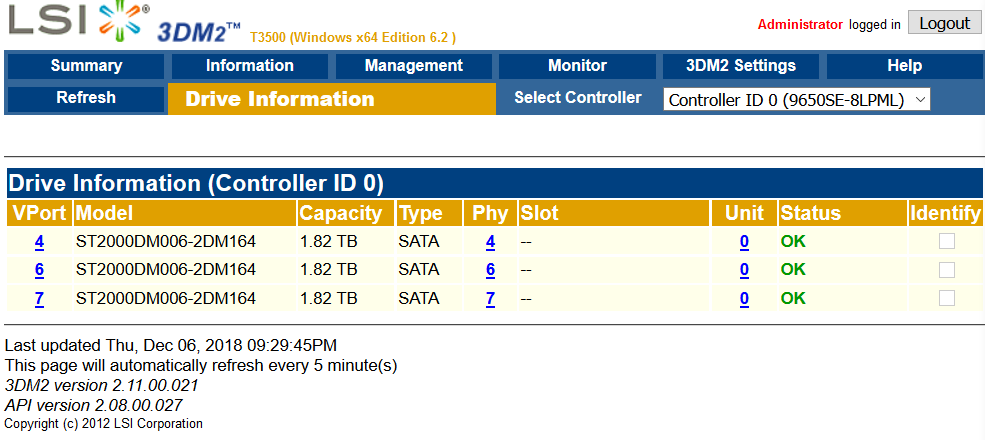

SoNic673ware 9650SE4TBHDD7,200SATA II291.5 / 268.2Raid 5
SoNic67ADATA SU8001TBSSDSATA II285.4 / 274.3
biffzinkerIntel 32080GBSSDSATA II281.5 / 94.61
KomshijaTeam L3 EVO480GBSSDSATA II274.3 / 262.3
SoNic67Samsung 860 EVO1TBSSDSATA II269.6 / 271.9
Xx Tek Tip xXWD Elements10TBHDD7,200SATA III217.1 / 219.2
M0raficDREVO X1240GBSSDSATA III212.1 / 175.8
sam_86314WD EasyStore8TBHDD5,400SATA III (USB 3.0)199.4 / 200.9
KomshijaToshiba X3004TBHDD7,200SATA III188.1 / 186.2
sam_86314Seagate Barracuda4TBHDD5,425SATA III (USB 3.0)184.6 / 129.8
shovenoseSeagate4TBHDD5,900SATA III180.8 / 174.7
sam_86314Seagate Barracuda2TBHDD7,200SATA III175.8 / 143.0
qu4k3rSeagate Barracuda4TBHDD7,200SATA III173.9 / 74.77
racer243lWD Black2TBHDD7,200SATA III171.8 / 176.2
xkm1948WD Black2TBHDD7,200SATA III169.1 / 187.1
1986nathSeagate Barracuda1TBHDD7,200SATA III165.3 / 165.1
windwhirlToshiba DT01ACA2002TBHDD7,200SATA III162.4 / 160.7
GamingElliotSeagate Video2TBHDD5,900SATA III161.6 / 157.8
GorstakToshiba + Seagate3TB+500GBHDD7,200SATA III159.4 / 155.3Raid 1
SoNic67Silicon Power128128GBFlashUSB 3.0156.5 / 88.81
sam_86314SanDisk Ultra64GBFlashUSB 3.0142.7 / 49.49
SoNic67SanDisk Ultra Fit SDCZ4364GBFlashUSB 3.0142.0 / 65.72
SoNic67Lexar JumpDrive S4564GBFlashUSB 3.0137.6 / 54.73
windwhirlWD Green2TBHDD5,400SATA III136.5 / 130.7
Devil1950WD Blue500GBHDD7,200SATA III135.3 / 134.3
MrGeniusHGST Deskstar1TBHDD7,200SATA II135.0 / 134.4
MrGeniusWD Black1TBHDD7,200SATA III129.4 / 112.9
sam_86314SanDisk DF403232GBSSDeMMC128.5 / 60.90
GorstakWD Caviar Blue500GBHDD7,200SATA III126.3 / 124.5
GamingElliotHitachi Deskstar 7K1000.C1TBHDD7,200SATA II108.7 / 108.4
qu4k3rWD Green2TBHDD7,200SATA II105.3 / 99.07
biffzinkerSanDisk Ultra16GBFlashUSB 3.0102.8 / 51.74
MrGeniusLexar JumpDrive S7516GBFlashUSB 3.099.10 / 21.50
exodusprime1337WD Red2TBHDD5,400SATA III98.95 / 80.32Raid 1
Durvelle27WD Black500GBHDD7,200SATA III90.77 / 88.89
MrGeniusWD Caviar Blue320GBHDD7,200SATA II89.36 / 86.51
qu4k3rWD Blue500GBHDD7,200SATA II77.55 / 75.92
sam_86314HGST Travelstar 5K10001TBHDD5,400SATA II69.03 / 67.12
HugisToshiba MK5075GSX500GBHDD5,400SATA II64.10 / 65.43
MrGeniusMaxtor DiamondMax 10200GBHDD7,200PATA54.71 / 57.47
sam_86314Maxtor DiamondMax Plus 980GBHDD7,200PATA49.21 / 49.08
sam_86314WD Cavier40GBHDD7,200PATA48.45 / 29.76
sam_86314Maxtor DiamondMax Plus 960GBHDD7,200PATA48.23 / 19.06
MrGeniusMaxtor DiamondMax 10200GBHDD7,200SATA I38.64 / 39.38
MrGeniusSamsung SpinPoint80GBHDD7,200PATA27.26 / 30.85
sam_86314WD Cavier10GBHDD7,200PATA23.91 / 31.71
Picture must show all speeds like this
Hynix HFS256G39TND-N210A / 256GB / SSD / SATA III <-- display like this (include HDD RPM speed please)


Attachments

Last edited:
Joined
Oct 19, 2007
Messages
7,118 (1.62/day)
Processor Intel i9 9900K @5GHz w/ Corsair H150i Pro CPU AiO w/Corsair HD120 RBG fan
Motherboard Asus Z390 Maximus XI Code
Cooling 6x120mm Corsair HD120 RBG fans
Memory Corsair Vengeance RBG 2x8GB 3600MHz
Video Card(s) Asus RTX 2080 STRIX OC
Storage Samsung 250GB 960 EVO m.2, 970 EVO 1TB, Samsung 850 EVO 1TB SSD, 10TB Synology DS1515+ RAID5
Display(s) Acer Predator 34" 3440x1440 OC'd to 100MHz
Case Corsair 570x RBG Tempered Glass
Audio Device(s) Onboard / Corsair Void Wireless RGB
Power Supply Corsair HX850w Platinum Series
Mouse Logitech G602s
Keyboard Corsair K70 Rapidfire
Software Windows 10 x64 Professional
Benchmark Scores Firestrike - 23520 Heaven - 3670


Samsung 970 EVO 250GB NVMe

EDIT: here is my Samsung 970 EVO 1TB NVMe


Last edited:
Joined
Oct 28, 2018
Messages
565 (1.58/day)
Location
Zadar, Croatia
System Name SloMo
Processor G4560
Motherboard MSi H110-PRO-D
Cooling LC-CC-95 @ Arctic Cooling fan
Memory 2X Crucial DDR4 2400 4GB
Video Card(s) Integrated HD 610
Storage WD 500 GB + Seagate 500 GB + Toshiba 3 TB
Display(s) Lenovo D221
Case Corsair Carbide 100R
Audio Device(s) Manhattan Flex BT Headphones, Encore P-801 stereo speakers
Power Supply Corsair CX450M
Mouse microsoft office mouse
Keyboard Modecom mc-800m
Software Windows 10 Pro x64
Benchmark Scores gorstak @ hwbot.org
the attached aakx image is my system drive, Western Digital WDC WD5000AAKX-60U6AA0 (FW: 18.01H18)
the attached spanned image are my storage drives in a spanned volume, or if you wish, raid 1...they consist of TOSHIBA DT01ABA300 (FW: MZ6OABB0) and Seagate ST3500418ASQ (FW: AP24)

I wonder what the results would be like if I had a ssd in a spanned volume with this 3tb drive...Perhaps with some adata su800 128gb drive? mhm....


Attachments

Last edited:

T4C Fantasy

CPU & GPU DB Maintainer
Staff member
Joined
May 7, 2012
Messages
2,348 (0.86/day)
Location
Rhode Island
System Name Whaaaat Kiiiiiiid!
Processor Intel Core i9-9900K @ 5.0GHz
Motherboard Gigabyte Z390 AORUS Ultra
Cooling Corsair H150i AIO Cooler
Memory Corsair Dominator Platinum 16GB DDR4-3200
Video Card(s) Zotac GeForce RTX 2080 Ti Triple Fan @ 2040MHz
Storage Samsung 970 PRO 512GB + Crucial MX300 512GB + OCZ Vertex 4 256GB
Display(s) 27" LG 27MU67-B 4K, + 27" Acer Predator XB271HU 1440P
Case Thermaltake Core X9 Snow
Audio Device(s) Logitech G933 Headset
Power Supply SeaSonic Platinum 1050W Snow Silent
Mouse Logitech G900
Keyboard Logitech G910
Software Windows 10 Pro
Benchmark Scores FFXV: 19329
the attached aakx image is my system drive, wd caviar blue 500GB sata3 aakx hdd
the attached spanned image are my storage drives in a spanned volume, or if you wish, raid 1...they consist of toshiba 3tb dtaba drive, taken out of its removable box and placed inside pc, and the other drive is seagate 500gb sata3 hdd.

I wonder what the results would be like if I had a ssd in a spanned volume with this 3tb drive...
edit your post with exact models, dont reply to this message with the model, keep in mind your post is clickable from my list so people will want to know the exact sku if they are curious

Joined
Oct 19, 2007
Messages
7,118 (1.62/day)
Processor Intel i9 9900K @5GHz w/ Corsair H150i Pro CPU AiO w/Corsair HD120 RBG fan
Motherboard Asus Z390 Maximus XI Code
Cooling 6x120mm Corsair HD120 RBG fans
Memory Corsair Vengeance RBG 2x8GB 3600MHz
Video Card(s) Asus RTX 2080 STRIX OC
Storage Samsung 250GB 960 EVO m.2, 970 EVO 1TB, Samsung 850 EVO 1TB SSD, 10TB Synology DS1515+ RAID5
Display(s) Acer Predator 34" 3440x1440 OC'd to 100MHz
Case Corsair 570x RBG Tempered Glass
Audio Device(s) Onboard / Corsair Void Wireless RGB
Power Supply Corsair HX850w Platinum Series
Mouse Logitech G602s
Keyboard Corsair K70 Rapidfire
Software Windows 10 x64 Professional
Benchmark Scores Firestrike - 23520 Heaven - 3670
Edited my OP to include my other m.2.


T4C Fantasy

CPU & GPU DB Maintainer
Staff member
Joined
May 7, 2012
Messages
2,348 (0.86/day)
Location
Rhode Island
System Name Whaaaat Kiiiiiiid!
Processor Intel Core i9-9900K @ 5.0GHz
Motherboard Gigabyte Z390 AORUS Ultra
Cooling Corsair H150i AIO Cooler
Memory Corsair Dominator Platinum 16GB DDR4-3200
Video Card(s) Zotac GeForce RTX 2080 Ti Triple Fan @ 2040MHz
Storage Samsung 970 PRO 512GB + Crucial MX300 512GB + OCZ Vertex 4 256GB
Display(s) 27" LG 27MU67-B 4K, + 27" Acer Predator XB271HU 1440P
Case Thermaltake Core X9 Snow
Audio Device(s) Logitech G933 Headset
Power Supply SeaSonic Platinum 1050W Snow Silent
Mouse Logitech G900
Keyboard Logitech G910
Software Windows 10 Pro
Benchmark Scores FFXV: 19329
Joined
Oct 28, 2018
Messages
565 (1.58/day)
Location
Zadar, Croatia
System Name SloMo
Processor G4560
Motherboard MSi H110-PRO-D
Cooling LC-CC-95 @ Arctic Cooling fan
Memory 2X Crucial DDR4 2400 4GB
Video Card(s) Integrated HD 610
Storage WD 500 GB + Seagate 500 GB + Toshiba 3 TB
Display(s) Lenovo D221
Case Corsair Carbide 100R
Audio Device(s) Manhattan Flex BT Headphones, Encore P-801 stereo speakers
Power Supply Corsair CX450M
Mouse microsoft office mouse
Keyboard Modecom mc-800m
Software Windows 10 Pro x64
Benchmark Scores gorstak @ hwbot.org
it is kinda weird his 4kb 1t1 read is weak, like hes runing os on it? dual os system?

Joined
Sep 27, 2014
Messages
539 (0.29/day)
This is my 4TB RAID 5 combination of (3) HDD (each 2TB, 7200rpm), on a 3ware 9650SE-8LPML hardware SATA RAID controller, 64kB stripe size (smaller than standard 128kB used by default). Disc is used for storage and video editing, OS and programs are on a SSD.


Last edited:
Joined
Jan 3, 2015
Messages
1,385 (0.79/day)
System Name Suffering from random access memory loss.
Processor Intel Core i7 980X @ 4.42 GHz (when becnching op to 4.77 GHz)
Motherboard ASUS P6X58D Premium
Cooling Noctua NH-D14 CPU cooler with 3 x noctua nf-f12 industrialppc-3000 pwm 120 MM fans
Memory 12 GB DDR3 CORSAIR 1600 MHz TIMMINGS 9-9-9-24
Video Card(s) EVGA GeForce GTX 1080 Ti SC2 GAMING
Storage 2 x Samsung 950 PRO 256 GB M.2 NVME SSD, Crucial MX300 2 TB SSD, WD RED 4 TB + WD AV-GP 2 TB HDD.
Display(s) 24" SAMSUNG
Case ANTEC TWELVE HUNDRED
Audio Device(s) ONBOARD realtek sound card.
Power Supply THERMALTAKE TOUGHPOWER 1500 WATT
Mouse Logitech G903 Lightspeed Wireless Gaming Mouse
Keyboard LOGITECH G19s
Software WINDOWS 10 PRO 64 BITS
Benchmark Scores https://www.3dmark.com/fs/13514527 https://www.3dmark.com/spy/2333033
My old samsung 950 pro. Note max speed is limited by pcie gen 2 to around 1700 mb/s running x4. The ssd is rated up to 2200 mb/s read while ride is 900 mb/s.




T4C Fantasy

CPU & GPU DB Maintainer
Staff member
Joined
May 7, 2012
Messages
2,348 (0.86/day)
Location
Rhode Island
System Name Whaaaat Kiiiiiiid!
Processor Intel Core i9-9900K @ 5.0GHz
Motherboard Gigabyte Z390 AORUS Ultra
Cooling Corsair H150i AIO Cooler
Memory Corsair Dominator Platinum 16GB DDR4-3200
Video Card(s) Zotac GeForce RTX 2080 Ti Triple Fan @ 2040MHz
Storage Samsung 970 PRO 512GB + Crucial MX300 512GB + OCZ Vertex 4 256GB
Display(s) 27" LG 27MU67-B 4K, + 27" Acer Predator XB271HU 1440P
Case Thermaltake Core X9 Snow
Audio Device(s) Logitech G933 Headset
Power Supply SeaSonic Platinum 1050W Snow Silent
Mouse Logitech G900
Keyboard Logitech G910
Software Windows 10 Pro
Benchmark Scores FFXV: 19329
This is my 4TB RAID 5 combination of (3) HDD (each 2TB, 7200rpm), on a 3ware 9650SE-8LPML hardware SATA RAID controller, 64kB stripe size (smaller than standard 128kB used by default). Disc is used for storage and video editing, OS and programs are on a SSD.

please use latest version, and also list the HDDs

Last edited:
Joined
Oct 19, 2007
Messages
7,118 (1.62/day)
Processor Intel i9 9900K @5GHz w/ Corsair H150i Pro CPU AiO w/Corsair HD120 RBG fan
Motherboard Asus Z390 Maximus XI Code
Cooling 6x120mm Corsair HD120 RBG fans
Memory Corsair Vengeance RBG 2x8GB 3600MHz
Video Card(s) Asus RTX 2080 STRIX OC
Storage Samsung 250GB 960 EVO m.2, 970 EVO 1TB, Samsung 850 EVO 1TB SSD, 10TB Synology DS1515+ RAID5
Display(s) Acer Predator 34" 3440x1440 OC'd to 100MHz
Case Corsair 570x RBG Tempered Glass
Audio Device(s) Onboard / Corsair Void Wireless RGB
Power Supply Corsair HX850w Platinum Series
Mouse Logitech G602s
Keyboard Corsair K70 Rapidfire
Software Windows 10 x64 Professional
Benchmark Scores Firestrike - 23520 Heaven - 3670
Joined
Oct 28, 2018
Messages
565 (1.58/day)
Location
Zadar, Croatia
System Name SloMo
Processor G4560
Motherboard MSi H110-PRO-D
Cooling LC-CC-95 @ Arctic Cooling fan
Memory 2X Crucial DDR4 2400 4GB
Video Card(s) Integrated HD 610
Storage WD 500 GB + Seagate 500 GB + Toshiba 3 TB
Display(s) Lenovo D221
Case Corsair Carbide 100R
Audio Device(s) Manhattan Flex BT Headphones, Encore P-801 stereo speakers
Power Supply Corsair CX450M
Mouse microsoft office mouse
Keyboard Modecom mc-800m
Software Windows 10 Pro x64
Benchmark Scores gorstak @ hwbot.org
Joined
Oct 19, 2007
Messages
7,118 (1.62/day)
Processor Intel i9 9900K @5GHz w/ Corsair H150i Pro CPU AiO w/Corsair HD120 RBG fan
Motherboard Asus Z390 Maximus XI Code
Cooling 6x120mm Corsair HD120 RBG fans
Memory Corsair Vengeance RBG 2x8GB 3600MHz
Video Card(s) Asus RTX 2080 STRIX OC
Storage Samsung 250GB 960 EVO m.2, 970 EVO 1TB, Samsung 850 EVO 1TB SSD, 10TB Synology DS1515+ RAID5
Display(s) Acer Predator 34" 3440x1440 OC'd to 100MHz
Case Corsair 570x RBG Tempered Glass
Audio Device(s) Onboard / Corsair Void Wireless RGB
Power Supply Corsair HX850w Platinum Series
Mouse Logitech G602s
Keyboard Corsair K70 Rapidfire
Software Windows 10 x64 Professional
Benchmark Scores Firestrike - 23520 Heaven - 3670
My 250GB 970 EVO is my OS, yes.

Joined
Oct 28, 2018
Messages
565 (1.58/day)
Location
Zadar, Croatia
System Name SloMo
Processor G4560
Motherboard MSi H110-PRO-D
Cooling LC-CC-95 @ Arctic Cooling fan
Memory 2X Crucial DDR4 2400 4GB
Video Card(s) Integrated HD 610
Storage WD 500 GB + Seagate 500 GB + Toshiba 3 TB
Display(s) Lenovo D221
Case Corsair Carbide 100R
Audio Device(s) Manhattan Flex BT Headphones, Encore P-801 stereo speakers
Power Supply Corsair CX450M
Mouse microsoft office mouse
Keyboard Modecom mc-800m
Software Windows 10 Pro x64
Benchmark Scores gorstak @ hwbot.org
Uhm, what would happen if I placed an ssd in a spanned volume together with a high capacity hdd to be my storage, D drive, and then turned off swap file on C drive, and made one on D drive with fixed size, like 32000MB?

Joined
Mar 28, 2018
Messages
427 (0.75/day)
Location
Arizona
System Name Space Heater MKIII
Processor AMD Ryzen 5 2600X
Motherboard MSI X470 Gaming Pro
Cooling Cryorig R1 Ultimate, 4x Cryorig XF140 fans
Memory 2x8GB Crucial Ballistix Sport DDR4-3000
Video Card(s) Gigabyte GTX 1070 G1 Gaming
Storage 500GB Samsung 970 EVO, 2+4TB Seagate Barracudas
Display(s) AOC AG241QX, 2x Dell 1908FP
Case Phanteks Enthoo Pro M
Audio Device(s) Denon AVR-1909 , Panasonic SB-PM19 speakers
Power Supply EVGA 750 B3, CyberPower CST135XLU
Mouse Logitech MX Master
Keyboard Logitech G610 Orion Brown
Software Windows 10 Pro
Benchmark Scores Geekbench 4 on i7: 14581 multi, 4225 single @4.5GHz (https://browser.geekbench.com/v4/cpu/8441992)
Speeds of my laptop boot drive before and after upgrade.

Before: 128GB ADATA SU800 M.2 SATA


After: 250GB Samsung 970 EVO M.2 NVMe

Joined
Dec 10, 2015
Messages
422 (0.30/day)
Location
Here
System Name Skypas
Processor Intel Core i7-6700
Motherboard Asus H170 Pro Gaming
Cooling Cooler Master Hyper 212X Turbo
Memory Corsair Vengeance LPX 16GB
Video Card(s) MSI GTX 1060 Gaming X 6GB
Storage Corsair Neutron GTX 120GB + WD Blue 1TB
Display(s) LG 22EA63V
Case Corsair Carbide 400Q
Power Supply Seasonic SS-460FL2 w/ Deepcool XFan 120
Mouse Logitech B100
Keyboard Corsair Vengeance K70
Software Windows 10 Pro
Nothing fancy for my boot drive

Last edited:
Joined
Mar 28, 2018
Messages
427 (0.75/day)
Location
Arizona
System Name Space Heater MKIII
Processor AMD Ryzen 5 2600X
Motherboard MSI X470 Gaming Pro
Cooling Cryorig R1 Ultimate, 4x Cryorig XF140 fans
Memory 2x8GB Crucial Ballistix Sport DDR4-3000
Video Card(s) Gigabyte GTX 1070 G1 Gaming
Storage 500GB Samsung 970 EVO, 2+4TB Seagate Barracudas
Display(s) AOC AG241QX, 2x Dell 1908FP
Case Phanteks Enthoo Pro M
Audio Device(s) Denon AVR-1909 , Panasonic SB-PM19 speakers
Power Supply EVGA 750 B3, CyberPower CST135XLU
Mouse Logitech MX Master
Keyboard Logitech G610 Orion Brown
Software Windows 10 Pro
Benchmark Scores Geekbench 4 on i7: 14581 multi, 4225 single @4.5GHz (https://browser.geekbench.com/v4/cpu/8441992)
Behold, the blistering speed of my laptop's data drive!

1TB HGST Travelstar 5K1000 SATA

I hope to upgrade to a 1TB SSD at some point.

Last edited:

T4C Fantasy

CPU & GPU DB Maintainer
Staff member
Joined
May 7, 2012
Messages
2,348 (0.86/day)
Location
Rhode Island
System Name Whaaaat Kiiiiiiid!
Processor Intel Core i9-9900K @ 5.0GHz
Motherboard Gigabyte Z390 AORUS Ultra
Cooling Corsair H150i AIO Cooler
Memory Corsair Dominator Platinum 16GB DDR4-3200
Video Card(s) Zotac GeForce RTX 2080 Ti Triple Fan @ 2040MHz
Storage Samsung 970 PRO 512GB + Crucial MX300 512GB + OCZ Vertex 4 256GB
Display(s) 27" LG 27MU67-B 4K, + 27" Acer Predator XB271HU 1440P
Case Thermaltake Core X9 Snow
Audio Device(s) Logitech G933 Headset
Power Supply SeaSonic Platinum 1050W Snow Silent
Mouse Logitech G900
Keyboard Logitech G910
Software Windows 10 Pro
Benchmark Scores FFXV: 19329
Joined
Sep 27, 2014
Messages
539 (0.29/day)
what is this? is this a speed that can be achieved from just installing the drive without software enhancements?
I said in the post - it is a 13GB RAM cache on my SSD (doesn't matter what for this test). This more to show a benchmark of what my CPU can do on a RAM disk, basically the bottleneck being the CPU+DDR3.
So no matter what other drive I will put in, that's the max my system can do.

I'll post shortly just the SSD, with the cache paused. But a lot of the "SSD" results here I see that are just cache results. SATA 2.0 has max 3Gbps, 300MB/s. SATA 3.0 has max 6Gbps, 600MB/s.
Any "SSD", even on SATA3, that posts over 600MB/s is pulling from cache.

Last edited:
Joined
Sep 27, 2014
Messages
539 (0.29/day)
This is my OS SSD with the system RAM cache deactivated. ADATA SU800, 1TB, on a Intel ICH10R @ 3GB/s.


Last edited:

T4C Fantasy

CPU & GPU DB Maintainer
Staff member
Joined
May 7, 2012
Messages
2,348 (0.86/day)
Location
Rhode Island
System Name Whaaaat Kiiiiiiid!
Processor Intel Core i9-9900K @ 5.0GHz
Motherboard Gigabyte Z390 AORUS Ultra
Cooling Corsair H150i AIO Cooler
Memory Corsair Dominator Platinum 16GB DDR4-3200
Video Card(s) Zotac GeForce RTX 2080 Ti Triple Fan @ 2040MHz
Storage Samsung 970 PRO 512GB + Crucial MX300 512GB + OCZ Vertex 4 256GB
Display(s) 27" LG 27MU67-B 4K, + 27" Acer Predator XB271HU 1440P
Case Thermaltake Core X9 Snow
Audio Device(s) Logitech G933 Headset
Power Supply SeaSonic Platinum 1050W Snow Silent
Mouse Logitech G900
Keyboard Logitech G910
Software Windows 10 Pro
Benchmark Scores FFXV: 19329
Joined
Sep 27, 2014
Messages
539 (0.29/day)
Yes. I am waiting for a SATA3 controller to come soon in the mail, and I'll post the test. However, with 12GB of cache, I don't feel too much pain right now.

Top
