Share your AIDA 64 cache and memory benchmark here

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,738 (3.08/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R7 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA G+ 750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
This is another Micron Kit I have Crucial Ballistix 3600 CL 16-18-18-38-58 (C9BLM) 16GB DR Micron Rev. E
Running ar 4133 CL16-19-19-44-63 1:1:1. Left CCD on Auto it will only boot with 1.2 CCD. This passes at least 5 cycles of TM5 1usmus.

View attachment 262964View attachment 262965
I see you are above 2K.. very nice. I am on the fence between a 5800X and 58X3D. I do like the price of the X, and 12 cores is a bit excessive for my needs :D

Joined
Oct 16, 2018
Messages
694 (0.46/day)
Location
Uttar Pradesh, India
Processor AMD R7 1700X @ 4100Mhz
Motherboard MSI B450M MORTAR MAX (MS-7B89)
Cooling Phanteks PH-TC14PE
Memory Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14
Video Card(s) XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC)
Storage Samsung SSD 850 EVO 250GB
Display(s) Acer KG271 1080p @ 81Hz
Power Supply SuperFlower Leadex II 750W 80+ Gold
Keyboard Redragon Devarajas RGB
Software Microsoft Windows 10 (10.0) Professional 64-bit
Benchmark Scores https://valid.x86.fr/mvvj3a
I see you are above 2K.. very nice. I am on the fence between a 5800X and 58X3D. I do like the price of the X, and 12 cores is a bit excessive for my needs :D
If you game more than bench the 58X3D maybe the better option. I would wait a few days till the 7700/7600X launches unless you get a really good deal
like what I got with this 5800X. Well a good deal were I am. We dont get Amazon US prices here. :laugh:


Last edited:

Vairy

New Member
Joined
Sep 26, 2022
Messages
1 (0.01/day)
Are these results good? ballistix 3200 CL16 overclocked to 3733CL16, tell me if you have any advice
3733CL16 ULTIMO.png
3733CL16 ULTIMO ZT.png

Joined
Oct 16, 2018
Messages
694 (0.46/day)
Location
Uttar Pradesh, India
Processor AMD R7 1700X @ 4100Mhz
Motherboard MSI B450M MORTAR MAX (MS-7B89)
Cooling Phanteks PH-TC14PE
Memory Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14
Video Card(s) XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC)
Storage Samsung SSD 850 EVO 250GB
Display(s) Acer KG271 1080p @ 81Hz
Power Supply SuperFlower Leadex II 750W 80+ Gold
Keyboard Redragon Devarajas RGB
Software Microsoft Windows 10 (10.0) Professional 64-bit
Benchmark Scores https://valid.x86.fr/mvvj3a
Put the Samsung B-die kit on the 5800X to see what's what! :laugh:
cachemem 489ns.png
ZenTimings_Screenshot 49ns B.png


Are these results good? ballistix 3200 CL16 overclocked to 3733CL16, tell me if you have any advice
View attachment 263094View attachment 263097
You can try lowering WTRS to 4 WTRL 12 and TWR 16 and RTP 8. This may affect your TRAS and RC settings not sure why your running RTP 14.

I prefer to have those set I would just run tRP 19 and tRAS 44 and tRC 63. If it does show reduced performance in ADIA64 then try 42 / 61 and 38 /58 for RAS and tRC.

Also both SCLs can go to 4 maybe even 2. Adjust VDDP to 0.95V or 0.9V im sure even 0.85V would work

I see you are above 2K.. very nice. I am on the fence between a 5800X and 58X3D. I do like the price of the X, and 12 cores is a bit excessive for my needs :D
Saw the 5800X going for 260 US on Amazon this morning

Last edited:
Joined
Sep 27, 2022
Messages
1 (0.01/day)
Location
Virginia
Processor 12900kf
Motherboard MSI MPG Z690 EDGE WIFI DDR4
Cooling CUSTOM LIQUID
Memory GSKILL F4-4000CL14-8GVK
Video Card(s) RX 580
Storage SAMSUNG 950 PRO
Display(s) LG 27GN950
Case COSMOS 2

Attachments

  • oc results and 2.PNG
    oc results and 2.PNG
    400.6 KB · Views: 71
Joined
Nov 30, 2007
Messages
194 (0.04/day)
Location
Croatia
System Name Cabal
Processor intel i9 9900k @ 5.0ghz 1.33v - cache @ 4.7ghz
Motherboard Asrock z370 fatal1ty gaming k6
Cooling Corsair H115i with 2x Corsair LL140mm rgb fans
Memory Corsair Dominator Platinum 32GB(4x8kit) ddr4 4000mhz@4100mhz
Video Card(s) Msi Gtx1080 Ti Gaming X Trio 11gb +100gpu/+700mem
Storage samsung evo 860 500gbx2, sandisk 3d ultra 500gbx2, kingston hyperX ssd 480gb, Seagate Barracuda3TB
Display(s) Asus ROG Swift pg278q G-Sync
Case Corsair 760t Graphite Series with 3x Corsair LL140mm fans
Audio Device(s) Sound Blaster X ae-5
Power Supply Corsair RM850i
Mouse Roccat Tyon
Keyboard Corsair RGB Strafe mechanical keyboard
Software win10pro 64bit

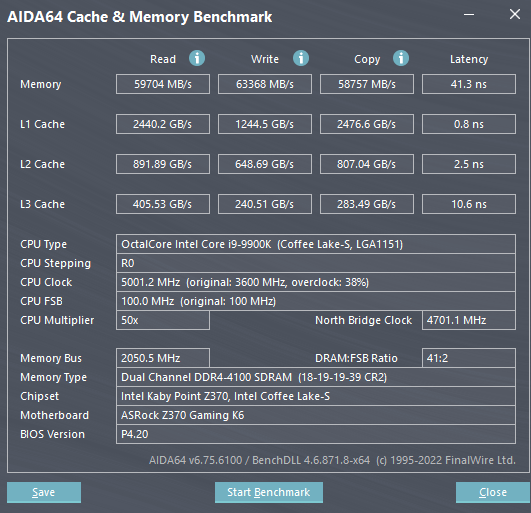

Stable Daily. Hours upon hours tweaking.


nice timings. is it stable running linpack?
don't know, never used linpack, only intel xtu, cinebench r23, aida stability tests, 3dmarks and games i play where it is stable 24/7


michyprima

New Member
Joined
Sep 28, 2022
Messages
1 (0.01/day)
Immagine 2022-09-28 194213.png
I'm currently debating if 63ns is adequate for this 4x8gb setup or I should seek more. VDIMM is 1,38v
Those sticks really don't like going higher than 1833, but these timings are really stable (threw at it memtest86, prime95, y-cruncher, TM5, OCCT and more for a total of over 24h of testing)
Also tried disabling GDM with terrible results.
Any advice? Thanks

Joined
Sep 27, 2017
Messages
16 (0.01/day)
Location
Rome
System Name DooM3
Processor Ryzen 3600
Motherboard Msi B450
Cooling liquid H50
Memory Kingston fury 3200
Video Card(s) XFX 480 8GB xxx
Storage Samsung SSD 850 250GB
Display(s) Asus VG245
Case Scythe-fenris-wolf
Power Supply Corsair RMi 750
Mouse G500
Keyboard logitech
Software Win11 Pro
Benchmark Scores https://valid.x86.fr/j4yg63
Kingston Fury KF3200C16D4 and Ryzen 3600 frequencies 1800 mhz and 4460 mhz


Attachments

  • 43-38-19-cl-16-19-19-39.png
    92.5 KB · Views: 95
  • 42-446-1116-2.png
    92.3 KB · Views: 89

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,738 (3.08/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R7 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA G+ 750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
5800X3D really makes you work for it :laugh:

My VRM's laugh in its face Mwaha..


Joined
Oct 16, 2018
Messages
694 (0.46/day)
Location
Uttar Pradesh, India
Processor AMD R7 1700X @ 4100Mhz
Motherboard MSI B450M MORTAR MAX (MS-7B89)
Cooling Phanteks PH-TC14PE
Memory Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14
Video Card(s) XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC)
Storage Samsung SSD 850 EVO 250GB
Display(s) Acer KG271 1080p @ 81Hz
Power Supply SuperFlower Leadex II 750W 80+ Gold
Keyboard Redragon Devarajas RGB
Software Microsoft Windows 10 (10.0) Professional 64-bit
Benchmark Scores https://valid.x86.fr/mvvj3a
5800X3D really makes you work for it :laugh:

My VRM's laugh in its face Mwaha..
Why is all your sub timmings on Auto? Fix that and repost.
Lets is if read/write/copy performance goes up and latency goes down.


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,738 (3.08/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R7 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA G+ 750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
Why is all your sub timmings on Auto? Fix that and repost.
Lets is if read/write/copy performance goes up and latency goes down.
Thats my 3200C14 DOCP profile :D

not stable.PNG

Lets is if read/write/copy performance goes up and latency goes down.
1933 1:1 is like 1800 1:1 with this CPU..

It's not at all like my 5600X or 5900X.

But it is doing this with 4 sticks, my other CPUs cannot...

Joined
Feb 3, 2019
Messages
1,701 (1.21/day)
Location
Chicago Land
Processor 12400F
Motherboard Asus B660-G (BCLK enabled!!)
Cooling Stock Air
Memory Patriot C36 series 5200mhz
Video Card(s) Asus strix GTX 980 OC
Storage Samsung 980 pro m2
Display(s) 21" - 55"
Case None
Power Supply Antec CP series 1000w
Mouse Razar Mamba Tournament Edition
Keyboard Logitech G910
Benchmark Scores 1800 single core CB R23 at 4.6ghz
56$

Celeron LGA 1700 G6900 5050mhz 1.30v
Testing phases. 1T G2 2822mhz CL36's 1.280v

AIDA64 mem lat test II.png

Joined
Sep 21, 2020
Messages
937 (1.17/day)
Processor AMD FX 8300 @ 4.5
Motherboard Asus Sabertooth 990FX R2.0
Cooling Thermalright Macho Rev.B
Memory 16GB Corsair Dominator Platinum 2400MHz CL10
Video Card(s) Asus HD7970 @ 1135/1750 + Prolimatech MK-26 + 2x 140mm
Storage 256GB Toshiba Q Pro MLC + 500GB WD VelociRaptor
Display(s) Dell U2412M
Case Cooler Master CM690 II Advanced USB 3.0 + Lamptron FC6
Audio Device(s) Audiotrak Prodigy Cube Black (JRC MUSES 8820D) + CAL (recabled)
Power Supply 750W Enermax Platimax
Mouse Logitech Cordless Desktop Wave
Keyboard Logitech Cordless Desktop Wave
Software Windows 7 Ultimate
Thats my 3200C14 DOCP profile :D

View attachment 264124

1933 1:1 is like 1800 1:1 with this CPU..

It's not at all like my 5600X or 5900X.

But it is doing this with 4 sticks, my other CPUs cannot...
How many WHEA 19s at that, give or take a hundred? :p


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,738 (3.08/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R7 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2, 2x Intel 545S 256GB, 1TB Toshiba spinner
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) JBL 2.1 Deep Bass
Power Supply EVGA G+ 750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
Joined
Oct 16, 2018
Messages
694 (0.46/day)
Location
Uttar Pradesh, India
Processor AMD R7 1700X @ 4100Mhz
Motherboard MSI B450M MORTAR MAX (MS-7B89)
Cooling Phanteks PH-TC14PE
Memory Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14
Video Card(s) XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC)
Storage Samsung SSD 850 EVO 250GB
Display(s) Acer KG271 1080p @ 81Hz
Power Supply SuperFlower Leadex II 750W 80+ Gold
Keyboard Redragon Devarajas RGB
Software Microsoft Windows 10 (10.0) Professional 64-bit
Benchmark Scores https://valid.x86.fr/mvvj3a

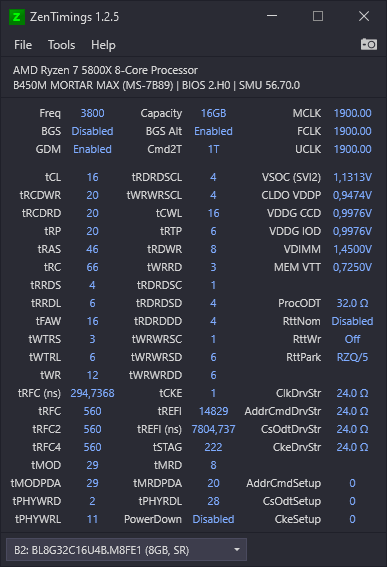

This is the lowest bin Micron Rev. E I have. (C9BJZ) Crucial 3200 CL 16-18-18-36.

cachemem 4925 56ns 105ns D.png
ZenTimings_Screenshot C9BJZ 3800 CL 16 TM5 PASS.png


Crucial 3200 CL16 LB 3800 CL16 Tm5 Pass crop.jpg

Last edited:
Joined
Oct 28, 2010
Messages
65 (0.01/day)
Location
North-east Italy
System Name Main Build
Processor AMD Ryzen 7 5800x
Motherboard MSI x570s torpedo max
Cooling Thermalright Peerless Assassin 120 SE
Memory 32 Gb Crucial Ballistix 3200MHz CL16
Video Card(s) MSI GTX1660 6GB OC
Storage Kioxia 1TB NVMe - Crucial 500GB ssd - WD Red 2+3TB
Display(s) Philips 325E1C (32" 1440P) + Vertical 24" 243V7Q
Case Thermaltake Xaser III
Audio Device(s) Indiana Line TH260, TPA3116D2 Amp
Power Supply Seasonic Platinum 660W SS-660XP2
Mouse Logitech Performance MX
Software Win 11 Pro
This is my current result. Crucial Ballistix 3200Mhz CL16 2x16Gb running "safe" settings at 3800MHz.






Edit: I had the wrong settings, see uclk in the pic above at 950MHz. Forced it 1:1 at 1900MHz and values are a lot better.


Last edited:
Joined
Oct 16, 2018
Messages
694 (0.46/day)
Location
Uttar Pradesh, India
Processor AMD R7 1700X @ 4100Mhz
Motherboard MSI B450M MORTAR MAX (MS-7B89)
Cooling Phanteks PH-TC14PE
Memory Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14
Video Card(s) XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC)
Storage Samsung SSD 850 EVO 250GB
Display(s) Acer KG271 1080p @ 81Hz
Power Supply SuperFlower Leadex II 750W 80+ Gold
Keyboard Redragon Devarajas RGB
Software Microsoft Windows 10 (10.0) Professional 64-bit
Benchmark Scores https://valid.x86.fr/mvvj3a
Last edited:
Joined
Sep 9, 2013
Messages
525 (0.16/day)
System Name Can I run it
Processor delidded i9-10900KF @ OCTVB + V/F 4x5.5 8x5.4 10x5.3 adaptive volt +Supercool direct die waterblock
Motherboard ASUS Maximus XII Apex 2601 BIOS
Cooling Main = GTS 360 GTX 240, EK PE 360,XSPC EX 360,2x EK-XRES 100 Revo D5 PWM, 12x T30, AC High Flow Next
Memory 2x16GB TridentZ 3600@4666 16-16-16-34@1.615V+Supercool WB, Separate loop with GTS 120&Freezemod Pump
Video Card(s) Gigabyte RTX 3080 Ti Gaming OC @ 0.9V 2025Mhz core + Barrow full cover waterblock
Storage Transcend PCIE 220S 1TB for (main), WD Blue 3D NAND 250GB for OC testing, Seagate Barracuda 4TB
Display(s) Acer XR341CK 3440x1440 30-75Hz G-Sync compatible calibrated by X-Rite i1 Display Pro Plus
Case Thermaltake View 71
Power Supply Silverstone ST-1200 PTS 1200W 80+ Platinum
Mouse Logitech G Pro Wireless
Keyboard Ducky Shine 7 (Cherry MX red)
Software Windows 11
Benchmark Scores 1838 FIDE rating (has been inactive since 2010). ~2150 Lichess.org blitz rating.
Joined
Feb 3, 2019
Messages
1,701 (1.21/day)
Location
Chicago Land
Processor 12400F
Motherboard Asus B660-G (BCLK enabled!!)
Cooling Stock Air
Memory Patriot C36 series 5200mhz
Video Card(s) Asus strix GTX 980 OC
Storage Samsung 980 pro m2
Display(s) 21" - 55"
Case None
Power Supply Antec CP series 1000w
Mouse Razar Mamba Tournament Edition
Keyboard Logitech G910
Benchmark Scores 1800 single core CB R23 at 4.6ghz
I must sign in to like this. Very impressive. Missing my old Celeron G3900 (Skylake) @ 4.6Ghz xD
Thanks! 1.30v v-core was a bit much. The chip reached 76c in LinPack at about 20 minutes. Reduced to 1.28v and passed another 20 minutes at those settings.

Pretty sweet chip!

Joined
Oct 16, 2018
Messages
694 (0.46/day)
Location
Uttar Pradesh, India
Processor AMD R7 1700X @ 4100Mhz
Motherboard MSI B450M MORTAR MAX (MS-7B89)
Cooling Phanteks PH-TC14PE
Memory Crucial Technology 16GB DR (DDR4-3600) - C9BLM:045M:E BL16G36C16U4W.M16FE1 X2 @ CL14
Video Card(s) XFX RX480 GTR 8GB @ 1408Mhz (AMD Auto OC)
Storage Samsung SSD 850 EVO 250GB
Display(s) Acer KG271 1080p @ 81Hz
Power Supply SuperFlower Leadex II 750W 80+ Gold
Keyboard Redragon Devarajas RGB
Software Microsoft Windows 10 (10.0) Professional 64-bit
Benchmark Scores https://valid.x86.fr/mvvj3a
Crucial 3600 CL 16-18-18-38-58 (C9BLM) 8GB SR. Micron Rev E

4133 CL16
cachemem C9BLM 5GB SR 53ns B.png
C9BLM 8GB SR 4133 CL16 TM5 PASS CROP.jpg


3800 CL14
cachemem C9BLM 3800 CL14 545ns 3.png


EDIT:
Looks like 1.51V was not needed on this kit it only needed 1.37V to boot and 1.46V to pass 4133 CL16
C9BLM 4133 CL16 1.46v TM5 PASS crop.jpg


Attachments

  • Crucial 3600 CL16 3800 CL14 Tm5 pass CROP.jpg
    Crucial 3600 CL16 3800 CL14 Tm5 pass CROP.jpg
    260.2 KB · Views: 316
Last edited:

ithinkibrokeit

New Member
Joined
Oct 7, 2022
Messages
3 (0.05/day)
Alder Lake BCLK bug :rolleyes:
Aida64 is only "calculating" numbers, dont actually measure anything "real performance", one of the reason it shouldn't be taken too series..

100

View attachment 264503


150
View attachment 264504

170
View attachment 264505

200
View attachment 264506

215 much wow :laugh:
View attachment 264507

This has been the most thoughtful, useful, and complete response I have received. Thankyou for your time and knowledge, as it is greatly appreciated!

sincerely,

skippy mouse issue : )

Top
