Update test result with Arctic MX-4:

Picture 1
Artic MX-4
Ambient Temp:20,1
Idle Temp:28
Load Temp:32

Will now conduct all tests again with OC (from 3.6 GHz to 4.2 GHz)


ASUS Chrosshair Formula IV
Antec KÜHLER H2O 920 with 2 x 120 mm push/pull
AMD FX 8150 BE (Everything at stock for this test)

Tomorrow I will conduct a overclocked test.

Cure times are 2 hours with OCCT LinX pack.

Will test these three compounds: (Picture one)
1. Antec Formula 7 Nano Diamond
2. IC Diamond
3. Arctic MX-4 (will test this tomorrow)

Test method:
1. Heat sink unmounted and cleaned with acetone and at last isopropyl-alcohol.
2. Take pressure test with pressure paper (Picture one)
3. Appy TIM (center dot)

Picture 2
Antec Formula 7 Nano Diamond
Ambient Temp:21,8
Idle Temp:30
Load Temp:35

Picture 3
IC Diamond
Ambient Temp:21,7
Idle Temp:31
Load Temp:34


Attachments

Joined
Aug 3, 2008
Messages
1,644 (0.48/day)
Likes
344
System Name Black Killing Machine
Processor Delidded NO IHS mount Intel i7-4770k
Motherboard Gigabyte Z87X-OC
Cooling Swiftech DIR655 pump, Watercool HEATKILLER® GPU-X³ 79X0 Ni-Bl gpu, DT SNIPER CPU block, UT60 420 RAD
Memory Gskill Trident 2400mhz CL9 Samsung IC9
Video Card(s) SAPPHIRE HD7950 OC 950mhz Edition, VaporX HD7950
Storage 2xM4 Crucial 64GB RAID 0, 1 OCZ AGILILITY 3 60GB, WDCB 500GB x2RAID0, WD Green, Hitachi 1TB
Display(s) Samsung SyncMaster 226BW and 24" 120hz BenQ gamer
Case SilverStone Raven rv-02
Audio Device(s) Audio Technica ATH-AD900 headphones, Topping D2 DAC/Headphone AMP
Power Supply Seasonic Platinum 860
Software Windows 7 Pro 64bit
Benchmark Scores http://hwbot.org/user/sonda5/ Delidding is magic. http://valid.canardpc.com/2878462
#53
prolimatech pk-1

Ambient Temps: 21C



IC Diamond 24

LinX testing in diagnostic mode.

Ambient Temps 21C.






Contact Pressure testing with DT Sniper Water Block with IB 3570k.

DT SNIPER Block










Waiting on some new Tygon Tubing and a different back plate for my DT Sniper block and will test again for contact pressure with the paper and do another temp comparison.

Right now PK-1 and IC Diamond look close to the same in terms of thermal performance but the contact paper shows that I got a good mount.

Last edited:
Joined
Aug 3, 2008
Messages
1,644 (0.48/day)
Likes
344
System Name Black Killing Machine
Processor Delidded NO IHS mount Intel i7-4770k
Motherboard Gigabyte Z87X-OC
Cooling Swiftech DIR655 pump, Watercool HEATKILLER® GPU-X³ 79X0 Ni-Bl gpu, DT SNIPER CPU block, UT60 420 RAD
Memory Gskill Trident 2400mhz CL9 Samsung IC9
Video Card(s) SAPPHIRE HD7950 OC 950mhz Edition, VaporX HD7950
Storage 2xM4 Crucial 64GB RAID 0, 1 OCZ AGILILITY 3 60GB, WDCB 500GB x2RAID0, WD Green, Hitachi 1TB
Display(s) Samsung SyncMaster 226BW and 24" 120hz BenQ gamer
Case SilverStone Raven rv-02
Audio Device(s) Audio Technica ATH-AD900 headphones, Topping D2 DAC/Headphone AMP
Power Supply Seasonic Platinum 860
Software Windows 7 Pro 64bit
Benchmark Scores http://hwbot.org/user/sonda5/ Delidding is magic. http://valid.canardpc.com/2878462
#54

t_ski

Former Staff
Joined
Apr 11, 2006
Messages
11,960 (2.81/day)
Likes
6,443
System Name My i7 Beast
Processor Intel Core i7 6800K
Motherboard Asus X99-A II
Cooling Nickel-plated EK Supremacy EVO, D5 with XSPC Bayres & BIX Quad Radiator
Memory 4 x 8GB EVGA SuperSC DDR4-3200
Video Card(s) EVGA 1080 SuperClocked
Storage Samsung 950 Pro 256GB m.2 SSD + 480GB Sandisk storage SSD
Display(s) Three Asus 24" VW246H LCD's
Case Silverstone TJ07
Audio Device(s) Onboard
Power Supply Corsair AX1200
Keyboard Corsair K95
Software Windows 10 x64 Pro
#55
No, pink is all that should show. It's just how much pink is showing. Take a look at some of the other posts in the thread.

Joined
Feb 12, 2006
Messages
2,289 (0.53/day)
Likes
410
System Name MONEY PIT
Processor i7-3770K @ 4800 1.20v batch #3231B415 Delided
Motherboard ASrock Z77 OC Formula w onboard waterblocks
Cooling Apogee HD, MCP655,rad MCR320-XP,Micro Rev2 res
Memory G,skill Trident X F3-2400C10D-16GTX
Video Card(s) EVGA GTX 980 Ti Classified with EK nickel/acetal waterblock installed
Storage 2x120gig Wildfire raid0 2x120gig VERTEX3 raid0
Display(s) 3/ Samsung2343bwx + 65in LG 4K
Case NZXT Phantom White w/red
Audio Device(s) ReCon3d fatal1ty pro, Logitech z906 THX
Power Supply corsair AX860i
Mouse Rat7
Software 64bit ++++ win 10
#56
Joined
Aug 3, 2008
Messages
1,644 (0.48/day)
Likes
344
System Name Black Killing Machine
Processor Delidded NO IHS mount Intel i7-4770k
Motherboard Gigabyte Z87X-OC
Cooling Swiftech DIR655 pump, Watercool HEATKILLER® GPU-X³ 79X0 Ni-Bl gpu, DT SNIPER CPU block, UT60 420 RAD
Memory Gskill Trident 2400mhz CL9 Samsung IC9
Video Card(s) SAPPHIRE HD7950 OC 950mhz Edition, VaporX HD7950
Storage 2xM4 Crucial 64GB RAID 0, 1 OCZ AGILILITY 3 60GB, WDCB 500GB x2RAID0, WD Green, Hitachi 1TB
Display(s) Samsung SyncMaster 226BW and 24" 120hz BenQ gamer
Case SilverStone Raven rv-02
Audio Device(s) Audio Technica ATH-AD900 headphones, Topping D2 DAC/Headphone AMP
Power Supply Seasonic Platinum 860
Software Windows 7 Pro 64bit
Benchmark Scores http://hwbot.org/user/sonda5/ Delidding is magic. http://valid.canardpc.com/2878462
#57
Joined
Aug 3, 2008
Messages
1,644 (0.48/day)
Likes
344
System Name Black Killing Machine
Processor Delidded NO IHS mount Intel i7-4770k
Motherboard Gigabyte Z87X-OC
Cooling Swiftech DIR655 pump, Watercool HEATKILLER® GPU-X³ 79X0 Ni-Bl gpu, DT SNIPER CPU block, UT60 420 RAD
Memory Gskill Trident 2400mhz CL9 Samsung IC9
Video Card(s) SAPPHIRE HD7950 OC 950mhz Edition, VaporX HD7950
Storage 2xM4 Crucial 64GB RAID 0, 1 OCZ AGILILITY 3 60GB, WDCB 500GB x2RAID0, WD Green, Hitachi 1TB
Display(s) Samsung SyncMaster 226BW and 24" 120hz BenQ gamer
Case SilverStone Raven rv-02
Audio Device(s) Audio Technica ATH-AD900 headphones, Topping D2 DAC/Headphone AMP
Power Supply Seasonic Platinum 860
Software Windows 7 Pro 64bit
Benchmark Scores http://hwbot.org/user/sonda5/ Delidding is magic. http://valid.canardpc.com/2878462
#58
Last edited:
Joined
Feb 12, 2006
Messages
2,289 (0.53/day)
Likes
410
System Name MONEY PIT
Processor i7-3770K @ 4800 1.20v batch #3231B415 Delided
Motherboard ASrock Z77 OC Formula w onboard waterblocks
Cooling Apogee HD, MCP655,rad MCR320-XP,Micro Rev2 res
Memory G,skill Trident X F3-2400C10D-16GTX
Video Card(s) EVGA GTX 980 Ti Classified with EK nickel/acetal waterblock installed
Storage 2x120gig Wildfire raid0 2x120gig VERTEX3 raid0
Display(s) 3/ Samsung2343bwx + 65in LG 4K
Case NZXT Phantom White w/red
Audio Device(s) ReCon3d fatal1ty pro, Logitech z906 THX
Power Supply corsair AX860i
Mouse Rat7
Software 64bit ++++ win 10
#59
Joined
Feb 12, 2006
Messages
2,289 (0.53/day)
Likes
410
System Name MONEY PIT
Processor i7-3770K @ 4800 1.20v batch #3231B415 Delided
Motherboard ASrock Z77 OC Formula w onboard waterblocks
Cooling Apogee HD, MCP655,rad MCR320-XP,Micro Rev2 res
Memory G,skill Trident X F3-2400C10D-16GTX
Video Card(s) EVGA GTX 980 Ti Classified with EK nickel/acetal waterblock installed
Storage 2x120gig Wildfire raid0 2x120gig VERTEX3 raid0
Display(s) 3/ Samsung2343bwx + 65in LG 4K
Case NZXT Phantom White w/red
Audio Device(s) ReCon3d fatal1ty pro, Logitech z906 THX
Power Supply corsair AX860i
Mouse Rat7
Software 64bit ++++ win 10
#60
first run pics
results for GPU run
from rig in specs
GPU:core 1070 mem 1400 stk voltage stk fan profile
Before Compound: MX4
Ambient Temp:30c 08/8/12 9pm
Idle Temp:38c
Load Temp:92c @stk_FurMarkv1.9.1 fan profile Auto [avg 3 runs]

ICD
Ambient Temp:29c 26/08/12 7pm
Idle Temp:36c
Load Temp:76c @stk_FurMarkv1.9.1 fan profile Auto [avg 3 runs]



GPU_o/c 1100core/1500mem stk voltage fan 95%
Before Compound: MX4
Ambient Temp:30c 08/8/12 9pm
Idle Temp: 35c
Load Temp:84c FurMarkv1.9.1 [avg 3 runs]


ICD
Ambient Temp:29c 26/08/12 7pm
Idle Temp:35c
Load Temp:78c FurMarkv1.9.1 [avg 3 runs]


CPU:
Before Compound: MX4
Ambient Temp:30c 08/8/12 9pm
Idle Temp:39c @stk
Load Temp:59c @stk IntelBurnTest v2.54

ICD
Ambient Temp:26c 28/8/12 7pm
Idle Temp:31C
Load Temp:46c IntelBurnTest v2.54

CPU_o/c 4536.9MHz @ 1.4v core
Before Compound: MX4
Ambient Temp:30c 10/8/12 9pm
Idle Temp:32c
Load Temp:70c IntelBurnTest v2.54

ICD
Ambient Temp:26c 28/8/12 7pm
Idle Temp:31c
Load Temp:69c IntelBurnTest v2.54

will up pics of C/P paper
MSI Twin Frozr IV had to lap some of the nickel pate off to get it flat
Intel Q2600K IHS high top,bottom,right side lapped to flat mirror finish


Attachments

Last edited:
Joined
Aug 3, 2008
Messages
1,644 (0.48/day)
Likes
344
System Name Black Killing Machine
Processor Delidded NO IHS mount Intel i7-4770k
Motherboard Gigabyte Z87X-OC
Cooling Swiftech DIR655 pump, Watercool HEATKILLER® GPU-X³ 79X0 Ni-Bl gpu, DT SNIPER CPU block, UT60 420 RAD
Memory Gskill Trident 2400mhz CL9 Samsung IC9
Video Card(s) SAPPHIRE HD7950 OC 950mhz Edition, VaporX HD7950
Storage 2xM4 Crucial 64GB RAID 0, 1 OCZ AGILILITY 3 60GB, WDCB 500GB x2RAID0, WD Green, Hitachi 1TB
Display(s) Samsung SyncMaster 226BW and 24" 120hz BenQ gamer
Case SilverStone Raven rv-02
Audio Device(s) Audio Technica ATH-AD900 headphones, Topping D2 DAC/Headphone AMP
Power Supply Seasonic Platinum 860
Software Windows 7 Pro 64bit
Benchmark Scores http://hwbot.org/user/sonda5/ Delidding is magic. http://valid.canardpc.com/2878462
#61
Frogger looks like ICD stomped all over MX4 from your tests.

Joined
Aug 3, 2008
Messages
1,644 (0.48/day)
Likes
344
System Name Black Killing Machine
Processor Delidded NO IHS mount Intel i7-4770k
Motherboard Gigabyte Z87X-OC
Cooling Swiftech DIR655 pump, Watercool HEATKILLER® GPU-X³ 79X0 Ni-Bl gpu, DT SNIPER CPU block, UT60 420 RAD
Memory Gskill Trident 2400mhz CL9 Samsung IC9
Video Card(s) SAPPHIRE HD7950 OC 950mhz Edition, VaporX HD7950
Storage 2xM4 Crucial 64GB RAID 0, 1 OCZ AGILILITY 3 60GB, WDCB 500GB x2RAID0, WD Green, Hitachi 1TB
Display(s) Samsung SyncMaster 226BW and 24" 120hz BenQ gamer
Case SilverStone Raven rv-02
Audio Device(s) Audio Technica ATH-AD900 headphones, Topping D2 DAC/Headphone AMP
Power Supply Seasonic Platinum 860
Software Windows 7 Pro 64bit
Benchmark Scores http://hwbot.org/user/sonda5/ Delidding is magic. http://valid.canardpc.com/2878462
#62

t_ski

Former Staff
Joined
Apr 11, 2006
Messages
11,960 (2.81/day)
Likes
6,443
System Name My i7 Beast
Processor Intel Core i7 6800K
Motherboard Asus X99-A II
Cooling Nickel-plated EK Supremacy EVO, D5 with XSPC Bayres & BIX Quad Radiator
Memory 4 x 8GB EVGA SuperSC DDR4-3200
Video Card(s) EVGA 1080 SuperClocked
Storage Samsung 950 Pro 256GB m.2 SSD + 480GB Sandisk storage SSD
Display(s) Three Asus 24" VW246H LCD's
Case Silverstone TJ07
Audio Device(s) Onboard
Power Supply Corsair AX1200
Keyboard Corsair K95
Software Windows 10 x64 Pro
#63
I saw that and it shows other colors. There has to be a color code for this paper. Pink is showing a certain amount of pressure. I'm sure there are other pieces of paper like this that pick up other pressures that would show a different color.
Opt33 at overclock.net stated that my contact pressure mount results are nearly perfect.

http://www.overclock.net/t/1268070/dt-sniper-waterblock/80#post_18024755


I'm going top turn the block 90 degrees so that the contact pressure marks are parallel with the cpu die.
think the other colors are a result of " full lab analysis"
first run pics
results for GPU run
from rig in specs
GPU:core 1070 mem 1400 stk voltage stk fan profile
Before Compound: MX4
Ambient Temp:30c 08/8/12 9pm
Idle Temp:38c
Load Temp:92c @stk_FurMarkv1.9.1 fan profile Auto [avg 3 runs]

ICD
Ambient Temp:29c 26/08/12 7pm
Idle Temp:36c
Load Temp:76c @stk_FurMarkv1.9.1 fan profile Auto [avg 3 runs]



GPU_o/c 1100core/1500mem stk voltage fan 95%
Before Compound: MX4
Ambient Temp:30c 08/8/12 9pm
Idle Temp: 35c
Load Temp:84c FurMarkv1.9.1 [avg 3 runs]


ICD
Ambient Temp:29c 26/08/12 7pm
Idle Temp:35c
Load Temp:78c FurMarkv1.9.1 [avg 3 runs]

will up pics of C/P paper when i can get @ the scanner on the other rig
Frogger looks like ICD stomped all over MX4 from your tests.
Wonder what the full lab analysis process is.
Please use the "multi-quote" button or edit your posts instead of posting multiple times in a row. :toast:


IC Diamond

Innovation Cooling Rep
Joined
Aug 9, 2012
Messages
140 (0.07/day)
Likes
92
#64
first run pics
results for GPU run
from rig in specs
GPU:core 1070 mem 1400 stk voltage stk fan profile
Before Compound: MX4
Ambient Temp:30c 08/8/12 9pm
Idle Temp:38c
Load Temp:92c @stk_FurMarkv1.9.1 fan profile Auto [avg 3 runs]

ICD
Ambient Temp:29c 26/08/12 7pm
Idle Temp:36c
Load Temp:76c @stk_FurMarkv1.9.1 fan profile Auto [avg 3 runs]



GPU_o/c 1100core/1500mem stk voltage fan 95%
Before Compound: MX4
Ambient Temp:30c 08/8/12 9pm
Idle Temp: 35c
Load Temp:84c FurMarkv1.9.1 [avg 3 runs]


ICD
Ambient Temp:29c 26/08/12 7pm
Idle Temp:35c
Load Temp:78c FurMarkv1.9.1 [avg 3 runs]

will up pics of C/P paper
MSI Twin Frozr IV had to lap some of the nickel pate off to get it flat
Nice progression on the lapping - so what do you think of the paper?

Joined
Feb 12, 2006
Messages
2,289 (0.53/day)
Likes
410
System Name MONEY PIT
Processor i7-3770K @ 4800 1.20v batch #3231B415 Delided
Motherboard ASrock Z77 OC Formula w onboard waterblocks
Cooling Apogee HD, MCP655,rad MCR320-XP,Micro Rev2 res
Memory G,skill Trident X F3-2400C10D-16GTX
Video Card(s) EVGA GTX 980 Ti Classified with EK nickel/acetal waterblock installed
Storage 2x120gig Wildfire raid0 2x120gig VERTEX3 raid0
Display(s) 3/ Samsung2343bwx + 65in LG 4K
Case NZXT Phantom White w/red
Audio Device(s) ReCon3d fatal1ty pro, Logitech z906 THX
Power Supply corsair AX860i
Mouse Rat7
Software 64bit ++++ win 10
#65
Nice progression on the lapping - so what do you think of the paper?
Excelent product, showed just where to lap the Twin Frozr IV. Just goes to show that mass production of the coolers will always yield some that just arn't flat:shadedshu. Going to order a sheet from SP to have around for client custom builds.
In the middle of a rebuild now, But going to try & do the CPU on the Game [specs] Rig later today.

Joined
Mar 23, 2012
Messages
675 (0.32/day)
Likes
228
Location
Norway
System Name Games/internet/usage - Server - backup - HTPC
Processor I7 5820k - AMD A8-5600K BE - I7 920 - A8-7600
Motherboard ASUS X99-A2 - Gigabyte GA-F2A85X-UP4 - MSI x58 pro-e - Gigabyte GA-F2A88XN-WIFI
Cooling custom water loop for cpu and gpus - Arctic Cooling Freezer Xtreme r.2 - Noctua NH-U12P SE1366
Memory 16GiB Crucial Ballistix Sport 2666 MHz - 8GiB 1600MHz - 12 GiB corsair thing - 8GB 1866MHz
Video Card(s) 2x Radeon R9 290X CF - HD 7560D - 2x Radeon HD6950 CF - A8 -7600
Storage Samsung XP941 500 GB - 60 GB SSD + 6 x HDD 4 TB in RAID 6 - 4 SSD and 2 HDD - 250 GB SSD
Display(s) Dell 3008WFP - Remote desktop - the Dell when in use - 55" TV screen
Case Caselabs Magnum M8 - Fractal Design Define R4 - Nanoxia DS 1 - Antec ISK 110 VESA
Audio Device(s) Toslink -> Shiit Modi 2 Uber -> Matrix m-stage -> HD650 - none - as main - HDMI out -> 5.1 system
Power Supply beQuiet dark power pro 1200W- corsair RM750x - Corsair AX850 - Antec 90 W pico power
Mouse Roccat tyon - remote desktop - Roccat tyon when in use - Logitech K830
Keyboard Corsair K95 RGB - remote desktop - Corsair K95 RGB when in use - Logitech K830
Software Win 10 Pro - Win server 2012 essentials - Win 7 Pro - Win 10 Pro
Benchmark Scores Not high enough
#66

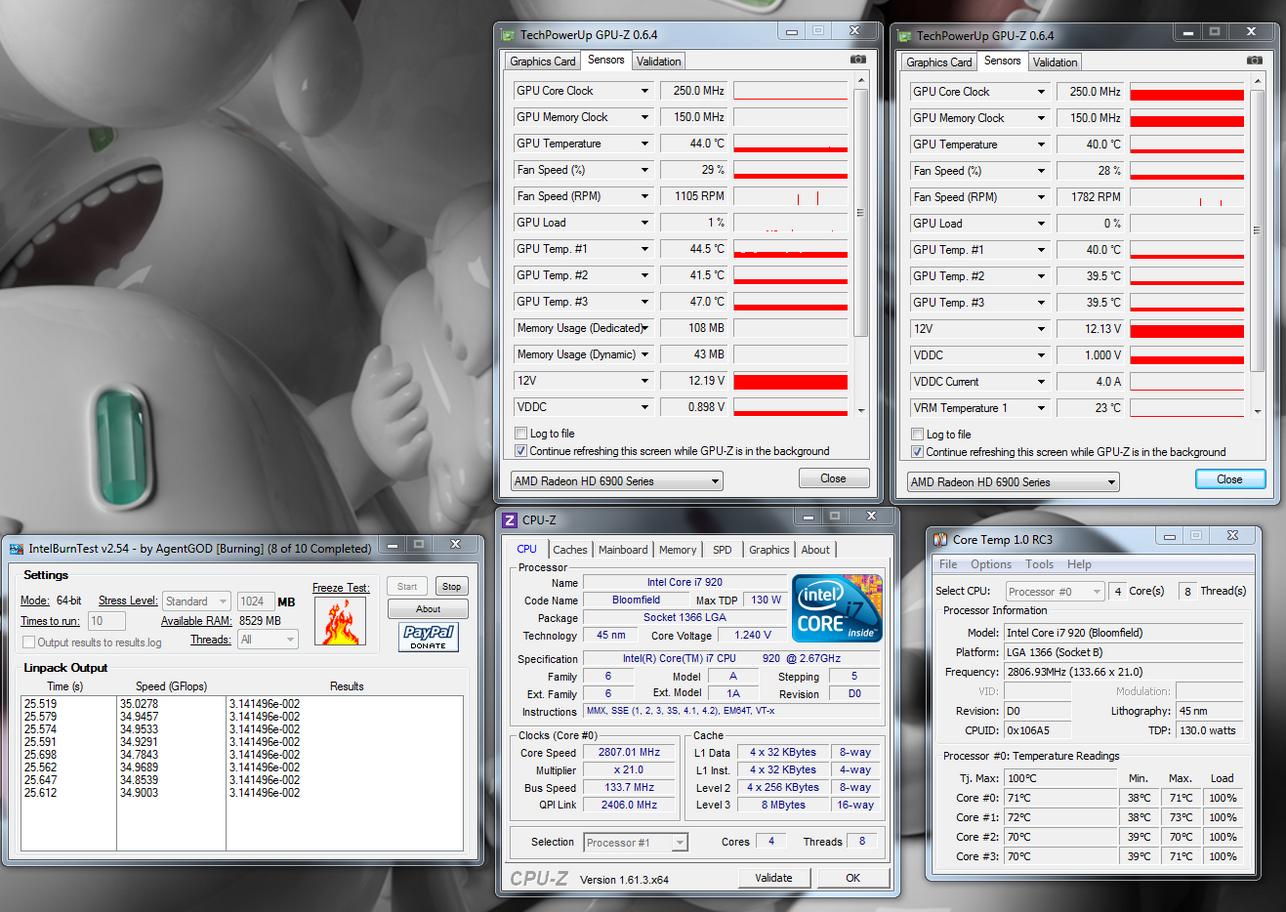

Got the set with contact pressure paper today, the CP paper did not give any pink color tho, only different amounts of opaqueness, rather similar to sample 19A and 20A on the pressure test, but with a small speck about 0,5 cm2 in size at the center. will do some temp test tomorrow.

Edit: Here are the results:

AS5 idle: 38C 39C 40C 39C average: 39C
ICD idle: 35C 34C 36C 34C average: 35C
improvement: 4 degrees C

AS5 load: 71C 72C 70C 70C average: 70,75C (at 35 GFlops)
ICD load: 65C 66C 63C 64C average: 64,5C (at 35.5 GFlops)
improvement: 6,25C

pics for the different run.
thank you for the clearly superior TIM.


Attachments

Last edited:
Joined
Aug 3, 2008
Messages
1,644 (0.48/day)
Likes
344
System Name Black Killing Machine
Processor Delidded NO IHS mount Intel i7-4770k
Motherboard Gigabyte Z87X-OC
Cooling Swiftech DIR655 pump, Watercool HEATKILLER® GPU-X³ 79X0 Ni-Bl gpu, DT SNIPER CPU block, UT60 420 RAD
Memory Gskill Trident 2400mhz CL9 Samsung IC9
Video Card(s) SAPPHIRE HD7950 OC 950mhz Edition, VaporX HD7950
Storage 2xM4 Crucial 64GB RAID 0, 1 OCZ AGILILITY 3 60GB, WDCB 500GB x2RAID0, WD Green, Hitachi 1TB
Display(s) Samsung SyncMaster 226BW and 24" 120hz BenQ gamer
Case SilverStone Raven rv-02
Audio Device(s) Audio Technica ATH-AD900 headphones, Topping D2 DAC/Headphone AMP
Power Supply Seasonic Platinum 860
Software Windows 7 Pro 64bit
Benchmark Scores http://hwbot.org/user/sonda5/ Delidding is magic. http://valid.canardpc.com/2878462
#67
Got the set with contact pressure paper today, the CP paper did not give any pink color tho, only different amounts of opaqueness, rather similar to sample 19A and 20A on the pressure test, but with a small speck about 0,5 cm2 in size at the center. will do some temp test tomorrow.
Photos?


t_ski

Former Staff
Joined
Apr 11, 2006
Messages
11,960 (2.81/day)
Likes
6,443
System Name My i7 Beast
Processor Intel Core i7 6800K
Motherboard Asus X99-A II
Cooling Nickel-plated EK Supremacy EVO, D5 with XSPC Bayres & BIX Quad Radiator
Memory 4 x 8GB EVGA SuperSC DDR4-3200
Video Card(s) EVGA 1080 SuperClocked
Storage Samsung 950 Pro 256GB m.2 SSD + 480GB Sandisk storage SSD
Display(s) Three Asus 24" VW246H LCD's
Case Silverstone TJ07
Audio Device(s) Onboard
Power Supply Corsair AX1200
Keyboard Corsair K95
Software Windows 10 x64 Pro
#68
Sounds like maybe the sheets were not lined up right. Should be shiney side out for each.

Joined
Feb 16, 2012
Messages
378 (0.18/day)
Likes
238
Location
Sweden
Processor Intel Core i7 5960X - 4.5 Ghz
Motherboard Asus X99-E WS
Cooling 360 Monsta + 360 ST30 | 9 White EK Vardar
Memory 32GB Corsair LPX 3000Mhz
Video Card(s) EVGA GTX 1080 Ti FTW3
Storage Intel 750 400GB, Intel 750 1.2TB
Display(s) Asus PG279Q | 2 x Dell U2412M
Case Phanteks Enthoo Primo SE Black/White
Audio Device(s) Schiit Jotunheim - Xonar Essence One | Fostex TH-900, Fidelio X2 - KRK Rokit RP-6 G3
Power Supply Corsair AX1200i - Black/White Cablemod Sleeves
Mouse Logitech G303 Daedalus Apex
Keyboard Ducky Shine 1 - MX Brown
Software Windows 10
#70
Just ran some tests. Will update with results after the paste has cured. Will do a higher overclock aswell.
Might try applying some ICD on a 580 reference just for the heck of it.

i7 3820 4.4Ghz
1.28V
1.6PLL
NH-D14 with only 140mm fan - ~900rpm

Before Compound: Noctua NT-H1
Ambient Temp: 27
Idle Temp: 33
Load Temp: 65 - 62 -62 - 65

ICD
Ambient Temp: 27
Idle Temp: 32
Load Temp: 65 - 61 - 61 -64


brandonwh64

Addicted to Bacon and StarCrunches!!!
Joined
Sep 6, 2009
Messages
19,516 (6.46/day)
Likes
6,937
Location
Chatsworth, GA
System Name The StarCrunch Defender! | X58 Cruncher!
Processor I7 6700K @ STOCK | Intel I7-920
Motherboard Gigabyte Z170X-UD5 | Alienware MS-7543 X58
Cooling Corsair A70 Push/Pull | Corsair H50
Memory Crucial Ballistix DDR4 2400 MHz | Pereema 3x2GB DDR3
Video Card(s) Gigabyte Gaming G1 GTX 1070 | Gigabyte 7970 3GB
Storage 2x Samsung Pro 256GB M.2 SSD's in Raid 0 | 4TB Western Digital SATA drive
Display(s) ViewSonic VG2227wm 1080P | OLD viewsonics
Case NZXT Tempest 410 Elite | NZXT Source 210
Audio Device(s) Onboard
Power Supply Corsair 750TX | Enermax Liberty 500W
Mouse MX518 | MX502
Keyboard TESORO Mechanical | ANZO Mechanical
Software Windows 10 Pro on both
#71
i7 920
Stock Volts
Stock PLL
Evercool Transformer 4 with 120mm fan 85CFM - 2000pm

Before Compound: AS5
Ambient Temp: 25
Idle Temp: 36
Load Temp: 66 - 63 -61 - 64

IC-D7
Ambient Temp: 25
Idle Temp: 35
Load Temp: 64 - 61 -62 - 62

About a 2-3 degree difference which was to be expected. The contact paper has shown that I have a great contact between the CPU and Cooler. This is one thing I was worrying about using this older cooler.

Joined
Sep 7, 2010
Messages
752 (0.28/day)
Likes
152
Processor Intel Core i7-4790K
Motherboard Intel Board DZ87KLT-75K
Cooling Intel Stock Cooler
Memory G.Skill RipjawsX {F3-2400C11D-16GXM x 2 [32GB]}
Video Card(s) Nvidia Geforce GTX 970
Storage Samsung EVO 250GB mSATA SSD + Seagate 3TB HDD
Display(s) Dell UltraSharp U2718Q
Case In Win F430
Power Supply Seasonic Platinum 660
Mouse Dell KM714 Wireless
Keyboard Dell KM714 Wireless
Software Windows 10 Pro x64
#72
Tested The ICD 24 On My

i7-3770
Stock Volts
Stock Intel Cooler

I have listed the Temps in this order (Current) - (Minimum) - (Maximum)

Stock Thermal Compound That Comes with Intel Cooler
Ambient Temp: 18C
Idle Temp: 29C
Load Temp: 70C - 67C - 73C


ICD Test Sample
Ambient Temp: 18C
Idle Temp: 28C
Load Temp: 68C - 65C - 70C


IC Diamond

Innovation Cooling Rep
Joined
Aug 9, 2012
Messages
140 (0.07/day)
Likes
92
#73
Building library of WB Contact images from our facebook page -Larkcooler CPU WB 500 Water block contact/pressure test. Note this block has a round , rather than a square base - looks like just a couple cm contact



xspc RASA block with its backing plate.



IC Diamond

Innovation Cooling Rep
Joined
Aug 9, 2012
Messages
140 (0.07/day)
Likes
92
#74
prolimatech pk-1

Ambient Temps: 21C

http://minidriven.com/BlacknBlueforIB/DTSNIPER/PK1vsICD.jpg

IC Diamond 24

LinX testing in diagnostic mode.

Ambient Temps 21C.


http://minidriven.com/BlacknBlueforIB/DTSNIPERICDIAMOND4point5.jpg



Contact Pressure testing with DT Sniper Water Block with IB 3570k.

DT SNIPER Block

http://minidriven.com/BlacknBlueforIB/DTSNIPER/DTSNIPERINPLACEWITHOUTNUTS.jpg


http://minidriven.com/BlacknBlueforIB/DTSNIPER/DTSCT1s.jpg


http://minidriven.com/BlacknBlueforIB/DTSNIPER/DTSCT1Papers.jpg


Waiting on some new Tygon Tubing and a different back plate for my DT Sniper block and will test again for contact pressure with the paper and do another temp comparison.

Right now PK-1 and IC Diamond look close to the same in terms of thermal performance but the contact paper shows that I got a good mount.
Missing contact images? I would like to add to our WB library

Joined
Aug 3, 2008
Messages
1,644 (0.48/day)
Likes
344
System Name Black Killing Machine
Processor Delidded NO IHS mount Intel i7-4770k
Motherboard Gigabyte Z87X-OC
Cooling Swiftech DIR655 pump, Watercool HEATKILLER® GPU-X³ 79X0 Ni-Bl gpu, DT SNIPER CPU block, UT60 420 RAD
Memory Gskill Trident 2400mhz CL9 Samsung IC9
Video Card(s) SAPPHIRE HD7950 OC 950mhz Edition, VaporX HD7950
Storage 2xM4 Crucial 64GB RAID 0, 1 OCZ AGILILITY 3 60GB, WDCB 500GB x2RAID0, WD Green, Hitachi 1TB
Display(s) Samsung SyncMaster 226BW and 24" 120hz BenQ gamer
Case SilverStone Raven rv-02
Audio Device(s) Audio Technica ATH-AD900 headphones, Topping D2 DAC/Headphone AMP
Power Supply Seasonic Platinum 860
Software Windows 7 Pro 64bit
Benchmark Scores http://hwbot.org/user/sonda5/ Delidding is magic. http://valid.canardpc.com/2878462
#75
Missing contact images? I would like to add to our WB library


It is in the links. Just save as image. It is of the DT Sniper Water block.
