What is your max infinity fabric on ryzen 5000? September 2021 edition

What is your max stable ram speed/infinity fabric?

  • 3666/1833 or lower

    Votes: 24 19.4%
  • 3733/1866

    Votes: 22 17.7%
  • 3800/1900

    Votes: 44 35.5%
  • 3866/1933

    Votes: 3 2.4%
  • 3933/1966

    Votes: 4 3.2%
  • 4000/2000

    Votes: 17 13.7%
  • 4066/2033

    Votes: 1 0.8%
  • 4133/2066

    Votes: 1 0.8%
  • 4200/2100 or above

    Votes: 8 6.5%

  • Total voters
    124

freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,688 (3.06/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R9 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) NAD, Mission, Monitor Audio
Power Supply Seasonic Prime GX-750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
You are talking about the flareX modules? What is your current set-up with those memory modules if I may ask? I'm going to try to push those a bit to see what I can get. I'm sure there is still some performance left.
People say the only difference between them and tridents is the heatspreader. My current setup is in my sig :)

I read a G.Skill rep say 3200C14 is a very good bin.. you should be ok..


Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
55,437 (8.37/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570 Gaming-F
Cooling Alphacool Apex UV - EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3933 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.175V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.737v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 72Hz + Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
PBO back on, this ram will not go even one setting higher, nor lower on the CAS latencies. Apparently it just likes C18.
I can kill windows services and do a billion tweaks to get the scores higher, it's just a happy stable speed.



freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,688 (3.06/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R9 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) NAD, Mission, Monitor Audio
Power Supply Seasonic Prime GX-750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
Awesome man! She’s rippin :cool:

Joined
Oct 8, 2015
Messages
601 (0.23/day)
Location
Earth's Troposphere
System Name cvasi-rocket
Processor AMD Ryzen R7 5800X3D @ 1V doing 4GHz
Motherboard Asus ROG Crosshair VI Extreme
Cooling Air;oldie but a goodie/brand new monoblock in box
Memory 4 8GB SK Hynix dual rank DDR4 dimms @ 2133MT-3200MT
Video Card(s) Gigabyte RX 6900XT Gaming OC @underclocked and undervolted
Storage 480 GB Corsair MP510 , Kingston A400 480 GB SSD
Display(s) Dell UltraSharp U2410 , HP 24x
Case in the box
Audio Device(s) onboard
Power Supply Seasonic Focus PX-550
Mouse Razer Deathadder (2018 model)
Keyboard wireless , Logitech
Software W10.someting or another
I've slotted back in my dual rank hynix's and give them another try on the new firmware, though so far not quite a week since , the rig is stable for my ''tea cups''.
Well it turns out that most likely it was user error preventing me clocking these thing past 2800MT on a few bios versions ago.
It wont post trying to go for 1900MHz IF with raised VSOC tension to 1.15V , all else the same , CPB off, 47.5x cpu multi @1.3625V , 1.38V dimm , gear down mode: default/auto , manual primary timings and trfc's , vrm's @ T.probe/standard/optimized.


Attachments

  • Screenshot 2021-10-21 093619.png
    Screenshot 2021-10-21 093619.png
    376.1 KB · Views: 131
  • Screenshot 2021-10-21 094704.png
    Screenshot 2021-10-21 094704.png
    440.3 KB · Views: 137
Joined
Aug 9, 2019
Messages
1,258 (1.04/day)
Processor Ryzen 5600X@4.85 CO
Motherboard Gigabyte B550m S2H
Cooling BeQuiet Dark Rock Slim
Memory Patriot Viper 4400cl19 2x8@4000cl16 tight subs
Video Card(s) Asus 3060ti TUF OC
Storage WD blue 1TB nvme
Display(s) Lenovo G24-10 144Hz
Case Corsair D4000 Airflow
Power Supply EVGA GQ 650W
Software Windows 10 home 64
Benchmark Scores CB20 4710@4.7GHz Aida64 50.4ns 4.8GHz+4000cl15 tuned ram SOTTR 1080p low 263fps avg CPU game
PBO back on, this ram will not go even one setting higher, nor lower on the CAS latencies. Apparently it just likes C18.
I can kill windows services and do a billion tweaks to get the scores higher, it's just a happy stable speed.

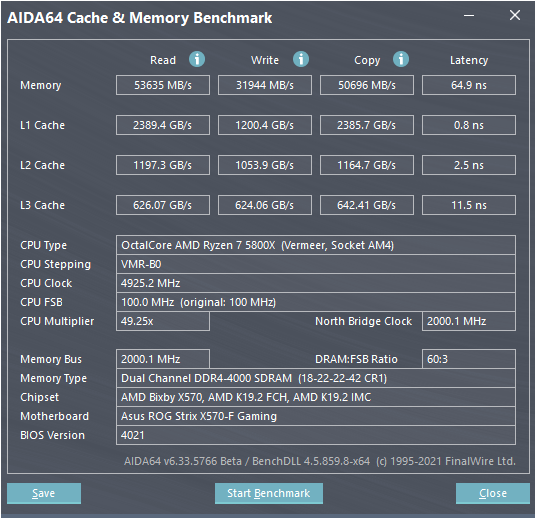

View attachment 221711
The 3 primaries are not that important, they mean less for speed than most people think, but going from cl20 to cl16 won`t net your more than 1-2% on fps, going from tRFC 700 to 300 would easily gain you 5%. Do some basic tweaks to trrds\l, faw, trc, twr, trtp and trfc and you can easily shave off 5-10ns of latency and boost read and copy by 3-4k ;)


Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
55,437 (8.37/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570 Gaming-F
Cooling Alphacool Apex UV - EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3933 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.175V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.737v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 72Hz + Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
The 3 primaries are not that important, they mean less for speed than most people think, but going from cl20 to cl16 won`t net your more than 1-2% on fps, going from tRFC 700 to 300 would easily gain you 5%. Do some basic tweaks to trrds\l, faw, trc, twr, trtp and trfc and you can easily shave off 5-10ns of latency and boost read and copy by 3-4k ;)
Yeah, i have no idea where to begin with that stuff. The last time i tried lowering TRFC i got nowhere... it's a multiple of another timing, isn't it?


Mickey153

New Member
Joined
Oct 22, 2021
Messages
2 (0.00/day)
Location
Queensland AUS
My 5600X can run 4000 but Whea Errors not effecting stability, but IF 1966 rock stable

3933 C15.png


Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
55,437 (8.37/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570 Gaming-F
Cooling Alphacool Apex UV - EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3933 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.175V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.737v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 72Hz + Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
Okay so at 4000, the system is rock stable but getting WHEA errors - LOTS of em

3800, none at all

Any ideas on how to fix those? Staying at 3800 for now, if i cant fix it i'll try timings instead


Mickey153

New Member
Joined
Oct 22, 2021
Messages
2 (0.00/day)
Location
Queensland AUS
Okay so at 4000, the system is rock stable but getting WHEA errors - LOTS of em

3800, none at all

Any ideas on how to fix those? Staying at 3800 for now, if i cant fix it i'll try timings instead
Up your VDDG IOD voltage and Vsoc keeping the IOD voltage 40mv under Vsoc voltage these voltages top out safely at vsoc 1.2 v vddg iod 1.15v, personally I had no luck at 4000 without loosening the timings, and lost speed and latency to the point that 3933 is faster, but every chip is different so you could give it a try, ps because of vdroop keep iod 50mv lower or it will run at default voltage 900

Joined
Aug 9, 2019
Messages
1,258 (1.04/day)
Processor Ryzen 5600X@4.85 CO
Motherboard Gigabyte B550m S2H
Cooling BeQuiet Dark Rock Slim
Memory Patriot Viper 4400cl19 2x8@4000cl16 tight subs
Video Card(s) Asus 3060ti TUF OC
Storage WD blue 1TB nvme
Display(s) Lenovo G24-10 144Hz
Case Corsair D4000 Airflow
Power Supply EVGA GQ 650W
Software Windows 10 home 64
Benchmark Scores CB20 4710@4.7GHz Aida64 50.4ns 4.8GHz+4000cl15 tuned ram SOTTR 1080p low 263fps avg CPU game
Okay so at 4000, the system is rock stable but getting WHEA errors - LOTS of em

3800, none at all

Any ideas on how to fix those? Staying at 3800 for now, if i cant fix it i'll try timings instead
A new agesa might help, certain combos of voltages might help, but if you get very many it's often hard to fix. Tried 3866 or 3933? I know 4000 sounds better ;)

As for timings at 3800 try 2T, gdm off, cl17, tRCDRD 21, tRP 21, tRAS 39, tRC 60, tRFC 480 (tRFC should be divideable by 8 if you have 2x8gb ram og by 16 if you have 2x16 or 4x8), tFAW 24, tRRDS 6, tRRDL 8, tWR 16, tRTP 8, tWTRS 4, tWTRL 8 or 9, SCL's 4, ProcODT 37-43 if 32gb or 28-37 if 16gb, soc volt 1.1, vddg iod 1.06, ccd 0.92, vddp 0.88. Rest on auto. Change timing one by one, boot and see if it works. If you can run this it would boost gaming by up to 10-15% vs stock. You might be able to run tighter too.

Last edited:

Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
55,437 (8.37/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570 Gaming-F
Cooling Alphacool Apex UV - EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3933 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.175V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.737v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 72Hz + Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
3866 still had errors, 3800 was WHEA free.

I guess 3800 tweaked will be where it ends up, it's odd how it can be rock solid stable but spam the errors.

Joined
Aug 9, 2019
Messages
1,258 (1.04/day)
Processor Ryzen 5600X@4.85 CO
Motherboard Gigabyte B550m S2H
Cooling BeQuiet Dark Rock Slim
Memory Patriot Viper 4400cl19 2x8@4000cl16 tight subs
Video Card(s) Asus 3060ti TUF OC
Storage WD blue 1TB nvme
Display(s) Lenovo G24-10 144Hz
Case Corsair D4000 Airflow
Power Supply EVGA GQ 650W
Software Windows 10 home 64
Benchmark Scores CB20 4710@4.7GHz Aida64 50.4ns 4.8GHz+4000cl15 tuned ram SOTTR 1080p low 263fps avg CPU game
3866 still had errors, 3800 was WHEA free.

I guess 3800 tweaked will be where it ends up, it's odd how it can be rock solid stable but spam the errors.
Certain CPU and most full ATX boards gets wheas above 3800. Many mATX and ITX can run 4000-4200 whea free. Why is a good question. Try the timings I suggested, change all voltages, procodt first and then go for timings one by one :)


Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
55,437 (8.37/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570 Gaming-F
Cooling Alphacool Apex UV - EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3933 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.175V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.737v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 72Hz + Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
Certain CPU and most full ATX boards gets wheas above 3800. Many mATX and ITX can run 4000-4200 whea free. Why is a good question. Try the timings I suggested, change all voltages, procodt first and then go for timings one by one :)
Nah, getting too much effort.

Joined
Aug 9, 2019
Messages
1,258 (1.04/day)
Processor Ryzen 5600X@4.85 CO
Motherboard Gigabyte B550m S2H
Cooling BeQuiet Dark Rock Slim
Memory Patriot Viper 4400cl19 2x8@4000cl16 tight subs
Video Card(s) Asus 3060ti TUF OC
Storage WD blue 1TB nvme
Display(s) Lenovo G24-10 144Hz
Case Corsair D4000 Airflow
Power Supply EVGA GQ 650W
Software Windows 10 home 64
Benchmark Scores CB20 4710@4.7GHz Aida64 50.4ns 4.8GHz+4000cl15 tuned ram SOTTR 1080p low 263fps avg CPU game
Nah, getting too much effort.
I can give you basic timing-input if you want to use less time? Would still yield you 5-10% performance easily :) If you keep first 4 at 18-22-22-22 set tRAS to 40, tRC to 60, tRFC to 480, keep rest at auto. But if you are satisfied then stick with what you got :)


Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
55,437 (8.37/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570 Gaming-F
Cooling Alphacool Apex UV - EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3933 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.175V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.737v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 72Hz + Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
It's more about if i spend the time and get it all working perfectly, the next AGESA update, BIOS reset or slight change in hardware means i'm probably doing it all over again and i just dont have time for that.

Joined
Apr 22, 2021
Messages
140 (0.24/day)
Location
The Netherlands
System Name C₂H₅OH
Processor AMD Ryzen 9 5900X Monoblock tuned to fuck and back
Motherboard Gigabyte X570 Aorus Master Rev 1.0
Cooling Custom loop - MO-RA3 420 & 360 Pro - Heatkiller 200 & 150 D5 pump/res combo
Memory G.Skill Trident-Z 4x8GB B-die 3800-14-15-15-15-34-1T 260 TRFC
Video Card(s) Gigabyte RTX 3080 Ti Aorus Master EK block
Storage Samsung 980 Pro 1TB - Intel 660 Pro 2TB
Display(s) Gigabyte Aorus FV43U
Case Streacom BC1 Silver
Audio Device(s) Topping DX7Pro - Topping A90 - Hifiman Ananda - Focal Elear - Focal Radiance - Adam A5X & Adam Sub 7
Power Supply Corsair AX850 Titanium
Mouse Logitech G Pro Wireless
Keyboard Ducky One 2 SF White MX Speed Silver / Logitech MX Keys
Software Windows 11 Pro
So I have the memory settings in my sig dialed in, stable and no weird behaviour. I've had IF at 1900 for a while and have tried IF at 2000, 1967 and 1933 and all result in WHEA's clogging up the logs. After stumbling upon this post (massive thanks for the info you all!) it gave me some hope that 2000 might be possible so I flashed F35e but no dice. I set my ram at an easy 2133 with stock timings and tried 1.093 VSOC, nothing. 1933 with the same SOC voltage did boot but was incredibly unstable and caused the board to recover after 10 cycles.

What am I missing?

Joined
Aug 9, 2019
Messages
1,258 (1.04/day)
Processor Ryzen 5600X@4.85 CO
Motherboard Gigabyte B550m S2H
Cooling BeQuiet Dark Rock Slim
Memory Patriot Viper 4400cl19 2x8@4000cl16 tight subs
Video Card(s) Asus 3060ti TUF OC
Storage WD blue 1TB nvme
Display(s) Lenovo G24-10 144Hz
Case Corsair D4000 Airflow
Power Supply EVGA GQ 650W
Software Windows 10 home 64
Benchmark Scores CB20 4710@4.7GHz Aida64 50.4ns 4.8GHz+4000cl15 tuned ram SOTTR 1080p low 263fps avg CPU game
It's more about if i spend the time and get it all working perfectly, the next AGESA update, BIOS reset or slight change in hardware means i'm probably doing it all over again and i just dont have time for that.
If you use 1T gdm and all resistances, ProcIDT etc on auto it usually works across agesas. All the settings I used on agesa 1.1.0.0 also worked fine on 1.2.0.0, 1.2.0.1, 1.2.0.2 and 1.2.0.3. The settings I suggested abive should be very safe and there is much room for improvement, but the closer you get to max the more likely it is to be unstable. Your choice if you wanna play totally safe, generally safe and easily gain 10-15% perf or risk instability and possibly gain 20%+ in certain games/apps :) If you play at 1440p or 4k or 1080p with a gpu below 3060ti/3070 the gain is lower. The moment you use dlss even at 4k you get very high gains. Helped a friend of mine with crap ram and basic tuning. Going from 3200cl16 to 4000cl18 and some timings tuned fps in Cyberpunk at 4k dlss perf went from 145-155 at a certain scene to 170-180fps. With in depth tuning 200fps+ would have been possible :)


freeagent

Moderator
Staff member
Joined
Sep 16, 2018
Messages
4,688 (3.06/day)
Location
Winnipeg, Canada
System Name Street Meat
Processor AMD R9 5800X3D
Motherboard Asus Strix B550-XE
Cooling Thermalright Peerless Assassin 120
Memory 2x8 G.Skill Trident Z Royal 3200C14, 2x8GB G.Skill Trident Z Black and White 3200 C14
Video Card(s) EVGA RTX 3070 Ti FTW3 Ultra
Storage WD SN850 1TB, SN750 1TB, SN750 500GB, Asus Hyper M.2
Display(s) LG 50UP7100
Case Fractal Torrent Compact RGB
Audio Device(s) NAD, Mission, Monitor Audio
Power Supply Seasonic Prime GX-750, Monster HDP1800
Mouse Zowie EC2 Evo
Keyboard Logitech G213
Software Yes
Benchmark Scores Yes
What am I missing?
You aren't missing anything.. some can some cannot. I too have one that cannot. I get whea's at 1933 with 2 and 4 sticks. Voltage makes no difference in my case. Though I might try a higher IOD later.. but pretty sure I would be wasting my time. My 5600X starts tossing whea's at 2033. 5900X still destroys it at lower FCLK.. except in memory reads, and latency, but I think its pretty close.

Joined
Apr 22, 2021
Messages
140 (0.24/day)
Location
The Netherlands
System Name C₂H₅OH
Processor AMD Ryzen 9 5900X Monoblock tuned to fuck and back
Motherboard Gigabyte X570 Aorus Master Rev 1.0
Cooling Custom loop - MO-RA3 420 & 360 Pro - Heatkiller 200 & 150 D5 pump/res combo
Memory G.Skill Trident-Z 4x8GB B-die 3800-14-15-15-15-34-1T 260 TRFC
Video Card(s) Gigabyte RTX 3080 Ti Aorus Master EK block
Storage Samsung 980 Pro 1TB - Intel 660 Pro 2TB
Display(s) Gigabyte Aorus FV43U
Case Streacom BC1 Silver
Audio Device(s) Topping DX7Pro - Topping A90 - Hifiman Ananda - Focal Elear - Focal Radiance - Adam A5X & Adam Sub 7
Power Supply Corsair AX850 Titanium
Mouse Logitech G Pro Wireless
Keyboard Ducky One 2 SF White MX Speed Silver / Logitech MX Keys
Software Windows 11 Pro
You aren't missing anything.. some can some cannot. I too have one that cannot. I get whea's at 1933 with 2 and 4 sticks. Voltage makes no difference in my case. Though I might try a higher IOD later.. but pretty sure I would be wasting my time. My 5600X starts tossing whea's at 2033. 5900X still destroys it at lower FCLK.. except in memory reads, and latency, but I think its pretty close.
Yeah that's sadly pretty much what I expected. Anyway, 3800/1900 and tight timings is fine too, it's just the itch. the never ending itch to get it one notch higher :D

Joined
May 12, 2006
Messages
1,518 (0.25/day)
Location
The Gulag Casino
System Name ROG By purecain
Processor AMD Ryzen 9 5950X
Motherboard ASUS Crosshair VIII Hero
Cooling Noctua NH U12A
Memory 32Gb G.Skill Trident RGB 4150@3600mhz
Video Card(s) ASUS TUF 3090 / Titan V
Storage 1TbSamsung Evo M.2/ 2TbSamsung QVO/ 1TbSamsung Evo780/ 120gbKingston Now
Display(s) LG 65UN85006LA 65" Smart 4K Ultra HD HDR LED TV with Google Assistant & Amazon Alexa
Case Thermaltake CoreX71 Limited Edition Etched Tempered Glass Door
Audio Device(s) On board/NIcomplete audio 6
Power Supply Seasonic FOCUS 1000w 80+
Mouse M65 RGB Elite
Keyboard K95 RGB Platinum
Software Windows10pro
Benchmark Scores [url=https://valid.x86.fr/gtle1y][img]https://valid.x86.fr/cache/banner/gtle1y-6.png[/img][/url]
Damn my aida 64 memory benchmark is asking me to upgrade... meh...
Bit off topic but are those cheap keys online legit...???? managed to find a key.. :toast:


@Mussels how are you getting the extra .25 multi. Is it a simple setting ive missed or have you tuned each core like we used to have to with the 1800x.



second run with less programs running in the background. Virtually the same results.

Last edited:

Mussels

Freshwater Moderator
Staff member
Joined
Oct 6, 2004
Messages
55,437 (8.37/day)
Location
Oystralia
System Name Rainbow Sparkles (Power efficient, <350W gaming load)
Processor Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard Asus x570 Gaming-F
Cooling Alphacool Apex UV - EK Quantum Velocity AM4 + EK Quantum ARGB 3090 w/ active backplate
Memory 2x32GB DDR4 3600 Corsair Vengeance RGB @3933 C18-22-22-22-42 TRFC704 (1.4V, SoC 1.175V Hynix MJR)
Video Card(s) Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.737v (375W down to 250W))
Storage 2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + WD AN1500 1TB + 1TB Intel 6000P NVME USB 3.2
Display(s) Kogan 32" 4K 72Hz + Gigabyte G32QC (1440p 165Hz) + Phillips 328m6fjrmb (1440p 144Hz)
Case Fractal Design R6
Audio Device(s) Logitech G560 | Corsair Void pro RGB |Blue Yeti mic
Power Supply Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse Logitech G Pro wireless + Steelseries Prisma XL
Keyboard Razer Huntsman TE (custom white and steel keycaps)
VR HMD Oculus Rift S + Quest 2
Software Windows 11 pro x64 (Yes, it's genuinely a good OS)
Damn my aida 64 memory benchmark is asking me to upgrade... meh...
Bit off topic but are those cheap keys online legit...???? managed to find a key.. :toast:

View attachment 222481
@Mussels how are you getting the extra .25 multi. Is it a simple setting ive missed or have you tuned each core like we used to have to with the 1800x.
I have PBO on +200, and have a small undervolt curve... could even be a measuring error

Joined
Aug 9, 2019
Messages
1,258 (1.04/day)
Processor Ryzen 5600X@4.85 CO
Motherboard Gigabyte B550m S2H
Cooling BeQuiet Dark Rock Slim
Memory Patriot Viper 4400cl19 2x8@4000cl16 tight subs
Video Card(s) Asus 3060ti TUF OC
Storage WD blue 1TB nvme
Display(s) Lenovo G24-10 144Hz
Case Corsair D4000 Airflow
Power Supply EVGA GQ 650W
Software Windows 10 home 64
Benchmark Scores CB20 4710@4.7GHz Aida64 50.4ns 4.8GHz+4000cl15 tuned ram SOTTR 1080p low 263fps avg CPU game
Damn my aida 64 memory benchmark is asking me to upgrade... meh...
Bit off topic but are those cheap keys online legit...???? managed to find a key.. :toast:

View attachment 222481
@Mussels how are you getting the extra .25 multi. Is it a simple setting ive missed or have you tuned each core like we used to have to with the 1800x.

View attachment 222482

second run with less programs running in the background. Virtually the same results.
Post your zentimings if you want input on tweaking, can probably shave of 5-7ns latency and boost rest by 2-3k MB easily :)

Joined
May 2, 2017
Messages
7,761 (3.81/day)
Location
Back in Norway
System Name Hotbox
Processor AMD Ryzen 7 5800X, 110/95/110, PBO +150Mhz, CO -7,-7,-20(x6),
Motherboard ASRock Phantom Gaming B550 ITX/ax
Cooling LOBO + Laing DDC 1T Plus PWM + Corsair XR5 280mm + 2x Arctic P14
Memory 32GB G.Skill FlareX 3200c14 @3800c15
Video Card(s) PowerColor Radeon 6900XT Liquid Devil Ultimate, UC@2250MHz max @~200W
Storage 2TB Adata SX8200 Pro
Display(s) Dell U2711 main, AOC 24P2C secondary
Case SSUPD Meshlicious
Audio Device(s) Optoma Nuforce μDAC 3
Power Supply Corsair SF750 Platinum
Mouse Logitech G603
Keyboard Keychron K3/Cooler Master MasterKeys Pro M w/DSA profile caps
Software Windows 10 Pro
Decided to start tinkering a bit with RAM speeds on my main rig yesterday, after running it at straight DOCP settings since building it. ASRock B550 Phantom Gaming ITX-AX, 2x16GB G.Skill FlareX (dual rank B-die, B1 PCB, 3200c14), 5800X.

I don't know crap about RAM OCing, so for now I've
a) tried 1usmus' DRAM calc, which failed to POST even at 3600 safe (not really that strange given that it doesn't actually support Zen3 or B550), and
b) set everything to auto except the RAM and IF speed to see how high I could go.

The latter experiment was reasonably successful, though of course the timings are utter garbage - that's the next step, trying to get my head around which timings to tweak and which numbers are bad/acceptable/good. Hit 3800/1900 @ 1.2V, 4000/2000 @ 1.35V. 4066/2033 seemed to POST successfully once (got into the BIOS), but mostly just reset to safe settings by itself. 4000/2000 booted into Windows with no issues, did not show any WHEA errors, and was stable through a quick run of the Fire Strike CPU test, which is reasonably memory intensive. Didn't bother trying higher DRAM voltages, and it seems like people are recommending auto SoC voltage for Zen3, instead adjusting LLC? That's what I did, auto voltages (except DRAM) and level 3 SoC LLC.
Obviously haven't run any benchmarks yet as there's no point at these garbage timings, but at least I know my RAM and IF can both run faster than 3200 - though I don't know if they can do so at reasonable latencies and voltages. Just to reiterate: everything below except MCLK and FCLK is auto.


Edit: damn, looking at how much I paid for this kit vs. how cheap I can get a DDR4-4000c17/c18 kit today makes me a bit sad. Nearly 33% less!


tabascosauz

Moderator
Supporter
Staff member
Joined
Jun 24, 2015
Messages
4,959 (1.83/day)
Location
Western Canada
Processor 5800X3D
Motherboard ROG X570 Impact (4006 reous mod)
Cooling C14S
Memory 32GB 3733CL14
Video Card(s) TUF RTX 3070 Ti - 1980@0.931V
Storage 1TB SN750 - 1TB SN850X - 1TB Blue3D
Case Cerberus
Power Supply SF750
@Valantar you can run the loose timings to gauge where your IF stops scaling but beware, I've tripped Bus/Interconnect WHEA on unstable memory timings before. I previously thought IF and DRAM stability were completely distinct from one another (thus theoretically Bus/Interconnect should have nothing to do with timings) - still mostly true, but not completely so. Granted, I was doing some stupid shit with tRFC so it was blatantly unstable in TM5 to have done so.

Give it a shot with the timings you want to be running. 3200CL14 G.skill dual rank I'd say just shoot for 4000 16-16-16-36 right away at say 1.45V. Working on tRC and tRFC can come after you nail that down, then the rest can wait till later (the rest don't have too much an impact on VDIMM, within reason).

as for VSOC not sure where that info came from but you definitely want to be on manual control to have full control over what you're setting. If you don't like the droop you see on SOC, bump up the LLC, but otherwise just leave LLC alone (I'm usually fine with 0.015-0.02V during TM5). 1.2V is reasonable for 4000, but see if you can shave it down a bit - take it easy, small steps, and leave it at each for a couple of days to see if Bus/Interconnect comes up.

If you want to work out a 4000 daily, see about dropping VDDP a bit. Not seen high VDDP (>0.95) help stability for daily configs before. IOD is whatever, do what you need to do, I did need to support IOD about that much for 4000 when testing 2000MHz on mine.

of course, I say pump the VDIMM but that's assuming you have airflow. I'm not sure what 1.35V will get you - average B-die dual rank probably falls around 3600-3800CL16 with that imo

Joined
May 2, 2017
Messages
7,761 (3.81/day)
Location
Back in Norway
System Name Hotbox
Processor AMD Ryzen 7 5800X, 110/95/110, PBO +150Mhz, CO -7,-7,-20(x6),
Motherboard ASRock Phantom Gaming B550 ITX/ax
Cooling LOBO + Laing DDC 1T Plus PWM + Corsair XR5 280mm + 2x Arctic P14
Memory 32GB G.Skill FlareX 3200c14 @3800c15
Video Card(s) PowerColor Radeon 6900XT Liquid Devil Ultimate, UC@2250MHz max @~200W
Storage 2TB Adata SX8200 Pro
Display(s) Dell U2711 main, AOC 24P2C secondary
Case SSUPD Meshlicious
Audio Device(s) Optoma Nuforce μDAC 3
Power Supply Corsair SF750 Platinum
Mouse Logitech G603
Keyboard Keychron K3/Cooler Master MasterKeys Pro M w/DSA profile caps
Software Windows 10 Pro
@Valantar you can run the loose timings to gauge where your IF stops scaling but beware, I've tripped Bus/Interconnect WHEA on unstable memory timings before. I previously thought IF and DRAM stability were completely distinct from one another (thus theoretically Bus/Interconnect should have nothing to do with timings) - still mostly true, but not completely so. Granted, I was doing some stupid shit with tRFC so it was blatantly unstable in TM5 to have done so.

Give it a shot with the timings you want to be running. 3200CL14 G.skill dual rank I'd say just shoot for 4000 16-16-16-36 right away at say 1.45V. Working on tRC and tRFC can come after you nail that down, then the rest can wait till later (the rest don't have too much an impact on VDIMM, within reason).

as for VSOC not sure where that info came from but you definitely want to be on manual control to have full control over what you're setting. If you don't like the droop you see on SOC, bump up the LLC, but otherwise just leave LLC alone (I'm usually fine with 0.015-0.02V during TM5). 1.2V is reasonable for 4000, but see if you can shave it down a bit - take it easy, small steps, and leave it at each for a couple of days to see if Bus/Interconnect comes up.

If you want to work out a 4000 daily, see about dropping VDDP a bit. Not seen high VDDP (>0.95) help stability for daily configs before. IOD is whatever, do what you need to do, I did need to support IOD about that much for 4000 when testing 2000MHz on mine.

of course, I say pump the VDIMM but that's assuming you have airflow. I'm not sure what 1.35V will get you - average B-die dual rank probably falls around 3600-3800CL16 with that imo
Thanks for the input :) The "leave vSOC at auto" advice was from several OC guides I've skimmed (this one is the only one I still had open) - of course I have no idea of their quality, so any feedback is welcome. Btw, isn't 1.2V vSOC a bit on the high side for longevity? Thx for the guidance on other voltages though - auto settings do tend to make for some weird baseline readings, so getting some input on what is reasonable/expected stable for manual settings is great.

I'll keep the IF/memory interplay in mind for future testing - for now this has been a pretty simple "either it boots error-free or it fails to POST" scenario, but I'm sure I'll run into some grey areas soon enough.

I'm honestly not very picky in terms of what I'll end up at - I'd be equally happy with 3800 as 4000, and even 3600 would be perfectly fine as long as there's some performance increase over DOCP. I'm just looking to get this tuned better than stock, among other things because I have an inkling that this motherboard doesn't train these DIMMs all that well (I've been having some odd issues with long wake from sleep times and high DPC latency after long sleep cycles that I can't find any explanation for beyond this RAM not being on the QVL and the motherboard maybe not liking it - and ASRock support isn't helping either). We'll see how it plays out.

I'll have a look at tuning this a bit tonight or tomorrow :)

Top
