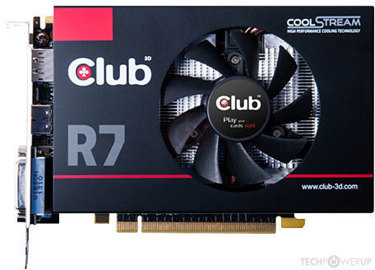

Club 3D R7 260 royalQueen 1 GB

CGAX-R7262F

Graphics Processor

Bonaire

Cores

768

TMUs

ROPs

Memory Size

1024 MB

Memory Type

GDDR5

Bus Width

128 bit

GPU

Graphics Processor

GPU Name: Bonaire

GPU Variant: Bonaire PRO
(215-0839049)

Architecture: GCN 2.0

Foundry: TSMC

Process Size: 28 nm

Transistors: 2,080 million

Density: 13.0M / mm²

Die Size: 160 mm²

Chip Package: FCBGA-1093

Graphics Card

Release Date: ~~Dec 17th, 2013~~
Jan 20th, 2014

Generation: Volcanic Islands
(R7 200)

Predecessor: Sea Islands

Successor: Pirate Islands

Production: End-of-life

Bus Interface: PCIe 3.0 x16

Clock Speeds

GPU Clock: ~~1000 MHz~~
1030 MHz (+3%)

Memory Clock: 1500 MHz
6 Gbps effective

Memory

Memory Size: ~~2 GB~~
1024 MB

Memory Type: GDDR5

Memory Bus: 128 bit

Bandwidth: 96.00 GB/s

Render Config

Shading Units: 768

TMUs: 48

ROPs: 16

Compute Units: 12

L1 Cache: 16 KB (per CU)

L2 Cache: 256 KB

Theoretical Performance

Pixel Rate: ~~16.00 GPixel/s~~
16.48 GPixel/s

Texture Rate: ~~48.00 GTexel/s~~
49.44 GTexel/s

FP32 (float): ~~1.536 TFLOPS~~
1.582 TFLOPS

FP64 (double): ~~96.00 GFLOPS~~
98.88 GFLOPS (1:16)

Board Design

Slot Width: Dual-slot

Length: ~~170 mm~~
224 mm
~~6.7 inches~~
8.8 inches

TDP: 95 W

Suggested PSU: 250 W

Outputs: 1x DVI
1x HDMI 1.4a
1x DisplayPort 1.2
2x DVI
1x HDMI 1.4a
1x DisplayPort 1.2

Power Connectors: 1x 6-pin

Board Number: C582

Graphics Features

DirectX: 12 (12_0)

OpenGL: 4.6

OpenCL: 2.1

Vulkan: 1.2.170

Shader Model: 6.5

Bonaire GPU Notes

Generation: Sea Islands
Desktop Variant: Tobago
Mobile Variant: Saturn / Strato / Emerald
Graphics/Compute: GFX7 (gfx704)
Display Core Engine: 8.2
Unified Video Decoder: 4.2
Video Compression Engine: 2.0
System DMA: 1.0.0
CLRX: GCN 1.1.0

Latest Drivers:
Windows Vista :
Catalyst Software Suite 13.12

Windows 7:
32-bit: Radeon Software: Adrenalin Edition 18.9.3
64-bit: AMD Software: Adrenalin Edition 22.6.1

Windows 8:
Catalyst Software Suite 14.4

Windows 8.1:
32-bit: Radeon Software: Crimson ReLive Edition 16.12.2 / 17.1.2
64-bit: Radeon Software: Crimson ReLive Edition 17.4.4 / 17.7.1

Windows 10:
32-bit: Radeon Software: Adrenalin Edition 18.9.3
64-bit: AMD Software: Adrenalin Edition 22.6.1

Other retail boards based on this design (4)

Name	GPU Clock	Memory Clock	Other Changes
ASUS R7 260 1 GB	1000 MHz	1500 MHz	1024 MB, 221 mm/8.7 inches
Club 3D R7 260 royalQueen 1 GB	1030 MHz	1500 MHz	1024 MB, 224 mm/8.8 inches, 2x DVI 1x HDMI 1x DisplayPort
HIS R7 260 iCooler 1 GB	1000 MHz	1500 MHz	1024 MB, 205 mm/8.1 inches
MSI R7 260 OC 1 GB	1050 MHz	1500 MHz	1024 MB, 203 mm/8 inches, 2x DVI 1x HDMI 1x DisplayPort
