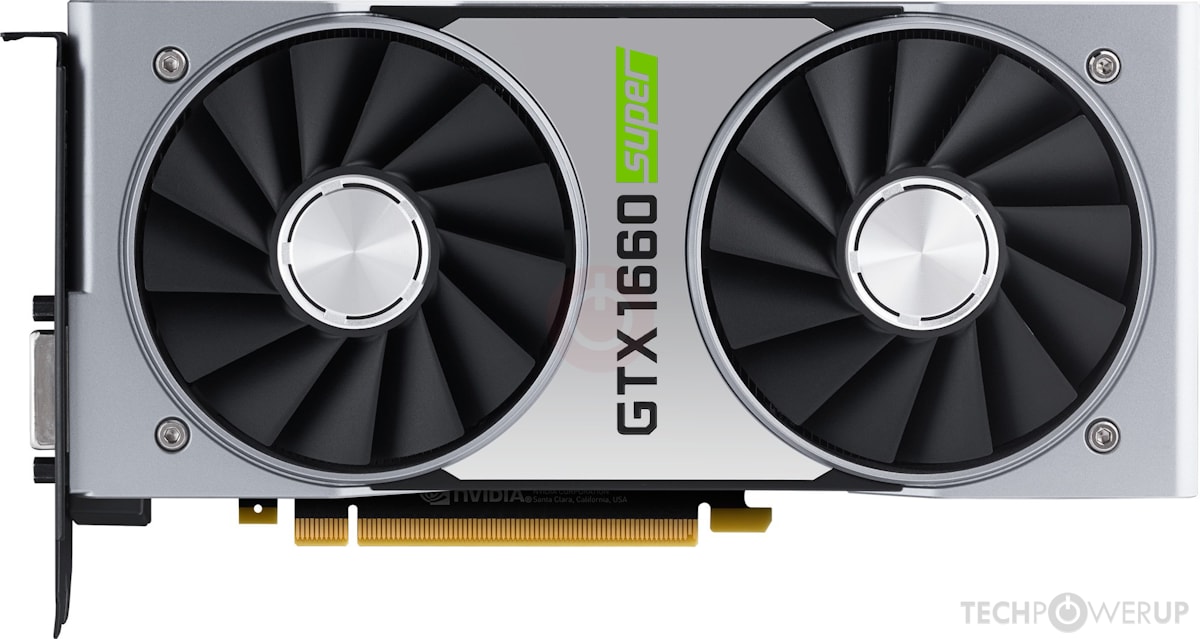

NVIDIA GeForce GTX 1660 SUPER
- Graphics Processor
- TU116
- Cores
- 1408
- TMUs
- 88
- ROPs
- 48
- Memory Size
- 6 GB
- Memory Type
- GDDR6
- Bus Width
- 192 bit
GPU
Recommended Gaming Resolutions:
- 1920x1080
- 2560x1440
- 3840x2160
The GeForce GTX 1660 SUPER is a performance-segment graphics card by NVIDIA, launched on October 29th, 2019. Built on the 12 nm process, and based on the TU116 graphics processor, in its TU116-300-A1 variant, the card supports DirectX 12. This ensures that all modern games will run on GeForce GTX 1660 SUPER. The TU116 graphics processor is an average sized chip with a die area of 284 mm² and 6,600 million transistors. Unlike the fully unlocked GeForce GTX 1660 Ti, which uses the same GPU but has all 1536 shaders enabled, NVIDIA has disabled some shading units on the GeForce GTX 1660 SUPER to reach the product's target shader count. It features 1408 shading units, 88 texture mapping units, and 48 ROPs. NVIDIA has paired 6 GB GDDR6 memory with the GeForce GTX 1660 SUPER, which are connected using a 192-bit memory interface. The GPU is operating at a frequency of 1530 MHz, which can be boosted up to 1785 MHz, memory is running at 1750 MHz (14 Gbps effective).
Being a dual-slot card, the NVIDIA GeForce GTX 1660 SUPER draws power from 1x 8-pin power connector, with power draw rated at 125 W maximum. Display outputs include: 1x DVI, 1x HDMI 2.0, 1x DisplayPort 1.4a. GeForce GTX 1660 SUPER is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card's dimensions are 229 mm x 111 mm x 35 mm, and it features a dual-slot cooling solution. Its price at launch was 229 US Dollars.
Being a dual-slot card, the NVIDIA GeForce GTX 1660 SUPER draws power from 1x 8-pin power connector, with power draw rated at 125 W maximum. Display outputs include: 1x DVI, 1x HDMI 2.0, 1x DisplayPort 1.4a. GeForce GTX 1660 SUPER is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card's dimensions are 229 mm x 111 mm x 35 mm, and it features a dual-slot cooling solution. Its price at launch was 229 US Dollars.

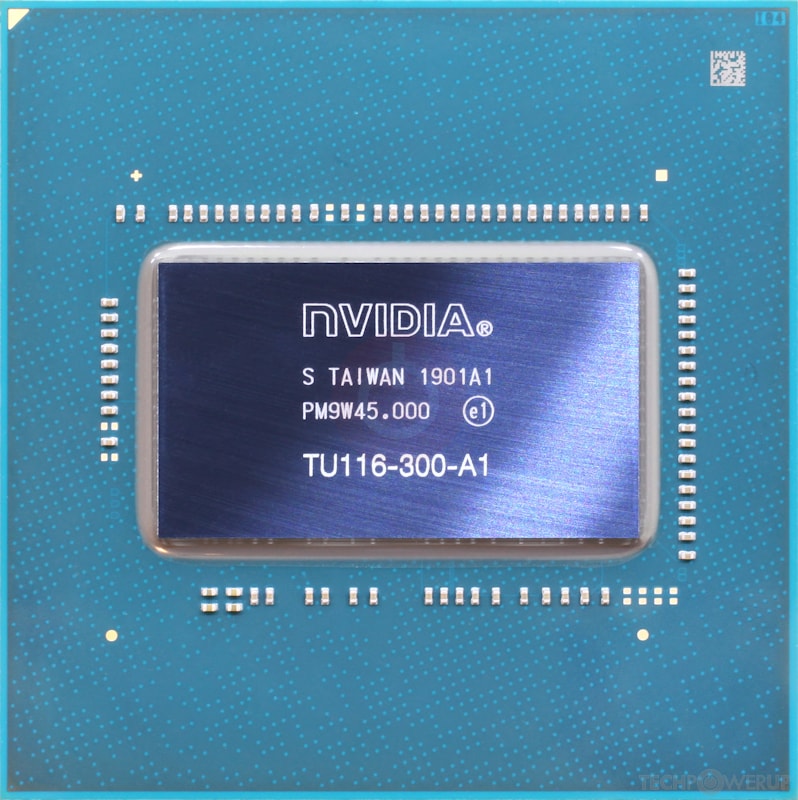

Graphics Processor
Graphics Card
- Release Date
- Oct 29th, 2019
- Generation
- GeForce 16
- Predecessor
- GeForce 10
- Successor
- GeForce 20
- Production
- Active
- Launch Price
- 229 USD
- Bus Interface
- PCIe 3.0 x16
- Reviews
- 42 in our database
Relative Performance
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.
Clock Speeds
- Base Clock
- 1530 MHz
- Boost Clock
- 1785 MHz
- Memory Clock
-
1750 MHz
14 Gbps effective
Memory
- Memory Size
- 6 GB
- Memory Type
- GDDR6
- Memory Bus
- 192 bit
- Bandwidth
- 336.0 GB/s
Render Config
- Shading Units
- 1408
- TMUs
- 88
- ROPs
- 48
- SM Count
- 22
- L1 Cache
- 64 KB (per SM)
- L2 Cache
- 1536 KB
Theoretical Performance
- Pixel Rate
- 85.68 GPixel/s
- Texture Rate
- 157.1 GTexel/s
- FP16 (half)
- 10.05 TFLOPS (2:1)
- FP32 (float)
- 5.027 TFLOPS
- FP64 (double)
- 157.1 GFLOPS (1:32)
Board Design
- Slot Width
- Dual-slot
- Length
- 229 mm
9 inches
- Width
- 111 mm
4.4 inches
- Height
- 35 mm
1.4 inches
- TDP
- 125 W
- Suggested PSU
- 300 W
- Outputs
- 1x DVI
1x HDMI 2.0
1x DisplayPort 1.4a
- Power Connectors
- 1x 8-pin
- Board Number
- PG161 SKU 26
Graphics Features
- DirectX
- 12 (12_1)
- OpenGL
- 4.6
- OpenCL
- 3.0
- Vulkan
- 1.3
- CUDA
- 7.5
- Shader Model
- 6.8
TU116 GPU Notes
| NVENC: 7th Gen NVDEC: 4th Gen PureVideo HD: VP10 VDPAU: Feature Set J Latest Drivers: Windows 7 / 8 / 8.1 (x64): GeForce Release 474.89 Windows 10 / 11 (x64): GeForce Release: Latest |
Retail boards based on this design (114)
| Name | GPU Clock | Boost Clock | Memory Clock | Other Changes |
|---|---|---|---|---|
| 1530 MHz | 1785 MHz | 1750 MHz | ||
| 1530 MHz | 1785 MHz | 1750 MHz | 242 mm/9.5 inches, Triple-slot | |
| 1530 MHz | 1800 MHz | 1750 MHz | 242 mm/9.5 inches, Triple-slot | |
| 1530 MHz | 1830 MHz | 1750 MHz | 242 mm/9.5 inches, Triple-slot | |
| 1530 MHz | 1785 MHz | 1750 MHz | 197 mm/7.8 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 197 mm/7.8 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 240 mm/9.4 inches | |
| 1530 MHz | 1815 MHz | 1750 MHz | 240 mm/9.4 inches | |
| 1530 MHz | 1815 MHz | 1750 MHz | 240 mm/9.4 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 174 mm/6.9 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | 174 mm/6.9 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 243 mm/9.6 inches, 2x HDMI 2x DisplayPort | |
| 1530 MHz | 1815 MHz | 1750 MHz | 243 mm/9.6 inches, 2x HDMI 2x DisplayPort | |
| 1530 MHz | 1845 MHz | 1750 MHz | 243 mm/9.6 inches, 2x HDMI 2x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 206 mm/8.1 inches | |
| 1530 MHz | 1815 MHz | 1750 MHz | 206 mm/8.1 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 264 mm/10.4 inches, Triple-slot | |
| 1530 MHz | 1815 MHz | 1750 MHz | 264 mm/10.4 inches, Triple-slot | |
| 1530 MHz | 1830 MHz | 1750 MHz | 264 mm/10.4 inches, Triple-slot | |
| 1530 MHz | 1830 MHz | 1750 MHz | 264 mm/10.4 inches, Triple-slot | |
| 1530 MHz | 1800 MHz | 1750 MHz | 264 mm/10.4 inches, Triple-slot | |
| 1530 MHz | 1830 MHz | 1750 MHz | ||
| 1530 MHz | 1785 MHz | 1750 MHz | 315 mm/12.4 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 315 mm/12.4 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 222 mm/8.7 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 222 mm/8.7 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 310 mm/12.2 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 310 mm/12.2 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | ||
| 1530 MHz | 1785 MHz | 1750 MHz | 206 mm/8.1 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 190 mm/7.5 inches, Triple-slot | |
| 1530 MHz | 1830 MHz | 1750 MHz | 202 mm/8 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 202 mm/8 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | ||
| 1530 MHz | 1785 MHz | 1750 MHz | 235 mm/9.3 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 235 mm/9.3 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 168 mm/6.6 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 168 mm/6.6 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 268 mm/10.6 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | 214 mm/8.4 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | 175 mm/6.9 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 233 mm/9.2 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 233 mm/9.2 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1830 MHz | 1750 MHz | 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1830 MHz | 1750 MHz | 280 mm/11 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 280 mm/11 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1830 MHz | 1750 MHz | 280 mm/11 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 280 mm/11 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | 220 mm/8.7 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 246 mm/9.7 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 246 mm/9.7 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | 214 mm/8.4 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 226 mm/8.9 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 280 mm/11 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1860 MHz | 1750 MHz | 280 mm/11 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 170 mm/6.7 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1800 MHz | 1750 MHz | 170 mm/6.7 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1830 MHz | 1750 MHz | 226 mm/8.9 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | ||
| 1530 MHz | 1785 MHz | 1750 MHz | ||
| 1530 MHz | 1785 MHz | 1750 MHz | 188 mm/7.4 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 196 mm/7.7 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1815 MHz | 1750 MHz | 220 mm/8.7 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 302 mm/11.9 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 268 mm/10.6 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | 214 mm/8.4 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | 175 mm/6.9 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 233 mm/9.2 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 233 mm/9.2 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | 220 mm/8.7 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | 214 mm/8.4 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 241 mm/9.5 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 214 mm/8.4 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | ||
| 1530 MHz | 1785 MHz | 1750 MHz | 255 mm/10 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 160 mm/6.3 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 232 mm/9.1 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 250 mm/9.8 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 306 mm/12 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | ||
| 1530 MHz | 1785 MHz | 1750 MHz | 179 mm/7 inches | |
| 1530 MHz | 1815 MHz | 1750 MHz | 179 mm/7 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 247 mm/9.7 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 248 mm/9.8 inches, Triple-slot, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1830 MHz | 1750 MHz | 247 mm/9.7 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1830 MHz | 1750 MHz | 248 mm/9.8 inches, Triple-slot, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 231 mm/9.1 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1815 MHz | 1750 MHz | 231 mm/9.1 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 204 mm/8 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1815 MHz | 1750 MHz | 204 mm/8 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1815 MHz | 1750 MHz | 204 mm/8 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 204 mm/8 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 235 mm/9.3 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 235 mm/9.3 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 168 mm/6.6 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 168 mm/6.6 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 235 mm/9.3 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 168 mm/6.6 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 232 mm/9.1 inches | |
| 1530 MHz | 1830 MHz | 1750 MHz | 168 mm/6.6 inches | |
| 1530 MHz | 1845 MHz | 1750 MHz | 210 mm/8.3 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1785 MHz | 1750 MHz | 218 mm/8.6 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 218 mm/8.6 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 218 mm/8.6 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 218 mm/8.6 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 218 mm/8.6 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 218 mm/8.6 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 218 mm/8.6 inches | |
| 1530 MHz | 1785 MHz | 1750 MHz | 173 mm/6.8 inches, 1x HDMI 3x DisplayPort | |
| 1530 MHz | 1815 MHz | 1750 MHz | 263 mm/10.4 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | 222 mm/8.7 inches | |
| 1530 MHz | 1800 MHz | 1750 MHz | 263 mm/10.4 inches |
