AMD Radeon RX 6700 XT
- Graphics Processor
- Navi 22
- Cores
- 2560
- TMUs
- 160
- ROPs
- 64
- Memory Size
- 12 GB
- Memory Type
- GDDR6
- Bus Width
- 192 bit

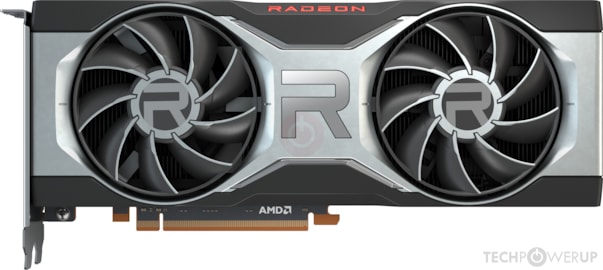

GPU

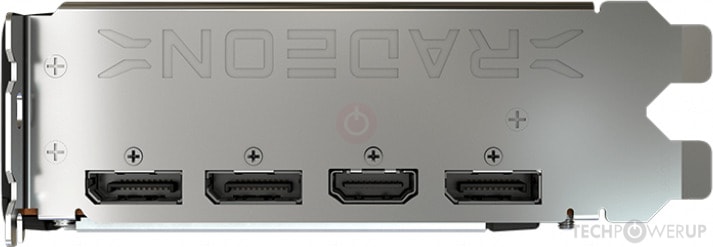

I/O
Top

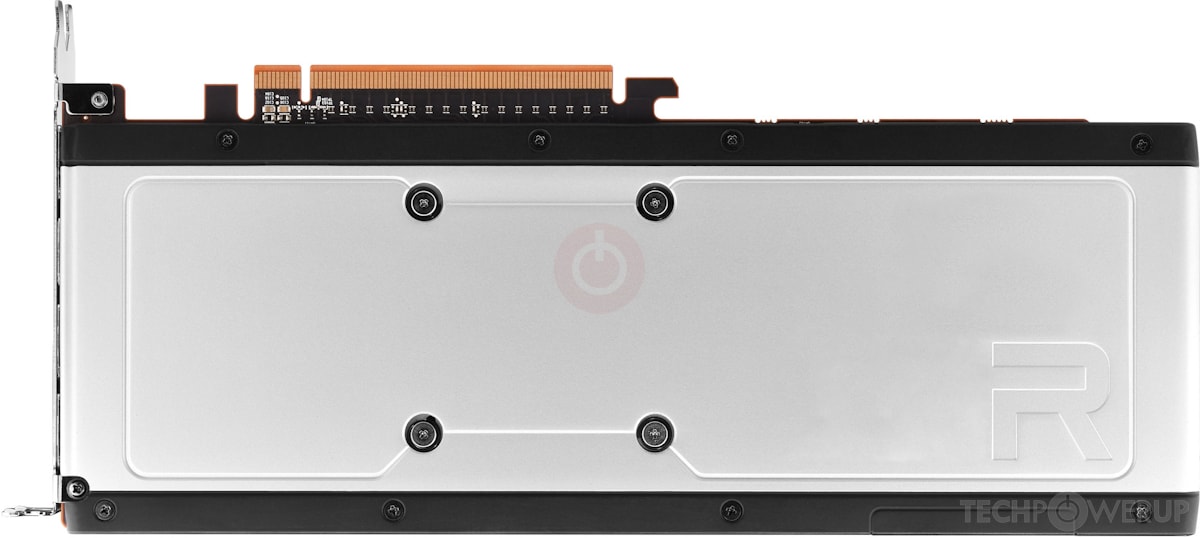

Bottom

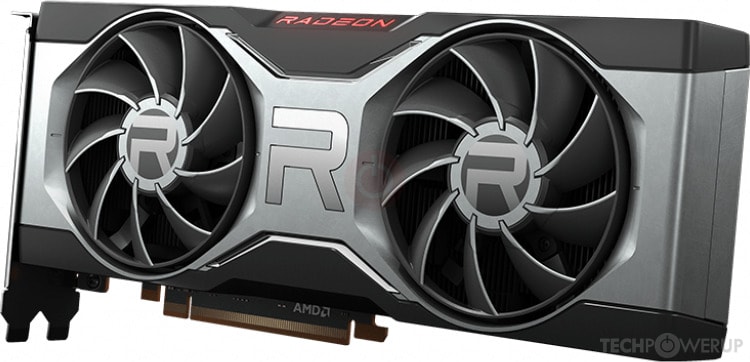

Rear
Back

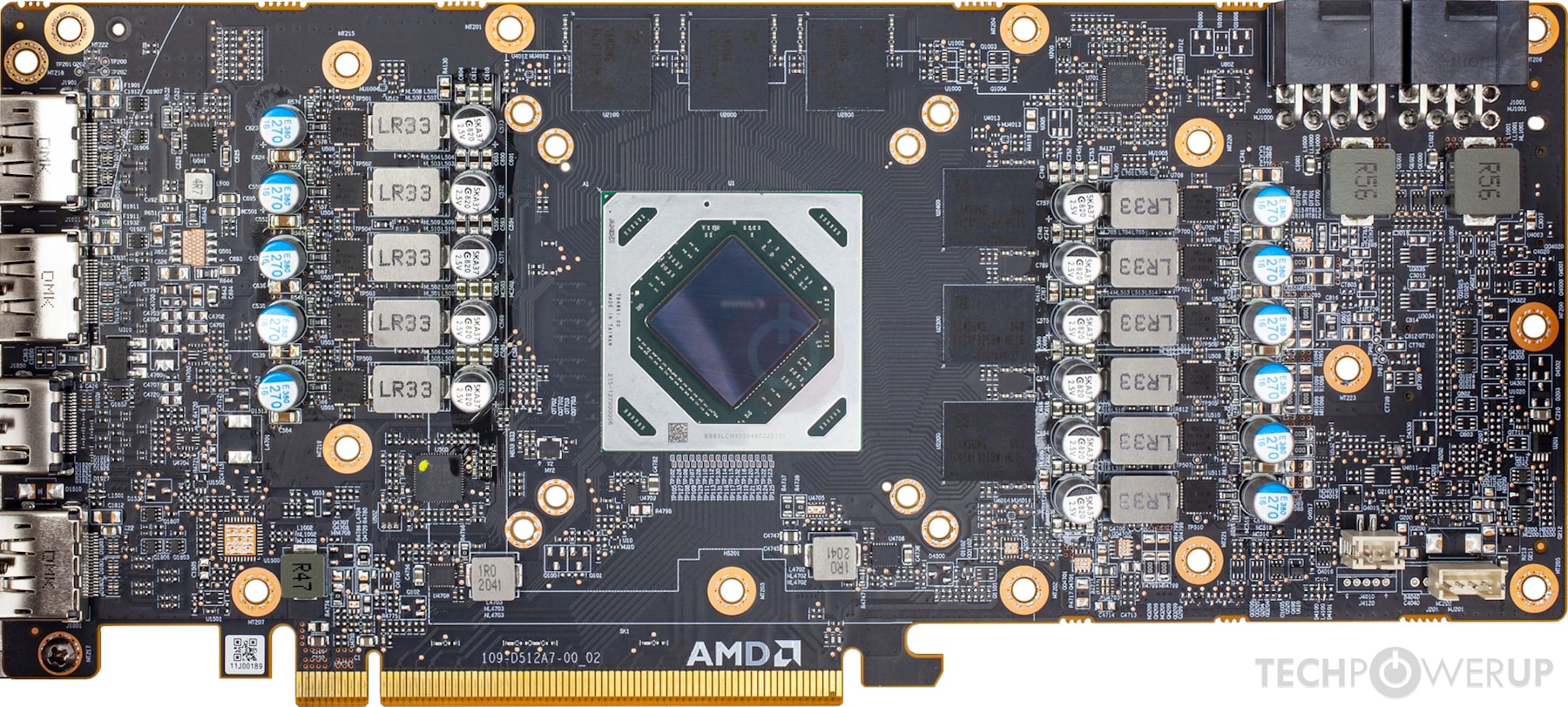

PCB Front

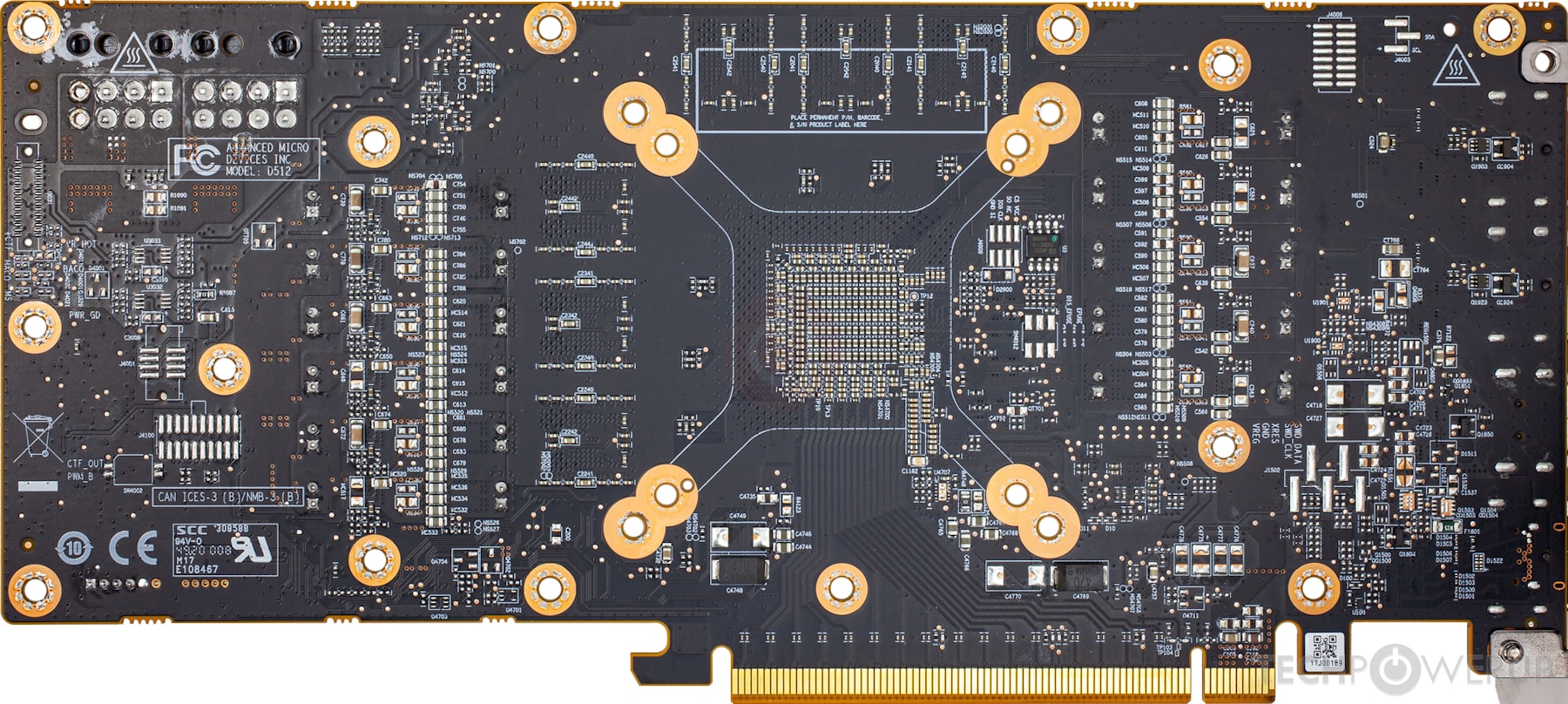

PCB Back
Recommended Gaming Resolutions:
- 1920x1080
- 2560x1440
- 3840x2160
The Radeon RX 6700 XT is a high-end graphics card by AMD, launched on March 3rd, 2021. Built on the 7 nm process, and based on the Navi 22 graphics processor, in its Navi 22 XT variant, the card supports DirectX 12 Ultimate. This ensures that all modern games will run on Radeon RX 6700 XT. Additionally, the DirectX 12 Ultimate capability guarantees support for hardware-raytracing, variable-rate shading and more, in upcoming video games. The Navi 22 graphics processor is a large chip with a die area of 335 mm² and 17,200 million transistors. It features 2560 shading units, 160 texture mapping units, and 64 ROPs. The card also has 40 raytracing acceleration cores. AMD has paired 12 GB GDDR6 memory with the Radeon RX 6700 XT, which are connected using a 192-bit memory interface. The GPU is operating at a frequency of 2321 MHz, which can be boosted up to 2581 MHz, memory is running at 2000 MHz (16 Gbps effective).
Being a dual-slot card, the AMD Radeon RX 6700 XT draws power from 1x 6-pin + 1x 8-pin power connector, with power draw rated at 230 W maximum. Display outputs include: 1x HDMI 2.1, 3x DisplayPort 1.4a. Radeon RX 6700 XT is connected to the rest of the system using a PCI-Express 4.0 x16 interface. The card's dimensions are 267 mm x 110 mm x 40 mm, and it features a dual-slot cooling solution. Its price at launch was 479 US Dollars.
Being a dual-slot card, the AMD Radeon RX 6700 XT draws power from 1x 6-pin + 1x 8-pin power connector, with power draw rated at 230 W maximum. Display outputs include: 1x HDMI 2.1, 3x DisplayPort 1.4a. Radeon RX 6700 XT is connected to the rest of the system using a PCI-Express 4.0 x16 interface. The card's dimensions are 267 mm x 110 mm x 40 mm, and it features a dual-slot cooling solution. Its price at launch was 479 US Dollars.
Graphics Processor
Graphics Card
Relative Performance
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.
Clock Speeds
- Base Clock
- 2321 MHz
- Game Clock
- 2424 MHz
- Boost Clock
- 2581 MHz
- Memory Clock
-
2000 MHz
16 Gbps effective
Memory
- Memory Size
- 12 GB
- Memory Type
- GDDR6
- Memory Bus
- 192 bit
- Bandwidth
- 384.0 GB/s
Render Config
- Shading Units
- 2560
- TMUs
- 160
- ROPs
- 64
- Compute Units
- 40
- RT Cores
- 40
- L0 Cache
- 32 KB per WGP
- L1 Cache
- 128 KB per Array
- L2 Cache
- 3 MB
- L3 Cache
- 96 MB
Theoretical Performance
- Pixel Rate
- 165.2 GPixel/s
- Texture Rate
- 413.0 GTexel/s
- FP16 (half)
- 26.43 TFLOPS (2:1)
- FP32 (float)
- 13.21 TFLOPS
- FP64 (double)
- 825.9 GFLOPS (1:16)
Board Design
- Slot Width
- Dual-slot
- Length
- 267 mm
10.5 inches
- Width
- 110 mm
4.3 inches
- Height
- 40 mm
1.6 inches
- TDP
- 230 W
- Suggested PSU
- 550 W
- Outputs
- 1x HDMI 2.1
3x DisplayPort 1.4a
- Power Connectors
- 1x 6-pin + 1x 8-pin
- Board Number
- 109-D512A7-00_02
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 2.1
- Vulkan
- 1.3
- Shader Model
- 6.7
Navi 22 GPU Notes
| Generation: Navi II Codename: Navy Flounder Ray Tracing Cores: 1st Gen Infinity Cache: 1st Gen Graphics/Compute: 10.3.2 Shader ISA: GFX10.3 (gfx1031) Display Core Next: 3.0.0 Video Core Next: 3.0.0 System DMA: 5.2.2 Platform Security Processor: 11.0.11 Per SIMD32: - 10 KB Scalar Register File Per CU: - 16 KB Vector Data Cache - 64 KB Local Data Share (GCN-Mode) Per WGP: - 16 KB Scalar Data Cache / K Cache - 32 KB Instruction Cache - 128 KB Local Data Share |
Retail boards based on this design (41)
| Name | GPU Clock | Boost Clock | Memory Clock | Other Changes |
|---|---|---|---|---|
| 2321 MHz | 2581 MHz | 2000 MHz | ||
| 2321 MHz | 2581 MHz | 2000 MHz | 269 mm/10.6 inches | |
| 2330 MHz | 2615 MHz | 2000 MHz | 269 mm/10.6 inches | |
| 2375 MHz | 2620 MHz | 2000 MHz | 303 mm/11.9 inches | |
| 2457 MHz | 2622 MHz | 2000 MHz | 305 mm/12 inches, Triple-slot | |
| 2321 MHz | 2581 MHz | 2000 MHz | 295 mm/11.6 inches, Triple-slot | |
| 2375 MHz | 2620 MHz | 2000 MHz | 295 mm/11.6 inches, Triple-slot | |
| 2321 MHz | 2581 MHz | 2000 MHz | ||
| 2418 MHz | 2622 MHz | 2000 MHz | 322 mm/12.7 inches, Triple-slot | |
| 2457 MHz | 2629 MHz | 2000 MHz | 322 mm/12.7 inches, Triple-slot | |
| 2457 MHz | 2622 MHz | 2000 MHz | 310 mm/12.2 inches | |
| 2321 MHz | 2581 MHz | 2000 MHz | ||
| 2457 MHz | 2622 MHz | 2000 MHz | 296 mm/11.7 inches, Triple-slot, 2x HDMI 2x DisplayPort | |
| 2321 MHz | 2581 MHz | 2000 MHz | ||
| 2321 MHz | 2581 MHz | 2000 MHz | 282 mm/11.1 inches, 2x HDMI 2x DisplayPort | |
| 2321 MHz | 2620 MHz | 2000 MHz | 282 mm/11.1 inches, 2x HDMI 2x DisplayPort | |
| 2321 MHz | 2622 MHz | 2000 MHz | 281 mm/11.1 inches, 2x HDMI 2x DisplayPort | |
| 2321 MHz | 2581 MHz | 2000 MHz | ||
| 2321 MHz | 2581 MHz | 2000 MHz | 228 mm/9 inches | |
| 2321 MHz | 2581 MHz | 2000 MHz | ||
| 2321 MHz | 2581 MHz | 2000 MHz | 279 mm/11 inches, Triple-slot | |
| 2418 MHz | 2622 MHz | 2000 MHz | 279 mm/11 inches, Triple-slot | |
| 2321 MHz | 2581 MHz | 2000 MHz | 247 mm/9.7 inches | |
| 2375 MHz | 2620 MHz | 2000 MHz | 247 mm/9.7 inches | |
| 2321 MHz | 2581 MHz | 2000 MHz | 228 mm/9 inches | |
| 2321 MHz | 2581 MHz | 2000 MHz | 305 mm/12 inches | |
| 2321 MHz | 2581 MHz | 2000 MHz | 305 mm/12 inches | |
| 2418 MHz | 2622 MHz | 2000 MHz | 320 mm/12.6 inches | |
| 2321 MHz | 2581 MHz | 2000 MHz | ||
| 2457 MHz | 2622 MHz | 2000 MHz | 310 mm/12.2 inches | |
| 2321 MHz | 2581 MHz | 2000 MHz | 260 mm/10.2 inches | |
| 2375 MHz | 2620 MHz | 2000 MHz | 260 mm/10.2 inches | |
| 2321 MHz | 2581 MHz | 2000 MHz | ||
| 2321 MHz | 2581 MHz | 2000 MHz | 326 mm/12.8 inches, Triple-slot | |
| 2321 MHz | 2581 MHz | 2000 MHz | ||
| 2457 MHz | 2622 MHz | 2000 MHz | 323 mm/12.7 inches | |
| 2321 MHz | 2581 MHz | 2000 MHz | 323 mm/12.7 inches | |
| 2418 MHz | 2622 MHz | 2000 MHz | 323 mm/12.7 inches | |
| 2321 MHz | 2581 MHz | 2000 MHz | 304 mm/12 inches | |
| 2418 MHz | 2622 MHz | 2000 MHz | ||
| 2321 MHz | 2581 MHz | 2000 MHz |
