Warm Tek Also Shows off "Pangolin" Heatsink Design Concept

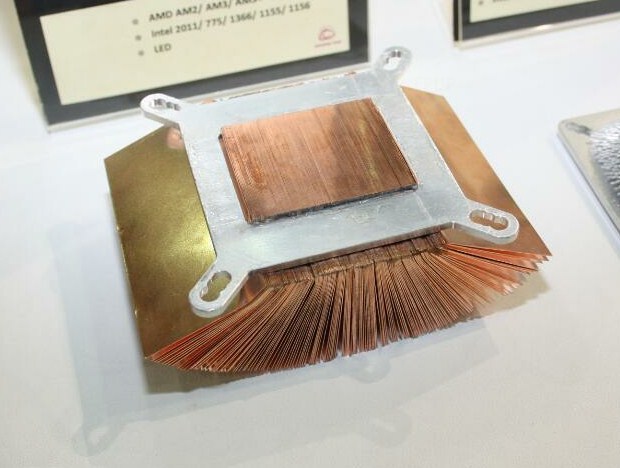

The next big heatsink design at Warm Tek is called Pangolin C1-6. Its design stays true to the design principle of the Hedgehog series, in which each individual heat dissipation surface makes direct contact with the CPU, eliminating the need for heat-pipes (Warm Tek calls this seamless direct conduction). While the Hedgehog series heatsinks uses copper rods, the Pangolin C1-6 uses copper sheets which are tightly stacked up at the base, and fan-out upwards. The exposed copper sheets are treated with anti-oxidants at the factory. Like with the Hedgehog, it's purely pressure holding the sheets together, and the heatsink is weld-free. Although designed primarily for fan-less setups, a fan-clip is being worked on.
Add your own comment

12 Comments on Warm Tek Also Shows off "Pangolin" Heatsink Design Concept

Nick [D]vB

Zalman did a sink like this about 10 years ago.

They worked pretty well with small fan's in push-pull on either side.

Posted on Reply
I play games
This looks alot better than their "Blonde Hedgehog"
Posted on Reply
Surely these end up being more expensive to put into systems than any other type of heatsink.
Posted on Reply
Looks like it weighs a ton! The fins are so dense, it's almost a solid block of copper... Also, it's useless to build a heat sink with a lot of surface area but no way for air to circulate around most of it.
Posted on Reply
Now, that's a lot of Copper !
But, wth ? At least even the spacing between the sheets.
Posted on Reply
It would be more impressive if were made using skiving instead of just sandwiching the plates together.
Posted on Reply
It'll prolly will break you motherboard....
Posted on Reply
It looks a bit shabby to me, for a start you'd want a really smooth base for contact to the cpu loads of seperate edges arent gonna do that, and the spacing isnt even so some are probs touching lessening the usefulness.
Posted on Reply
Hmm, that Pangolin doesn't look very Precise...
Posted on Reply
I see what you did there...]Ubuntu 12.04

And I see that while testing the link in this post, that the Humble Indie Bundle 5 is in the Ubuntu Software Center. Nice move.
Posted on Reply
They are re-inventing the existing stuff. Welcome to year 2000, it has already been done chaps!
Posted on Reply
Indeed, there are already so many heatsinks like that.
Posted on Reply
