rx580 won't work with new build

eidairaman1 · Jan 10, 2022

Bikus980 said:
Hi, thx in adv.
You can find attached pic.

This is not original rom and I've found that out in the meantime, it is TPU rom I've saved long time ago that I thought it is good.
New discoveries and attempts:
- disassembled GPU, I have no picture to prove, but memory is Hynix 100%... As you can see on GPU-Z sc, it says Samsung
- I tried some atiflash tricks (DDU driver uninstall, than CMD with admin rights -unlockrom, after that force flash with Hynix rom bios downloaded from TPU, but I get SSID and 0FL01 errors all the time)

I don't know if flash from USB stick and DOS boot would help?

Thx mate for trying to help!

What specific card model do you have, rx580 is a generic name

Your bios is from this.

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

Do the Hynix chips have AJR or MJR

Bikus980 · Jan 10, 2022

eidairaman1 said:
What specific card model do you have, rx580 is a generic name

Your bios is from this.

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

Do the Hynix chips have AJR or MJR

https://rog.asus.com/us/graphics-cards/graphics-cards/rog-strix/rog-strix-rx580-o8g-gaming-model/
Asus ROG-STRIX-RX580-O8G-GAMING

I found old pic from HiveOS, it is Hynih H5GQ8H24MJR

eidairaman1 · Jan 10, 2022

Bikus980 said:
https://rog.asus.com/us/graphics-cards/graphics-cards/rog-strix/rog-strix-rx580-o8g-gaming-model/
Asus ROG-STRIX-RX580-O8G-GAMING

I found old pic from HiveOS, it is Hynih H5GQ8H24MJR

Asus support was poor to say the most

2017 04 16, is a very old bios

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

This bios has AJR ram, only experiment if you know how to recover from a bios flash.

From 2021

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

The Strix Gaming bios (any of them that have MJR) may work if you force flash the Subsystem ID.

TechPowerUp

Extensive repository of graphics card BIOS image files. Our database covers submissions categorized by GPU vendor, type, and board partner variant.

www.techpowerup.com

TechPowerUp

Extensive repository of graphics card BIOS image files. Our database covers submissions categorized by GPU vendor, type, and board partner variant.

www.techpowerup.com

I noticed on a few of the Asus RX 590 Bios that Hynix name was specified but samsung model number was being used @W1zzard is that due to bios mod? (1411/2000)

Bikus980 · Jan 10, 2022

eidairaman1 said:
Asus support was poor to say the most

2017 04 16, is a very old bios

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

This bios has AJR ram, only experiment if you know how to recover from a bios flash.

From 2021

Asus RX 580 VBIOS

8 GB GDDR5, 1360 MHz GPU, 2000 MHz Memory

www.techpowerup.com

The Strix Gaming bios (any of them that have MJR) may work if you force flash the Subsystem ID.

TechPowerUp

Extensive repository of graphics card BIOS image files. Our database covers submissions categorized by GPU vendor, type, and board partner variant.

www.techpowerup.com

TechPowerUp

Extensive repository of graphics card BIOS image files. Our database covers submissions categorized by GPU vendor, type, and board partner variant.

www.techpowerup.com

I understand, thx mate.
I will try this one today, it seems fine, subsys ID match - https://www.techpowerup.com/vgabios/234073/234073

EDIT: sorry, it is AJR, I'll better try older MJR with SSID 0517

eidairaman1 · Jan 10, 2022

Bikus980 said:
I understand, thx mate.
I will try this one today, it seems fine, subsys ID match - https://www.techpowerup.com/vgabios/234073/234073

Thats the AJR, be careful

Yes do the MJR only, AJR if you know disaster recovery

Bikus980 · Jan 12, 2022

eidairaman1 said:
Thats the AJR, be careful

Yes do the MJR only, AJR if you know disaster recovery

Hi, just to leave a feedback.
I've tried all of the ROMs and only 200389.rom is stable, with others I'm receiving hung and D3D errors, freezing OS also.
It is stable on highest video settings, tested Fortnite and Ride4, GPU is cold ~50C, decent FPS, all fine

Thanks a lot man, it was a big help

RJARRRPCGP · Jan 12, 2022

Bikus980 said:
I've tried all of the ROMs and only 200389.rom is stable, with others I'm receiving hung and D3D errors, freezing OS also.

D3D errors and a random freeze, are classic symptoms of unstable "SCLK". (core clock)

eidairaman1 · Jan 12, 2022

Bikus980 said:
Hi, just to leave a feedback.
I've tried all of the ROMs and only 200389.rom is stable, with others I'm receiving hung and D3D errors, freezing OS also.
It is stable on highest video settings, tested Fortnite and Ride4, GPU is cold ~50C, decent FPS, all fine

Thanks a lot man, it was a big help

Thats why I provide several at times

Warlockmain18372 · May 26, 2022

eidairaman1 said:
Thats why I provide several at times

Hello,

I am having the same issue. My motherboard is B450 Tomahawk MAX II. I've attached a screenshot from gpuz. I have never stumbled upon such a problem so I am very inexperienced when it comes to this. I only flashed the latest bios from the msi website for my motherboard. But it didn't help.

Can you help me out as well, please?

Thank you!

eidairaman1 · May 27, 2022

Warlockmain18372 said:
Hello,

I am having the same issue. My motherboard is B450 Tomahawk MAX II. I've attached a screenshot from gpuz. I have never stumbled upon such a problem so I am very inexperienced when it comes to this. I only flashed the latest bios from the msi website for my motherboard. But it didn't help.

Can you help me out as well, please?

Thank you!

Update the motherboard bios

Get a pic of the sku sticker and pn sticker near the pcie blade on the heatsink of the gpu please.

Warlockmain18372 · May 27, 2022

eidairaman1 said:
Update the motherboard bios

Get a pic of the sku sticker and pn sticker near the pcie blade on the heatsink of the gpu please.

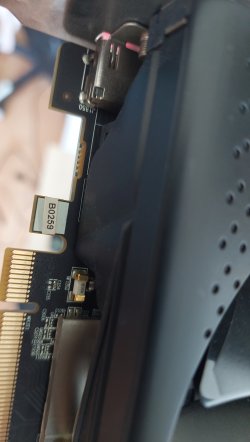

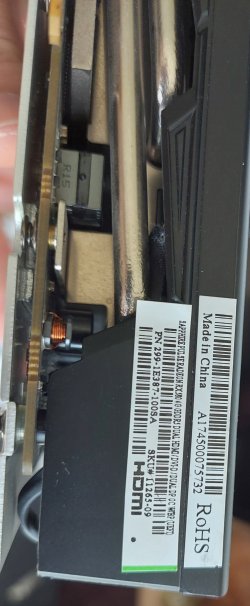

I hope this is the sticker that you need.

Also I've already updated the bios to the latest stable version on the msi website.

eidairaman1 · May 27, 2022

Warlockmain18372 said:
I hope this is the sticker that you need.

Also I've already updated the bios to the latest stable version on the msi website.

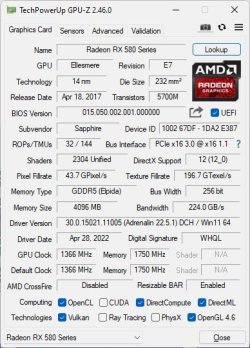

1002 67DF 1DA2 E387

I had to verify you had a bios that matches the card.

Your card.

1366/1750

PULSE RX 580 4G G5

Up to 1366 MHz, 4GB GDDR5, 1440p gaming.

www.sapphiretech.com

Warlockmain18372 · May 28, 2022

eidairaman1 said:
1002 67DF 1DA2 E387

I had to verify you had a bios that matches the card.

Your card.

1366/1750

PULSE RX 580 4G G5

Up to 1366 MHz, 4GB GDDR5, 1440p gaming.

www.sapphiretech.com

My current motherboard bios is B450 TOMAHAWK MAX II Gaming Motherboard (AMD Ryzen 3000 3rd gen ryzen AM4, DDR4, M.2, USB 3.2 Gen 1, Wi-Fi, HDMI, ATX) (msi.com) - version: 7C02vH7.

Yes, this is my card. But I am unaware of the next steps from here on.

eidairaman1 · May 28, 2022

Warlockmain18372 said:
My current motherboard bios is B450 TOMAHAWK MAX II Gaming Motherboard (AMD Ryzen 3000 3rd gen ryzen AM4, DDR4, M.2, USB 3.2 Gen 1, Wi-Fi, HDMI, ATX) (msi.com) - version: 7C02vH7.

Yes, this is my card. But I am unaware of the next steps from here on.

Well from what it seems there are no newer bios outside of 2017 for E387 or E353. @Final_Fighter what do you think? A E366 might be able to help with a mod?

Warlockmain18372 · May 28, 2022

eidairaman1 said:
Well from what it seems there are no newer bios outside of 2017 for E387 or E353. @Final_Fighter what do you think? A E366 might be able to help with a mod?

I was thinking of flashing an older version of the msi motherboard bios which is not win11 ready and has csm enabled will fix this? However, I am not sure whether it will support the 5600X. What's your take on this approach?

eidairaman1 · May 28, 2022

Warlockmain18372 said:
I was thinking of flashing an older version of the msi motherboard bios which is not win11 ready and has csm enabled will fix this? However, I am not sure whether it will support the 5600X. What's your take on this approach?

Look at the mobo bios info on the msi page and maybe attempt to do a cmos reset first before doing any kind of flashing.

I will provide you the latest 2017 bios for E387 and E353 for your gpu.

Verified
E387 Bios
2017 11 15
SKU 11265-09

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Unverified
2017 11 15

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

2017 11 03

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Verified
E353 Bios
2017 03 02

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Unverified
2017 03 02

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Warlockmain18372 · May 28, 2022

eidairaman1 said:
Look at the mobo bios info on the msi page and maybe attempt to do a cmos reset first before doing any kind of flashing.

I will provide you the latest 2017 bios for E387 and E353 for your gpu.

Verified
E387 Bios
2017 11 15
SKU 11265-09

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Unverified
2017 11 15

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

2017 11 03

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Verified
E353 Bios
2017 03 02

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Unverified
2017 03 02

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

I've never flashed vbios and my card has no bios switch either. So I won't be able to fallback to the secondary if I brick it. Is it a big chance that this goes wrong?

eidairaman1 · May 28, 2022

Warlockmain18372 said:
I've never flashed vbios and my card has no bios switch either. So I won't be able to fallback to the secondary if I brick it. Is it a big chance that this goes wrong?

Well with the info I gathered from the gpu(outside of you removing the heatsink to verify what ram is physically on the card), and from the gpu-z screen you gave me which appears the card is working correctly, there should be a 95-99% chance it works.

BUT you must have a backup plan for disaster recovery- An AMD APU, IGP (Older AMD/Intel), Intel core i, a spare known working GPU that you know works in your current system or another, or a spare system, otherwise a PC Repair Shop.

I have 2 guides in 1 thread that you can follow.

AMD/ATi Flash Command Line (CMD) Syntax Mini Guide (WINDOWS)

This is a Guide Thread Only, not an asking for help thread. If you need help, start a new thread, do not post in here as it will be reported and possibly deleted. This is a Mini Guide to using AMDVBFLASH/ATi Flash. DO NOT USE WINFLASH it has been discontinued and rearely ever worked Make...

www.techpowerup.com

Warlockmain18372 · May 31, 2022

eidairaman1 said:
Look at the mobo bios info on the msi page and maybe attempt to do a cmos reset first before doing any kind of flashing.

I will provide you the latest 2017 bios for E387 and E353 for your gpu.

Verified
E387 Bios
2017 11 15
SKU 11265-09

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Unverified
2017 11 15

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

2017 11 03

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Verified
E353 Bios
2017 03 02

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

Unverified
2017 03 02

Sapphire RX 580 VBIOS

4 GB GDDR5, 1366 MHz GPU, 1750 MHz Memory

www.techpowerup.com

I tried CMOS reset and a new monitor with display port. Both monitor and cable are tested and are working. Still no image outside of windows. On this MSI page a couple of older bios versions are listed but I can't find any in depth information whether CSM is enabled or disabled by default. I searched in google but to no avail. Do you have any idea where I can find more detailed info of these bios version?

DoLlyBirD · May 31, 2022

Enable csm in the BIOS

eidairaman1 · May 31, 2022

Warlockmain18372 said:
I tried CMOS reset and a new monitor with display port. Both monitor and cable are tested and are working. Still no image outside of windows. On this MSI page a couple of older bios versions are listed but I can't find any in depth information whether CSM is enabled or disabled by default. I searched in google but to no avail. Do you have any idea where I can find more detailed info of these bios version?

DoLlyBirD said:
Enable csm in the BIOS

Most board makers have it enabled by default to reduce bootability problems

DoLlyBirD · May 31, 2022

eidairaman1 said:
Most board makers have it enabled by default to reduce bootability problems

It is likely this or perhaps the GPU hasn't got a uefi BIOS, it's rare on newer cards though some don't have it, BIOS flash adding GOP driver should solve the problem

amd uefi gop maker - Google Search

Mussels · Jun 2, 2022

Warlockmain18372 said:
I tried CMOS reset and a new monitor with display port. Both monitor and cable are tested and are working. Still no image outside of windows. On this MSI page a couple of older bios versions are listed but I can't find any in depth information whether CSM is enabled or disabled by default. I searched in google but to no avail. Do you have any idea where I can find more detailed info of these bios version?

The defaulting to UEFI started with AGESA 1.2.0.6

Roll back to anything using 1.2.0.3c - on your board that would be 7C94v18 from 2021-07-09

dloof · Nov 15, 2022

I had the same problem and was able to solve the issue with a BIOS downgrade. I bought new CPU, mobo, and ram while re-using my RX 580 and kept getting a black screen on boot. I couldn't get into the BIOS to make any changes due to the blackscreen.

Specs:
CPU: AMD Ryzen 5600
Motherboard: MSI PRO B550-VC (with 5000 Desktop Ready Sticker)
RAM: T-Force Vulcan Z DDR4 32GB Kit (2x16GB) 3200MHz
GPU: MSI RX 580 Gaming X 8G
PSU: Seasonic SS-660XP 660W 80 PLUS Platinum

The Fix:
The fix was to downgrade the BIOS to "7C56vI0" from "7C56vI1" that came with my motherboard. Under the description for v1, the description includes "Change the default setting of Secure Boot." This likely disabled CSM. Despite the fact that the motherboard was first available was August 26, 2022 - the BIOS version that provided compatibility was dated July 2022.

This video showed me how to flash the BIOS. Note that he chooses the newest BIOS, but I wanted to choose the oldest BIOS verison:

BIOS located on the MSI website: https://www.msi.com/Motherboard/PRO-B550-VC/support

Also, after gaining access to the BIOS, I changed the PCIE_1 setting from Auto to Gen 3. Unfortunately I didn't have an NVIDIA GPU to swap in and out: https://community.amd.com/t5/processors/b550-torpedo-rx580-no-image-black-screen/td-p/521589

Other things I tried:
I tried swapping cables and monitors. Didn't help.
I tried using a different PCIE slot, no dice.
I verified the BIOS on my RX580 using GPU-Z and AMDBFLASH. This video was helpful on how to fix if you have a used card that needs to flashed back.

I tried swapping the motherboard for a completely new one to rule out that the motherboard specific BIOS, but the problem transferred to the new MOBO. The board I swapped was an MSI MAG B550 TOMAHAWK Gaming Motherboard.

Thanks all for your help in this thread!

Mussels · Nov 15, 2022

You dont need to change the BIOS to get legacy mode working, you just disable secure boot and re-enable CSM.

That wont let you run a modern OS that needs UEFI, but it does let you see the BIOS with an older or incompatible graphics card

System Name	PCGOD
Processor	AMD FX 8350@ 5.0GHz
Motherboard	Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling	Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory	16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s)	AMD Radeon 290 Sapphire Vapor-X
Storage	Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s)	NEC Multisync LCD 1700V (Display Port Adapter)
Case	AeroCool Xpredator Evil Blue Edition
Audio Device(s)	Creative Labs Sound Blaster ZxR
Power Supply	Seasonic 1250 XM2 Series (XP3)
Mouse	Roccat Kone XTD
Keyboard	Roccat Ryos MK Pro
Software	Windows 7 Pro 64

System Name	PCGOD
Processor	AMD FX 8350@ 5.0GHz
Motherboard	Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling	Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory	16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s)	AMD Radeon 290 Sapphire Vapor-X
Storage	Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s)	NEC Multisync LCD 1700V (Display Port Adapter)
Case	AeroCool Xpredator Evil Blue Edition
Audio Device(s)	Creative Labs Sound Blaster ZxR
Power Supply	Seasonic 1250 XM2 Series (XP3)
Mouse	Roccat Kone XTD
Keyboard	Roccat Ryos MK Pro
Software	Windows 7 Pro 64

System Name	PCGOD
Processor	AMD FX 8350@ 5.0GHz
Motherboard	Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling	Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory	16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s)	AMD Radeon 290 Sapphire Vapor-X
Storage	Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s)	NEC Multisync LCD 1700V (Display Port Adapter)
Case	AeroCool Xpredator Evil Blue Edition
Audio Device(s)	Creative Labs Sound Blaster ZxR
Power Supply	Seasonic 1250 XM2 Series (XP3)
Mouse	Roccat Kone XTD
Keyboard	Roccat Ryos MK Pro
Software	Windows 7 Pro 64

System Name	KHR-1
Processor	Ryzen 9 5900X
Motherboard	ASRock B550 PG Velocita (UEFI-BIOS P3.40)
Memory	32 GB G.Skill RipJawsV F4-3200C16D-32GVR
Video Card(s)	Sapphire Nitro+ Radeon RX 6750 XT
Storage	Western Digital Black SN850 1 TB NVMe SSD
Display(s)	Alienware AW3423DWF OLED-ASRock PG27Q15R2A (backup)
Case	Corsair 275R
Audio Device(s)	Technics SA-EX140 receiver with Polk VT60 speakers
Power Supply	eVGA Supernova G3 750W
Mouse	Logitech G Pro (Hero)
Software	Windows 11 Pro x64 23H2

System Name	PCGOD
Processor	AMD FX 8350@ 5.0GHz
Motherboard	Asus TUF 990FX Sabertooth R2 2901 Bios
Cooling	Scythe Ashura, 2×BitFenix 230mm Spectre Pro LED (Blue,Green), 2x BitFenix 140mm Spectre Pro LED
Memory	16 GB Gskill Ripjaws X 2133 (2400 OC, 10-10-12-20-20, 1T, 1.65V)
Video Card(s)	AMD Radeon 290 Sapphire Vapor-X
Storage	Samsung 840 Pro 256GB, WD Velociraptor 1TB
Display(s)	NEC Multisync LCD 1700V (Display Port Adapter)
Case	AeroCool Xpredator Evil Blue Edition
Audio Device(s)	Creative Labs Sound Blaster ZxR
Power Supply	Seasonic 1250 XM2 Series (XP3)
Mouse	Roccat Kone XTD
Keyboard	Roccat Ryos MK Pro
Software	Windows 7 Pro 64

System Name	Rainbow Sparkles (Power efficient, <350W gaming load)
Processor	Ryzen R7 5800x3D (Undervolted, 4.45GHz all core)
Motherboard	Asus x570-F (BIOS Modded)
Cooling	Alphacool Apex UV - Alphacool Eisblock XPX Aurora + EK Quantum ARGB 3090 w/ active backplate
Memory	2x32GB DDR4 3600 Corsair Vengeance RGB @3866 C18-22-22-22-42 TRFC704 (1.4V Hynix MJR - SoC 1.15V)
Video Card(s)	Galax RTX 3090 SG 24GB: Underclocked to 1700Mhz 0.750v (375W down to 250W))
Storage	2TB WD SN850 NVME + 1TB Sasmsung 970 Pro NVME + 1TB Intel 6000P NVME USB 3.2
Display(s)	Phillips 32 32M1N5800A (4k144), LG 32" (4K60) \| Gigabyte G32QC (2k165) \| Phillips 328m6fjrmb (2K144)
Case	Fractal Design R6
Audio Device(s)	Logitech G560 \| Corsair Void pro RGB \|Blue Yeti mic
Power Supply	Fractal Ion+ 2 860W (Platinum) (This thing is God-tier. Silent and TINY)
Mouse	Logitech G Pro wireless + Steelseries Prisma XL
Keyboard	Razer Huntsman TE ( Sexy white keycaps)
VR HMD	Oculus Rift S + Quest 2
Software	Windows 11 pro x64 (Yes, it's genuinely a good OS) OpenRGB - ditch the branded bloatware!
Benchmark Scores	Nyooom.

rx580 won't work with new build

The Exiled Airman

New Member

The Exiled Airman

New Member

The Exiled Airman

New Member

The Exiled Airman

New Member

Attachments

The Exiled Airman

New Member

Attachments

The Exiled Airman

New Member

The Exiled Airman

New Member

The Exiled Airman

New Member

The Exiled Airman

New Member

The Exiled Airman

Freshwater Moderator

New Member

Freshwater Moderator
