xfx rx480 8gb flashed to saphire rx580

TonybonJoby · Apr 20, 2017

Rebe1 said:
@OP, can I ask what lvl of fps-improvement have you observed in Witcher 3 after flashing this new bios (more-less)?

I was getting around 49-52 fps before the mod. Right now I'm seeing 58.9-60 fps. I have my setting on max for the most part minus Nvidia hairworks

Rebe1 · Apr 20, 2017

TonybonJoby said:
I was getting around 49-52 fps before the mod. Right now I'm seeing 58.9-60 fps. I have my setting on max for the most part minus Nvidia hairworks

~20%, that's great result! To maintain the almost stable 60 fps I had to lower settings in W3 from ultra to v.high (I do not see almost any difference) so perhaps I could get a comparable improvement i.e. percentage-wise in my case.

TonybonJoby · Apr 20, 2017

im playing on a 25inch 1080p ips monitor. btw

biffzinker · Apr 20, 2017

Well for kicks I ran the puzzle game "The Room" unfortunately it didn't make it past the the Fireproof studios splash screen. Switched over to WattTool re-adjusted the voltages for the various Performance States. Made it to the main menu, and didn't crash.

TonybonJoby · Apr 20, 2017

biffzinker said:
Well for kicks I ran the puzzle game "The Room" unfortunately it didn't make it past the the Fireproof studios splash screen. Switched over to WattTool re-adjusted the voltages for the various Performance States. Made it to the main menu, and didn't crash.

View attachment 86665

good info! im going to try and touch more on WattTool in the stability section.

biffzinker · Apr 20, 2017

Looks like a success @TonybonJoby

Stable in game with the card pushing 75 FPS tied to the refresh rate for The Room, and no problems with playing DOOM as well tied to 75 FPS either. Steady frame rate in DOOM without any dips.

TonybonJoby · Apr 20, 2017

biffzinker said:
Looks like a success @TonybonJoby

Stable in game with the card pushing 75 FPS tied to the refresh rate for The Room, and no problems with playing DOOM as well tied to 75 FPS either. Steady frame rate in DOOM without any dips.

nice. do you notice any performance increase?

biffzinker · Apr 20, 2017

Old scores @ 1344 MHz

superposition_benchmark_v1-0_5932_1491940589-png.86162

superposition_benchmark_v1-0_2505_1491940962-png.86163

New scores @ 1411 MHz

superposition_benchmark_v1-0_6050_1492643613-png.86642

superposition_benchmark_v1-0_2583_1492645952-png.86646

Edit: Old scores have a bump to GDDR5 bandwidth of 266 GB/s vers 256 GB/s with the RX 580 BIOS

Solid State Brain · Apr 20, 2017

Does the new BIOS give any performance benefit for the same core/mem frequencies?

irekski · Apr 20, 2017

Solid State Brain said:
Does the new BIOS give any performance benefit for the same core/mem frequencies?

marginal at best. if you try to OC your RX480 to 1400 and just can't get it up.. Then this should be good.

Rebe1 · Apr 20, 2017

I'm curious from where did the Techpowerup got that bios - did they extracted if from the actual card during / after the review?

BackTo4 · Apr 20, 2017

BackTo4 said:
Hello from Germany!

Thought to flash my Strix O8G RX480 with rx580 bios.
Then, I first benched my 480. There is no need to flash I would say.
Only registred here to show the result, hope it is okay.

Core@1420Mhz & VRAM@2050Mhz View attachment 86674 View attachment 86675 View attachment 86676 View attachment 86674 View attachment 86675 View attachment 86676 View attachment 86674 View attachment 86675 View attachment 86676
Bios is the "silent bios" from Asus.
Custom set fan curve.


EarthDog · Apr 20, 2017

Solid State Brain said:
Does the new BIOS give any performance benefit for the same core/mem frequencies?

None, no. Its a voltage and clock increase.

Solid State Brain · Apr 20, 2017

EarthDog said:
None, no. Its a voltage and clock increase.

It could have been a possibility if for example it had tighter memory timings.

s10hotrod · Apr 20, 2017

TonybonJoby said:
did you use the files that i provided?

I tried both the 1411 and 1450 bios to no avail.

EarthDog · Apr 20, 2017

Solid State Brain said:
It could have been a possibility if for example it had tighter memory timings.

Indeed...but no.

AntDeek · Apr 20, 2017

Why are you guys using 17.4.3 beta instead of WHQL?

P4-630 · Apr 20, 2017

AntDeek said:
Why are you guys using 17.4.3 beta instead of WHQL?

The regular driver installation didn't work, you have to install the driver via the device manager and install the basic driver..
At least that's what the OP said a few pages ago.

AntDeek · Apr 20, 2017

P4-630 said:
The regular driver installation didn't work, you have to install the driver via the device manager and install the basic driver..
At least that's what the OP said a few pages ago.

Gotcha. Just an ini file?

Smoicol · Apr 20, 2017

Hello Tony have a bios for msi gaming x 480?

thank you

Smoicol@gmail.com

cool_recep · Apr 20, 2017

I have uploaded MSI RX 580 Gaming X 8G BIOS: https://www.techpowerup.com/vgabios/191334/191334

More info: https://www.technopat.net/sosyal/konu/msi-rx-580-gaming-x-8g-bios.437401/

TonybonJoby · Apr 20, 2017

Smoicol said:
Hello Tony have a bios for msi gaming x 480?

thank you

Smoicol@gmail.com

User Snowman88 was able to flash his Msi Gaming X 8gb to the 1411 bios (included in post #1) and obtain an overclock speed of 1450/2200mhz with stability.

Try using the first bios, if that one doesn't work try flashing it to the one that cool_recep has uploaded.

Snowman88 · Apr 20, 2017

So far i gotten: 1450/2200mhz with my "MSI Radeon RX 480 GAMING X 8gb" card.

rx480:

rx580:

TonybonJoby · Apr 20, 2017

P4-630 said:
The regular driver installation didn't work, you have to install the driver via the device manager and install the basic driver..
At least that's what the OP said a few pages ago.

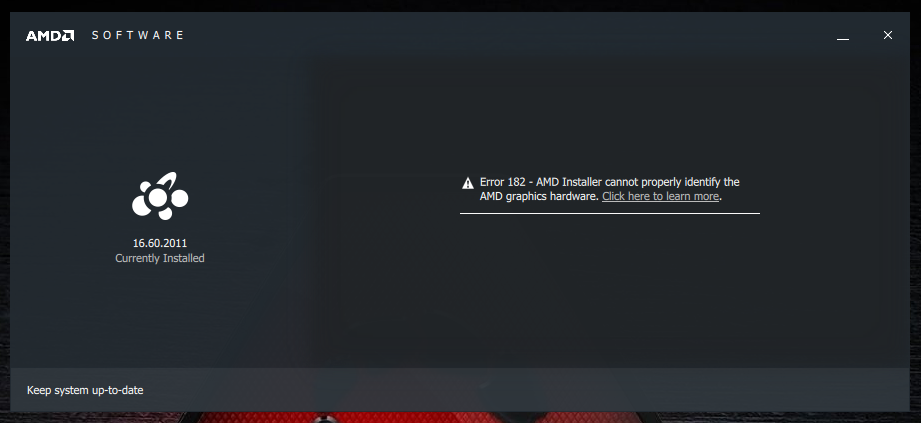

I had an issues with AMD giving me error 182. These drivers were for windows 7 64bit, since no official release for windows 8.1

Smoicol · Apr 20, 2017

Hello, i tried both bios but entered windows 10 x64 pro, i install the drivers and i patch as i always did with bios mod, but it does not work, i miss something?
