Intel Iris Graphics 540 Mobile

Graphics Processor
Skylake GT3e
Cores
384
TMUs
48
ROPs
6
Memory Size
System Shared
Memory Type
System Shared
Bus Width
System Shared

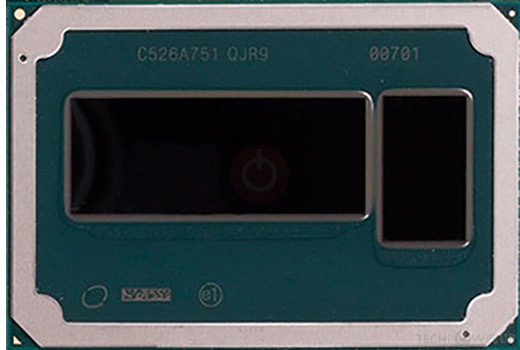

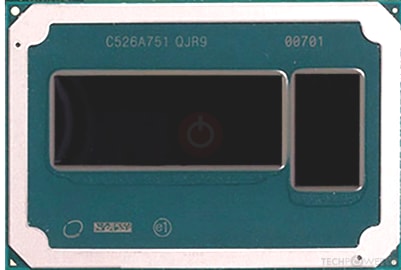

Front

Recommended Gaming Resolutions:

  • 640x480
  • 1280x720
  • 1366x768
The Iris Graphics 540 Mobile is a mobile integrated graphics solution by Intel, launched on September 1st, 2015. Built on the 14 nm+ process, and based on the Skylake GT3e graphics processor, the device supports DirectX 12. This ensures that all modern games will run on Iris Graphics 540 Mobile. It features 384 shading units, 48 texture mapping units, and 6 ROPs. The GPU is operating at a frequency of 300 MHz, which can be boosted up to 1000 MHz.
Its power draw is rated at 15 W maximum.

Graphics Processor

GPU Name
Skylake GT3e
Architecture
Generation 9.0
Foundry
Intel
Process Size
14 nm+
Transistors
unknown
Die Size
unknown

Integrated Graphics

Release Date
Sep 1st, 2015
Generation
HD Graphics-M
(Skylake)
Production
Active
Bus Interface
Ring Bus
Reviews
3 in our database

Clock Speeds

Base Clock
300 MHz
Boost Clock
1000 MHz
Memory Clock
System Shared

IGP Variants

  • Core i5-6360U: 1000 MHz
  • Core i7-6560U: 1050 MHz
  • Core i7-6650U: 1050 MHz

Memory

Memory Size
System Shared
Memory Type
System Shared
Memory Bus
System Shared
Bandwidth
System Dependent

Render Config

Shading Units
384
TMUs
48
ROPs
6
Execution Units
48

Theoretical Performance

Pixel Rate
6.000 GPixel/s
Texture Rate
48.00 GTexel/s
FP32 (float)
768.0 GFLOPS

Board Design

Slot Width
IGP
TDP
15 W
Outputs
Portable Device Dependent

Graphics Features

DirectX
12 (12_1)
OpenGL
4.6
OpenCL
3.0
Vulkan
1.3
Shader Model
6.4
