ASUS Radeon RX 6750 XT STRIX OC Review

Circuit Board Analysis »

Packaging

Package Front
Package Back


The Card

Graphics Card Front
Graphics Card Back
Graphics Card Front Angled

The ASUS RX 6750 XT is easily recognizable as a STRIX OC card as it shares the design with similar SKUs. A high-quality metal backplate is included on the back.

Graphics Card Dimensions

Dimensions of the card are 32.0 x 14.0 cm, and it weighs 1569 g.

Graphics Card Height
Graphics Card Back Angled

Installation requires three slots in your system.

Monitor Outputs, Display Connectors

Display connectivity includes three standard DisplayPort 1.4 and one HDMI 2.1.

Graphics Card Power Plugs

The card has two 8-pin power inputs. This configuration is rated for up to 375 W of power draw.


These headers let you attach a case fan, synchronizing it with the graphics card fans. This offers an easy mechanism that dynamically adjusts the heat output in your case while maintaining low noise levels when not gaming.

Multi-GPU Area

The AMD Radeon RX 6000 series doesn't support multi-GPU. Here you will find the dual BIOS switch, which lets you activate the "Quiet" mode BIOS that runs a more relaxed fan curve ("Performance" mode is the default).

Teardown

Graphics Card Cooler Front
Graphics Card Cooler Back

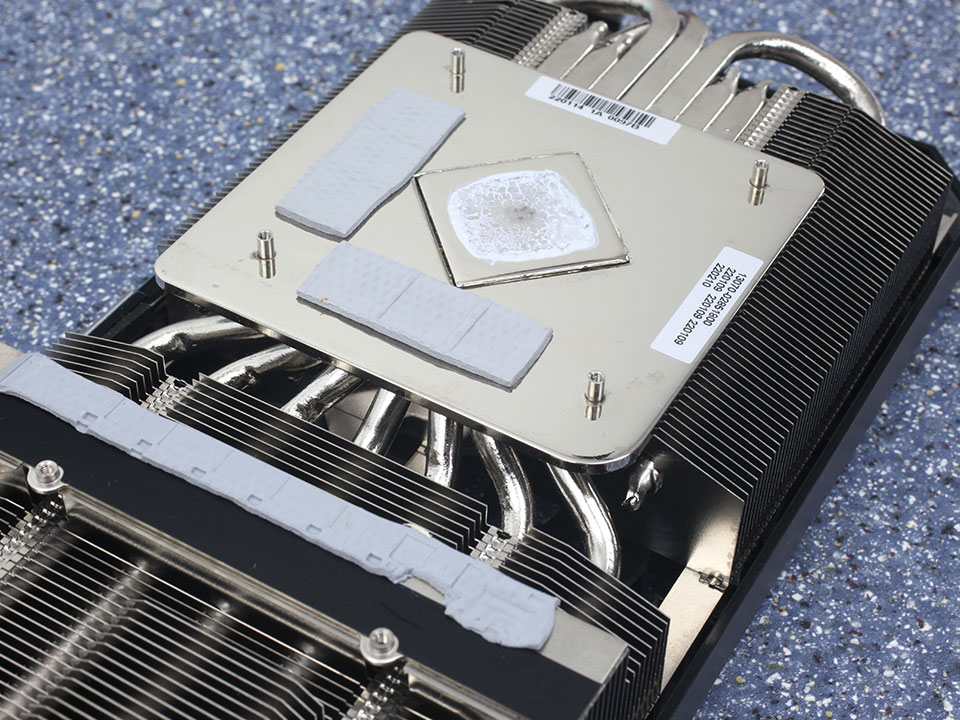

The ASUS thermal solution uses seven heatpipes and provides cooling for the memory chips and VRM circuitry.


Once the main heatsink is removed, a reinforcement bar becomes visible, which helps with card sagging due to its own weight.


The backplate is made of metal and protects the card from damage during handling and installation.
