Crucial T700 4 TB

4 TB
Capacity
Phison E26
Controller
TLC
Flash
PCIe 5.0 x4
Interface
M.2 2280
Form Factor

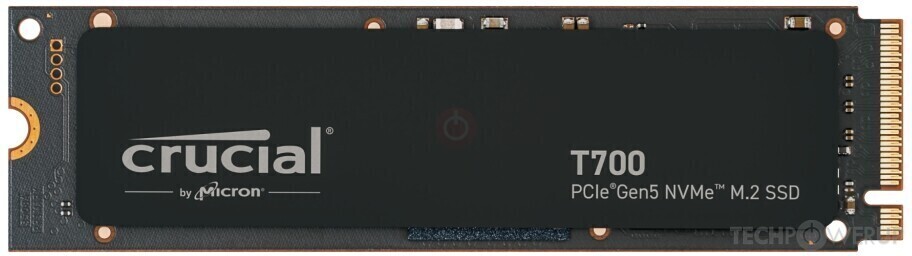

Front
SSD Controller
Controller
NAND Die
NAND Die
The Crucial T700 is a solid-state drive in the M.2 2280 form factor, launched in 2023. It is available in capacities ranging from 1 TB to 4 TB. This page reports specifications for the 4 TB variant. With the rest of the system, the Crucial T700 interfaces using a PCI-Express 5.0 x4 connection. The SSD controller is the PS5026-E26 from Phison, a DRAM cache chip is available. Crucial has installed 232-layer TLC NAND flash on the T700, the flash chips are made by Micron. To improve write speeds, a pseudo-SLC cache is used, so bursts of incoming writes are handled more quickly. Thanks to support for the fast PCI-Express 5.0 interface, performance is excellent. The T700 is rated for sequential read speeds of up to 12,000 MB/s and 11,000 MB/s write; random IO reaches 1500K IOPS for read and 1500K for writes.
At its launch, the SSD was priced at 630 USD. The warranty length is set to five years, which is an excellent warranty period. Crucial guarantees an endurance rating of 2400 TBW, a typical value for consumer SSDs.

Solid-State-Drive

Capacity: 4 TB (4000 GB)
Variants: 1 TB 2 TB 4 TB
Overprovisioning: 370.7 GB / 10.0 %
Production: Active
Released: 2023
Price at Launch: 630 USD
Part Number: Unknown
Market: Consumer

Physical

Form Factor: M.2 2280 (Double-Sided)
Interface: PCIe 5.0 x4
Protocol: NVMe 2.0
Power Draw: Unknown

Controller

Manufacturer: Phison
Name: PS5026-E26
Architecture: ARM 32-bit Cortex-R5 + AndesCore 32-bit N25F RISC-V
Core Count: 5-Core
Foundry: TSMC
Process: 12 nm
Flash Channels: 8 @ 2,400 MT/s
Chip Enables: 4
Controller Features: DRAM (enabled)

NAND Flash

Manufacturer: Micron
Name: B58R FortisFlash
Type: TLC
Technology: 232-layer
Speed: 2400 MT/s
Capacity: 4 chips @ 8 Tbit
ONFI: 5.0
Topology: Replacement Gate
Die Size: 70 mm²
(14.6 Gbit/mm²)
Dies per Chip: 8 dies @ 1 Tbit
Planes per Die: 6
Decks per Die: 2
Word Lines: 255 per NAND String
91.0% Vertical Efficiency
Read Time (tR): 61 µs
Program Time (tProg): 600 µs
Block Erase Time (tBERS): 15 ms
Die Read Speed: 1574 MB/s
Die Write Speed: 160 MB/s
Endurance:
(up to)		 2500 P/E Cycles
Page Size: 16 KB
Block Size: 2784 Pages
Plane Size: 3402 Blocks

DRAM Cache

Type: LPDDR4-4266
Capacity: 8192 MB
(2x 4096 MB)

Performance

Sequential Read: 12,000 MB/s
Sequential Write: 11,000 MB/s
Random Read: 1,500,000 IOPS
Random Write: 1,500,000 IOPS
Endurance: 2400 TBW
Warranty: 5 Years
Drive Writes Per Day (DWPD): 0.3
SLC Write Cache: Yes

Features

TRIM: Yes
SMART: Yes
Power Loss Protection: No
Encryption:
  • Unknown
RGB Lighting: No
PS5 Compatible: Yes

Same Drive

This section lists other SSDs in our database using the exact same hardware components

Notes

Drive:

Dies are running at 2000 MT/s

Controller:

This controller features a dual core Cortex-R5 as a primary cores, while a Tripple AndesCore 32-bit N25F RISC-V at 400-500 MHz act as a CoX Processor.

NAND Die:

2-Deck design with 116 word line per deck
Upper deck: 128-Gates
Lower Deck: 127-gates
Programming Throughput - not confirmed, calculated by estimated tPROG
tPROG - Estimated, not confirmed
