Acer Predator GM7000 4 TB

4 TB
Capacity
IG5236
Controller
TLC
Flash
PCIe 4.0 x4
Interface
M.2 2280
Form Factor
Package
Package
Back
Back
PCB Front
PCB Front
PCB Back
PCB Back
DRAM
DRAM

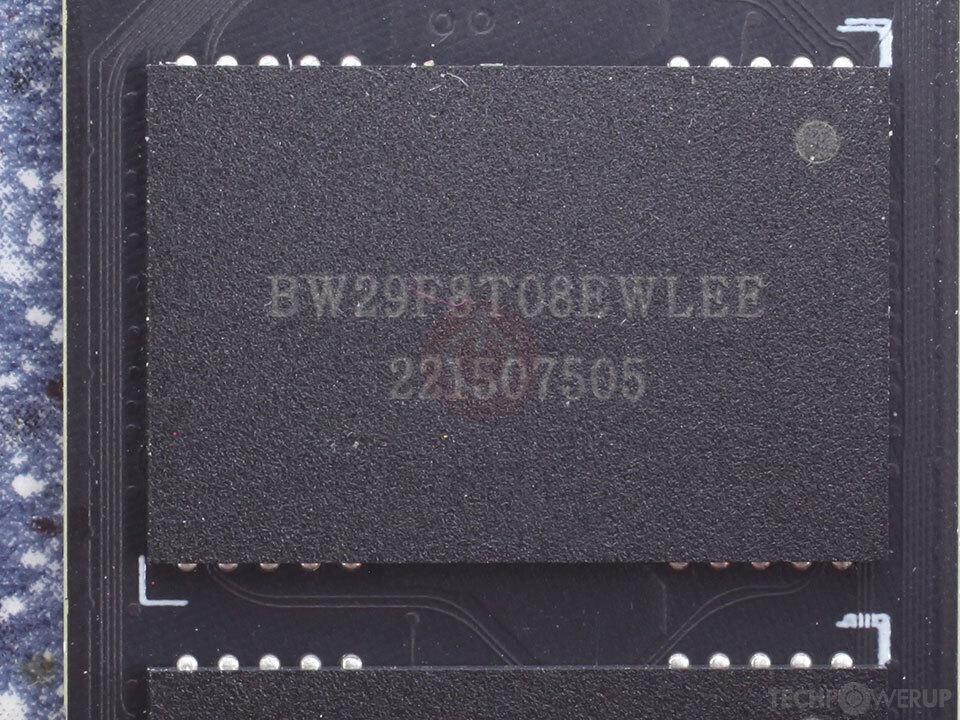

Flash
Flash
SSD Controller
Controller
NAND Die
NAND Die
The Acer Predator GM7000 is a solid-state drive in the M.2 2280 form factor, launched in 2022. It is only available in the 4 TB capacity listed on this page. With the rest of the system, the Acer Predator GM7000 interfaces using a PCI-Express 4.0 x4 connection. The SSD controller is the IG5236 (Rainier) from InnoGrit, a DRAM cache chip is available. Acer has installed 176-layer TLC NAND flash on the Predator GM7000, the flash chips are made by Micron. To improve write speeds, a pseudo-SLC cache is used, so bursts of incoming writes are processed more quickly. The cache is sized at 1300 GB, once it is full, writes complete at 2400 MB/s. Copying data out of the SLC cache (folding) completes at 1450 MB/s. Thanks to support for the fast PCI-Express 4.0 interface, performance is excellent. The Predator GM7000 is rated for sequential read speeds of up to 7,400 MB/s and 6,700 MB/s write; random IOPS reach up to 1350K for reads and 1150K for writes.
At its launch, the SSD was priced at 450 USD. The warranty length is set to five years, which is an excellent warranty period. Acer guarantees an endurance rating of 3000 TBW, a typical value for consumer SSDs.

Solid-State-Drive

Capacity: 4 TB (4096 GB)
Overprovisioning: 281.3 GB / 7.4 %
Production: Active
Released: 2022
Price at Launch: 450 USD
Part Number: Predator SSD GM7000 4TB
Market: Consumer

Physical

Form Factor: M.2 2280 (Double-Sided)
Interface: PCIe 4.0 x4
Protocol: NVMe 1.4
Power Draw: 1.1 W (Idle)
5.2 W (Avg)
6.3 W (Max)

Controller

Manufacturer: InnoGrit
Name: IG5236 (Rainier)
Architecture: ARM 32-bit Cortex-R5
Core Count: Quad-Core
Frequency: 667 MHz
Foundry: TSMC FinFET
Process: 12 nm
Flash Channels: 8 @ 1,200 MT/s
Chip Enables: 4
Controller Features: DRAM (enabled)

NAND Flash

Manufacturer: Micron
Name: B47R FortisFlash
Rebranded: BW29F8T08EWLEE (Rebranded by Biwin)
Type: TLC
Technology: 176-layer
Speed: 1200 MT/s .. 1600 MT/s
Capacity: 4 chips @ 8 Tbit
ONFI: 4.1
Topology: Replacement Gate
Die Size: 50 mm²
(10.2 Gbit/mm²)
Dies per Chip: 16 dies @ 512 Gbit
Planes per Die: 4
Decks per Die: 2
Word Lines: 195 per NAND String
90.3% Vertical Efficiency
Read Time (tR): 56 µs
Program Time (tProg): 502 µs
Block Erase Time (tBERS): 15 ms
Die Read Speed: 1143 MB/s
Die Write Speed: 127 MB/s
Endurance:
(up to)
3000 P/E Cycles
(40000 in SLC Mode)
Page Size: 16 KB
Block Size: 2112 Pages
Plane Size: 550 Blocks

DRAM Cache

Type: DDR4-3200 CL22
Name: SK Hynix H5ANAG6NCJR-XNC
Capacity: 4096 MB
(2x 2048 MB)
Organization: 16Gx16

Performance

Sequential Read: 7,400 MB/s
Sequential Write: 6,700 MB/s
Random Read: 1,350,000 IOPS
Random Write: 1,150,000 IOPS
Endurance: 3000 TBW
Warranty: 5 Years
MTBF: 2.0 Million Hours
Drive Writes Per Day (DWPD): 0.4
SLC Write Cache: approx. 1300 GB
(dynamic only)
Speed when Cache Exhausted: approx. 2400 MB/s
Cache Folding Speed: 1450 MB/s

Features

TRIM: Yes
SMART: Yes
Power Loss Protection: No
Encryption:
  • AES-512
RGB Lighting: No
PS5 Compatible: Yes

Reviews

Same Drive

This section lists other SSDs in our database using the exact same hardware components

Notes

NAND Die:

This Flash can run safely at 1600 MT/s (800 MHz)
tPROG with overhead: ~ 533 µs (Avg 120 MB/s per die)
