Silicon Power P34A80 1 TB (RTS5762 + Intel N38A)

1 TB
Capacity
RTS5762
Controller
QLC
Flash
PCIe 3.0 x4
Interface
M.2 2280
Form Factor

Multiple hardware versions found.

Performance could vary due to unannounced flash/controller changes.

SSD Controller
Controller
NAND Die
NAND Die

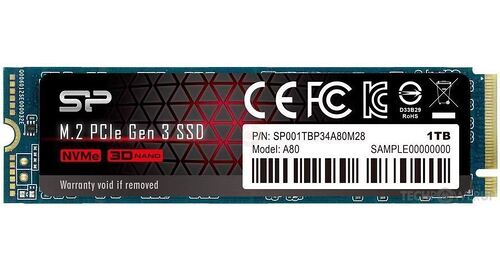

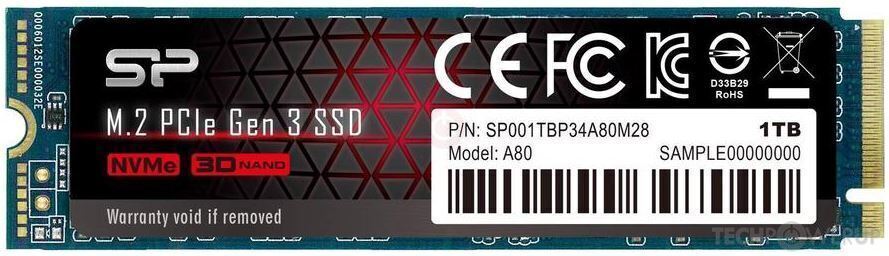

The Silicon Power P34A80 is a solid-state drive in the M.2 2280 form factor, launched in 2024. It is only available in the 1 TB capacity listed on this page. With the rest of the system, the Silicon Power P34A80 interfaces using a PCI-Express 3.0 x4 connection. The SSD controller is the RTS5762 from Realtek, a DRAM cache chip is available. Silicon Power has installed 144-layer QLC NAND flash on the P34A80, the flash chips are made by Intel. Please note that this SSD is sold in multiple variants with different NAND flash or controller, which could affect performance, the "Notes" section at the end of this page has more info. To improve write speeds, a pseudo-SLC cache is used, so bursts of incoming writes are handled more quickly. The P34A80 is rated for sequential read speeds of up to 3,400 MB/s and 3,000 MB/s write; random IO reaches 390K IOPS for read and 450K for writes.
At its launch, the SSD was priced at 110 USD. The warranty length is set to five years, which is an excellent warranty period. The TBW rating for the Silicon Power P34A80 1 TB is unknown.

Solid-State-Drive

Capacity: 1 TB (1024 GB)
Hardware Versions:
Overprovisioning: 70.3 GB / 7.4 %
Production: Active
Released: 2024
Price at Launch: 110 USD
Part Number: SP001TBP34A80M28
Market: Consumer

Physical

Form Factor: M.2 2280 (Double-Sided)
Interface: PCIe 3.0 x4
Protocol: NVMe 1.3
Power Draw: Unknown

Controller

Manufacturer: Realtek
Name:
RTS5762
Find More Drives
Architecture: ARM 32-bit
Core Count: Dual-Core
Frequency: 391 MHz
Flash Channels: 8 @ 667 MT/s
Chip Enables: 8
Controller Features: DRAM (enabled) HMB (enabled)

NAND Flash

Manufacturer: Intel
Name: N38A
Type: QLC
Technology: 144-layer
Speed: 1200 MT/s
Capacity: 4 chips @ 2 Tbit
Topology: Replacement Gate
Die Size: 80 mm²
(12.8 Gbit/mm²)
Dies per Chip: 2 dies @ 1 Tbit
Planes per Die: 4
Decks per Die: 3
Word Lines: 161 per NAND String
89.4% Vertical Efficiency
Read Time (tR): 85 µs
Program Time (tProg): 1630 µs
Block Erase Time (tBERS): 35 ms
Die Read Speed: 752 MB/s
Die Write Speed: 40 MB/s
Endurance:
(up to)
1500 P/E Cycles
Page Size: 16 KB
Block Size: 9216 Pages
Plane Size: 1032 Blocks

DRAM Cache

Type: DDR3 CL17
Capacity: 1024 MB
Organization: x8
Host-Memory-Buffer (HMB): 64 MB

Performance

Sequential Read: 3,400 MB/s
Sequential Write: 3,000 MB/s
Random Read: 390,000 IOPS
Random Write: 450,000 IOPS
Endurance: Unknown
Warranty: 5 Years
MTBF: 2.0 Million Hours
SLC Write Cache: Yes

Features

TRIM: Yes
SMART: Yes
Power Loss Protection: No
Encryption:
  • AES-256
  • TCG Opal
RGB Lighting: No
PS5 Compatible: No

Notes

Drive:

There is another variant with a different controller (SM2262ENG) with Intel/Micron's B16A/B17 FortisFlash 64-Layer Dies

Controller:

This Realtek controller is a Hybrid controller, it supports DRAM Cache for storing Meta-Data, but also supports H.M.B. (Host Memory Buffer)

NAND Die:

Block size is 48MB
Block Erase Time (tBERS): Maximum is 35 ms
